MX-5004MZ2-UF
4x2 HDMI 2.0a Quad-View Video Processor
with 4K2K60 4:4:4 & USB 3.0 FHD Video
Capture Function
User Manual

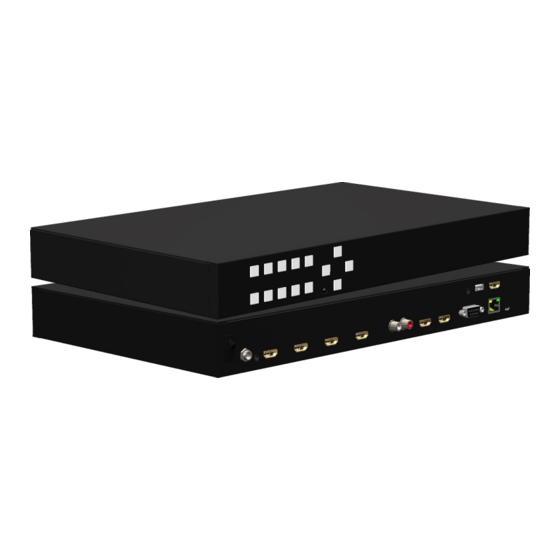

The MX-5004MZ2-UF
FHD Video Capture Function
requirements, and has been certified for international use. However, like all electronic equipment,
the MX-5004MZ2-UF should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION................................................................................................................. 1
FEATURES ......................................................................................................................... 1
PACKAGE CONTENTS ...................................................................................................... 2
SPECIFICATIONS .............................................................................................................. 3
HARDWARE INSTALLATION ............................................................................................. 4
CONNECTION DIAGRAM .................................................................................................. 4
PANEL DESCRIPTIONS ..................................................................................................... 5
OPERATION APPROACH .................................................................................................. 6
USB PIN DEFINITION ...................................................................................................... 21
WARRANTY ..................................................................................................................... 22
rev: 190506
Made in Taiwan
1
4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB 3.0
has been tested for conformance to safety regulations and
Advertisement
Table of Contents
Related Manuals for GoMax Electronics MX-5004MZ2-UF
Summary of Contents for GoMax Electronics MX-5004MZ2-UF
-
Page 1: Table Of Contents
However, like all electronic equipment, the MX-5004MZ2-UF should be used with care. Please read and follow the safety instructions to 4x2 HDMI 2.0a Quad-View Video Processor protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 2: Introduction
Supports video resolution up to 1080p 60Hz (Video stream over USB 3.0) Supports HDMI loopout from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive Supports HDMI audio extraction The MX-5004MZ2-UF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB Recording Video Format: H.264 (Software Compression) 3.0 FHD Video Capture Function... -
Page 3: Specifications
Role of usage Multiplexer / video processor 2. Connect the display to HDMI Output on the MX-5004MZ2-UF. Background picture update 3. Connect the +12V 5A DC power supply to the MX-5004MZ2-UF. HDCP compliance 1.4 / 2.2 HDMI compliance HDMI 2.0a... -
Page 4: Panel Descriptions
PANEL DESCRIPTIONS OPERATION APPROACH Method A: IR Remote Control MX-5004MZ2-UF Front Panel Button Function POWER Power on/off the device LOCK Lock/unlock the device ▲ Arrow button (up) MENU OSD menu AUDIO Select audio sources Windows Source Selection A-D: Window A-D source selection (from the left to the right is D, C, B,... - Page 5 Method B: Software Control through RS-232 / Ethernet port Control Interface 1. System Requirement (1) OS information: MS Win XP/7/8/10 (2) Baud rates: 115200 (3) Software size: 10 MB (4) Minimum RAM requirement: 256MB 2. Control interface When clicking on the executable file, the following dialog will pop-up (under Microsoft Windows 7, please run as administrator) RS-232 serial Mode: Use RS-232 to connect the port on device and computer.
- Page 6 2. Output Settings (3) Output Resolution Set the output resolution. In this section, users can set up the coordinate for inputs, the source of window A~D, output resolution, layout setting (PAP or full screen) and switch mode. (1) Source Selection For each display window, you can assign arbitrary video source here.
- Page 7 (5) Display Panel 3. Advanced Setting In the left part of control interface, user can customize the display mode thru control. The different colors of frame represent the different input windows. The information of coordinate shows the position of input source screen. In addition, we provide display ratio for users to set the display panel sizes.
- Page 8 (3) Window Label 4. EDID (Extended display identification data) In this function, users can determine if the window’s label/border is turned on or off. (4) Background To set up the background of window. We provide 4 empty space for user to upload background pictures.
- Page 9 Click “update” button to do firmware update. 5. System Setting (2) Factory Reset Click button to do factory default reset. The process of default reset will take about 25 seconds. (1) Firmware Update Click button to do firmware update. ...
- Page 10 6. IP Configure Method C: Cloud Control (Eagleyes) through Ethernet Port User also can use the WEB to control the mixer. Firstly, user should click on the button to setup network set. Next, users can setup the Ethernet for the unit as below example Create Account shows.
- Page 11 Add Device to Eagleyes 4. After adding the device, the list of device related to your account will show on the right top 1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the corner. You can click the button to switch device for control. software with device to get the register code (Note: the status of software is connected).
-
Page 12: Usb Pin Definition
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the MX-5004MZ2-UF features and specifications is subject to change without further notice.
