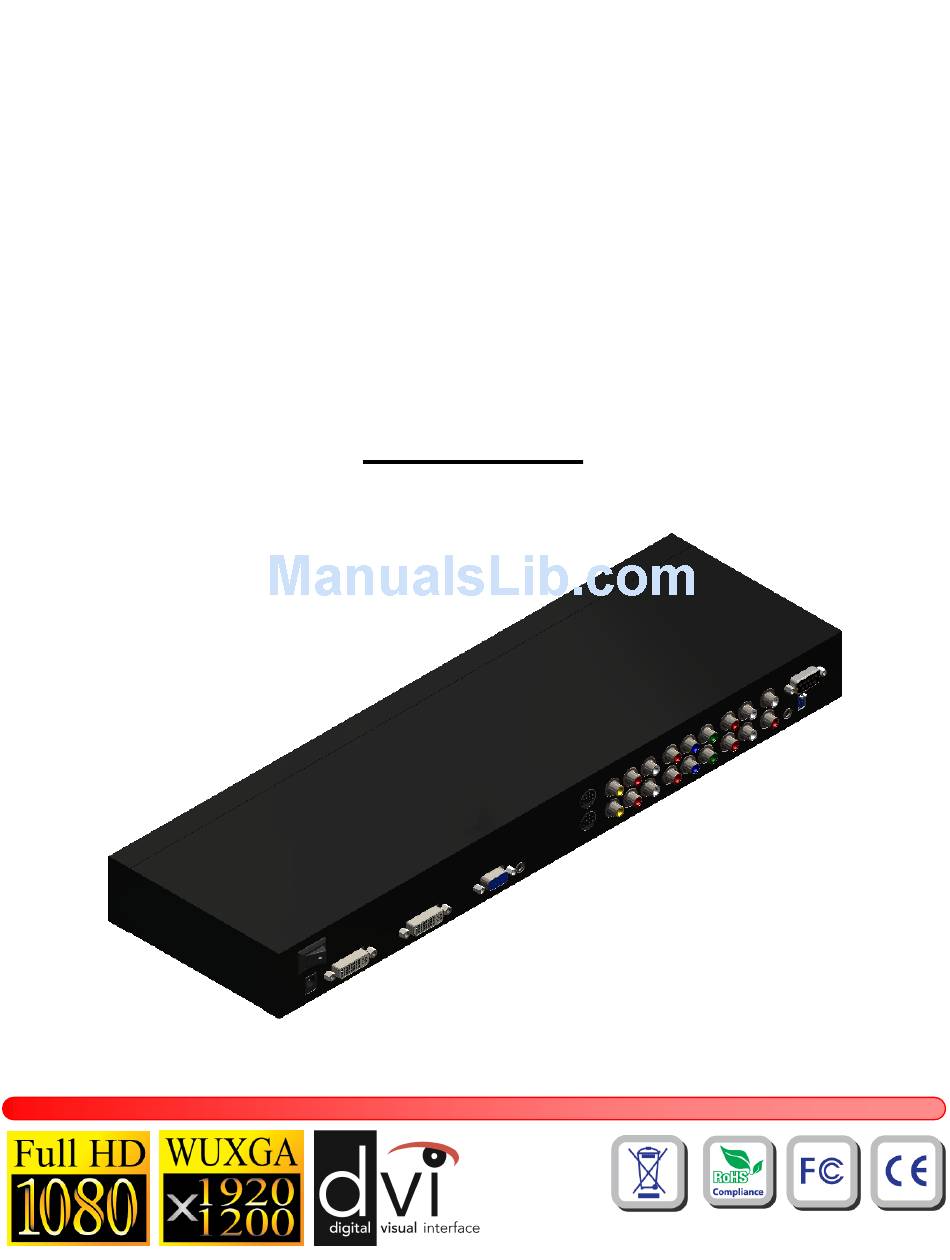

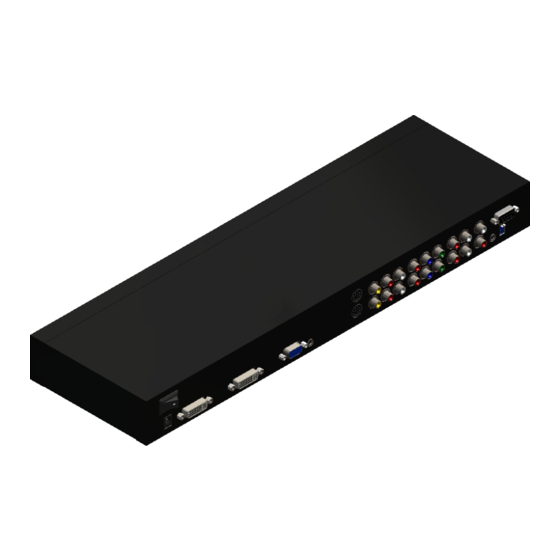

- Page 1 MX-1010 Dual-View Video Enhancing Processor User Manual Made in Taiwan...
-
Page 2: Safety And Notice
However, like all electronic equipments, the MX-1010 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction General Features Specifications Package Contents Inputs and Outputs Chapter 2 Hardware Installation Safety Precautions Installation Procedure Chapter 3 IR Remote Control On Screen Display Menu Chapter 4 Software Operation System Requirement and Precautions Instruction of Software Connection Chapter 5 Troubleshooting Warranty Appendix Supported Resolution... -
Page 4: Chapter 1 Introduction
Introduction Overview The MX-1010 Dual-View Video Enhancing Processor is an advanced video processor to enhance the video quality for multimedia presentations. It is an ideal solution for applications where two video signals must be displayed on a single display. It supports up to nine video inputs, of which two, one digital and one analog, can be outputted simultaneously in Picture-In-Picture (PIP) or Picture-Aside-Picture (PAP) modes. -
Page 5: Features
Features Two graphics (DVI / VGA) and six video (two S-Video / two component / two composite) Inputs, from 640x480 to 1920x1200, interlaced or progressive. Dual outputs (DVI / VGA), 640x480 to 1920x1200 with default resolution 1280x1024. Support audio inputs from either stereo RCA or PC ear phone. ... -
Page 6: Specifications
Operation temperature 0~40C [32~104F] Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] 1x MX-1010 or MX-1010P 1x IR remote controller 1x DVI to DVI&VGA breakout cable 1x 5V 4A power adapter Package Contents 1x DVI to HDMI cable... - Page 7 Package Content 1. MX-1010 2. DVI to DVI & VGA breakout cable (DDVY01) 3. DVI to HDMI cable 4. DVI to VGA adapter (DVA01) 6. IR remote controller 5. RS-232 to USB Adapter 7. 5V 4A DC power adapter 8. 1U rack mounting-ear 9.
-
Page 8: Inputs And Outputs
Except DVI, any other video sources are analog. Figure 2 shows the connectors on the rear panel of MX-1010 while Table 1 and 2 list separately the available video and audio inputs of the MX-1010. -
Page 9: Chapter 2 Hardware Installation
Installation Procedures Unpacking Remove the MX-1010 from the shipping container and examine it for any signs of shipping damage or missing items (check with package contents above). All shipping items should be saved if the product is to be moved or returned for service. Shipping unit back to dealers for service not in the original box may result in voiding warranty or additional cost. - Page 10 2. Connect a monitor, a projector or other displays that comes with DVI or VGA inputs by using a male-to-male DVI (VGA) cable to MX-1010 DVI output (you can connect 2 displays equipped with DVI and VGA respectively by a DVI to DVI&VGA breakout cable (DDVY01)).
-
Page 11: Chapter 3 Ir Remote Control
IR remote Control The MX-1010 is packaged with a remote control that allows for direct access to most commands used to control the video processor. Figure 4: Remote Control ~ 8 ~... - Page 12 Table 2: IR Functionalities Mute Mute the audio output Power Power on/off the device Change to PIP Display mode Scan Enter Auto TV Tuner Mode while the input is TV Split Change to PAP Display mode Pip Asp PIP Display Aspect Ratio Adjustment Pip Source Press to select a source for PIP channel Pip Size...
-
Page 13: On Screen Display Menu
On Screen Display Menu Image Settings Scheme: Normal, Vivid, Cinema, Game, Sport Five slider controls for video quality: Brightness, Contrast, Saturation, Hue, Sharpness Advanced: Noise Reduction, Flash tone, Dynamic Contrast, Color Noise Reduction: MPEG NR (MPEG Noise Reduction) Temporal NR (Temporal Noise Reduction) Flash tone: Enhance Flash Dynamic Contrast: 5 Level Control Color: User Defined Color Temperature... -
Page 14: Display Settings
Display Settings Auto Aspect Ratio Aspect Ratio: 16:9, Letter Box, Pillow Box Expand Resolution: Define the output―s resolution 800x600@60, 1024x768@60, 1280x1024@60, 1280x720@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1920x1080@60, 1920x1200@60, 1600x1200@60 PIP: PIP Mode: off, Large PIP, Small PIP, Side by Side (PBP) PIP Position: Bottom-Right, Bottom-Left, Top-Left, Top-Right Multi-PIP Configuration: POP7, 3x3 GRID, POP3, POP12 Multi-PIP On*: YES, NO... -
Page 15: Chapter 4 Software Operation
COM port and the MX-1010 and switched on the MX-1010 with green LED light. 3. The MX-1010 has remote control and software control. To make sure all information shown in the software is synchronized with those in the device, please click “Connect‖ to acquire the latest data from the MX-1010 after you press any key on the remote control. -
Page 16: Chapter 5 Troubleshooting
No/ Erratic video Make sure all cables are in good working condition and properly connected to the MX-1010 and displays. Configure the output video resolution so that it doesn―t excess the native resolution of the display. ( in this case, the message of “out of range‖ or “format not supported‖... -
Page 17: Warranty
Limited Warranty The SELLER warrants the MX-1010 Dual-View Video Enhancing Processor to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges. -
Page 18: Appendix Supported Resolution
Appendix – Supported Resolution [DVI-IN] socket Supported Mode Resolution NTSC – 480i / 525i 720x240 @60Hz 832x624 @75Hz PAL– 576i / 625i 720x288 @50Hz VESA 1024x768 @60Hz PAL– 480p / 525p 720x483 @60Hz 1024x768 @60Hz PAL– 480p (16:9) 960x483 @60Hz VESA 1024x768 @70Hz PAL–... - Page 19 [VGA-IN] socket Supported Mode Resolution 480p / 525p 720x483 @60Hz VESA 800x600 @56Hz 480p (16:9) 960x483 @60Hz VESA 800x600 @60Hz HDTV – 720p 1280x720 @50Hz VESA 800x600 @72Hz HDTV – 720p 1280x720 @60Hz VESA 800x600 @75Hz HDTV – 1080i 1920x1080 @30Hz VESA 800x600 @85Hz HDTV - 1080p...
