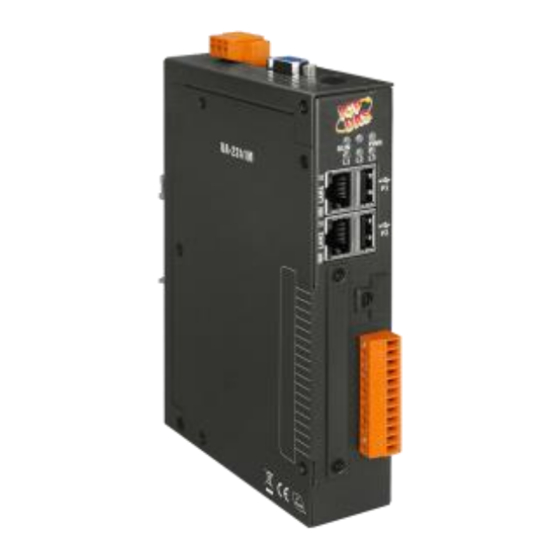

UA-2200 Series Quick Start
English / v1.0 / Apr. 2019
What's in the box?
The shipping package contains this document and the following
items:
MicroSD 卡
CA-0910
UA-2241M
Cable
Pin Terminalx 16
Screw Driver
[Technical Support]
UA Series User Manual:
http://ftp.icpdas.com/pub/cd/UA-
Series/user_manual/UA-5231_UA-2241
ICP DAS Website: http://www.icpdas.com
Technical Support E-Mail: service@icpdas.com
Advertisement
Related Manuals for ICP DAS USA UA-2200 Series
Summary of Contents for ICP DAS USA UA-2200 Series
- Page 1 UA-2200 Series Quick Start English / v1.0 / Apr. 2019 What’s in the box? The shipping package contains this document and the following items: MicroSD 卡 CA-0910 UA-2241M Cable Pin Terminalx 16 Screw Driver [Technical Support] UA Series User Manual: http://ftp.icpdas.com/pub/cd/UA-...
- Page 2 Preparations for Devices 1. Power Supply: +12 ~ +48 VDC (Ex: DP-665) 2. Ethernet Hub or Switch (Ex: NS-205) 3. PC/NB: Can connect to the network and set the network Hardware Connection Connect the UA-2200 with the RJ-45 Ethernet port to an Ethernet hub/switch and PC.
- Page 3 Network Connection Factory Default Settings of UA-2200 192.168.255.1 IP LAN1 Assign UA-2200 LAN2 10.0.0.1 a new IP setting Network 255.255.0.0 Netmask according to your case. 192.168.1.1 Gateway root Username After login, Account change your icpdas Password password ASAP. root Username (Refer User Web UI...
- Page 4 http://192.168.255.1 Type in the URL address. Use default root/root Web UI username/password to login the system. Click【System Setting】【Network Setting】【Network Setting(LAN1)】to change the IP setting by user network. Save the IP setting, restore the PC original IP settings, and type the new IP in the browser as step-3 to login the Web UI of UA-2200.
