ICP DAS USA I-7532 Quick Start Manual

Two channel can bus bridge

Two Channel CAN Bus Bridge

Product Website:

http://www.icpdas-usa.com/i_7532.html

Introduction

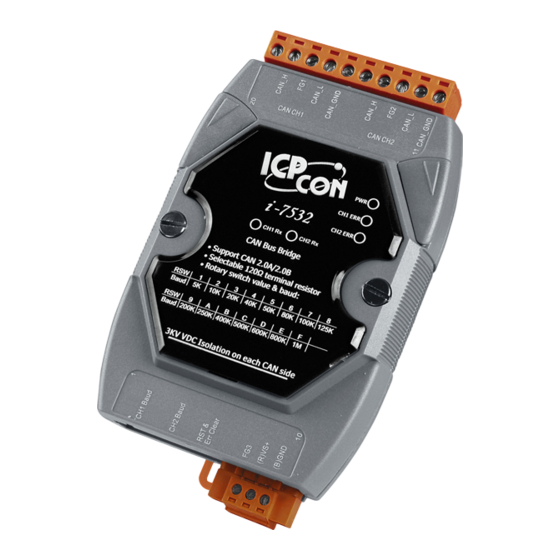

The I-7532 is a CAN bus bridge that can be used to integrate two CAN networks even

they implement different CAN baud rate. Compared with the I-7531, the I-7532 offers

more than 3 useful features. First, the transmission distance limitation of the CAN bus

system on each side of the I-7532 is independent, which means the total CAN network

distance can be extended. Second, when some errors (e.g. bit error) happened on one

CAN port of the I-7532, the other CAN port of the I-7532 will not be affected and can still

work correctly. Last, the baud rate and CAN message filter configuration of these two

CAN ports on the I-7532 is able to be tuned following users' applications. These

features mean that users can design their applications more flexible and efficient.

I-7532 Two Channel CAN Bus Bridge

ICP DAS USA, Inc. |

www.icpdas-usa.com

I-7532

Quick Start Guide

- QuickStart (Jul/2016)

| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Table of Contents

Do you have a question about the I-7532 and is the answer not in the manual?

Page 1 Second, when some errors (e.g. bit error) happened on one CAN port of the I-7532, the other CAN port of the I-7532 will not be affected and can still work correctly. Last, the baud rate and CAN message filter configuration of these two CAN ports on the I-7532 is able to be tuned following users' applications.
Page 2 I-7532 to take the setting effect. If the “CANBaud Rotary Switch” is set to be „0‟, then I-7532 will go into module configuration mode and others of “CANBaud Rotary Switch” will go into communication mode.
Page 3 5. LED Indication I-7532 Two Channel CAN Bus Bridge - QuickStart (Jul/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
