LEDS:

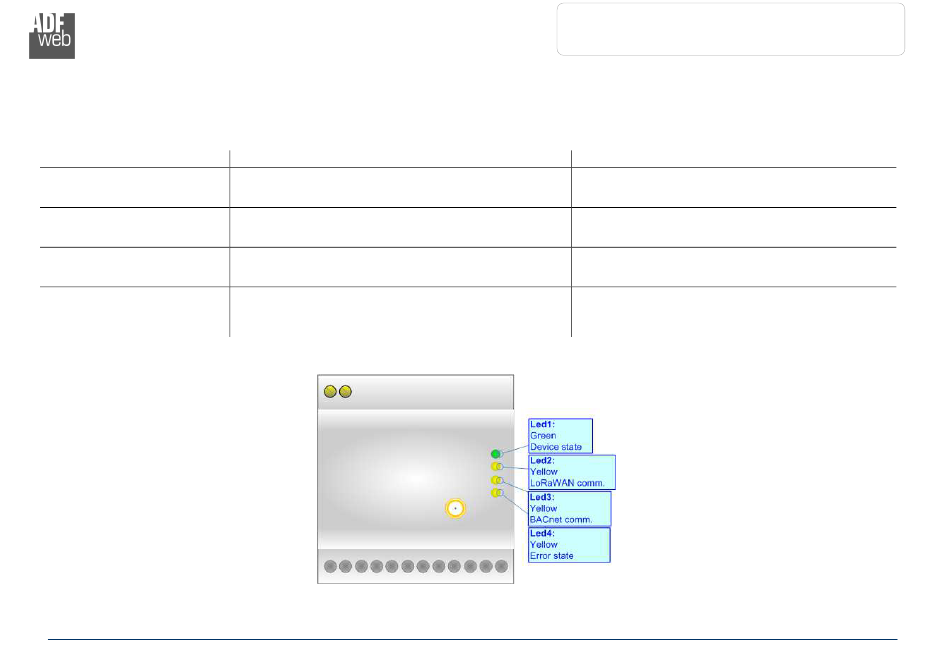

The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: LoRaWAN communication
(yellow)
3: BACnet communication
(yellow)
4: Error state (yellow)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
Blinks when LoRaWAN data is received
Blinks when a BACnet request is received
ON: An error in the communication busses occurs
OFF: No errors are present
User Manual LoRaWAN / BACnet Slave
Document code: MN67D17_ENG
Revision 1.000
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Page 10 of 31
