LORAWAN ACCESS:
By Pressing the
"LoRaWAN
Access" button from the main window for SW67D17 (Fig. 2) the window "Set LoRaWAN Access" appears (Fig.
4).
This section is used to define the LoRAWAN messages where the converter will place the data read from BACnet (Uplink) and the LoRAWAN
messages that the converter will take (Downlink) for writing the data to BACnet.
L
R
WAN U
O
A
PLINK

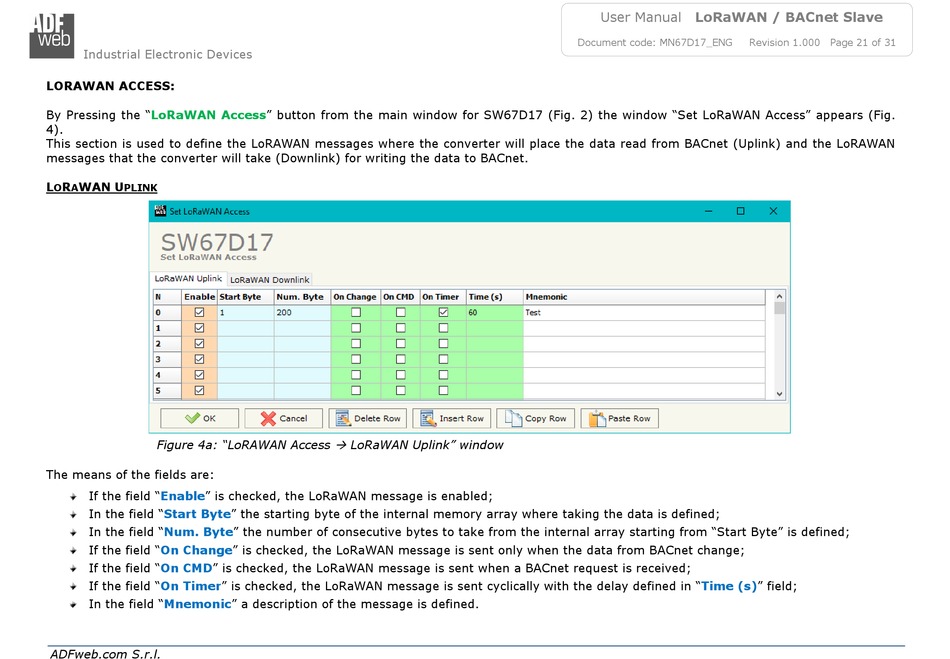

Figure 4a: "LoRAWAN Access
The means of the fields are:
If the field "Enable" is checked, the LoRaWAN message is enabled;
In the field
"Start
Byte" the starting byte of the internal memory array where taking the data is defined;
In the field
"Num.
Byte" the number of consecutive bytes to take from the internal array starting from "Start Byte" is defined;
If the field
"On
Change" is checked, the LoRaWAN message is sent only when the data from BACnet change;
If the field
"On
CMD" is checked, the LoRaWAN message is sent when a BACnet request is received;
If the field
"On
Timer" is checked, the LoRaWAN message is sent cyclically with the delay defined in
In the field "Mnemonic" a description of the message is defined.
ADFweb.com S.r.l.
LoRaWAN Uplink" window
User Manual LoRaWAN / BACnet Slave
Document code: MN67D17_ENG
Revision 1.000
"Time
(s)" field;
