Industrial Electronic Devices
User Manual
Revision 1.000
English
lorawan

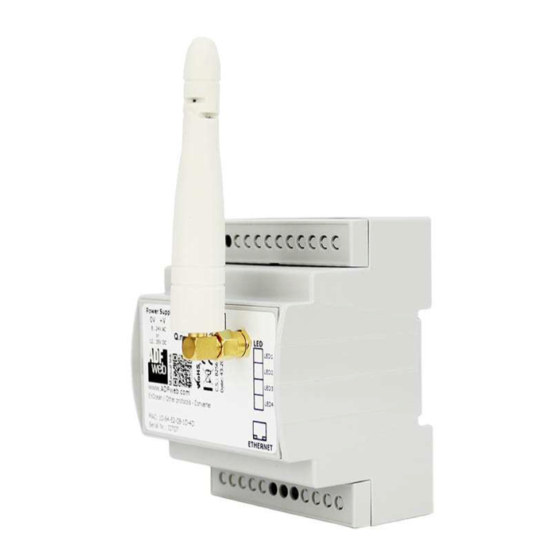

LoRaWAN / CANopen - Converter
(Order Code: HD67D20-B2-868MHz
For Website information:
www.adfweb.com?Product=HD67D20-B2
For Price information:
www.adfweb.com?Price=HD67D20-B2-868MHz
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual LoRaWAN / CANopen
Document code: MN67D20_ENG
For others LoRaWAN products, see also the following links:
Converter LoRaWAN to
www.adfweb.com?Product=HD67D01
www.adfweb.com?Product=HD67D02
www.adfweb.com?Product=HD67D03
www.adfweb.com?Product=HD67D04
www.adfweb.com?Product=HD67D05
www.adfweb.com?Product=HD67D15
www.adfweb.com?Product=HD67D16
www.adfweb.com?Product=HD67D17
www.adfweb.com?Product=HD67D18
www.adfweb.com?Product=HD67D19
www.adfweb.com?Product=HD67D21
www.adfweb.com?Product=HD67D22
www.adfweb.com?Product=HD67D23
www.adfweb.com?Product=HD67D24
www.adfweb.com?Product=HD67D25
www.adfweb.com?Product=HD67D26
www.adfweb.com?Product=HD67D27
www.adfweb.com?Product=HD67D28
www.adfweb.com?Product=HD67D29
www.adfweb.com?Product=HD67D30
www.adfweb.com?Product=HD67D31
www.adfweb.com?Product=HD67D32
www.adfweb.com?Product=HD67D33
www.adfweb.com?Product=HD67D34
www.adfweb.com?Product=HD67D35
www.adfweb.com?Product=HD67D36
www.adfweb.com?Product=HD67D37
www.adfweb.com?Product=HD67D38
www.adfweb.com?Product=HD67D39
www.adfweb.com?Product=HD67D40
www.adfweb.com?Product=HD67D41
Revision 1.000
Page 1 of 33
(LoRaWAN)
(LoRaWAN)
(Modbus TCP Master)
(Modbus TCP Slave)
(Serial)
(M-Bus)
(BACnet Master)
(BACnet Slave)
(Ethernet)
(CAN)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Master)
(EtherNet/IP Slave)
(J1939)
(KNX)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Master)
(PROFIBUS Slave)
(PROFINET Master)
(PROFINET Slave)
(IEC61850 Client)
(IEC61850 Server)
(MQTT)
(OPC UA Client)
(OPC UA Server)
(S7comm)
(SNMP Manager)
(SNMP Agent)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67D20-B2
Summary of Contents for ADF Web HD67D20-B2
- Page 1 Page 1 of 33 Industrial Electronic Devices User Manual Revision 1.000 English lorawan LoRaWAN / CANopen - Converter (Order Code: HD67D20-B2-868MHz For others LoRaWAN products, see also the following links: For Website information: www.adfweb.com?Product=HD67D20-B2 Converter LoRaWAN to www.adfweb.com?Product=HD67D01 (LoRaWAN) www.adfweb.com?Product=HD67D02...
-
Page 2: Table Of Contents
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 2 of 33 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 3 of 33 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 4 of 33 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 5 of 33 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67D20-B2-xxxMHz ADFweb.com S.r.l. -
Page 6: Characteristics
Revision 1.000 Page 6 of 33 Industrial Electronic Devices CHARACTERISTICS: The HD67D20-B2 is a LoRaWAN / CANopen Converter. It allows the following characteristics: Electrical isolation between CANopen and Power Supply; Mountable on 35mm Rail DIN; Wide power supply input range: 12…35V DC and 8…24V AC;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67D20-B2-xxxMHz Caution: Not reverse the polarity power HD67D20-B2-xxxMHz ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 8 of 33 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 9 of 33 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Lorawan
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 10 of 33 Industrial Electronic Devices LORAWAN: The LoRaWAN® specification is a Low Power, Wide Area (LPWA) networking protocol designed to wirelessly connect battery operated ‘things’ to the internet in regional, national or global networks, and targets key Internet of Things (IoT) requirements such as bi- directional communication, end-to-end security, mobility and localization services. -
Page 11: Can
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 11 of 33 Industrial Electronic Devices CAN: For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ is at ON position. Cable characteristics: DC parameter: Impedance... -
Page 12: Ethernet
The Ethernet port is used for programming the device. The Ethernet connection must be made using Connector2 of HD67D20-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 13: Use Of Compositor Sw67D20
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 13 of 33 Industrial Electronic Devices USE OF COMPOSITOR SW67D20: To configure the Converter, use the available software that runs with Windows called SW67D20. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 14: New Configuration / Open Configuration
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 14 of 33 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “LoRaWAN / CANopen - Converter”... -
Page 15: Software Options
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 15 of 33 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 16 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 16 of 33 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 17: Set Communication
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 17 of 33 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67D20 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: LoRaWAN... - Page 18 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 18 of 33 Industrial Electronic Devices WAN: This section is used to define the general parameters of LoRaWAN. The means of the fields are: In the field “RF Band” the wireless band used for LoRaWAN communication is defined;...
- Page 19 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 19 of 33 Industrial Electronic Devices OPEN This section is used to define the general parameters of LoRaWAN. The means of the fields are: In the field “ID Device” the ID of the CANopen side is defined; In the field “Baudrate”...
-
Page 20: Lorawan Access
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 20 of 33 Industrial Electronic Devices LORAWAN ACCESS: By Pressing the “LoRaWAN Access” button from the main window for SW67D20 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig. 4). - Page 21 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 21 of 33 Industrial Electronic Devices WAN D OWNLINK Figure 4b: “LoRAWAN Access LoRaWAN Downlink” window The means of the fields are: If the field “Enable” is checked, the LoRaWAN message is enabled; In the field “Start Byte”...
-
Page 22: Set Sdo Server
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 22 of 33 Industrial Electronic Devices SET SDO SERVER: By pressing the “Set SDO Server” button from the main window for SW67D20 (Fig. 2) the window “Set SDO Server Access”... -
Page 23: Set Sdo Client
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 23 of 33 Industrial Electronic Devices SET SDO CLIENT: By pressing the “Set SDO Client” button from the main window for SW67D20 (Fig. 2) the window “Set SDO Client Access” appears (Fig. 6a and 6b). - Page 24 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 24 of 33 Industrial Electronic Devices The data of the columns in the “SDO Write” have the following meanings: In the field "Device ID" insert the ID of the device to write;...
-
Page 25: Set Pdo Access
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 25 of 33 Industrial Electronic Devices SET PDO ACCESS: By pressing the “Set PDO Access” button from the main window for SW67D20 (Fig. 2) the window “Set PDO Access” appears (Fig. 7a and 7b). -
Page 26: Eds File
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 26 of 33 Industrial Electronic Devices The data of the columns in the “Transmit PDO” have the following meanings: In the Field "Cob-ID" the address for the PDO is defined; In the Field "Dimension"... -
Page 27: Update Device
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 27 of 33 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 28 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 28 of 33 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67D20 device. Warning: If Fig. 9 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
- Page 29 User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 29 of 33 Industrial Electronic Devices LORAWAN PAYLOAD The LoRAWAN messages in Uplink and Downlink are structured into a defined format in order to recognize them from LoRaWAN gateway side and to understand to which bytes of the internal memory array they are associated.
-
Page 30: Mechanical Dimensions
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 30 of 33 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67D20-B2 ADFweb.com S.r.l. -
Page 31: Ordering Informations
Enclosure Type B: Modulbox 2M, 35mm DIN Rail mounting Device Family HD67D20: LoRaWAN / CANopen - Converter Order Code: HD67D20-B2-868MHz LoRaWAN / CANopen – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 32: Disclaimer
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 32 of 33 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 33: Warranties And Technical Support
User Manual LoRaWAN / CANopen Document code: MN67D20_ENG Revision 1.000 Page 33 of 33 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
