Model 73ER, Metal Frame

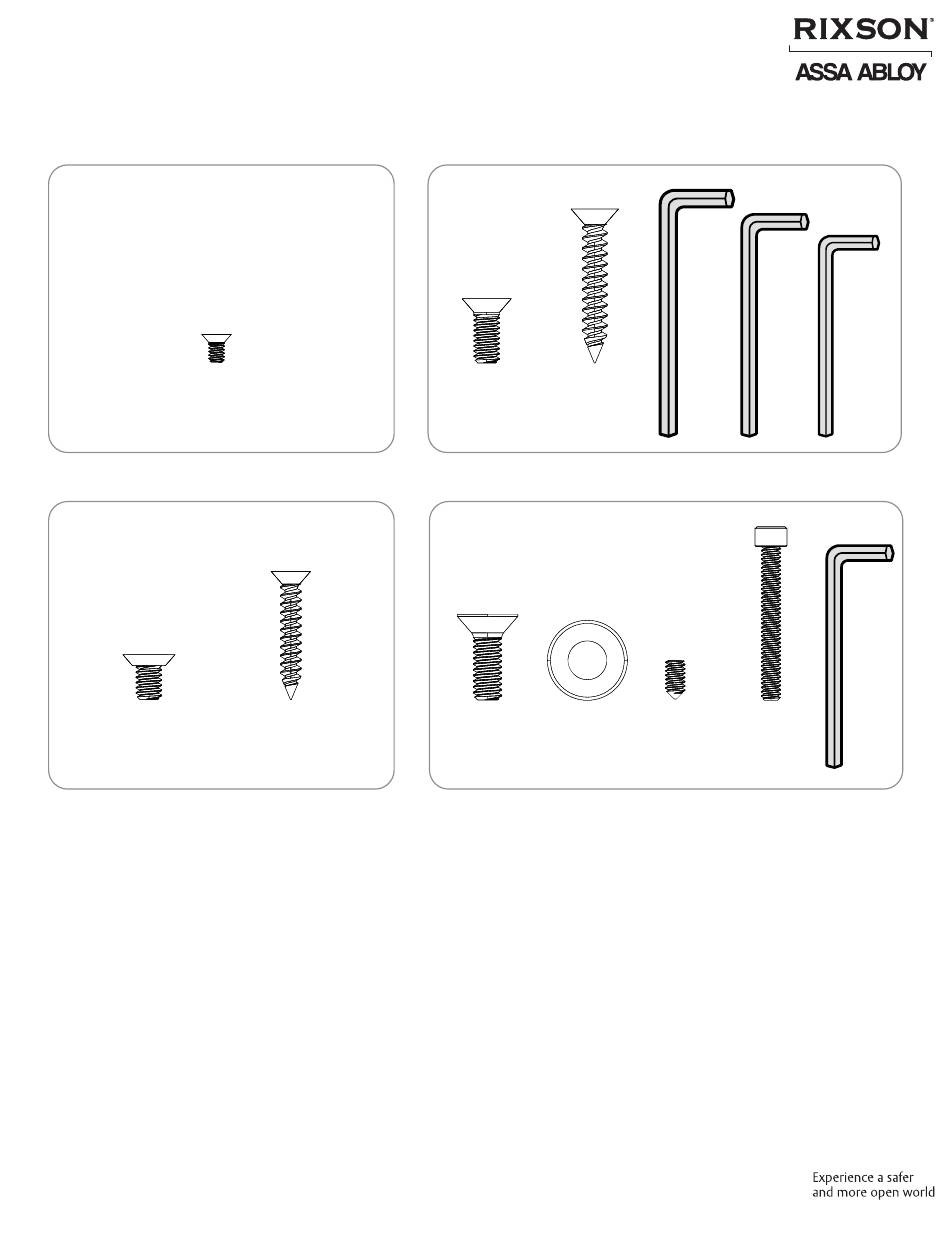

Supplied Fasteners

Cover Plate Screw Pack
(90278-finish)
6-32 x 1/4"
PFHMS
Cover
Closer Track Screw Kit
(90242)
4x
1/4-20 x 7/16"
PFHUCMS
Track
Copyright © 2021, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
IS73ER Rev 1 10/21
6x
4x
#14 x 1-1/4"
PFHWS
Track
Approved 2021-10-20
Closer Screw Pack
(90241)
4x 4x
1/4-20 x 5/8" #14 x 1-1/2"
PFHMS PFHWS
Closer Body Closer Body
Arm Screw Pack
(70251-finish)
2x 1x
1/4-20 x 3/4" Conical
FH-Allen w/NP Washer
Arm Attach Arm Attach
3/16" 5/32"
Hex Hex
Wrench Wrench
2x 1x
10-24 x 3/8" 10-24 x 1-1/2"
SHSS SHCS
Arm Attach Arm Clamp
1/8"
Hex
Wrench
3/32"
Hex
Wrench
3
