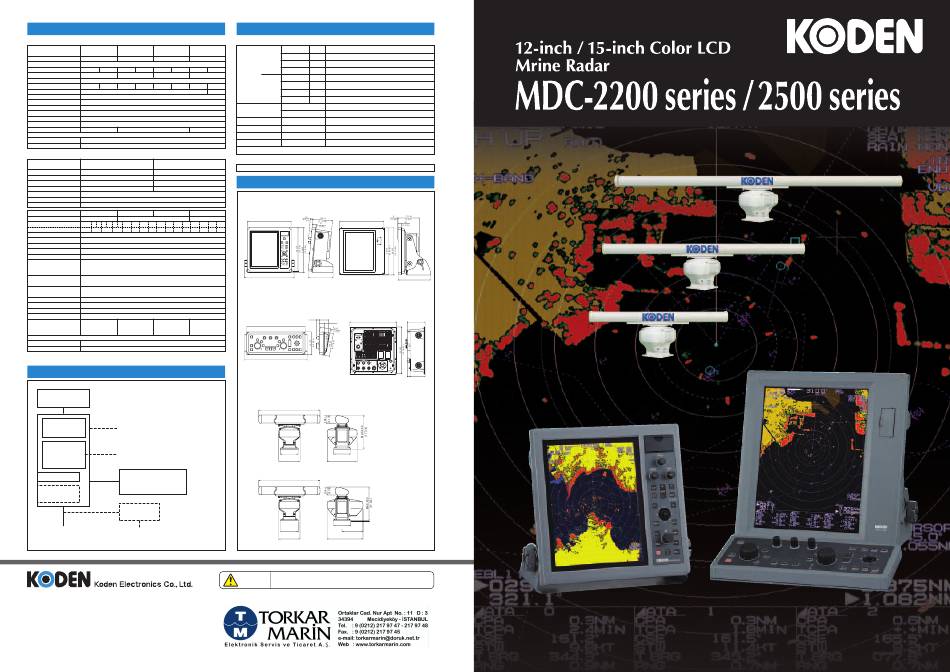

Koden MDC-2200 Series Quick Start Manual

SPECIFICATIONS
Antenna-scanner unit
Model MDC-2240 MDC-2260 MDC-2210 MDC-2220
MDC-2540/BB MDC-2560/BB MDC-2510/BB MDC-2520/BB
Type RB716A RB717A RB718A RB719A
Antenna type Open antenna
Antenna length 3 feet 4 feet 4 feet 6 feet 4 feet 6 feet 6 feet
Power output (Peak) 4 kW 6 kW 12 kW 25 kW
Output frequency 9410 MHz to 30 MHz
Horizontal beam width 2.5° 1.8° 1.8° 1.2° 1.8° 1.2° 1.8°
Vertical beam width 22°
Rotation 24 rpm or 48 rpm
IF center frequency 60 MHz
Range accuracy 8 meters or 1% of the range scale selected, whichever is the greater
Bearing accuracy 1° or less
Minimum detecting distance Within 25 m
Range resolution Within 25 m
Pulse width 0.08 us, 0.25 us, 0.8 us 0.08 us, 0.25 us, 0.5 us, 1 us 0.08 us, 0.3 us, 0.6 us, 1.2 us
Environmental
Operating temperature -25°C to +55°C
Water Protection IPX6

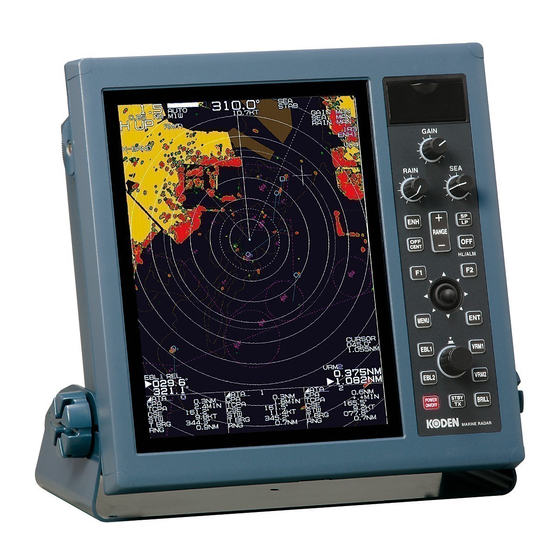

Display unit / Processor unit for BB type
Model MDC-2240/2260/2210/2220 MDC-2540/2560/2510/2520
MDC-2540BB/2560BB/2510BB/2520BB
Display unit MRD-101 MRD-102 (Deselect BB type)
Display size / type 12.1" color TFT LCD 15" color TFT LCD (Deselect BB type)
Processor unit (BB type only) - MRM-102
Effective diameter 184 mm 228 mm
Display resolution 1024 x 768 pixels (XGA)
Off-centering Max. 66%
Echo area 2 types (Full screen, Inside of effective diameter)
Model MDC-2240, 2540/BB MDC-2260, 2560/BB MDC-2210, 2510/BB MDC-2220, 2520/BB
Basic Range 0.125 to 48 NM 0.125 to 72 NM 0.125 to 96 NM
Range Scales 0.125 0.25 0.5 0.75 1 1.5 2 3 4 6 8 12 16 24 32 48 64
Range interval 0.0625 0.125 0.25 0.5 0.75 1 1.5 2 3 4 6 8 12 16
Presentation modes Head-up, North-up*, Course-up*
Indication system PPI
Video levels 8 levels (colors)
Range unit NM, km,sm
Alarms Echo (IN / OUT), ATA / AIS (CPA / TCPA), Guard zone etc.
Functions Interference rejection, Target expansion, Zoom, 2 VRM, 2 EBL (true*/ relative), Floating EBL / VRM,
Cursor position (Lat / Lon**), Parallel cursor, Day / Night mode, Bearing (true*/ relative), Trail**, Past course**,
Mark**, Route**, RGB Monitor output, Slave display monitor input / output, External Buzzer output
Input data format and sentences NMEA 0183 Ver.1.5/2.0/3.0
BWC, DBT, DPT, DTM, GGA, GLC, GLL, GNS, HDG, HDM, HDT, MTW, RMA, RMB, RMC, RTE, VBW, VDR, VHW, VTG, WPL, ZDA
Output data format and sentences NMEA 0183 Ver.2.0
HDT, VHW, VTG, GLL, VDR, RSD, OSD, TTM, TLL
NMEA port(s) 3 (input 1, input / output 2)
AIS interface** 200 targets (Option)
ATA** 50 targets
Power supply 10.8 to 41.6 VDC
Power Consumption (at 24VDC) MDC-2240: 80 W or less MDC-2260: 110 W or less MDC-2210: 130 W or less MDC-2220: 170 W or less
MDC-2540: 100 W or less MDC-2560: 130 W or less MDC-2510: 150 W or less MDC-2520: 200 W or less
MDC-2540BB: 80 W or less MDC-2560BB: 110 W or less MDC-2510BB: 130 W or less MDC-2520BB: 180 W or less
Environmental
Operating temperature -15°C to +55°C
Water Protection IPX 5 (BB type with optional water protection RGB cable)
* Requires bearing data input.
** Requires bearing data, ship's speed data and latitude / longitude data input.
CONNECTIONS
For selecting cable, please contact your nearest distributor
Antenna-scanner
Solid lines: Standard devices and connections
Dashed lines: Optional devices and connections
unit
Analog RGB output (For external monitor)
Optional
Radar signal input / output (For slave display)
Display unit
cable
NMEA 0183 input / output
MRD-101 / 102
AIS signal input
External buzzer output
BB type
Processor unit
Display for BB type (Owner supplied)
MRM-102
Operation unit
ATA
MRO-102
(For MDC-2500 / BB series)
AIS interface
AIS-120
Power rectifier
PS-010
10.8 to 41.6 VDC 100 / 115 VAC
(25 kW: 21.6 to 41.6 VDC) 200 / 230 VAC
Tamagawa Office:
2-13-24 Tamagawa, Ota-ku, Tokyo, 146-0095 Japan
Tel: +81-3-3756-6501 Fax: +81-3-3756-6509
Uenohara Office:
5278 Uenohara, Uenohara-shi, Yamanashi, 409-0112 Japan
Tel: +81-554-20-5860 Fax: +81-554-20-5875
overseas@koden-electronics.co.jp
www.koden-electronics.co.jp
EQUIPMENT LIST
Standard Equipment
Antenna- Scanner RB716A 4 kW MDC-2240, 2540 / BB
scanner unit RB717A 6 kW MDC-2260, 2560 / BB
unit RB718A 12 kW MDC-2210, 2510 / BB
9 feet RB719A 25 kW MDC-2220, 2520 / BB
Antenna RW701A-03 3 feet MDC-2240, 2540 / BB
unit RW701A-04 4 feet MDC-2240, 2260, 2210, 2540 / BB, 2560 / BB, 2510 / BB
0.8°
25°
RW701A-06 6 feet MDC-2260, 2210, 2520, 2560 / BB, 2510 / BB, 2520 / BB
RW701B-09 9 feet MDC-2220, 2520 / BB
Display unit MRD-101 MDC-2200 series
(Deselect BB type) MRD-102 MDC-2500 series
Operation unit MRO-102 MDC-2500 / BB series
Processor unit MRM-102 MDC-2500BB series
Connecting cable 242J159098B-15M 15 m
DC power cable CW-259-2M 2 m
Operation manual, Quick reference, Installation manual, Installation material, Spare parts
Option
AIS interface, Gyro-Log interface, Power rectifier, AC power cable, Water protection RGB cable
DIMENSIONS AND WEIGHT
Display unit:
MRD-101 (MDC-2200 series) MRD-102 (MDC-2500 series)
321 ±3 361 ±3
(12 5/8) (14 13/64)
72 96
18 24
364 ±3 181 ±3
(14 21/64) (7 1/8)
Weight: 8.2 kg (18 lb) Weight: 12.5 kg (27.5 lb)
Operation unit: Processor unit:
MRO-102 (MDC-2500 / BB series) MRM-102 (MDC-2500BB series)
18.5 57 ±2
320 ±3
(47/64) (2 1/4)
31
(12 19/32)
361 ±3
(1 7/32)
(14 13/64)
±3
385
(15 5/32)
Weight: 2 kg (4.5 lb)
Weight: 5.1 kg (11.2 lb)
Antenna-scanner unit:
RB716A / RB717A / RB718A with RW701A-03 / 04 / 06
±5
RW701A-03: 3 feet: 1034 (40 11/16)
±10
RW701A-04: 4 feet: 1346 (53)
±10
RW701A-06: 6 feet: 1970 (77 9/16)
Weight:
RB716A
3 feet: 21 kg (46 lb)
4 feet: 22 kg (49 lb)
BOW
RB717A / 718A
4 feet: 23 kg (51 lb)
234 ±3 220 ±3 6 feet: 25 kg (56 lb)
(9 3/16) (8 11/16)
±5 390 ±5
280
(11) (15 3/8)
RB719A
RW701A-06: 6 feet: 1970 ±10 (77 9/16)
RW701B-09: 9 feet: 2740 ±10 (107 7/8)
Weight:
RB719A
BOW
6 feet: 29 kg (64 lb)
9 feett: 33 kg (73 lb)
220 ±3
(8 11/16)
234 ±3 275 ±3
(9 3/16) (10 13/16)
280 ±5 470 ±5
(11) (18 1/2)
• Design and specifications are subject to change without notice.
Safety To ensure proper and safe use of the equipment, please carefully
precaution read and follow the instructions in the Operation Manual.
For details, please contact:
265 ±3
(10 27/64)
122 ±3
(4 51/64)
±3
20 102
(25/32) (4 1/64)
Unit: mm (inch)
