Summary of Contents for Koden MDC-2000A Series

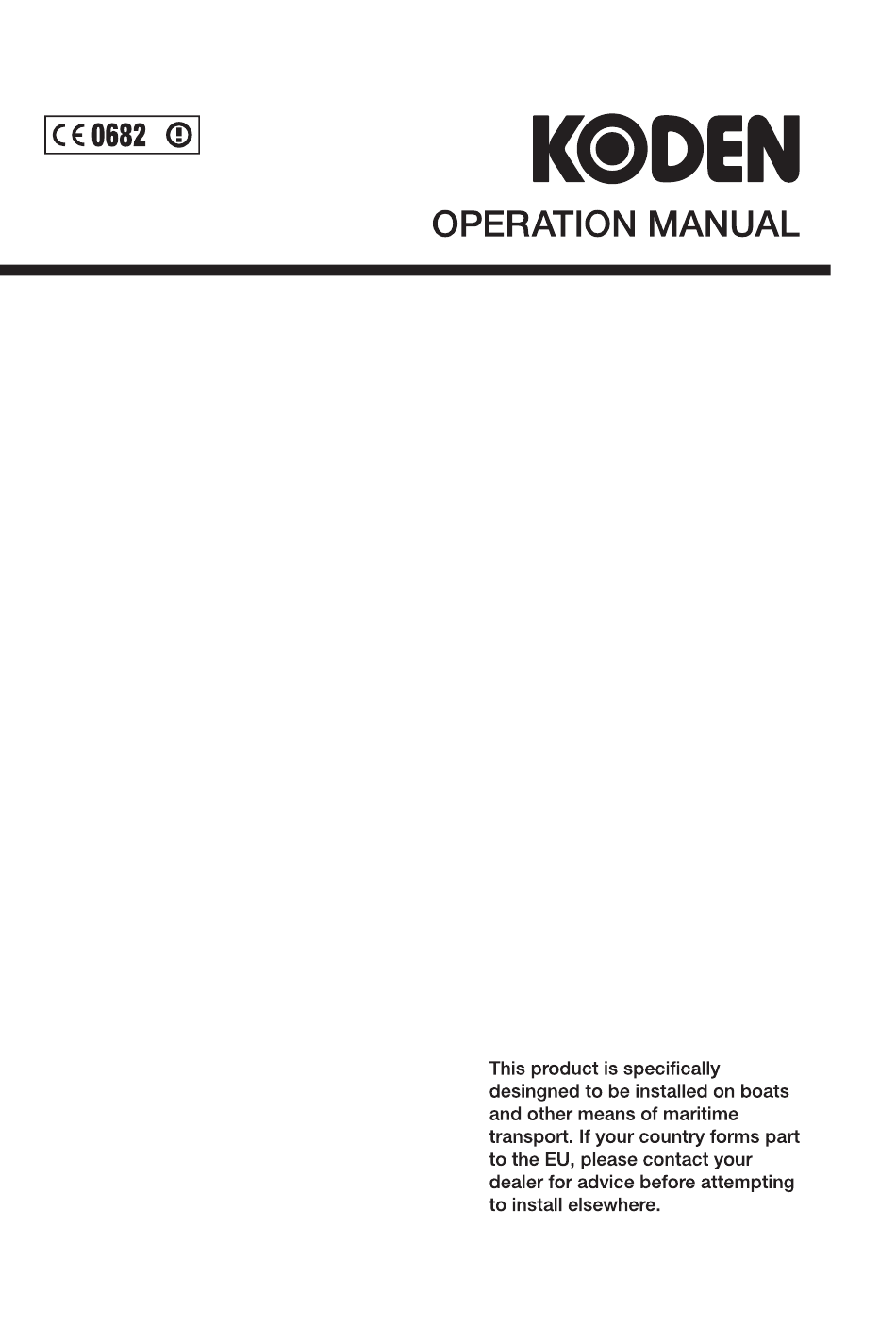

- Page 1 MARINE RADAR MDC-2000A SERIES MDC-2000A.SER.OM.E 0093120007-00...
-
Page 2: Document Revision History
No part of this publication may be reproduced, transmitted, translated in any from by any means without the written permission of Koden Electronics Co., Ltd. The technical descriptions contained in this publication are subject to change without notice. Koden assumes no responsibility for any errors, incidentals or consequential damages caused by misinterpretation of the descriptions contained in this publication. -
Page 3: Important Notices
Important Notices MDC-2000A Series Important Notices The re-use and transcription of Operation Manual (hereafter called this manual) needs permission of our company. Our company prohibits the un-authorized re-use and transcription. If this manual is lost or damaged, consult our dealer or our company. -
Page 4: For Your Safe Operation
MDC-2000A Series For Your Safe Operation For Your Safe Operation Symbol used in this Operation Manual This manual uses the following symbols. Understand the meaning of each symbol and implement the maintenance and inspection. Symbol Meaning Mark for warning This symbol denotes that there is a risk of death or serious injury when not dealing with it correctly. - Page 5 For Your Safe Operation MDC-2000A Series Caution Item on Equipment Caution on a high voltage inside. A high voltage, which may risk your life, is used. This high voltage remains in the circuit after you have powered off switch. To prevent...
- Page 6 MDC-2000A Series For Your Safe Operation Caution Item on Handling Caution on the rotating aerial The radar antenna may start to rotate without notice. Please stand clear from the antenna for your safety. Caution on electromagnetic disturbance The operating Antenna & Scanner unit radiates high-energy electromagnetic wave.
- Page 7 For Your Safe Operation MDC-2000A Series Do not disassemble or modify. It may lead to trouble, fire, smoking or electric shock. In case of trouble, contact our dealer or our company. In case of smoke or fire, switch off the power in the boat and the power of equipment.
-
Page 8: Break In Procedure Of Stored Radar
MDC-2000A Series Break in procedure of stored radar Break in procedure of stored radar Following procedure is recommended for “Break In” of the stored radar. Otherwise the radar sometimes exhibits unstable transmitting operation such as arcing at its initial operation after long period of storage and make the operation more difficult. -
Page 9: Table Of Contents
Contents MDC-2000A Series Contents Document Revision History ...... i Delete of Heading Line ....1-9 Important Notices ........ii 1.11 Use of Crosshair Cursor ..... 1-9 For Your Safe Operation ......iii 1.12 Measuring the distance and Break in procedure of stored radar bearing between two points .. -
Page 10: Contents
Information Display ....2-13 Field of Angle ......3-6 ATA Performance ..... 2-13 NMEA ......... 3-7 Types and Meanings of ATA Connection with the KODEN GPS Symbols ........2-14 compass ........3-7 Preset ......... 3-7 Chapter 3 How to use the system F1/F2 Key Set ...... - Page 11 Contents MDC-2000A Series Language Select ......3-7 Flush-mount Installation ... 5-11 NAV Display Select ....3-7 Adjustment after Installation ..5-12 Camera Position Crrection ..3-7 Wiring ........5-13 Maintenance ....... 3-8 Cable connection to the Display Display Unit ........ 3-8 unit ..........
-
Page 12: Introduction
MDC-2000A Series Introduction Introduction Thank for your purchase of KODEN color LCD marine radar MDC-2000A Series. The quality and endurance of a unit is well considered. For the best performance, read this Operation Manual and operate a unit correctly and safely. -
Page 13: System Configuration
System Configuration MDC-2000A Series System Configuration Connection Diagram Antenna-Scanner unit RB805 / RB806 MRD-104A Display unit External Monitor With mounting bracket and hard cover External Buzzer Navigation equipment CW-576-0.5M KGC-222 or AIS Receiver Navigation equipment CCD camera Slave Display MRD-XXX *Be sure to connect the KGC-222 to J5 Power 10.8 to 31.2VDC... -
Page 14: Configuration Of Equipment
MDC-2000A Series Configuration of Equipment Configuration of Equipment Standard Equipment Configuration List Weight/ Name of item Type Remarks Quantity Length Display unit With mounting MRD-104A 8.1 kg bracket and knobs Hard cover A30MB10250 390 g DC power cable 3-pin water... - Page 15 Configuration of Equipment MDC-2000A Series Types of Antenna-Scanner unit Transmitting Type Shape Remarks Weight/Length Power RB805 Radome Interconnecting 10kg / 2ft cable, 10m*, 242J158055A-10M RB806 with RW701A-03/04 Open Interconnecting 21kg / 3ft cable, 10m*, 242J159098A-10M 22kg / 4ft *Cables of 15m, 20m and 30m are available. (Optional) **Cables of 10m, 20m and 30m are available.
-
Page 16: Chapter 1 Basic Operation
Chapter 1 Basic Operation MDC-2000A Series Chapter 1 Basic Operation The basic operation of this unit is as follows. For detailed explanation, refer to each item in this manual. BRILL Press the [ ] to turn When [ST'BY] appears, press the [STBY/TX] key to start on the power. - Page 17 MDC-2000A Series Chapter 1 Basic Operation Change the observation range with the [- RANGE +] key. When pressing the [+] key, the observation range expands. When pressing the [-] key, the enlarged surrounding around own ship can be observed. To make it easier to observe the range you desire, change the range.
-
Page 18: How To Read The Radar Screen
Chapter 1 Basic Operation MDC-2000A Series How to read the radar screen Process Enhance Heading Range F2 key content Alarm Ship Off center Fixed marker interval F1 key content Trail speed Display mode Pulse width Interference Rejection Crosshair cursor Cursor position... -
Page 19: How To Use The Keys
MDC-2000A Series Chapter 1 Basic Operation How to use the keys (10) Various adjustment items can be set by operating each key. The menu is displayed by pressing the [MENU] key, and closes when pressing the [MENU] key again. 0093120007-00... - Page 20 Chapter 1 Basic Operation MDC-2000A Series Number Key name Explanation [F1]* Recalls directly the preset menu item. [ENT] * Press: measures bearing of distance between two points. Continuously pressing: Deletes the heading line. The crosshair cursor moves to the own ship’s position.
-
Page 21: Power On/Off
MDC-2000A Series Chapter 1 Basic Operation Power On/Off Brilliance Adjustment BRILL Brightness Adjustment of LCD The [ ] key is used for both the power on/off and the change of brilliance of the LCD & panel. The brilliance of menu can be adjusted to make it Power On easier to see. -
Page 22: Switch-Over Of Range
Chapter 1 Basic Operation MDC-2000A Series Result picture after adjustment by [GAIN] knob Switch-over of Range Result picture after adjustment by [GAIN] knob The observation range can be changed. Land Own ship Change of Range Press the [- RANGE +] key. -
Page 23: Stc Adjustment
MDC-2000A Series Chapter 1 Basic Operation Press the [MENU] key or [ENT] key to close Picture after adjustment with [STC] knob the menu. Land STC Adjustment Own ship In the short distance menu, even if waves are low and the sea surface is calm, an echo reflected from the sea surface appears in the image. -
Page 24: How To Use [F1] And [F2] Keys
Chapter 1 Basic Operation MDC-2000A Series ● [PULSE] Alarm Mode After pressing the [F1] / [F2] key, if the ● [PROCESS] [ ] or [ ] key is pressed, the alarm ● [OFF]* mode changes to the IN/OUT/OFF. *When selecting [OFF], the key operation of When selecting the In/Out, if the [ ] [F1] / [F2] will be invalid. -
Page 25: Delete Of Heading Line
MDC-2000A Series Chapter 1 Basic Operation Delete of Heading Line When moving the crosshair cursor with the [ ], [ ], [ ] and [ ] keys, the distance and When keep pressing the [ENT] key, the bearing from the origin to the position of the heading line disappears. - Page 26 Chapter 1 Basic Operation MDC-2000A Series the CCD camera disappears. When displaying the video of a CCD camera, the display area of the radar Caution image is narrowed. When set to [Full Screen Display], the radar image is completely concealed.
-
Page 27: Chapter 2 How To Use The Menu
Chapter 2 How to use the menu MDC-2000A Series Chapter 2 How to use the menu Select an item you desire to change with the How to operate the menu [ ] and [ ] keys. Display/Non-display of Menu ECHO... -
Page 28: Ftc Adjustment
MDC-2000A Series Chapter 2 How to use the menu FTC Adjustment Setting of Display Mode When raining or snowing, due to reflection from In the display mode, the bearing and the target rain or snow, an object is hard to be seen. -
Page 29: N Up (North Up)
Chapter 2 How to use the menu MDC-2000A Series N UP (North Up) WPT UP (Waypoint Up) The N UP is the display mode to orient the true The WPT is the display mode to always orient north to the top of the screen. - Page 30 MDC-2000A Series Chapter 2 How to use the menu Relative motion (RM): The own ship is fixed True motion (TM): Your ship moves and other surrounding targets move according to its speed and tidal on the screen. current on the screen.
-
Page 31: True Motion Reset
Chapter 2 How to use the menu MDC-2000A Series True Motion Reset PPI Display When your ship exits from movable range of your The radar screen is displayed on the entire ship’s position, it moves to the opposite side display. -
Page 32: Note On Ppi/Ppi Display
MDC-2000A Series Chapter 2 How to use the menu Note on PPI/PPI Display Press the [MENU] key to close the menu. ● The movable range is limited. In the PPI/PPI display, to avoid risk, the following (See the movable range shown below.) functions do not work. -
Page 33: Setting Of Pulse Width
Chapter 2 How to use the menu MDC-2000A Series Relative Display (R) Setting of Pulse Width The relative speed of a target with respect of own The short pulse width is suitable for target ship is displayed as a trail. -
Page 34: True Display (T)
MDC-2000A Series Chapter 2 How to use the menu True Display (T) 2.10 EBL Irrespective of the motion of own ship, trails This mode is used when measuring the bearing representing the course and speed of moving from own ship to a target. -
Page 35: 2.12 Display Color
Chapter 2 How to use the menu MDC-2000A Series Setup: OFF, ONE SIDE, BOTH SIDES (Initial 2.12 Display Color value: OFF) Press the [MENU] key. When the display is hard to see due to the environment, changing the color of the display Select [DISPLAY] →... -
Page 36: 2.17 Alarm
MDC-2000A Series Chapter 2 How to use the menu shows the positions of own ship and other ships Change the distance direction with the [ ] after one minute. and [ ] keys and the bearing with the [ ] and [ ] keys. -
Page 37: Operation During Executing The Sleep
Chapter 2 How to use the menu MDC-2000A Series Operation during executing the sleep Press the [MENU] key. Select [AIS] → [INFO]. During executing the sleep, the transmitting for 30 seconds is repeated at the interval of the set Change the setting with the [ ] and [ ] time. -
Page 38: 2.20 Ata
MDC-2000A Series Chapter 2 How to use the menu Warning Warning The accuracy of the data provided The accuracy of the auto tracking by the AIS could be affected by the function provided by the ATA could following factors: be affected by the following factors:... -
Page 39: Manual Acquisition
Chapter 2 How to use the menu MDC-2000A Series Manual Acquisition Press the [ENT] key. Then, the acquisition of the designated target is released. Direct to acquire a target by designating a target When releasing acquisition of several on the display. -
Page 40: Types And Meanings Of Ata
MDC-2000A Series Chapter 2 How to use the menu Types and Meanings of ATA Symbols In the ATA, the symbols are displayed, overlaying on acquire-started targets. Normal Symbol Meanings Displayed when setting the acquisition. Displayed when in the stable tracking state. -
Page 41: Chapter 3 How To Use The System Menu
Chapter 3 How to use the system menu MDC-2000A Series Chapter 3 How to use the system menu Display of System Menu Setting of Assist Items There is a standard menu which is displayed for In the supplement items of the system menu, to... -
Page 42: Wpt Display
MDC-2000A Series Chapter 3 How to use the system menu WPT Display N UP/S UP Select ON or OFF of the WPT icon (flag mark) to Change the mode of the N UP or S UP of the be displayed on the radar screen. -
Page 43: Bearing Setting
Chapter 3 How to use the system menu MDC-2000A Series displayed on the screen. Bearing Setting Adjust the bearing of the radar image on the screen. Setup: -180.0 to +180.0 (Initial value: 0.0) Press the [STBY/TX] key to start the transmission. -
Page 44: Stc Curve
MDC-2000A Series Chapter 3 How to use the system menu range that can display the entire sea surface reflected echo can be displayed. Adjust the [STC] knob and stop it just before the sea surface reflected echo completely disappears (In the state that the sea surface reflected echo is sparsely displayed.) As... -
Page 45: Tune Select
Chapter 3 How to use the system menu MDC-2000A Series The STC curve set value is applied to all Manual Tune Adjustment ranges. Due to a sudden environment change, the Note: The setting of STC characteristics automatic tuning may be detuned. In this case, needs to be performed in the ocean. -
Page 46: Interference Rejection
MDC-2000A Series Chapter 3 How to use the system menu Change the setting of [Pulse Width Press the [MENU] key. Adjustment] with the [] and [] keys. Move to the system menu. Refer to 3.1 Display of System Menu. The content of the set value of [PULSE WIDTH] Select [ADJUST] →... -
Page 47: Nmea
Set an arbitrary color to the trail color. For the NMEA sentence, refer to 5.6 List of Input/Output sentence. Display Color Set Set an arbitrary color to the color of cursor and Connection with the KODEN GPS numerals. compass Language Select Incase KGC-1/KGC-222 is connected to CH2 (J5), the best performance can be achieved by Select the language used in the menu. -
Page 48: Maintenance
MDC-2000A Series Chapter 3 How to use the system menu Maintenance The self-diagnosis of the system menu is the menu for maintenance. Normally, it is not used. Perform the self-diagnosis of the Display unit and the antenna. Display Unit The state of the Display unit is displayed. -
Page 49: Chapter 4 Maintenance
Chapter 4 Maintenance MDC-2000A Series Chapter 4 Maintenance 4.1 Maintenance To operate the radar equipment in a good condition for a long period of time, perform the inspection and cleaning periodically. 4.1.1 Monthly Inspection Caution: ensure Do not turn on the power of the radar during inspection. -
Page 50: Yearly Inspection
MDC-2000A Series Chapter 4 Maintenance 4.1.2 Yearly Inspection In case of Open antenna (RB806), check the brush of the antenna drive motor inspect every 2,000 hours of transmission. If the length is shorter than 6mm, replace it with a new one. -
Page 51: Fuse Replacement
Chapter 4 Maintenance MDC-2000A Series Fuse Replacement WARNING Use the specified fuse. If a fuse other than the specified one is used, it leads to a serious accident. If the input voltage is too high, hyper-current flows or a trouble occurs inside, the fuse blows out. -
Page 52: Self-Diagnostic Function
MDC-2000A Series Chapter 4 Maintenance Error Content Error Display Causes The latitude and longitude is not entered. L/L NO SIGNAL The bearing signal is not entered. HDG NO SIGNAL The ship speed signal is not inputted. SPD NO SIGNAL The trigger signal is not inputted from the antenna. -
Page 53: Inspection At Each Location
Chapter 4 Maintenance MDC-2000A Series 4.4.4 Inspection at Each Location After finishing the inspection by the self-diagnosis, according to the table, check each location of the radar. Trouble conditions Suspected causes of troubles Countermeasures The radar cannot be The power cable is not connected. -
Page 54: Chapter 5 Equipment
MDC-2000A Series Chapter 5 Installation Chapter 5 Equipment Antenna Installation Determining the location of the installation The search capability of the radar varies largely, depending on the position of the antenna installation. The ideal installation position is the high place over the keel line where no obstacle surrounds. Actually, though there are many limitations in a ship, determine the installation position, considering the following items. -
Page 55: How To Shift The Antenna From An
Chapter 5 Installation MDC-2000A Series How to shift the antenna from an obstacle 1. How to shift the antenna from the keel line By shifting the antenna from keel line to the starboard, the blind moves to the port and the visibility in the heading can be secured. -
Page 56: Installation Of Antenna
MDC-2000A Series Chapter 5 Installation Installation of Antenna After determining the location of the installation, install the antenna. When installing, if the bracket shown below is available, the installation is easier. If not available, install the antenna directly on the roof, paying attention to the air tube for drain at the bottom of the antenna. -
Page 57: Setting Of Open Antenna
Chapter 5 Installation MDC-2000A Series Chassis Radome (bottom) Bracket Flat washer Spring washer Accessory M10 hexagon bolt Install with four bolts Specification of bracket thickness-wise installation bolt (In case of Radome Antenna) Thickness of bracket Bolt for fixing the antenna... -
Page 58: Installation Of Antenna
Remove the protective cap covered on the output of the Scanner unit rotational shaft. Remove four bolts tentatively fixed to the base of the Antenna and install the Scanner unit to the rotating base. Match the direction of antenna radiation side (KODEN –mark side) with the projection mark on the rotating base. - Page 59 Chapter 5 Installation MDC-2000A Series Antenna radiation side (KODEN –mark side) Remove Antenna Protective cap Rotating base Projection mark Rotating base Flat washer Spring washer Installation bolt 0093120007-00...
-
Page 60: Cable Connection
MDC-2000A Series Chapter 5 Installation Cable Connection Radome Antenna 4kW (RB805) Confirm that the power of the Radar unit is turned off. Install the antenna cable to the connector J7 at the rear of the Display unit. (Refer to page 5-13) Remove the upper radome of the Scanner unit, lifting upward not to touch the aerial inside. - Page 61 Chapter 5 Installation MDC-2000A Series Open Antenna 4kW (RB806) Please make sure power supply of the Radar unit is OFF. Disassemble the front cover of the Scanner unit from the rear cover by loosening fixing bolts. Remove the TR unit by disconnecting the connector X1 and X2 after loosening fixing bolts of the TR unit.
-
Page 62: Mutual Connection Diagram
MDC-2000A Series Chapter 5 Installation Mutual Connection Diagram Antenna Display unit RB805/RB806:X11 Remark Color of lead wire Color of lead wire Remark +250 V VIOLET VIOLET +250 V BLUE +24V YELLOW ORANGE (wide cable) +12V +40V RED (wide cable) YELLOW... -
Page 63: Display Unit Installation
Chapter 5 Installation MDC-2000A Series Display Unit Installation The Display unit can be installed on the desktop or as flush mount. Please install the Display unit to the following procedure. In addition, please install the Display unit securing safety distance from the magnetic compass. -
Page 64: Flush-Mount Installation
MDC-2000A Series Chapter 5 Equipment Caution: When installing on the desktop, the maintenance space shown in the illustration below is required for cable lay-out, plugging-in/out of connector, fuse replacement and bolt tightening. Unit: mm (inch) Flush-mount Installation (1) Make a square hole (308mm x 308mm) at the location to be installed. -
Page 65: Adjustment After Installation
Chapter 5 Equipment MDC-2000A Series Fixing holes for M4 screw (4pcs) Unit: mm (inch) Work of flush-mount instsllation hole Adjustment after Installation Before setup, confirm the following points to operate properly the equipment The ship’s power, to which the radar system is connected, should be the specified voltage. -
Page 66: Wiring
MDC-2000A Series Chapter 5 Equipment Wiring Cable connection to the Display unit Connect the power cable, antenna cable and cables of others to specified connectors of the Display unit. If optional navigation equipment and CCD camera are provided, connect also the cables of these equipments. -
Page 67: Pin Assignment Of Rear Connector
Chapter 5 Equipment MDC-2000A Series Pin Assignment of Rear Connector The pin assignment is viewed from the rear of the Display unit. External monitor/External buzzer AIS Input Slave display NMEA/IEC61162 Input/Output +12V (Maximum 0.8A) can be supplied for GPS-20A, etc. -
Page 68: Connection Of Dc Power Cable
MDC-2000A Series Chapter 5 Equipment Connection of DC power cable (CW-259-2M) DC+ (White) DC- (Black) To [POWER] connector GND (Gray) Grounding ● Use the large diameter cable for ground wire as possible. ● Connect the ground wire to the ground material at a shortest distance. -
Page 69: Connection With The Ais
Two NMEA0183/IEC61162 input/output ports are provided. Connect the navigation equipment and the external equipment such as KODEN made GPS sensor to them. The optional cable with connectors at both ends is available. The CW-376-5M of which one end is left untreated is also available. Prepare a cable suitable for the equipment you desire to connect. -
Page 70: Connection Of Ccd Camera
MDC-2000A Series Chapter 5 Equipment Connection of CCD Camera (J6) (Prepared by a user) The optional product CW-405-0.3M is equipped with a RCA jack for connection to the CCD camera (NTSC/PAL/SECAM), Connect the video output terminal (RCA plug (In most cases, yellow)) of your CCD camera. -
Page 71: Chapter 6 Attached Table
MDC-2000A Series Chapter 6 Attached Table Chapter 6 Attached Table Menu Configuration 【 MENU 】 key ECHO FTC (OFF 1 to 8: OFF) MODE (H UP , N UP , N UP , C UP , C UP , WPT UP... - Page 72 Chapter 6 Attached Table MDC-2000A Series ASSIST RANGE RINGS (OFF, ON) RANGE UNIT (NM, km, sm) SPEED UNIT (kn, km/h, m/h) TEMP UNIT (°C, °F) DEPTH UNIT (m, fm, l. fm, ft, J.fm) POSITION DISPLAY (OFF, OWN Position, WPT Position, POB Position)
-
Page 73: Specifications
MDC-2000A Series Chapter 6 Attached Table Specifications Antenna-Scanner unit Specification item Content MDC-2041A MDC-2040A Model RB805 RB806 Type Radome Open antenna Antenna type 2 feet 3 feet 4 feet Antenna length 4 kW Output power (Peak) 9410 MHz ± 30 MHz Output frequency 3.9°... -
Page 74: External View
Chapter 6 Attached Table MDC-2000A Series External View Unit: mm (inch) 0093120007-00... - Page 75 MDC-2000A Series Chapter 6 Attached Table (1/4) Dia 5Holes Dimension drawing of table installation Unit: mm (inch) Fixing holes for M4 screw (4pcs) Unit: mm (inch) Dimension drawing of flush-mount installation 0093120007-00...
- Page 76 Chapter 6 Attached Table MDC-2000A Series RB805 Unit: mm (inch) Weight: 10kg RB806 with RW701A-03/04 Unit: mm (inch) Weight for RB806: 21.5kg/ (RW701A-03): 22.5kg/ (RW701A-04) 0093120007-00...
-
Page 77: Chapter 7 Principle Of Radar System
MDC-2000A Series Chapter 7 Principle of radar system Chapter 7 Principle of radar system What is the radar system? The radar system is a navigation device that transmits a very high frequency radio wave referred as microwave from antenna. The radar then receives the radio wave reflected by target(s) (e.g. other ship, buoy, island, etc) via the same antenna and converts the received radio wave to electronic signals and sends these signals to the Display unit. -
Page 78: Characteristics Of Radar Radio Wave
Chapter 7 Principle of radar system MDC-2000A Series Characteristics of radar radio wave The radio wave propagates slightly along the ground (primarily line of sight). This characteristic varies depending on the density of atmosphere but generally calculated according to the formula as shown below, considering that the distance with radar sight D is about 6% longer than the distance with optical sight. - Page 79 MDC-2000A Series Chapter 7 Principle of radar system ● Virtual image The image of a large physical object in a close proximity may appear in two different orientations. One is a real image and the other is a false image caused by wave reflected on the chimney stack or the mast, etc.
-
Page 80: Radar Interference
Chapter 7 Principle of radar system MDC-2000A Series ● False image by sidelobe The microwave beam radiated from the antenna has a side lobe in different direction than that of the main beam. Since this side lobe is lower than that of main beam, the effect is negligible for targets at a long range, but a close, strong reflecting target may cause false image in a circular arc shape.
