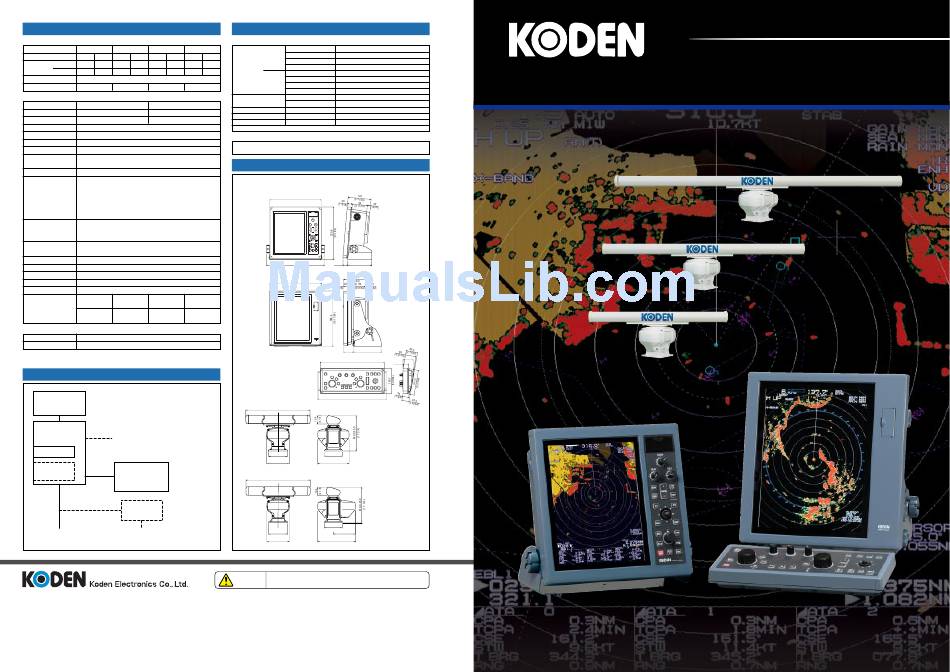

Koden MDC-2200 series Specifications

SPECIFICATIONS
Antenna-Scanner unit
Model MDC-2240 / 2540 MDC-2260 / 2560 MDC-2210 / 2510 MDC-2220 / 2520
Antenna length 3 feet 4 feet 4 feet 6 feet 4 feet 6 feet 6 feet 9 feet
Beam width Horizontal 2.5° 1.8° 1.8° 1.2° 1.8° 1.2° 1.2°
Vertical 22° 22° 22° 22° 22° 22° 22°
Rotation 24 rpm or 48 rpm
Power output (peak) 4 kW 6 kW 12 kW 25 kW

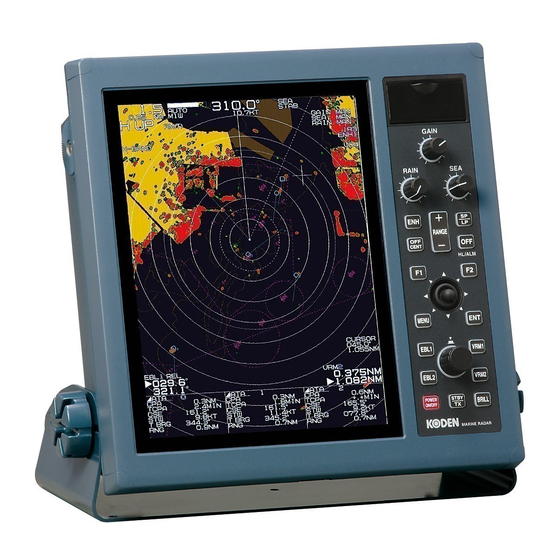

Display unit
Model MDC-2240 / 2260 / 2210 / 2220 MDC-2540 / 2560 / 2510 / 2520
Display size/type 12.1" color TFT LCD 15" color TFT LCD
Effective diameter 184 mm 228 mm
Display resolution 1024 x 768 pixels
Off-centering Max. 66%
Echo area 2 types (Full screen, Inside of effective diameter)
Range data accuracy 8 meters or 1% of the range scale selected, whichever is the greater
Range scale 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48, 72, 96 nm
4 kW: up to 48 nm, 6 kW /12 kW: up to 72 nm, 25 kW: up to 96 nm
Presentation modes Head-up, North-up*, Course-up*, True motion*
Functions Interference rejection, Target expansion, Zoom, 2 VRMs,
2 EBLs (0.1° step), Floating EBL / VRM, Cursor position,
Parallel cursor, Bearing, Day / Night mode, Alarms, Trail*,
Past course*, Mark*, Route*, Dual station, RGB Monitor output,
Slave display monitor output, Nav line, Ship's profile,
External buzzer
Input data format and sentences NMEA 0183
(BWC, DBT, DPT, DTM, GGA, GLC, GLL, GNS, HDG, HDM, HDT,
MTW, RMA, RMB, RMC, RTE, VBW, VDR, VHW, VTG, WPL, ZDA)
Output data format and sentences NMEA 0183
(HDT, VHW, VTG, GLL, VDR, RSD, OSD, TTM, TLL)
NMEA input / output port(s) 3
AIS interface 200 Targets* (Option)
ATA 50 Targets*
Map overlay C-Map NT+ / NT MAX (Owner supplied)
Power supply 10.8 to 41.6 VDC (25 kW: 21.6 to 41.6 VDC)
Power consumption MDC-2240 MDC-2260 MDC-2210 MDC-2220
(at 24 VDC) 80 W or less 110 W or less 130 W or less 170 W or less
MDC-2540 MDC-2560 MDC-2510 MDC-2520
100 W or less 130 W or less 150 W or less 200 W or less
Environmental
Water protection IPX5
Operating temperature -15°C to +55°C
* Requires heading, speed, and / or position signal input from external equipment
including GPS Compass depending on application of user.
CONNECTIONS
For selecting cable, please contact your nearest distributor
Antenna-scanner Solid lines: Standard devices and connections
Dashed lines: Optional devices and connections
unit
Radar signal output (for monitor)
Optional
Display unit
Radar signal input / output (for dual station)
cable
MRD-101 / 102 NMEA 0183 input / output x 3
AIS signal
ATA
External buzzer
AIS interface
Operation unit
AIS-120
MRO-102
(for MDC-2500 series)
Power rectifier
PS-010
10.8 to 41.6 VDC 100 / 115 VAC
(25 kW: 21.6 to 41.6 VDC) 200 / 230 VAC
Tamagawa Office:
2-13-24 Tamagawa, Ota-ku, Tokyo, 146-0095 Japan
Tel: +81-3-3756-6501 Fax: +81-3-3756-6509
Uenohara Office:
5278 Uenohara, Uenohara-shi, Yamanashi, 409-0112 Japan
Tel: +81-554-20-5860 Fax: +81-554-20-5875
overseas@koden-electronics.co.jp
www.koden-electronics.co.jp
EQUIPMENT LIST
Standard Equipment
Antenna- Antenna RW701A-03 3 feet
scanner RW701A-04 4 feet
unit RW701A-06 6 feet
0.8°
RW701B-09 9 feet
25°
Scanner RB716A 4 kW
RB717A 6 kW
RB718A 12 kW
RB719A 25 kW
Display unit MRD-101 For MDC-2200 series
MRD-102 For MDC-2500 series
Operation unit MRO-102 For MDC-2500 series
Connecting cable 242J159098B 15 m with connectors on both ends
DC power cable CW-259-2M
Operation manual, Installation material, Spare parts kit
Option
AIS interface, Gyro-Log interface, Power rectifier,
AC power cable, Connecting cable for external monitor
DIMENSIONS AND WEIGHT
Display unit:
MRD-101 (MDC-2200 series)
320.7
(12 5/8)
Weight: 8.2 kg (18 lb)
364 30.5 150
(14 21/64) (1 3/16) (5 29/32)
MRD-102 (MDC-2500 series)
360.7
(14 13/64)
Weight: 12.5 kg (27.5 lb)
68 196.6
(2 43/64) (7 47/64)
360.7
Operation unit: MRO-102
(14 13/64)
Antenna-scanner unit:
RB716A / 717A / 718A
385
RW701A-03: 1034 (40 11/16)
(15 5/32)
RW701A-04: 1346 (53)
RW701A-06: 1970 (77 9/16) Weight: 2 kg (4.5 lb)
Weight:
RB716A
BOW
3 feet antenna: 21 kg (46 lb)
4 feet antenna: 22 kg (49 lb)
RB717A / 718A
234 220
4 feet antenna: 23 kg (51 lb)
(9 3/16) (8 11/16)
280 390
6 feet antenna: 25 kg (56 lb)
RB719A (11) (15 3/8)
RW701A-06: 1970 (77 9/16)
RW701B-09: 1970 (77 9/16)
BOW
220
Weight:
(8 11/16)
234 275
(9 3/16) (10 13/16) 6 feet antenna: 29 kg (64 lb)
280 470
9 feet antenna: 33 kg (73 lb)
(11) (18 1/2)
• Design and specifications are subject to change without notice.
Safety To ensure proper and safe use of the equipment, please carefully
precaution read and follow the instructions in the Operation Manual.
For details, please contact:
Unit: mm (inch)
57
(2 1/4)
31
(1 7/32)
09.01 Printed in Japan
Marine Radar
12-inch / 15-inch Color LCD
MDC-2200 / 2500
series series
