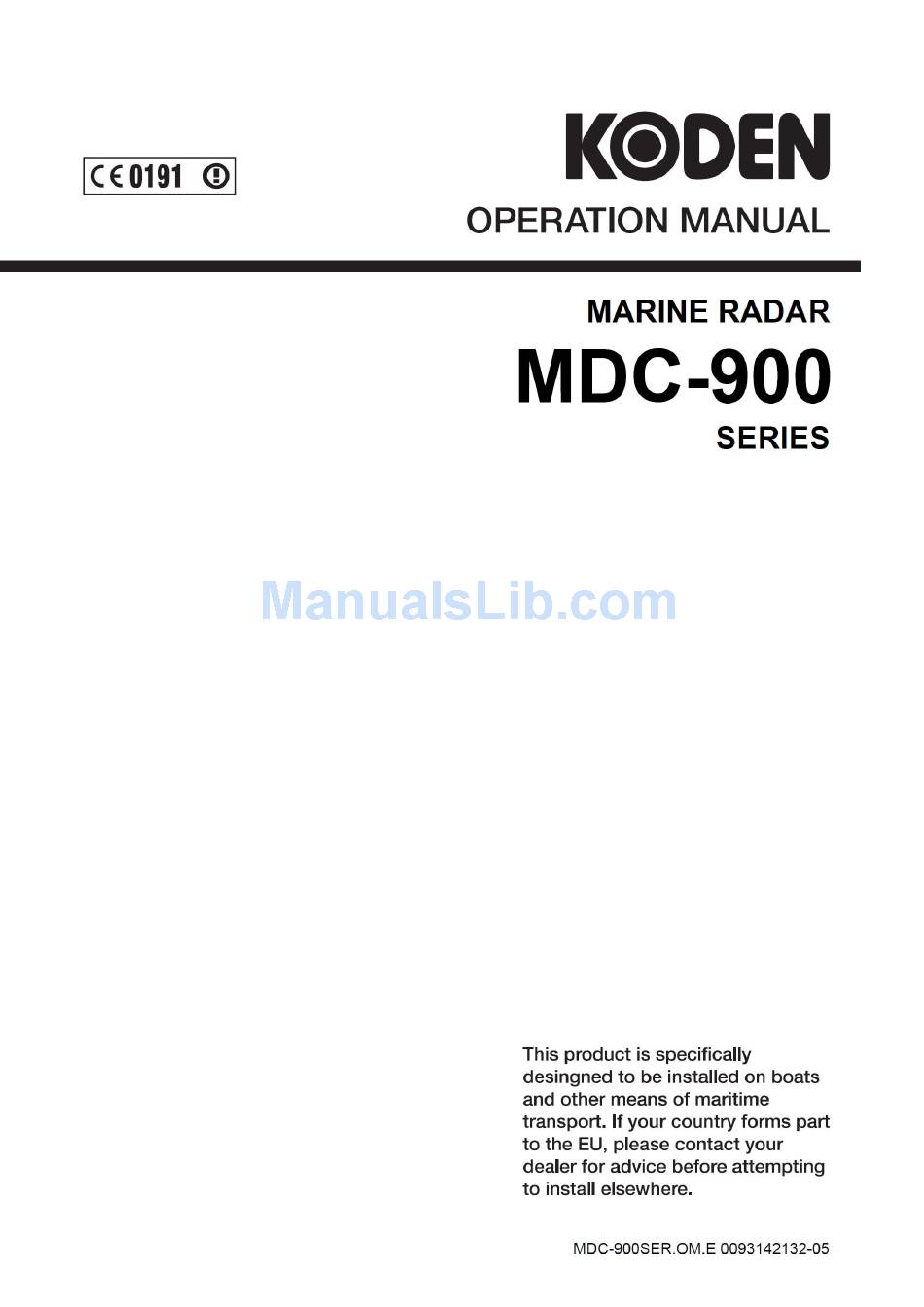

Summary of Contents for Koden MDC-900 Series
-
Page 3: Document Revision History
No part of this publication may be reproduced, transmitted, translated in any from by any means without the written permission of Koden Electronics Co., Ltd. The technical descriptions contained in this publication are subject to change without notice. Koden assumes no responsibility for any errors, incidentals or consequential damages caused by misinterpretation of the descriptions contained in this publication. -
Page 4: Important Notices
Important Notices MDC-900 Series Important Notices The re-use and transcription of Operation Manual (hereafter called this manual) needs permission of our company. Our company prohibits the un-authorized re-use and transcription. If this manual is lost or damaged, consult our dealer or our company. -
Page 5: For Your Safe Operation
MDC-900 Series For Your Safe Operation For Your Safe Operation Symbol used in this Operation Manual This m anual uses the following symbols. Understand the meaning of each symbol and implement the maintenance and inspection. Symbol Meaning Mark for warning This symbol denotes that there is a risk of death or serious injury when not dealing with it correctly. - Page 6 For Your Safe Operation MDC-900 Series Caution Item on Equipment Caution on a high voltage inside. A high voltage, which may risk your life, is used. This high voltage remains in the circuit after you have powered off switch. To prevent...
- Page 7 MDC-900 Series For Your Safe Operation Caution Item on Handling Caution on the rotating aerial The radar antenna may start to rotate without notice. Please stand clear from the antenna for your safety. Caution on electromagnetic disturbance The operating antenna & scanner unit radiates high-energy electromagnetic wave.
- Page 8 For Your Safe Operation MDC-900 Series Do not disassemble or modify. It may lead to trouble, fire, smoking or electric shock. In case of trouble, contact our dealer or our company. In case of smoke or fire, switch off the power in the boat and the power of equipment.
-
Page 9: Table Of Contents
MDC-900 Series Contents Contents Document Revision History.......i 1.12 Measuring the distance and Important Notices ........ii bearing between two points ..1-10 For Your Safe Operation ......iii Measuring the distance and Contents ..........vii bearing between two points ..1-10 Introduction ..........x... -
Page 10: Contents
Field of Angle ......3-6 Information Display ....2-13 NMEA .........3-7 Types and Meanings of ATA KGC-1 Setting (Connection with Symbols........2-14 the KODEN GPS compass) ..3-7 Preset .........3-7 Chapter 3 How to use the system F1/F2 Key Set ......3-7 menu ........3-1 Select Range......3-7 Display of System Menu ....3-1... - Page 11 MDC-900 Series Contents Maintenance ......3-8 Cable connection to the Display Display Unit........ 3-8 unit ........... 5-14 Antenna........3-8 Pin Assignment of Rear Panel Test ........3-8 Connector ........ 5-15 LCD Test ........3-8 Connection of DC power Operation Hours Reset ....3-8 cable ........
-
Page 12: Introduction
Introduction MDC-900 Series Introduction Thank for your purchase of KODEN color LCD radar MDC-900 Series. The quality and endurance of a unit is well considered. For the best performance, read this Operation Manual and operate a unit correctly and safely. -
Page 13: System Configuration
MDC-900 Series System Configuration System Configuration Connection Diagram Antenna - scanner unit RB714A/RB715A/RB716A with RW701A-03/04 10.8 31.2VDC POWER AIS receiver CCD camera RANGE Slave Display Remote Display GAIN External Monitor MRD- XXX External Buzzer BRIL L Display Unit MRD-103 KGC-1 or... -
Page 14: Configuration Of Equipment
Configuration of Equipment MDC-900 Series Configuration of Equipment Standard Equipment Configuration List Name of item Type Remarks Weight/Length Quantity Display unit MRD-103 With mounting 3.7kg bracket and knobs Hard cover E57MB11060 0.25kg DC power cable CW-265-2M 3-pin water resistant connector... - Page 15 MDC-900 Series Configuration of Equipment Types of Antenna-scanner unit Transmitting Type Shape Remarks Weight/Length Power RB714A Radome Interconnecting 6kg / 1.2ft cable, 10m*, 242J160680A-10M RB715A Radome Interconnecting 10kg / 2ft cable, 10m*, 242J158055A-10M RB716A with RW701A-03/04 Open Interconnecting 21kg / 3ft...
-
Page 16: Chapter 1 Basic Operation
Chapter 1 Basic Operation MDC-900 Series Chapter 1 Basic Operation The basic operation of this unit is as follows. For detailed explanation, refer to each item in this manual. Press the [BRILL] to turn When [ST'BY] appears, press the [STBY/TX] key to start on the power. - Page 17 MDC-900 Series Chapter 1 Basic Operation Change the observation range with the [- RANGE +] key. When pressing the [+] key, the observation range expands. When pressing the [-] key, the enlarged surrounding around own ship can be observed. To make it easier to observe the range you desire, change the range.
-
Page 18: How To Read The Radar Screen
Chapter 1 Basic Operation MDC-900 Series How to read the radar screen Process Enhance Heading Range F2 key content Alarm Ship Off center Fixed marker interval F1 key content speed Trail Display mode Pulse width Interference Rejection Crosshair cursor Cursor position... -
Page 19: How To Use The Keys
MDC-900 Series Chapter 1 Basic Operation How to use the keys RANGE GAIN STBY BRILL (10) Various adjustment items can be set by operating each key. The menu displayed by pressing the [MENU] key closes when pressing the [MENU] key again. - Page 20 Chapter 1 Basic Operation MDC-900 Series Number Key name Explanation [F1]* Recalls directly the preset menu item. [ENT] * Press: measures bearing of distance between two points. Continuously pressing: Deletes the heading line. The crosshair cursor moves to the own ship’s position.
-
Page 21: Power On/Off
MDC-900 Series Chapter 1 Basic Operation Power On/Off Press the [ ] and [ ] keys. “1” is darkest. “10” is brightest. The [BRILL] key is used for both the power on/off LCD BRILL and the change of brilliance of the LCD & panel. -
Page 22: Switch-Over Of Range
Chapter 1 Basic Operation MDC-900 Series Switch-over of Range Result picture after adjustment by [GAIN] knob Land The observation range can be changed. Own ship Change of Range Press the [- RANGE +] key. When pressing the [+] key, an image shrinks but the observation range expands. -
Page 23: Stc Adjustment
MDC-900 Series Chapter 1 Basic Operation STC Adjustment In the PPI/PPI menu, when rotating the [STC] knob, the STC functions effective in both displays. In the short distance menu, even if waves are low and the sea surface is calm, an echo... -
Page 24: 1.10 Delete Of Heading Line
Chapter 1 Basic Operation MDC-900 Series Trail Time When pressing the [F1] / [F2] key, the Other Ship** When pressing the [F1] / [F2] key, the trail time changes. information of a target aligned with the crosshair cursor is displayed in the The On/Off display of EBL is toggled window. -
Page 25: Measuring The Distance And Bearing Between Two Points
MDC-900 Series Chapter 1 Basic Operation 1.13 Camera Display The video of a CCD camera can be displayed on the radar screen. (CCD camera: Prepared by a customer) crosshair cursor How to connect a CCD camera Connect CW-405-0.3M cable (optional cursor position cable) to the J7 in the rear connectors. -
Page 26: Chapter 2 How To Use The Menu
Chapter 2 How to use the menu MDC-900 Series Chapter 2 How to use the menu How to operate the menu Select an item you desire to change with the [ ] and [ ] keys. Display/Non-display of Menu ECHO... -
Page 27: Ftc Adjustment
MDC-900 Series Chapter 2 How to use the menu FTC Adjustment Setting of Display Mode When raining or snowing, due to reflection from In the display mode, the bearing and the target rain or snow, an object is hard to be seen. -
Page 28: N Up (North Up)
Chapter 2 How to use the menu MDC-900 Series N UP (North Up) WPT UP (Waypoint Up) The N UP is the display mode to orient the true The WPT is the display mode to always orient north to the top of the screen. - Page 29 MDC-900 Series Chapter 2 How to use the menu Relative motion (RM): The own ship is fixed True motion (TM): Your ship moves and other surrounding targets move according to its speed and tidal on the screen. current on the screen.
-
Page 30: True Motion Reset
Chapter 2 How to use the menu MDC-900 Series True Motion Reset PPI Display When your ship exits from movable range of your The radar screen is displayed on the entire ship’s position, it moves to the opposite side display. -
Page 31: Note On Ppi/Ppi Display
MDC-900 Series Chapter 2 How to use the menu Press the [MENU] key to close the menu. Note on PPI/PPI Display The movable range is limited. In the PPI/PPI display, to avoid risk, the following (See the movable range shown below.) functions do not work. -
Page 32: Setting Of Pulse Width
Chapter 2 How to use the menu MDC-900 Series Setting of Pulse Width Relative Display (R) The relative speed of a target with respect of own The short pulse width is suitable for target ship is displayed as a trail. -
Page 33: True Display (T)
MDC-900 Series Chapter 2 How to use the menu 2.10 EBL True Display (T) Irrespective of the motion of own ship, trails This mode is used when measuring the bearing representing the course and speed of moving from own ship to a target. -
Page 34: 2.12 Display Color
Chapter 2 How to use the menu MDC-900 Series Setup: OFF, ONE SIDE, BOTH SIDES (Initial 2.12 Display Color value: OFF) Press the [MENU] key. When the display is hard to see due to the environment, changing the color of the display Select [DISPLAY] ... -
Page 35: 2.17 Alarm
MDC-900 Series Chapter 2 How to use the menu shows the positions of own ship and other ships Change the distance direction with the [ ] after one minute. and [ ] keys and the bearing with the [ ] and [ ] keys. -
Page 36: 2.19 Ais
Chapter 2 How to use the menu MDC-900 Series 2.19 AIS Types and Meanings of AIS Symbols In the AIS, the symbols are displayed, overlaying By installing the optional AIS interface board, the them on other ships from which the information is information on other ships, which are received by derived. -
Page 37: 2.20 Ata
MDC-900 Series Chapter 2 How to use the menu 2.20 ATA Automatic Acquisition Targets entering in the preset range can be To use the ATA, install the optional ATA board. automatically acquired. The ATA automatically tracks targets and stores Press the [MENU] key. -
Page 38: Target Delete
Chapter 2 How to use the menu MDC-900 Series Target Delete Information Display The information display is set in [ATA] [INFO] Release the acquisition of a target. or [INFO NUMBER]. Press the [MENU] key. The target information of the designated number Select [ATA] ... -
Page 39: Types And Meanings Of Ata
MDC-900 Series Chapter 2 How to use the menu Types and Meanings of ATA Symbols In the ATA, the symbols are displayed, overlaying on acquire-started targets. Normal Symbol Meanings Displayed when setting the acquisition. Displayed when in the stable tracking state. -
Page 40: Chapter 3 How To Use The System Menu
Chapter 3 How to use the system menu MDC-900 Series Chapter 3 How to use the system menu Display of System Menu Setting of Assist Items There is a standard menu which is displayed for In the supplement items of the system menu, to... -
Page 41: Wpt Display
MDC-900 Series Chapter 3 How to use the system menu WPT Display N UP/S UP Select ON or OFF of the WPT icon (flag mark) to Change the mode of the N UP or S UP of the be displayed on the radar screen. -
Page 42: Bearing Setting
Chapter 3 How to use the system menu MDC-900 Series displayed on the screen. Bearing Setting Adjust the bearing of the radar image on the screen. Setup: -180.0 to +180.0 (Initial value: 0.0) Press the [STBY/TX] key to start the transmission. -
Page 43: Stc Curve
MDC-900 Series Chapter 3 How to use the system menu range that can display the entire sea surface reflected echo can be displayed. Adjust the [STC] knob and stop it just before the sea surface reflected echo completely disappears (In the state that the sea surface reflected echo is sparsely displayed.) As... -
Page 44: Tune Select
Chapter 3 How to use the system menu MDC-900 Series The STC curve set value is applied to all ranges. Manual Tune Adjustment Note: The setting of STC characteristics Due to a sudden environment change, the needs to be performed in the ocean. -
Page 45: Interference Rejection
MDC-900 Series Chapter 3 How to use the system menu Change the setting of [Pulse Width Press the [MENU] key. Adjustment] with the [ ] and [ ] keys. Move to the system menu. Refer to 3.1 Display of System Menu. -
Page 46: Nmea
Chapter 3 How to use the system menu MDC-900 Series NMEA Preset In the NMEA item of the system menu, the transmission speed of the external input/output In the Preset of the system menu, the radar is can be changed. -
Page 47: Maintenance
MDC-900 Series Chapter 3 How to use the system menu Maintenance The self-diagnosis of the system menu is the menu for maintenance. Normally, it is not used. Perform the self-diagnosis of the display unit and the antenna. Display Unit The state of the display unit is displayed. -
Page 48: Chapter 4 Maintenance
Chapter 4 Maintenance MDC-900 Series Chapter 4 Maintenance 4.1 Maintenance To operate the radar equipment in a good condition for a long period of time, perform the inspection and cleaning periodically. 4.1.1 Monthly Inspection Caution: ensure Do not turn on the power of the radar during inspection. -
Page 49: 4.1.2 Yearly Inspection
MDC-900 Series Chapter 4 Maintenance 4.1.2 Yearly Inspection In case of Open antenna (RB716A), check the brush of the antenna drive motor inspect every 2,000 hours of transmission. If the length is shorter than 6mm, replace it with a new one. -
Page 50: Fuse Replacement
Chapter 4 Maintenance MDC-900 Series Fuse Replacement WARNING Use the specified fuse. If a fuse other than the specified one is used, it leads to a serious accident. If the input voltage is too high, hyper-current flows or a trouble occurs inside, the fuse blows out. -
Page 51: Self-Diagnostic Function
MDC-900 Series Chapter 4 Maintenance Error Content Error Display Causes The latitude and longitude is not entered. L/L NO SIGNAL HDG NO SIGNAL The bearing signal is not entered. SPD NO SIGNAL The ship speed signal is not inputted. ANTENNA ERROR 1 The trigger signal is not inputted from the antenna. -
Page 52: Inspection At Each Location
Chapter 4 Maintenance MDC-900 Series 4.4.4 Inspection at Each Location After finishing the inspection by the self-diagnosis, according to the table, check each location of the radar. Trouble conditions Suspected causes of troubles Countermeasures The radar cannot be The power cable is not connected. -
Page 53: Chapter 5 Equipment
MDC-900 Series Chapter 5 Equipment Chapter 5 Equipment Antenna Installation Determining the location of the installation The search capability of the radar varies largely, depending on the position of the antenna installation. The ideal installation position is the high place over the keel line where no obstacle surrounds. Actually, though there are many limitations in a ship, determine the installation position, considering the following items. -
Page 54: How To Shift The Antenna From An Obstacle
Chapter 5 Equipment MDC-900 Series How to shift the antenna from an obstacle 1. How to shift the antenna from the keel line By shifting the antenna from keel line to the starboard, the blind moves to the port and the visibility in the heading can be secured. -
Page 55: Installation Of Antenna
MDC-900 Series Chapter 5 Equipment Installation of Antenna After determining the location of the installation, install the antenna. When installing, if the bracket shown below is available, the installation is easier. If not available, install the antenna directly on the roof, paying attention to the air tube for drain at the bottom of the antenna. -
Page 56: Setting Of Open Antenna
Chapter 5 Equipment MDC-900 Series Chassis Radome (bottom) Bracket Flat washer Spring washer Accessory M10 hexagon bolt Install with four bolts Specification of bracket thickness-wise installation bolt (In case of Radome antenna) Thickness of bracket Bolt for fixing the antenna... -
Page 57: Installation Of Antenna
Remove the protective cap covered on the output of the scanner unit rotational shaft. Remove four bolts tentatively fixed to the base of the Antenna and install the Scanner unit to the rotating base. Match the direction of antenna radiation side (KODEN –mark side) with the projection mark on the rotating base. -
Page 58: Cable Connection
Chapter 5 Equipment MDC-900 Series Antenna radiatyion side (KODEN –mark side) Remove Antenna Protective cap Rotating base Projection mark Rotating base Flat washer Spring washer Installation bolt Cable Connection Radome Antenna (2kW) Confirm that the power of the scanner unit is turned off. - Page 59 MDC-900 Series Chapter 5 Equipment Remove the holder plate for fixing the cable and the rubber ring Thread the cable through the Aerial leading opening Insert the rubber ring from both sides of the antenna cable, thread Shielding cover it through the holder plate and fix it Stern to the antenna with the screws.
- Page 60 Chapter 5 Equipment MDC-900 Series Install the upper radome with caution not to touch the aerial. Orient the cover as shown in the illustration below. 4 markings indicating the screw positions are marked on the upper and lower radomes respectively. Install the radome, aligning these markings.
- Page 61 MDC-900 Series Chapter 5 Equipment Open Antenna (4kW) Please make sure power supply of the Scanner unit is OFF. Disassemble the front cover of the Scanner unit from the rear cover by loosening fixing bolts. Remove the TR unit by disconnecting the connector X1 and X2 after loosening fixing bolts of the TR unit.
-
Page 62: Mutual Connection Diagram
Chapter 5 Equipment MDC-900 Series Mutual Connection Diagram 2kW Radome Antenna（RB714A） 4kW Radome Antenna /4kW Open Antenna（RB715A/RB716A） Antenna Display Unit Remark Remark Violet Violet Blue Yellow Yellow Shield Blue Shield Remark Blue Shield Shield Shield Blue Shield GND terminal Shield... -
Page 63: Display Unit Installation
MDC-900 Series Chapter 5 Equipment Display Unit Installation The display unit can be installed on the desktop or as flash mount. Please install the display unit to the following procedure. In addition, please install the display unit securing safety distance from the magnetic compass. -
Page 64: Flush-Mount Installation
Chapter 5 Equipment MDC-900 Series Caution: When installing on the desktop, the maintenance space shown in the illustration below is required for cable lay-out, plugging-in/out of connector, fuse replacement and bolt tightening. (3 15/16) (9 29/64)) (3 15/16) Unit: mm (inch) -
Page 65: Adjustment After Installation
MDC-900 Series Chapter 5 Equipment Make a square hole of 220x220 (depth x width) on the installation place. (See the illustration below.) 4-4mm (4-5/32) Hole for screw (8 21/32) Threading hole (8 13/16) Unit: mm (inch) Turn counterclockwise the knob bolt fixing the display unit to the installation bracket to loosen and lift the display unit upward. -
Page 66: Wiring
Chapter 5 Equipment MDC-900 Series After confirming the above items, be sure to perform the adjustments. The adjustments after the installation are the following items in 3.3 Setup of Adjustment Items. BRG ADJ TX DELAY ADJ MBS ... -
Page 67: Connector
MDC-900 Series Chapter 5 Equipment Pin Assignment of Rear Connector The pin assignment is viewed from the rear of the display unit. AIS Input Slave display AISIN- NMEA/IEC61162 Input/Output NMEA/IEC61162 Input/Output Antenna-scanner unit External monitor/External buzzer ① +250V ⑨ BP/SHF-R ②... -
Page 68: Connection Of Dc Power Cable
Chapter 5 Equipment MDC-900 Series Connection of DC power cable (CW-265-2M) DC+(White) DC- (Black) To [POWER] port GND (Gray) Grounding Use the large diameter cable for ground wire as possible. Connect the ground wire to the ground material at a shortest distance. -
Page 69: Connection With The Navigation Equipment
Two NMEA0183/IEC61162 input/output ports are provided. Connect the navigation equipment and the external equipment such as KODEN made GPS sensor to them. The optional cable with connectors at both ends is available. The CW-376-5M of which one end is left untreated is also available. Prepare a cable suitable for the equipment you desire to connect. -
Page 70: Connection Of Ccd Camera
Chapter 5 Equipment MDC-900 Series Connection of CCD Camera (J7) (Prepared by a customer) The standard product CW-405-0.3M is equipped with a RCA jack for connection to the CCD camera (NTSC/PAL/SECAM), Connect the video output terminal (RCA plug (In most cases, yellow)) of your CCD camera. -
Page 71: Chapter 6 Attached Table
MDC-900 Series Chapter 6 Attached Table Chapter 6 Attached Table Menu Configuration 0093142132-05... - Page 72 Chapter 6 Attached Table MDC-900 Series 0093142132-05...
-
Page 73: Specifications
MDC-900 Series Chapter 6 Attached Table Specifications Specification item Content Model MDC-921 MDC-941 MDC-940 Antenna-scanner unit Antenna type Radome (RB714A) Radome (RB715A) Open array (RB716A) Antenna length 1.2 feet 2 feet 3 feet 4 feet Output power (Peak) 2 kW... - Page 74 Chapter 6 Attached Table MDC-900 Series Input/output NMEA input/output Input data format and NMEA0183 (BEC､BWC､BWR､DPT､DBT､GGA､GLL､GNS､HDG､HDM､ HDT､MTW ､MWD､MWV､RMA､RMB､RMC､VHW､VTG､XTE) sentences Output data format and NMEA0183 (TTM、TLL) sentence Power supply 10.8 to 31.2 VDC Power Consumption 55 W or less 45 W or less...
-
Page 75: External View
MDC-900 Series Chapter 6 Attached Table External View 0093142132-05... - Page 76 Chapter 6 Attached Table MDC-900 Series (3 15/16) (9 29/64)) (3 15/16) Unit: mm (inch) Dimension drawing of table installation Hole for installing (9 29/64) 4-4mm screw (8 21/32) Threading hole (8 5/32) Unit: mm (inch) Dimension drawing of flush-mount installation...
- Page 77 MDC-900 Series Chapter 6 Attached Table RB714A Unit: mm (inch) Weight: 6kg 448 (17 5/8) 220 (8 11/16) RB715A Unit: mm (inch) Weight: 10kg (25 63/64) 255 (10 1/16) 636 (25 1/16) 0093142132-05...
- Page 78 Chapter 6 Attached Table MDC-900 Series RB716A Unit: mm (inch) Weight: 21kg/ (RW701A-03): 22kg/ (RW701A-04) 1034/ (RW701A-03) 1346/ (RW701A-04) 220 (8 11/16) 234 (9 3/16) 390 (15 3/8) 280 (11) 0093142132-05...
-
Page 79: Chapter 7 Principle Of Radar System
MDC-900 Series Chapter 7 Principle of radar system Chapter 7 Principle of radar system What is the radar system? The radar system is a navigation device that transmits a very high frequency radio wave referred as microwave from antenna. The radar then receives the radio wave reflected by target(s) (e.g. other ship, buoy, island, etc) via the same antenna and converts the received radio wave to electronic signals and sends these signals to the display unit. -
Page 80: Characteristics Of Radar Radio Wave
Chapter 7 Principle of radar system MDC-900 Series Characteristics of radar radio wave The radio wave propagates slightly along the ground (primarily line of sight). This characteristic varies depending on the density of atmosphere but generally calculated according to the formula as shown below, considering that the distance with radar sight D is about 6% longer than the distance with optical sight. -
Page 81: Virtual Image
MDC-900 Series Chapter 7 Principle of radar system ● Virtual image The image of a large physical object in a close proximity may appear in two different orientations. One is a real image and the other is a false image caused by wave reflected on the chimney stack or the mast, etc. -
Page 82: Radar Interference
Chapter 7 Principle of radar system MDC-900 Series ● False image by sidelobe The microwave beam radiated from the antenna has a side lobe in different direction than that of the main beam. Since this side lobe is lower than that of main beam, the effect is negligible for targets at a long range, but a close, strong reflecting target may cause false image in a circular arc shape.
