Ulvac MBS-C Instruction Manual
  1. Manuals
  2. Brands
  3. Ulvac Manuals
  4. Measuring Instruments
  5. MBS-C
  6. Instruction manual

Ulvac MBS-C Instruction Manual

Cryo meter
Hide thumbs

Advertisement

Quick Links

CRYO METER MBS-C
Instruction Manual
Export Control Policy
We recommend that ALL customers be sure to follow all
rules and regulations such as Foreign Exchange and
Foreign Trade Law when exporting or reexporting our
products.
D/N.MGMBS0CE, 2017DR08
ULVAC CRYOGENICS INCORPORATED

Advertisement

loading
Need help?

Need help?

Do you have a question about the MBS-C and is the answer not in the manual?

Questions and answers

Related Manuals for Ulvac MBS-C

Summary of Contents for Ulvac MBS-C

  • Page 1 CRYO METER MBS-C Instruction Manual Export Control Policy We recommend that ALL customers be sure to follow all rules and regulations such as Foreign Exchange and Foreign Trade Law when exporting or reexporting our products. D/N.MGMBS0CE, 2017DR08 ULVAC CRYOGENICS INCORPORATED...
  • Page 3 As a general rule, diagnosis of failure should be done on site by customer. However, ULVAC CRYOGENICS or our service network can perform this service for an agreed fee upon the customer’s request. There will be no charge if the cause...
  • Page 4 ULVAC CRYOGENICS. (2) Damage during transportation When damage by delivery/transportation is admitted, the product will be repaired free of charge within the range of the guarantee expressed in the sales contract.
  • Page 5 2.3 Repair period after production is discontinued ULVAC CRYOGENICS shall accept product repairs for seven years after production of the product is discontinued. 3. Service Form After the products are delivered, please fill out the following information in the blanks. If you have any questions or technical problems please feel free to contact the nearest Customer Support Center or headquarters.
  • Page 6 (3) If you have any questions or comments on this document, please do not hesitate to contact us. The phone numbers of local customer support centers are listed at the end of this manual. ULVAC CRYOGENICS INCORPORATED...
  • Page 7 There is a danger of fire or burn injury. Explosive gas used. There is a risk of fire or explosion. Hazardous voltage . Electric shock may cause severe injury or loss of life. Hot heating part present. There is a risk of burn injury. MZ0F001E,2013OR03 ULVAC CRYOGENICS INCORPORATED...
  • Page 8 This page intentionally left blank ULVAC CRYOGENICS INCORPORATED...
  • Page 9 We will offer you Material Safety Data Sheet (called MSDS) of our products upon your request. If you have any questions, please contact our Service Engineering Division or the nearest customer support center. MZIW001E,2010.01 ULVAC CRYOGENICS INCORPORATED IW-1...
  • Page 10 This page intentionally left blank. IW-2 ULVAC CRYOGENICS INCORPORATED...

  • Page 11: Table Of Contents

    4.1 Thermocouple Installation･････････････････････････････ 5 4.2 Cable Connection･････････････････････････････････････ 6 CHAPTER 5 Status Display･････････････････････････････････････････ 10 CHAPTER 6 Troubleshooting･･･････････････････････････････････････ 11 Supplement 1. Assembling IO Connector and Connecting to MBS-C･･････ 15 Supplement 2. Attachment, and Option cables･･････････････････････････ 18 Supplement 3. Pin assignments of MBS-compatible Cable･･･････････････ 20 FIGURES Figure 1-1 CRYO METER MBS-C･････････････････････････････････････...
  • Page 12 Table 1-2 are attached instead of the kit by your specifying of the option. Note to Users ULVAC CRYOGENICS INC. ships the products that have been passed the inspection and adjustment procedure. Please contact our customer support if you have any problem. Any modification and/or adjustment should not be performed without our permission.

  • Page 13: Chapter 1 General

    MBS-C. MBD displays the numeric temperature value of 2nd stage. Refer to Figure 1-1 and 1-2 for the appearances of MBS-C and MBD. Please refer to MBD Refer to Figure 1-1 and 1-2 for the appearances of MBS-C and MBD. Please refer to MBD instruction manual for details.

  • Page 14: Models Of Mbs-C

    MBS-C contacts available (*1) The plugs are same type of MBS attachments. Note that it is easier for cabling MBD and MBS-C by using MBD-HS30 than using GP-HM30, because other cables are required in the latter case. Please specify MBS compatible cable when you need to wire in the same way as previous models of MBS.

  • Page 15: Chapter 2 General Specifications

    CRYO METER MBS-C Instruction Manual General Specifications Table 2-1 Ratings of MBS-C Item Specifications Storage Temperature -20 – 70℃(*1) Operating Temperature 10 – 35℃ Ambient Ambient Humidity 40 – 85%RH (No Condensation) Conditions Indoors, Installation Height: Less 1000m Installation Space Keep away from direct sunlight and corrosive gases.

  • Page 16: Chapter 3 Connector Specifications

    CRYO METER MBS-C Instruction Manual Connector Specifications Shown below are the locations of MBS-C connectors and signal names. (Front Side) (Rear Side) Figure 3-1 MBS-C Bottom View Table 3-1 Pin assignments and signals Symbol Model Signal Name Signal Name N.C.

  • Page 17: Chapter 4 Installation

    CRYO METER MBS-C Instruction Manual Installation 4.1 Thermocouple Installation 1.1 CAUTION Be sure to put the indium gasket on when installing the cryogenic thermocouple and the K thermocouple. Do not bend the sheath more than the diameter of the cylinder. (Be sure to bend with hands) Do not attempt to straighten bent sheath.

  • Page 18: Cable Connection

    Ground-Loop problem. reason, and avoiding Ground-Loop problem. (*4) In case of connecting a measureme (*4) In case of connecting a measurement tool to the MBS-C analog output line, check the nt tool to the MB S-C analog output line, check the tool’s input impedance before the connection.

  • Page 19: Figure 4-3 Dc Power And Signal Line Diagram

    CRYO METER MBS-C Instruction Manual [Control Panel] MBS-C I /O ’ ’ 24 V 24 V POWER AWG #24 , or 0.3mm Max. 24V P/S Twisted Shielded Cable（20m Max.） ’ ’ ＋ ＋ ANALOG ANALOG IN AWG #24 , or 0.3mm Max.
  • Page 20 CRYO METER MBS-C Instruction Manual <Wiring with MBS compatible cables> [Control Panel] MBS-compatible Cable (GP-HM30) MBS-C POWER Twi ted Shielded Cable (HC-3L2/Hirakawa) POWER OUT (DC Power Cable) POWER ANALOG OUT Twisted Shielded Cable (HC-3L2/Hirakawa) ANALOG ANALOG IN (Signal Cable) RELAY <...
  • Page 21 CRYO METER MBS-C Instruction Manual <Wiring with Optional cables> MBD-HS31 MBS-C Cable [Control Panel] MBS-C I /O ＰＯＷＥＲ OUT (ＤＣ Power Cable) POWER Twisted Shield Cable （HC-3L2/Hirakawa） ＋ ＋ ANALOG ANALOG IN (Signal Cable) － Twisted Shield Cable （HC-3L2/Hirakawa） < 20K...

  • Page 22: Chapter 5 Status Display

    Status Display Power ON MBD or MBS-C Supply dc-power for MBS-C or power on MBD to supply the power for MBS-C. If there is a defect or danger, shutoff the branch circuit power immediately. After that, check the cable connections referring to Section 6. Troubleshooting.

  • Page 23: Chapter 6 Troubleshooting

    CRYO METER MBS-C Instruction Manual Troubleshooting Troubleshooting 2.1 WARNING In the troubleshooting procedure, confirm the fault status, turn off the power, In the troubleshooting procedure, confirm the fault status, turn off the power, and turn on the power again. After that, reconfirm the fault status. If the product and turn on the power again.

  • Page 24: Figure A-1 Analog Output Voltage (10K - 350K)

    CRYO METER MBS-C Instruction Manual Ｋ TEMPERATURE (K) Figure A-1 Analog Output voltage (10K - 350K) ULVAC CRYOGENICS INCORPORATED...

  • Page 25: Figure A-2 K Thermocouple Output Voltage

    CRYO METER MBS-C Instruction Manual ELECTROMOTIVE FORCE (mV) （Ambient Temperature ： ２０℃） Figure A-2 K Thermocouple output voltage ULVAC CRYOGENICS INCORPORATED...

  • Page 26: Figure A-3 Dimensions Of Mbs-C

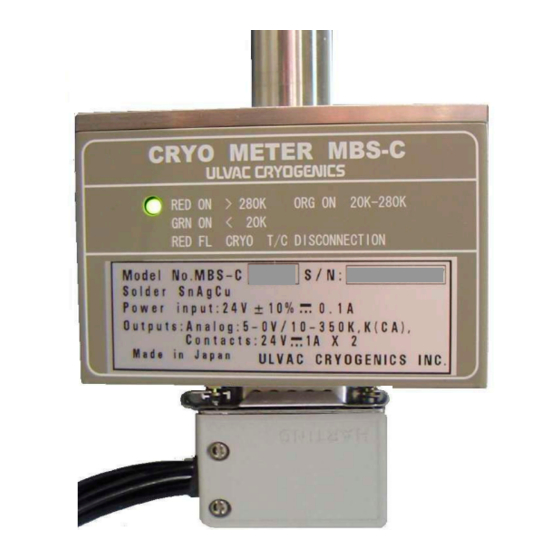

    CRYO METER MBS-C Instruction Manual φ44.5 ＣＲＹＯ ＭＥＴＥＲ ＭＢＳ－Ｃ RED ON > 280K ORG ON 20K-280K GRN ON < 20K RED FL CRYO T/C DISCONNECTION Ｍｏｄｅｌ Ｎｏ． ＭＢＳ－Ｃ Ｓ／Ｎ： Ｓｏｌｄｅｒ ＳｎＡｇＣｕ Ｐｏｗｅｒ ｉｎｐｕｔ： ２４Ｖ±１０％ ０．１Ａ ・ ・ ・ Ｏｕｔｐｕｔｓ： Ａｎａｌｏｇ：５－０Ｖ/１０－３５０Ｋ，Ｋ（ＣＡ），...

  • Page 27: Supplement 1. Assembling Io Connector And Connecting To Mbs-C

    Supplement 1. Assembling IO Connector and Connecting to MBS-C 1. The Connector-kit If no cable-option is specified, the Connector-kit shall be attached to MBS-C for “I/O” connecting. Fig. 1-A shows the package view. The package includes all the parts you need.
  • Page 28 CRYO METER MBS-C Instruction Manual 2. Assembling the parts Fig. 1-C shows how to assemble. You shall use a minus driver for tightening screws. Screw (Slide locking attachment) Slide locking device 0967 015 0511 D-SUB Female 0967 015 4715 (Wire size; AWG24-20)
  • Page 29 Check that the Slide locking device is positioned shown in the figure with light metallic sound. It means that the plug is locked to MBS-C. If you would remove the plug, push the left side of the Slide locking device for unlocking the plug.

  • Page 30: Supplement 2. Attachment, And Option Cables

    CRYO METER MBS-C Instruction Manual Supplement 2. Attachment, and Option cables The following shows all the types that are available for connecting to MBS-C. (Standard Attachments) K thermocouple (Refer to Supplement 1) R05-P2F K-thermocouple plug for wiring is attached to MBS-C in any case...
  • Page 31 (Note 3) Refer to Note1 for the meaning of “Old” and “New” terms in Table 2-B. (Note 4) MBS adapting cable is available for installing MBS that should be connected to MBS-C cables in case of replacing a pump with MBS-C to a reserved pump with MBS...

  • Page 32: Supplement 3. Pin Assignments Of Mbs-Compatible Cable

    CRYO METER MBS-C Instruction Manual Supplement 3. Pin assignments of MBS-compatible Cable ble 3-A Pin a ssignme nts of MBS-compatible Cable con nectors Receptacle Available Pin assignment Function Name Pin name Plug Spec. +24V DC R03-PB3M, ( Reserved ) POWER...
  • Page 33 Tel : +81-6-6397-0112 Fax: +81-6-6397-0126 <Inquiries about cryostats or LN generators> Kyoto Factory 140-1,Megawa,Makishima-cho,Uji,kyoto,611-0041,Japan Tel : +81-774-28-5595 Fax: +81-774-20-2201 ULVAC CRYOGENICS KOREA INC. www.ulvac-cryo.co.kr 107, Hyeongoksandan-ro, Cheongbuk-Myeon, Pyeongtaek-si, Gyeonggi-Do, Korea, 451-831 Tel : +82-31-683-2926 Fax: +82-31-683-2956 ULVAC CRYOGENICS (NINGBO) INC. www.ulvac-cryo.com 1-2 Floor, Shuguang Building, No.6 Jingyua Road,...
  • Page 34 This page intentionally left blank. CS-2 ULVAC CRYOGENICS INCORPORATED...
  • Page 35 CRYO METER MBS-C Instruction Manual Revision History Date Revision No. Contents 2005-12-27 2005.12 First edition 2006-02-02 2006FY01 P.4, Correction of the model number of Angle 90°Clamp in Table 3-2. IO Connector has changed. 2006-08-23 2006AT02 Supplement 1, 2 and 3 have been added.(P.13-P.18)
  • Page 36 Revision History This page intentionally left blank ULVAC CRYOGENICS INCORPORATED...

This manual is also suitable for:

Mbs-c2Mbs-c2aMbs-c3Mbs-c3a
