Commissioning
66

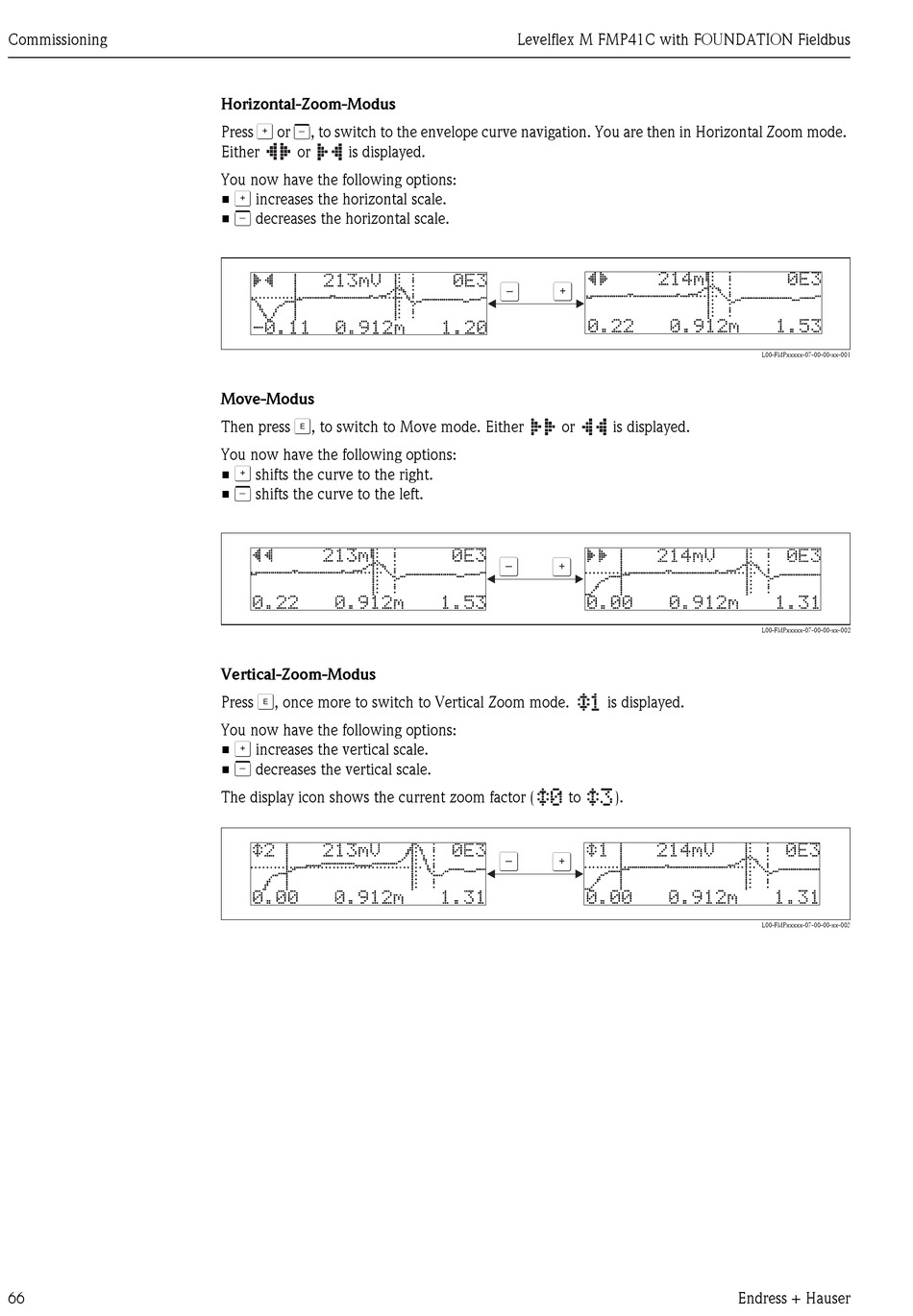

Horizontal-Zoom-Modus
O S
Press or , to switch to the envelope curve navigation. You are then in Horizontal Zoom mode.
Either or is displayed.
You now have the following options:
O
• increases the horizontal scale.
S
• decreases the horizontal scale.
Move-Modus
F
Then press , to switch to Move mode. Either
You now have the following options:
O
• shifts the curve to the right.
S
• shifts the curve to the left.
Vertical-Zoom-Modus
F
Press , once more to switch to Vertical Zoom mode.
You now have the following options:
O
• increases the vertical scale.
S
• decreases the vertical scale.
The display icon shows the current zoom factor (
Levelflex M FMP41C with FOUNDATION Fieldbus
S O
or is displayed.
S O
is displayed.
to ).
S
O
L00-FMPxxxxx-07-00-00-xx-001
L00-FMPxxxxx-07-00-00-xx-002
L00-FMPxxxxx-07-00-00-xx-003
