Turn housing

After mounting, the housing can be turned 350° in order to simplify access to the display and the

terminal compartment. Proceed as follows to turn the housing to the required position:

• Undo the fixing screws (1)

• Turn the housing (2) in the required direction

• Tighten up the fixing screws (1).

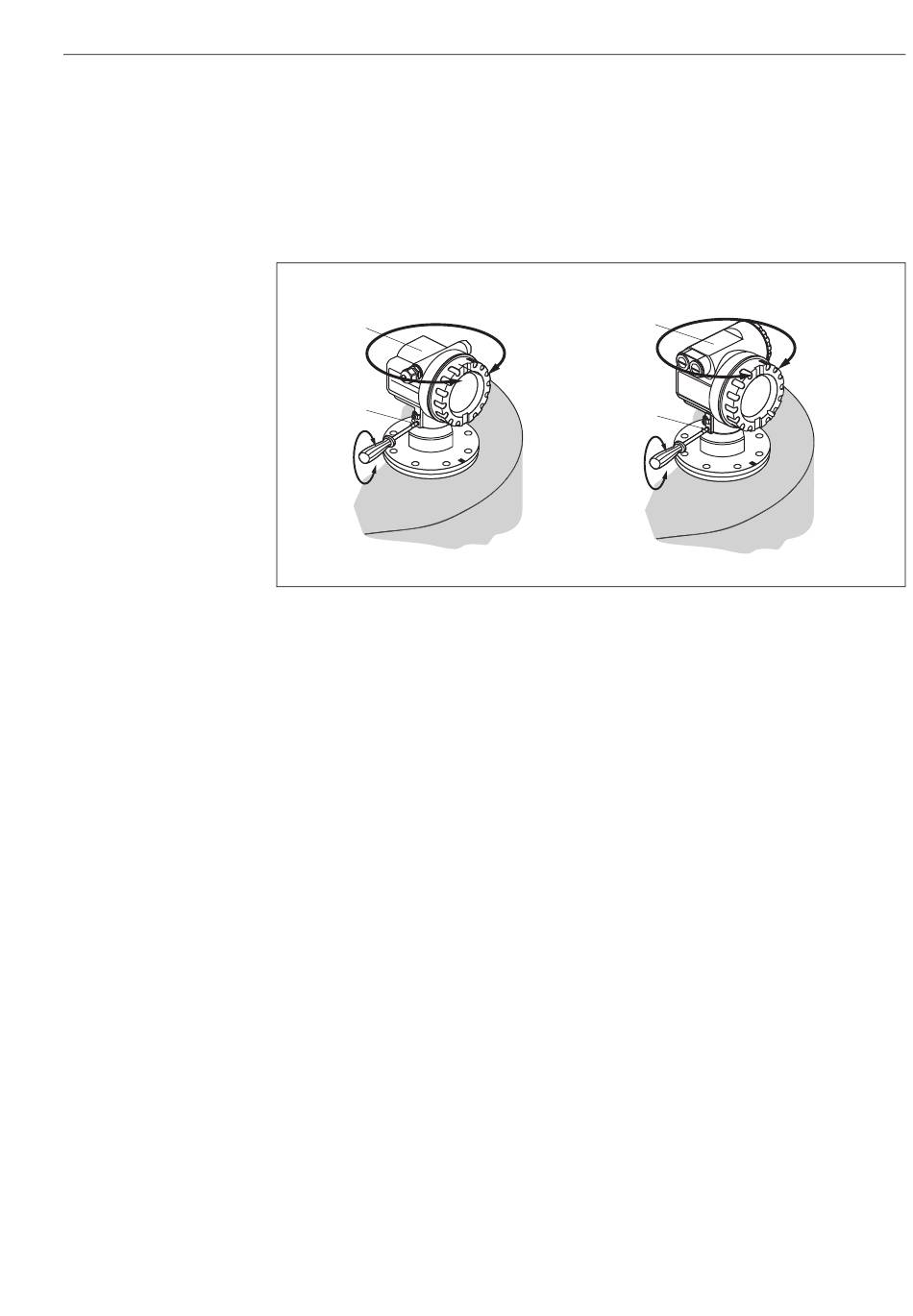

F12/F23 housing

3.5

After the measuring instrument has been installed, perform the following checks:

• Is the measuring instrument damaged (visual check)?

• Does the measuring instrument correspond to the measuring point specifications such as process

temperature/pressure, ambient temperature, measuring range, etc.?

• Are the measuring point number and labeling correct (visual check)?

• Is the measuring instrument adequately protected against rain and direct sunlight (see Page 74)?

T12 housing

allen key

4 mm/0.1"

Installation

L00-FMP41Cxx-17-00-00-de-002
