Installation
Wand
94
Rohr
!
20

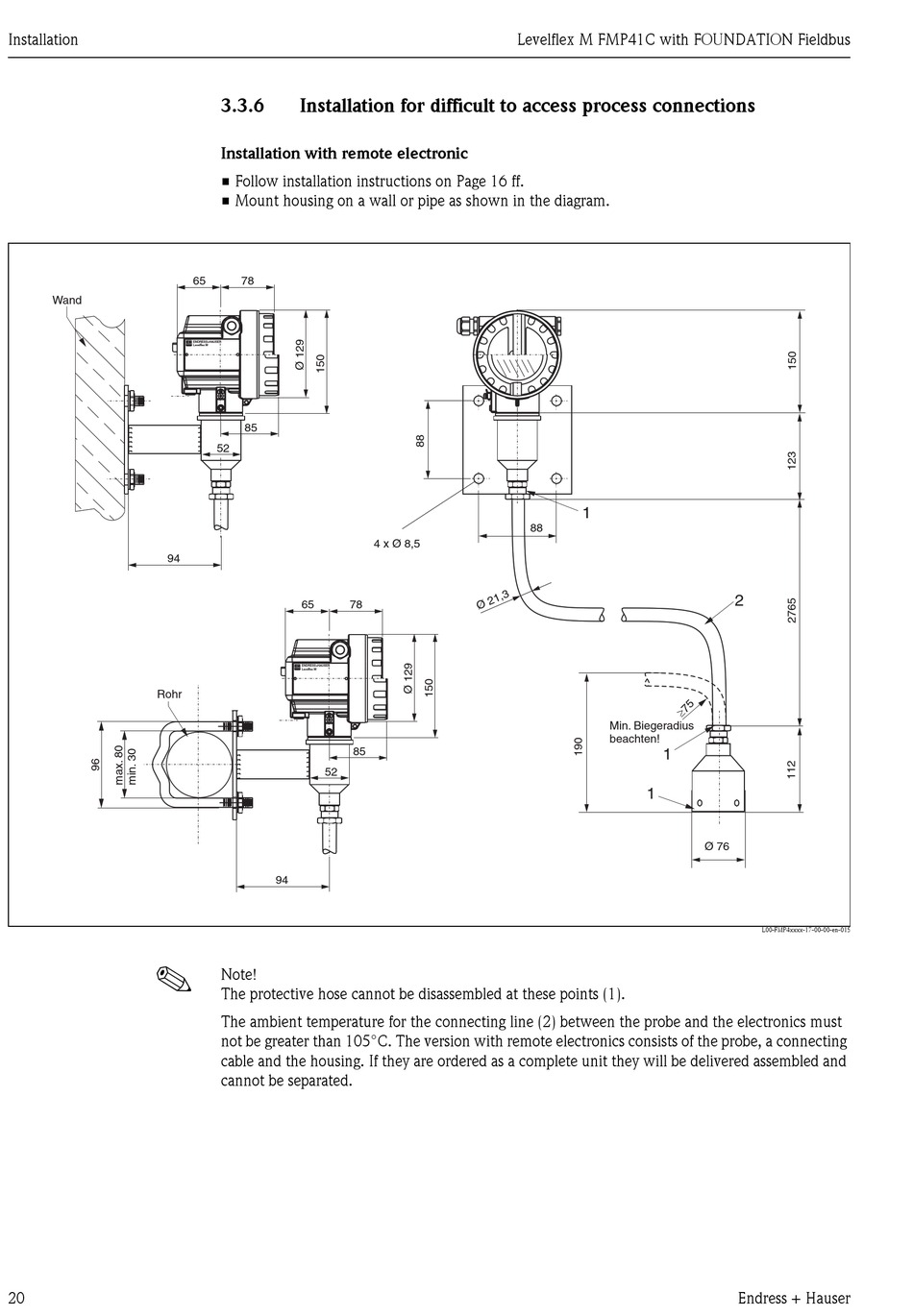

3.3.6
Installation for difficult to access process connections
Installation with remote electronic
• Follow installation instructions on Page 16 ff.
• Mount housing on a wall or pipe as shown in the diagram.
65
78
ENDRESS+HAUSER
Levelflex M
85
52
65
78
ENDRESS+HAUSER
Levelflex M
85
52
94
Note!
The protective hose cannot be disassembled at these points (1).
The ambient temperature for the connecting line (2) between the probe and the electronics must
not be greater than 105°C. The version with remote electronics consists of the probe, a connecting
cable and the housing. If they are ordered as a complete unit they will be delivered assembled and
cannot be separated.
Levelflex M FMP41C with FOUNDATION Fieldbus
88
4 x Ø 8,5
1
2
Min. Biegeradius
beachten!
1
1
Ø 76
Endress + Hauser
L00-FMP4xxxx-17-00-00-en-015
