Operation
!
36
5.5

FOUNDATION Fieldbus communication

5.5.1 System architecture

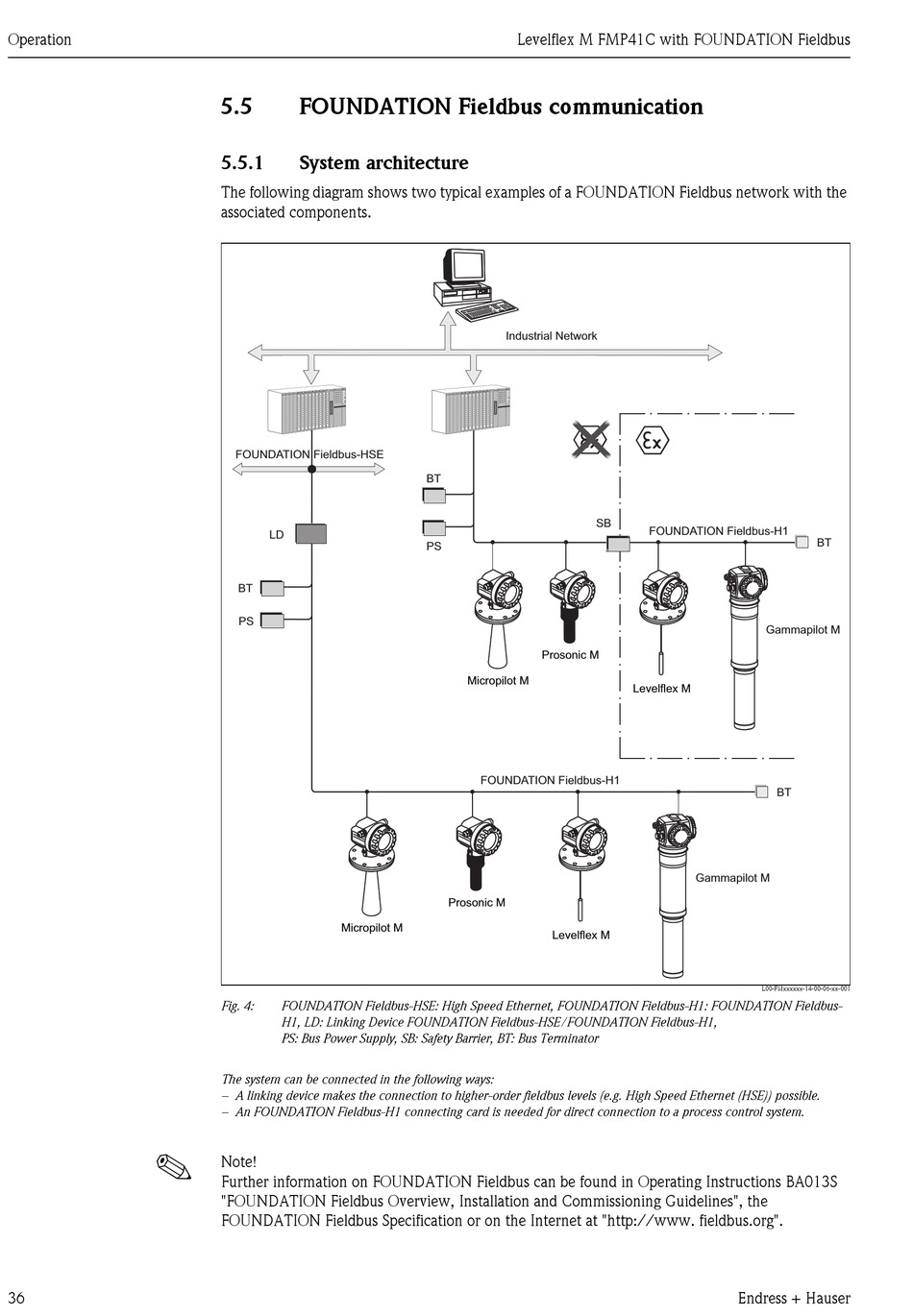

The following diagram shows two typical examples of a FOUNDATION Fieldbus network with the
associated components.
FOUNDATION Fieldbus-HSE
LD
BT
PS
Micropilot M
Fig. 4: FOUNDATION Fieldbus-HSE: High Speed Ethernet, FOUNDATION Fieldbus-H1: FOUNDATION Fieldbus-
H1, LD: Linking Device FOUNDATION Fieldbus-HSE/FOUNDATION Fieldbus-H1,
PS: Bus Power Supply, SB: Safety Barrier, BT: Bus Terminator
The system can be connected in the following ways:
– A linking device makes the connection to higher-order fieldbus levels (e.g. High Speed Ethernet (HSE)) possible.
– An FOUNDATION Fieldbus-H1 connecting card is needed for direct connection to a process control system.
Note!
Further information on FOUNDATION Fieldbus can be found in Operating Instructions BA013S
"FOUNDATION Fieldbus Overview, Installation and Commissioning Guidelines", the
FOUNDATION Fieldbus Specification or on the Internet at "http://www. fieldbus.org".
Levelflex M FMP41C with FOUNDATION Fieldbus
Industrial Network
BT
SB
PS
Prosonic M
Micropilot M
FOUNDATION Fieldbus-H1
Prosonic M
Levelflex M
FOUNDATION Fieldbus-H1
Gammapilot M
Levelflex M
BT
Gammapilot M
L00-FMxxxxxx-14-00-06-xx-001
