Summary of Contents for Aplisens LI-24ALW

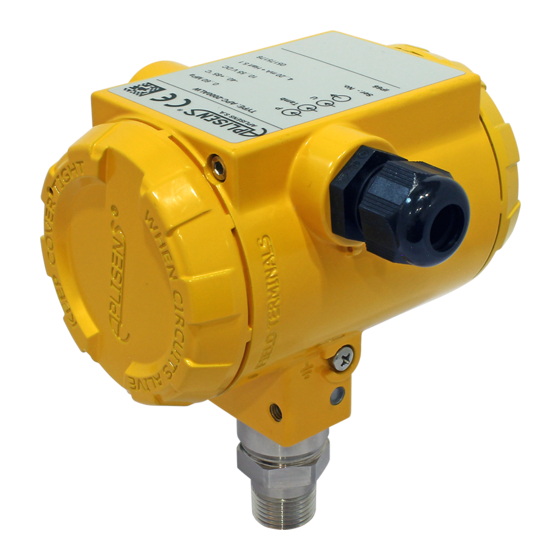

- Page 1 Revision 01.A.001 EN.IO.LI.24.ALW May 2020 USER’S MANUAL TEMPERATURE TRANSMITTER LI-24ALW APLISENS S.A., 03-192 Warsaw, Morelowa 7 St, tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 LI-24ALW ID:0028 0001 0001 0000 0000 0000 00001 28 https://www.aplisens.pl/ID/002800010001000000000000000128/ LI-24ALW (Exi) ID:0028 0002 0001 0000 0000 0001 0001 45 https://www.aplisens.pl/ID/002800020001000000000001000145/ LI-24ALW (Exd) ID:0028 0003 0001 0000 0000 0002 0001 62 https://www.aplisens.pl/ID/002800030001000000000002000162/...
- Page 3 - possible mechanical impacts, excessive shocks and vibration; - excessive temperature fluctuation; water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer's website: www.aplisens.com...
-
Page 4: Table Of Contents
EN.IO.LI.24.ALW TABLE OF CONTENTS 1. INTRODUCTION ..................6 1.1. Purpose of the document .................... 6 1.2. Registered trademarks ....................6 2. SAFETY ....................... 6 3. TRANSPORT AND STORAGE ..............7 3.1. Delivery check ......................7 3.2. Transport ........................7 3.3. Storage ........................7 4. - Page 5 13. HISTORY OF REVISIONS................. 24 LIST OF FIGURES Figure 1. Marking of the LI-24ALW terminals................ 10 Figure 2. Methods of connecting sensors, potentiometers and voltage sources....11 Figure 3. Electrical connection 4…20 mA of HART to transmitters in standard version..12 Figure 4.
-
Page 6: Introduction
EN.IO.LI.24.ALW INTRODUCTION 1.1. Purpose of the document The subject of manual are rail-mounted smart temperature transmitters LI-24ALW, designed to work with a distance or direct sensor. The manual applies to the following versions: standard, intrinsically safe Exi and flameproof Exd. -
Page 7: Transport And Storage
GUARANTEE General terms and conditions of guarantee are available on the manufacturer’s website: www.aplisens.com/ogolne_warunki_gwarancji The guarantee shall be repealed if the device is used against its intended use, failure to comply with user’s manual or interference with the structure of the device. -
Page 8: Identification
EN.IO.LI.24.ALW IDENTIFICATION 5.1. Manufacturer's address APLISENS S.A. 03-192 Warsaw Morelowa 7 St Poland 5.2. Transmitter identification Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Table 1. Symbols occurring on the transmitter nameplate. -
Page 9: Construction
The transmitter is provided with an output interference filter and overvoltage protection components. Fig. 1 shows the block diagram of the transmitter. LI-24ALW transmitter monitors its hardware re- sources and calculation accuracy. In case of a failure the transmitter specifies an error code on the LCD display and generates alarm current in the current loop. -
Page 10: Installation
INSTALLATION 7.1. General recommendations Temperature transmitter LI-24ALW can be mounted in any position. The housing of the transmitter should be protected against hot air streams by appropriate location of the transducer or by installing thermal screens so that the transmitter does not heat up to a temper- ature higher than the permissible one. -
Page 11: Options For Connecting Sensors, Potentiometers And Voltage Sources To The Transmitter
EN.IO.LI.24.ALW 8.1.2. Options for connecting sensors, potentiometers and voltage sources to the trans- mitter Figure 2. Methods of connecting sensors, potentiometers and voltage sources. Revision 01.A.001/2021.05... -
Page 12: Connection Of Transmitters With The Option Of Using Hart Communication
EN.IO.LI.24.ALW 8.2. Connection of transmitters with the option of using HART communication The method of connecting a modem to transmitter for HART communication is shown in the figures below. In order to communicate using connected HART modem to the transmitter ‘’+’’ and ‘’-‘’ terminals, make sure that the R resistance viewed from the side of transmitter Lmax... -
Page 13: Transmitter Power Supply
It is mandatory to read EN.IX.LI.24.ALW Explosion-proof Device User Manual, contain- ing important information related to the installation of transmitters in intrinsically safe version. The converter may also be operated using Aplisens Mobile Configurator installed on smartphones with Android system and connected using wireless communication. ®... -
Page 14: Specifications Of Electrical Switching Terminals
EN.IO.LI.24.ALW 8.3.2. Specifications of electrical switching terminals The internal electrical connection terminals accept wires with a cross section of 0.5 to 1.75 mm Internal and external electrical terminal of the body ground accepts wires with a cross-section from 0.5 to 4 mm Possible cables to be used: unshielded when using the analogue signal only;... -
Page 15: Start-Up
The alarm current values can be set using the program Raport 2 or by ordering an appropriate alarm configuration in the transmitter from the supplier. Temperature transmitters LI-24ALW manufactured by Aplisens meet the alarm require- ments Namur NE 89 and Namur NE 43. -
Page 16: Metrological Parameters, Types Of Sensors, Measuring Ranges And Errors
EN.IO.LI.24.ALW additional parameters such as offset of measuring channels or compensation of sensor lead resistance; start point of the set LRV range in the basic unit; end point of the set URV range in the basic unit; damping time constant; analogue output processing characteristic mode;... -
Page 17: Table 5. Metrological Parameters Of Thermocouples
EN.IO.LI.24.ALW Table 5. Metrological parameters of thermocouples. Thermocouples Input – Thermocouples >10 MΩ Input impedance 500 Ω (wires + thermocouple) Maximum wires resistance Cold junctions compensation internal sensor, external sensor Pt100, temperature constant of the cold junctions Temperature Processing er- processing er- Sensor type Standard... -
Page 18: Table 6. Types Of Measurements, Linearization And Mathematical Operations
EN.IO.LI.24.ALW Table 6. Types of measurements, linearization and mathematical operations. Voltage measurements, TC type sensors. Voltage measurement range 0...100 mV or 0...1000 mV Linearization type/base range Sensor type and CJC configurations Linear/0...100 mV or 0...1000 mV 1 x TC (voltage measurement); 2 x TC (voltage measurements);... -
Page 19: Operation
EN.IO.LI.24.ALW 10. OPERATION The programmable display is designed to shows the values measured during the measurement process. These can be process variables of the measured temperature, current in the current loop or other values converted from the process current variable to the user's units. 10.1. -
Page 20: Figure 6. Structure Of The Local Setpoints Menu
EN.IO.LI.24.ALW Figure 6. Structure of the local setpoints MENU. Local Description Submenu Menu EXIT Return from the Local Menu to display the process variable Setting start range Setting the finish of the range set to URV XXX.XX The current LRV/URV value is displayed SET LRV / Select and confirm the sign of the parameter to be entered;... - Page 21 EN.IO.LI.24.ALW Setting the linearization type of current processing characteristics LINEAR Linear characteristics SQRT Square root function TRANSF SQRX^3 Square root function of x SQRX^5 Square root function of x SPECIA Linearisation of the user board output SQUARE Square function Setting the transmitter alarm current value Low alarm current ALARM HIGH...
-
Page 22: Local Menu, Error Messages
The following devices may be used to communicate with the transmitter: converter Aplisens HART/USB Converter or converter HART/RS232; PC computers equipped with HART modem (e.g. HART/USB converter by Aplisens S.A.) with Windows7 or Windows10 operating system with installed Raport 2;... -
Page 23: Compatible Configuration Software
EN.IO.LI.24.ALW 10.5.2. Compatible configuration software − Raport 2 Aplisens under control of Windows 7 or Windows 10; − Aplisens Mobile Configurator under control of the Android system; − Every software from other companies accepting DDL and DTM libraries. 10.5.3. Method of connecting communication devices The method of connection of communication devices to the transducer is described in chapter ➔... -
Page 24: Scrapping, Disposal
EN.IO.LI.24.ALW 12. SCRAPPING, DISPOSAL Worn or damaged devices shall be scrapped in accordance with WEEE Directive (2012/19/EU) on waste electrical and electronic equipment or returned to the manufacturer. 13. HISTORY OF REVISIONS Revision Document revision Description of changes First version of the document. Prepared by DKD. 01_A1_2014-11 Documentation update.
