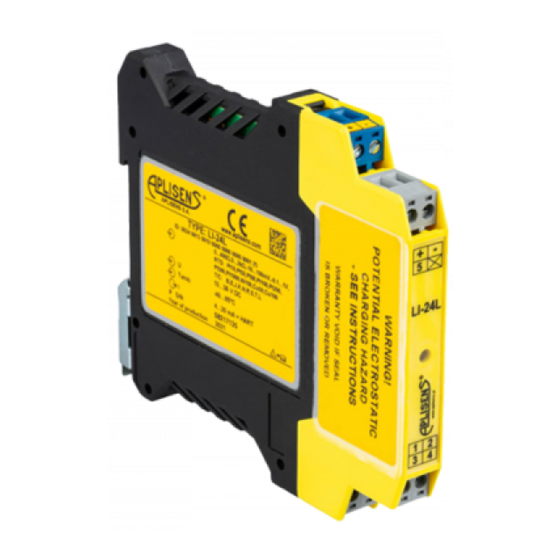

Summary of Contents for Aplisens LI-24L

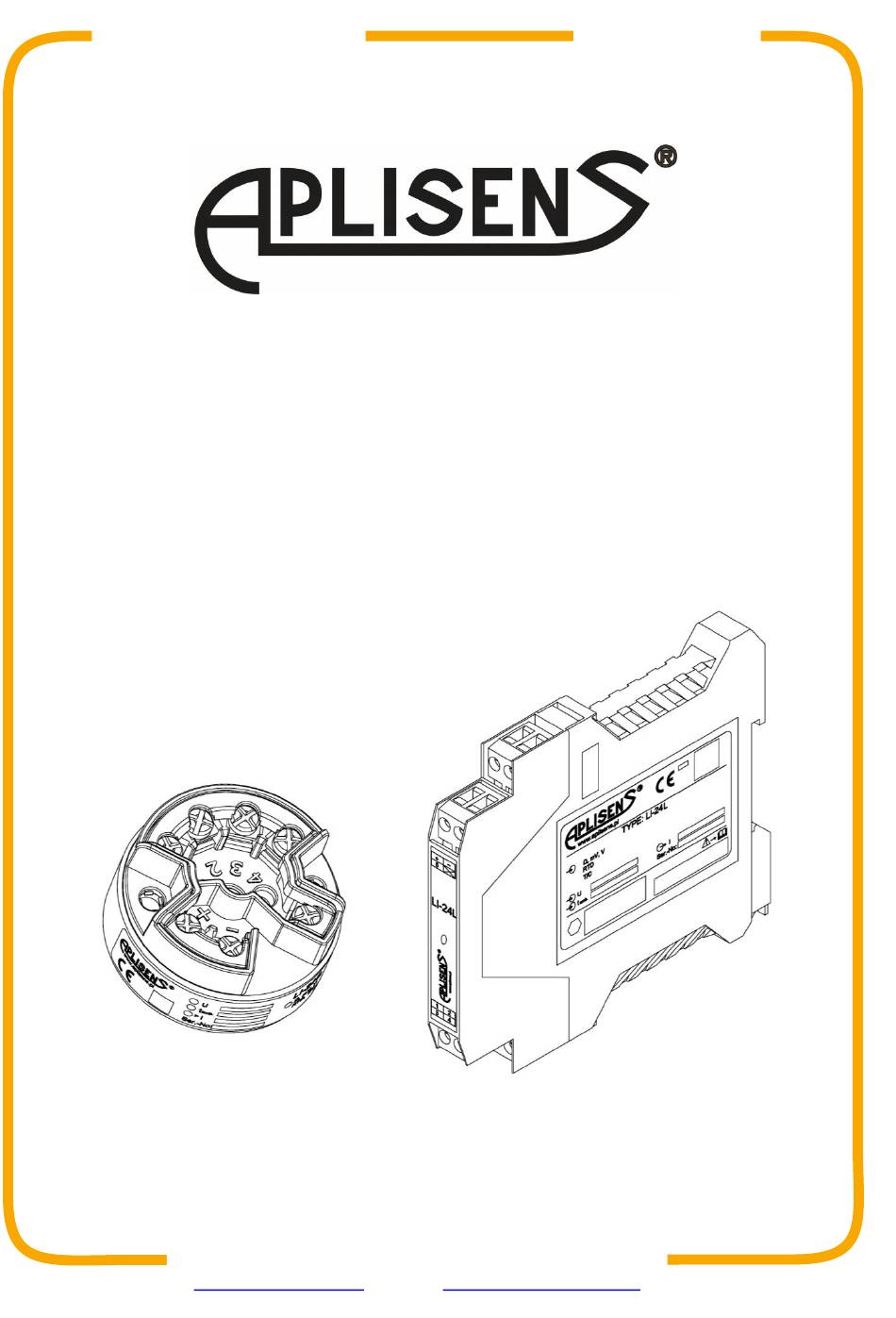

- Page 1 Revision 01.A.002 EN.IO.LI.24.L.G NOVEMBER 2020 USER’S MANUAL TEMPERATURE TRANSMITTERS LI-24L LI-24G APLISENS S.A., 03-192 Warsaw, Morelowa 7 St, tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 LI-24L LI-24L (Exi) ID: 0024 0009 0008 0000 0000 0000 0001 05 ID: 0024 0009 0008 0000 0000 0001 0001 53 ID: 0024 0013 0010 0000 0000 0000 0001 25 ID: 0024 0013 0010 0000 0000 0001 0001 73 www.aplisens.pl/ID/002400130010000000000000000125/...
- Page 3 - possible mechanical impacts, excessive shocks and vibration; - excessive temperature fluctuation; water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer's website: www.aplisens.com...
-
Page 4: Table Of Contents
5.3. CE mark, declaration of conformity ................11 6. INSTALLATION ..................12 6.1. General recommendations ..................12 6.1.1. Installation of rail-mounted transmitter LI-24L on a DIN rail ....... 12 6.1.2. Installation of head-mounted transmitter LI-24G in the housing ......13 7. ELECTRICAL CONNECTION ..............15 7.1. - Page 5 Figure 2. Warning plate - protective seal................. 9 Figure 3. Examples of LI-24G transmitter nameplates in standard and Exi version....11 Figure 4. Examples of LI-24L transmitter nameplates in standard and Exi version....11 Figure 5. LI-24L transmitter installation on a DIN rail............12 Figure 6.
-
Page 6: Introduction
1.1. Purpose of the document The subject of manual are rail-mounted smart temperature transmitters LI-24L and head-mounted smart temperature transmitters LI-24G, hereinafter referred jointly to as LI-24L(G). The manual ap- plies to the following versions: standard and intrinsically safe Exi. -
Page 7: Definitions And Abbreviations
EN.IO.LI.24.L.G 1.3. Definitions and abbreviations Table 1. Definitions and abbreviations. Item Abbr. Meaning “Lower Range Value” – the value of the set range expressed in the units of temperature, resistance or voltage corresponding to the current of 4,000 mA, i.e. 0% of the output setpoint. The set range must not exceed limits which depend on the selected measurement type. -
Page 8: Transmitter Set Range
EN.IO.LI.24.L.G 1.4. Transmitter set range The figure below shows the transmitter LRV/URV set range, limits related to the LRL/URL permissible set range, LPL/UPL digital processing range of the A/D measuring transmitter. As standard, current values of 4 mA/20 mA are assigned to LRV/URV points. In order to obtain reverse characteristics, it is possible to reverse the assignment so that the LRV/URV points are assigned to 20 mA/4 mA currents. -
Page 9: Safety
EN.IO.LI.24.L.G SAFETY − The installation and start-up of the device and any activities related to operation shall be carried out after thorough examination of the contents of user’s manual and the in- structions related thereto; − installation and maintenance should be carried out by qualified staff having the re- quired authorizations to install electrical and measuring devices;... -
Page 10: Transport And Storage
GUARANTEE General terms and conditions of guarantee are available on the manufacturer’s website: www.aplisens.com/ogolne_warunki_gwarancji The guarantee shall be repealed if the device is used against its intended use, failure to comply with user’s manual or interference with the structure of the device. -
Page 11: Identification
Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Figure 3. Examples of LI-24G transmitter nameplates in standard and Exi version. Figure 4. Examples of LI-24L transmitter nameplates in standard and Exi version. 1. Logo and name of the manufacturer. 2. Transmitter type. -
Page 12: Installation
DIN 35 rail. Insert the movable clip (2) of the LI-24L transmitter housing (1) over the DIN rail (3). Then press the transmitter (1) towards the rail (3). Ensure that the movable clip (2) is clamped on the rail (3). To re- move the transmitter, pull the movable clip (2) out with a flat-end screwdriver (put the screwdriver through the clip lug (2)) and slide the transmitter (1) off the rail (3). -
Page 13: Installation Of Head-Mounted Transmitter Li-24G In The Housing
Screw the housing cover (1) together with the gasket (2) onto the housing (7). Screw in the protective tube of the measuring unit (8). Figure 6. Installation of the LI-24G transmitter in an example enclosure manufactured by Aplisens. Revision 01.A.002/2020.10... -
Page 14: Figure 7. Fastening Screw Lock Protection In The Li-24G Transmitter
EN.IO.LI.24.L.G The head-mounted transmitter LI-24G is equipped with fastening screw lock protection in the form of locks in the mounting holes. The lock is suitable for use with screw threads, and therefore the screws must be screwed into the transmitter housing. Pushing the fastening screws into the mounting holes instead of screwing them in may damage the screw lock protection. -
Page 15: Electrical Connection
Risk of electric shock and/or ignition in potentially explosive atmospheres. 7.1.1. Cable connection In the LI-24L(G) transmitter, the 4…20 mA current loop power supply and signal cables must be con- nected to respective “+” and “-” terminals. In order to perform correct connection of the cables, the following steps shall be performed: −... -
Page 16: Options For Connecting Sensors, Potentiometers And Voltage Sources To The Transmitter
EN.IO.LI.24.L.G 7.1.2. Options for connecting sensors, potentiometers and voltage sources to the transmitter Figure 10. Methods of connecting sensors, potentiometers and voltage sources. Revision 01.A.002/2020.10... -
Page 17: Connection Of Transmitters With The Option Of Using Local Hart Communication
EN.IO.LI.24.L.G 7.2. Connection of transmitters with the option of using local HART communication The method of connecting a modem to transmitter for local HART communication is shown in the fig- ures below. In order to communicate using locally connected HART modem to the transmitter ‘’+’’ and ‘’-‘’... -
Page 18: Transmitter Power Supply
It is mandatory to read EN.IX.LI.24.L.G Explosion-proof Device User Manual, containing important information related to the installation of transmitters in intrinsically safe ver- sion. The converter may also be operated using Aplisens Mobile Configurator installed on smartphones with Android system and connected using wireless communication. ®... -
Page 19: Shielding, Equipotential Bonding
EN.IO.LI.24.L.G 7.3.4. Shielding, equipotential bonding Optimal protection against interference is provided by the earthing of the screen on both sides (in the cabinet and equipment). In case of potential difference between earthing points of devices which may result in the flow of equipotential currents, the screen shall be earthed on one side. 7.4. -
Page 20: Operation
The following devices may be used to communicate with the transmitter: Aplisens S.A. HART/USB or HART/RS232 converter; PC computers equipped with HART modem (e.g. HART/USB converter by Aplisens S.A.) with Windows7 or Windows10 operating system with installed Raport 2 or LI-24 Configurator soft- ware by Aplisens S.A.;... -
Page 21: Start-Up
HART communication. 9.1. Alarm configuration The LI-24L(G) transmitter has developed internal diagnostics which monitors the operation of trans- mitter’s electronic circuits, process and environmental parameters. Diagnosed dangerous conditions or malfunctions of the transmitter internal systems, depending on the settings, may result in enabling alarm current. -
Page 22: Figure 14. Set Range Current, Saturation Currents, Alarm Currents In Namur Mode
EN.IO.LI.24.L.G Figure 14. Set range current, saturation currents, alarm currents in NAMUR mode. 1 – Set 4...20 mA current area corresponding to setpoint 0...100% of the process output. 2 – Lower saturation current of 3,800 mA. 3 – Upper saturation current of 20,500 mA. 4 –... -
Page 23: Configuration Of The Operating Mode
The design of the transmitter allows detection of many dangerous failures. In addition to the diagnos- tics signalled with alarm current and the diagnostics being readable by via digital HART communica- tion, the LI-24L transmitter is equipped with a two-colour LED indicator which signals the operating status of the device. - Page 24 EN.IO.LI.24.L.G − measurement average: 0,5 ∙ (Ch1+Ch2); − measurement average with redundancy: 0,5 ∙ (Ch1+Ch2) or Ch2 or Ch1, when one of the sensors is damaged. Redundancy corresponds to the following variants of the sen- sors connection: 2 x RTD 2-wire connection, 2 x RTD 3-wire connection, 2 x thermo- couple, 2 x thermocouple with external CJC (alarm deactivation is required);...
-
Page 25: Table 3. Types Of Measurements, Linearization And Mathematical Operations
EN.IO.LI.24.L.G Table 3. Types of measurements, linearization and mathematical operations. Voltage measurements, TC type sensors. Voltage measurement range 0...100 mV or 0...1000 mV Linearization type/base range Sensor type and CJC configurations Linear/0...100 mV or 0...1000 mV 1 x TC (voltage measurement); 2 x TC (voltage measurements);... -
Page 26: Maintenance
EN.IO.LI.24.L.G 10. MAINTENANCE 10.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspec- tion, check the condition of electrical terminal connections (reliability of the connections) and the sta- bility of transmitter mounting. 10.2. Non-periodic inspections If the transmitter at the installation site has been exposed to mechanical damage, overvoltage or in- correct operation of the transmitter is detected, the device should be inspected. -
Page 27: Scrapping, Disposal
EN.IO.LI.24.L.G 11. SCRAPPING, DISPOSAL Worn or damaged devices shall be scrapped in accordance with WEEE Directive (2012/19/EU) on waste electrical and electronic equipment or returned to the manufactur- 12. HISTORY OF REVISIONS Revision Document revision Description of changes 01.A.001/2020.07 First version of the document. Prepared by DBFD. 01.A.002/2020.10 Change of ID numbers and QR codes.
