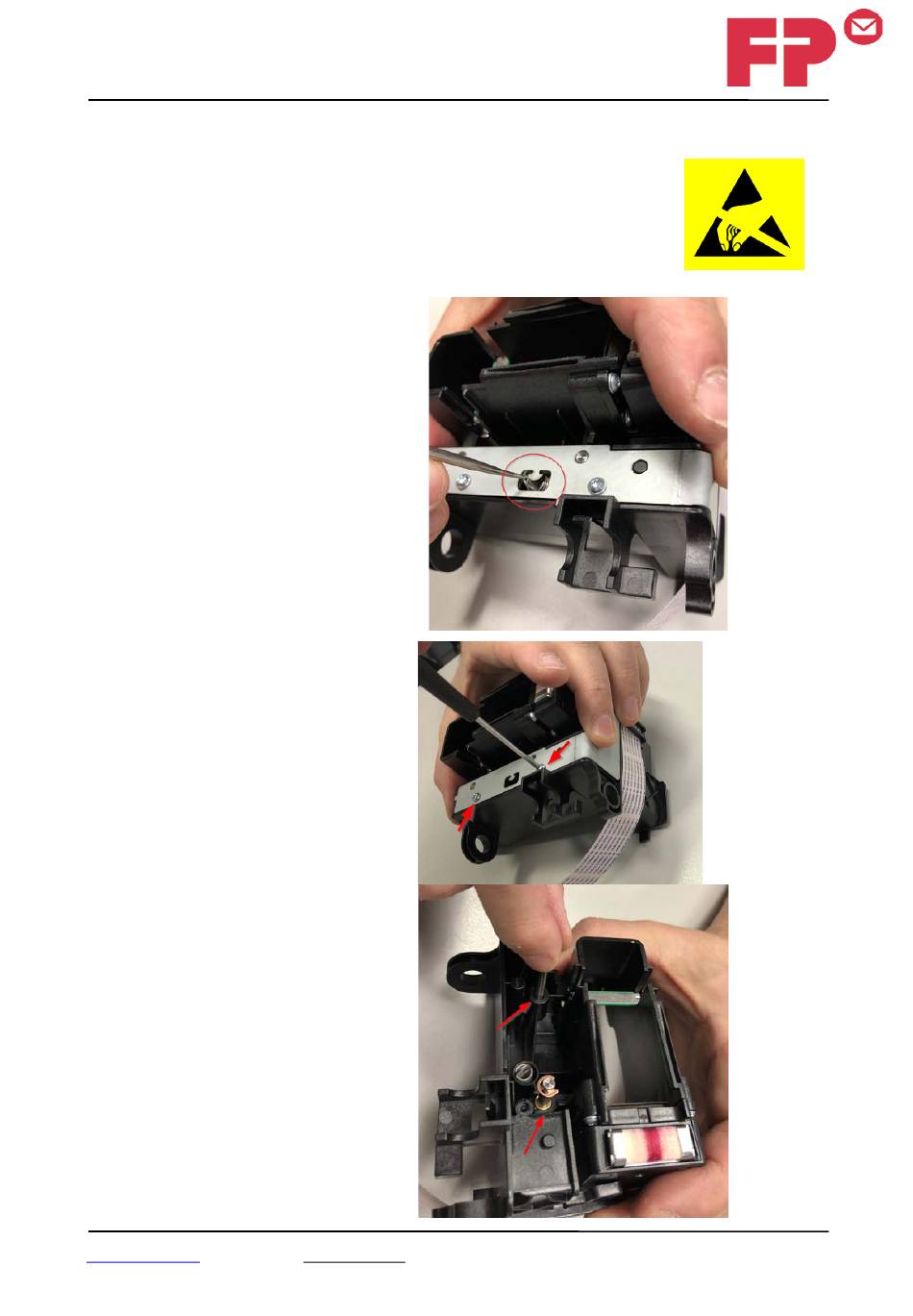

exchange of Pendriverboard (PDB)
ESD protection required!
First remove the print module!
Unhook the spring
img_3908_
Unscrew 2 screws
Img_3910_
Pull both pins
img_3912_
17
