Post Base Vision
Servicedocumentation
img_3853_
3

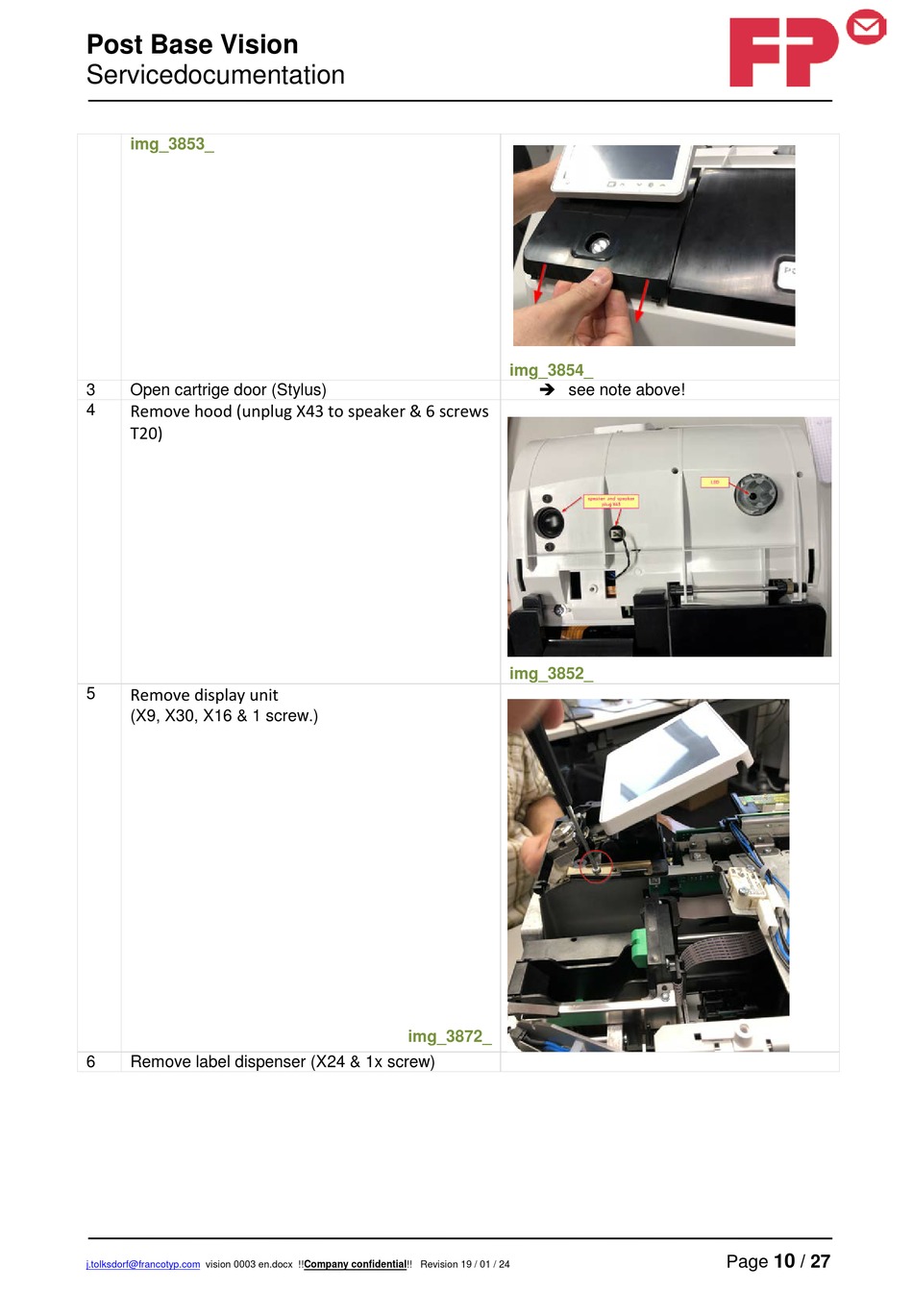

Open cartrige door (Stylus)
Remove hood (unplug X43 to speaker & 6 screws
4
T20)
Remove display unit
5
(X9, X30, X16 & 1 screw.)
6
Remove label dispenser (X24 & 1x screw)
j.tolksdorf@francotyp.com
vision 0003 en.docx !!Company confidential!! Revision 19 / 01 / 24
img_3854_
see note above!
img_3852_
img_3872_
10
Page
/ 27
