Post Base Vision
Servicedocumentation

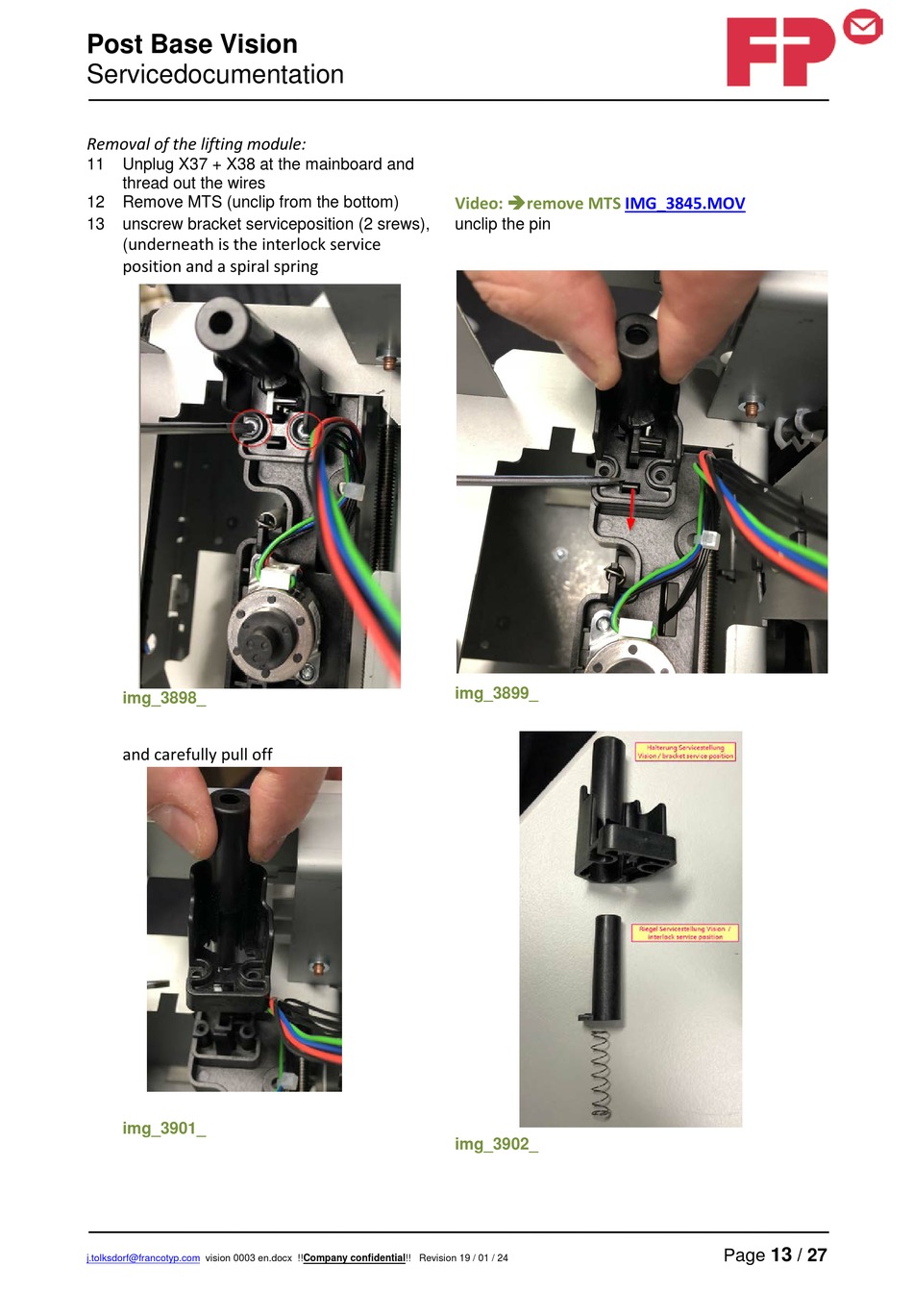

Removal of the lifting module:
11
Unplug X37 + X38 at the mainboard and
thread out the wires
12
Remove MTS (unclip from the bottom)
13
unscrew bracket serviceposition (2 srews),
underneath is the interlock service
(
position and a spiral spring
img_3898_
and carefully pull off
img_3901_
j.tolksdorf@francotyp.com
vision 0003 en.docx !!Company confidential!! Revision 19 / 01 / 24
Video: remove MTS
IMG_3845.MOV
unclip the pin
img_3899_
img_3902_
13
