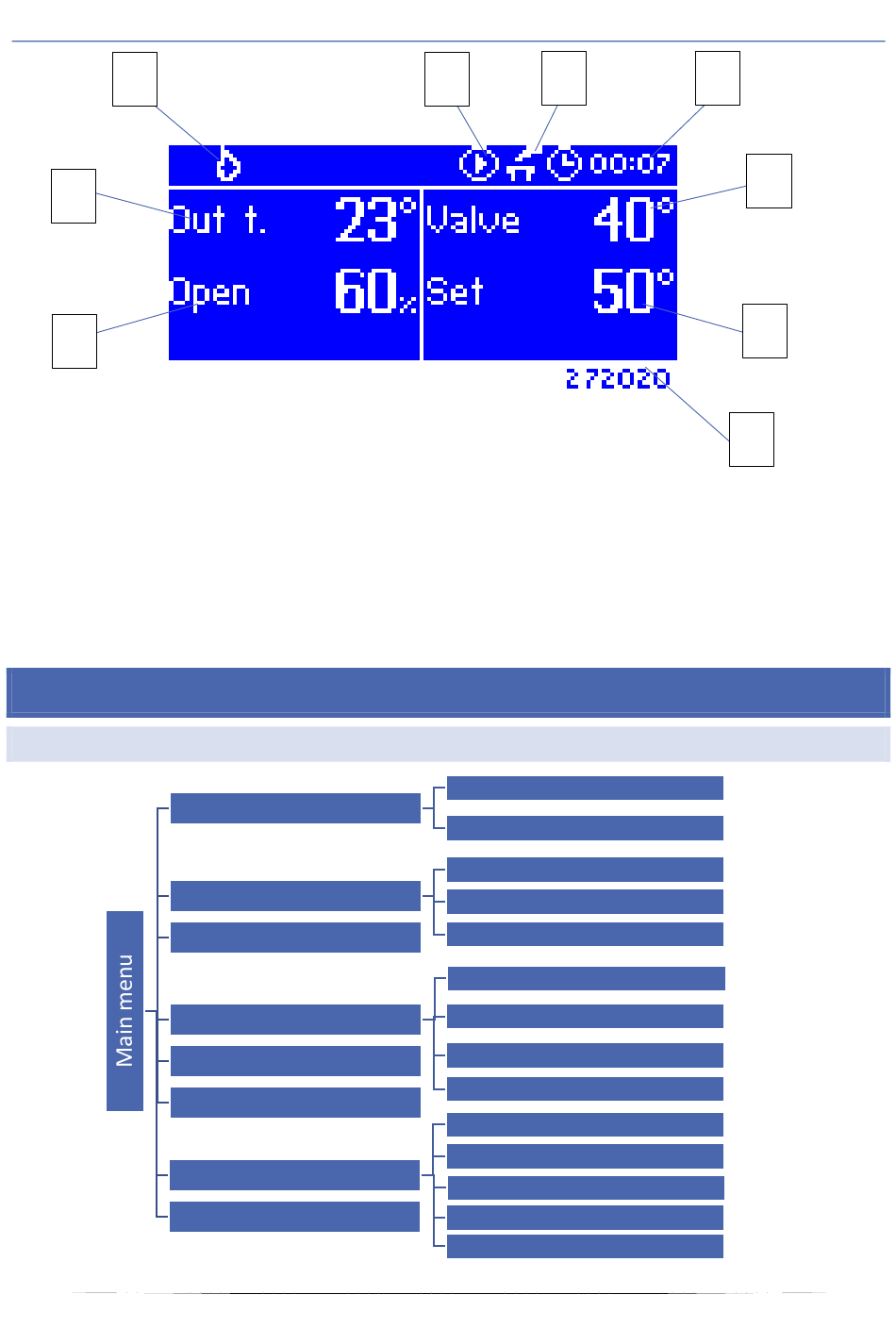

MIXING VALVE SCREEN
3
2
1
1. Valve opening
2. External temperature rounded to whole degrees
3. Current mode (flame– heating, snowflake – cooling)
4. An icon indicating pump operation
5. Voltage-free contact
6. Current time
7. Current valve temperature
8. Pre-set valve temperature
9. Individual valve address (used for registration purpose)
VI. CONTROLLER FUNCTIONS
1.
BLOCK DIAGRAM – CONTOLLER MENU
Screen view
Manual mode
Zones
Voltage-free contact
Language selection
Display contrast
Fitter's menu
Software version
5
4
Main screen
Mixing valve screen
Pump
Voltage - free contact
Valve 1-8
Cooling
Heating
Heat pump
Delay
Valve
Internet module
TECH regulator
Clock
Set date
12
6
7
8
9
