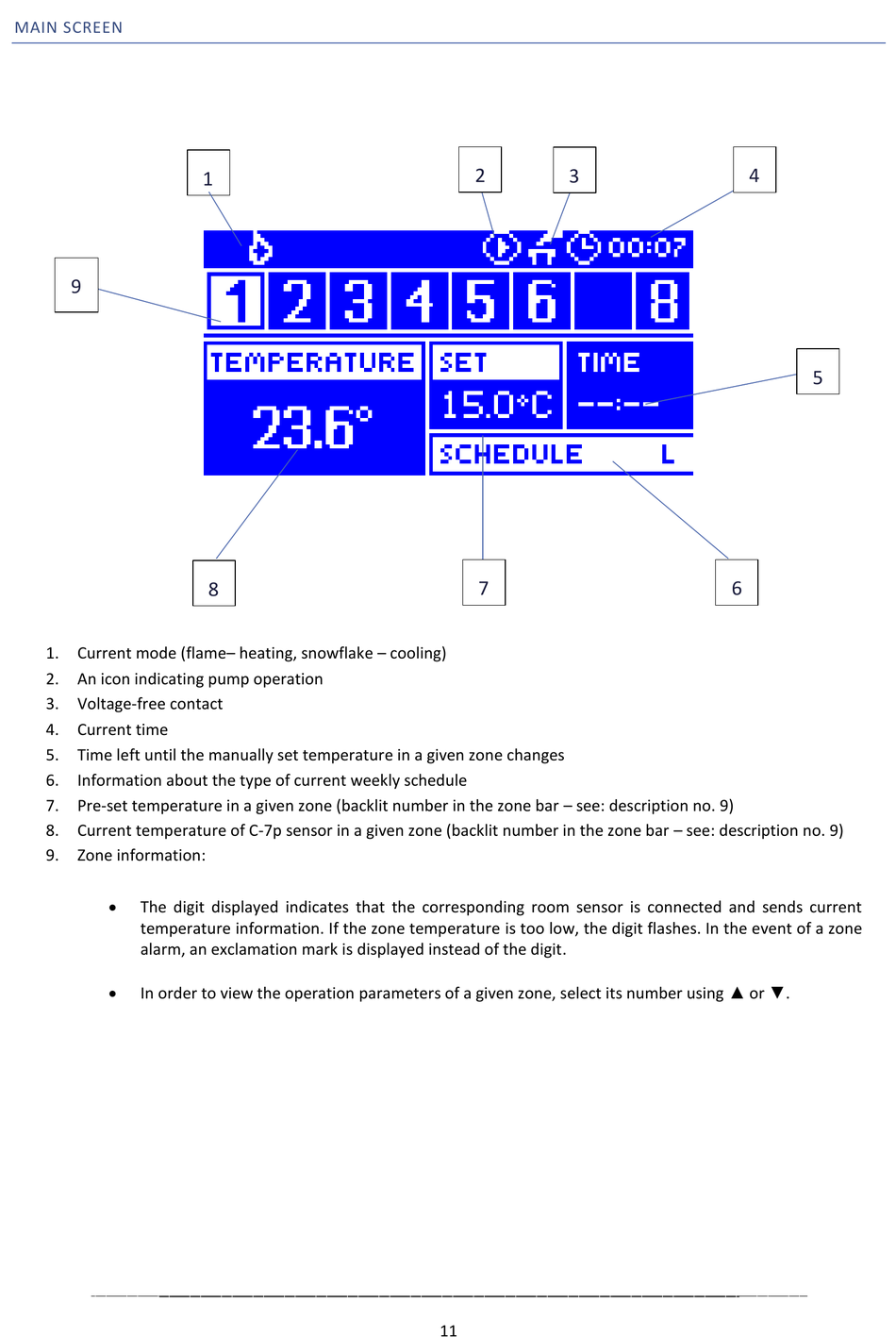

MAIN SCREEN
9
1. Current mode (flame– heating, snowflake – cooling)
2. An icon indicating pump operation
3. Voltage-free contact
4. Current time
5. Time left until the manually set temperature in a given zone changes
6. Information about the type of current weekly schedule
7. Pre-set temperature in a given zone (backlit number in the zone bar – see: description no. 9)
8. Current temperature of C-7p sensor in a given zone (backlit number in the zone bar – see: description no. 9)
9. Zone information:

The digit displayed indicates that the corresponding room sensor is connected and sends current
temperature information. If the zone temperature is too low, the digit flashes. In the event of a zone
alarm, an exclamation mark is displayed instead of the digit.

In order to view the operation parameters of a given zone, select its number using ▲ or ▼ .
