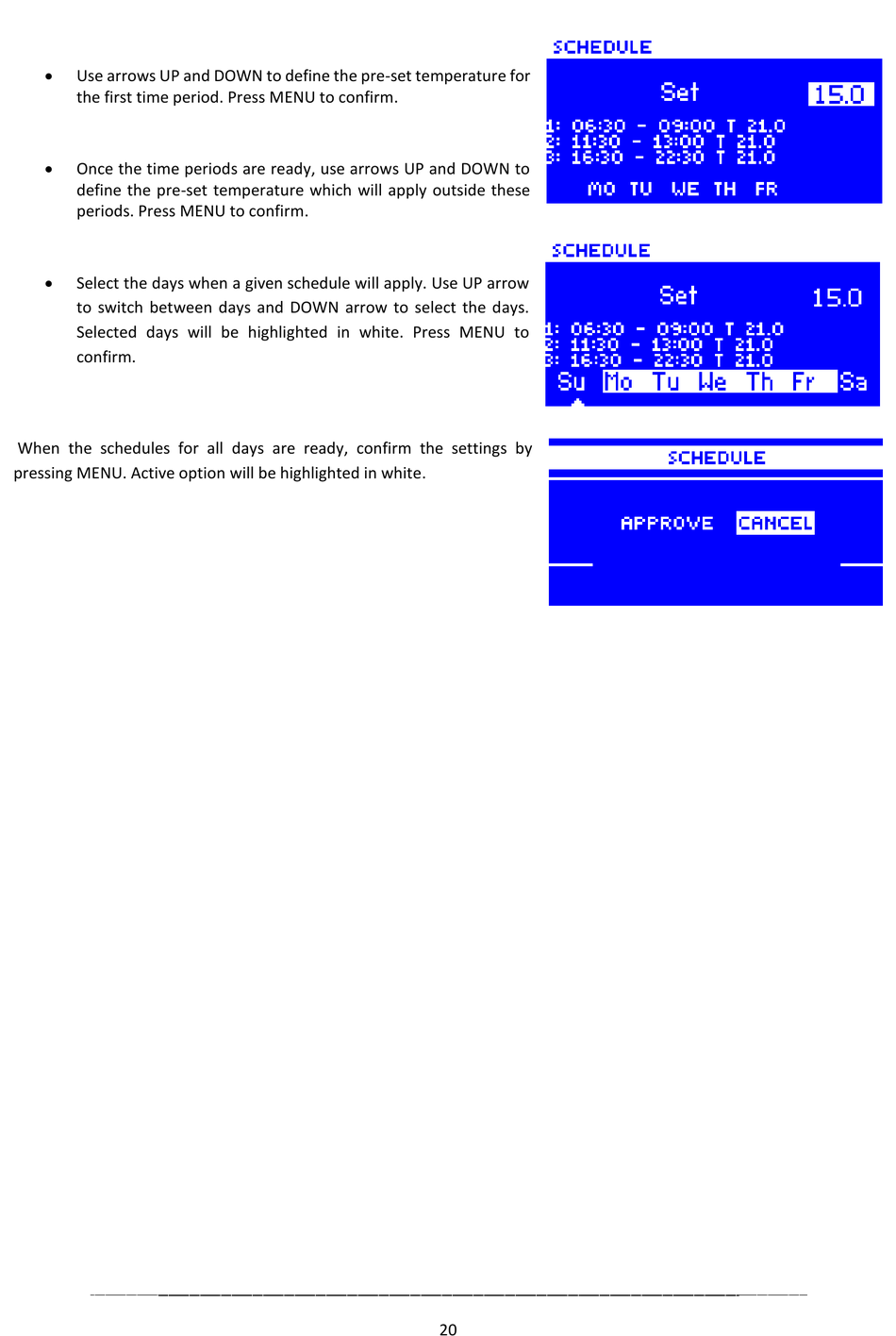

Tech Controllers EU-L-7E User Manual page 20


Use arrows UP and DOWN to define the pre-set temperature for
the first time period. Press MENU to confirm.

Once the time periods are ready, use arrows UP and DOWN to
define the pre-set temperature which will apply outside these
periods. Press MENU to confirm.

Select the days when a given schedule will apply. Use UP arrow
to switch between days and DOWN arrow to select the days.
Selected days will be highlighted in white. Press MENU to
confirm.
When the schedules for all days are ready, confirm the settings by
pressing MENU. Active option will be highlighted in white.
20
