IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

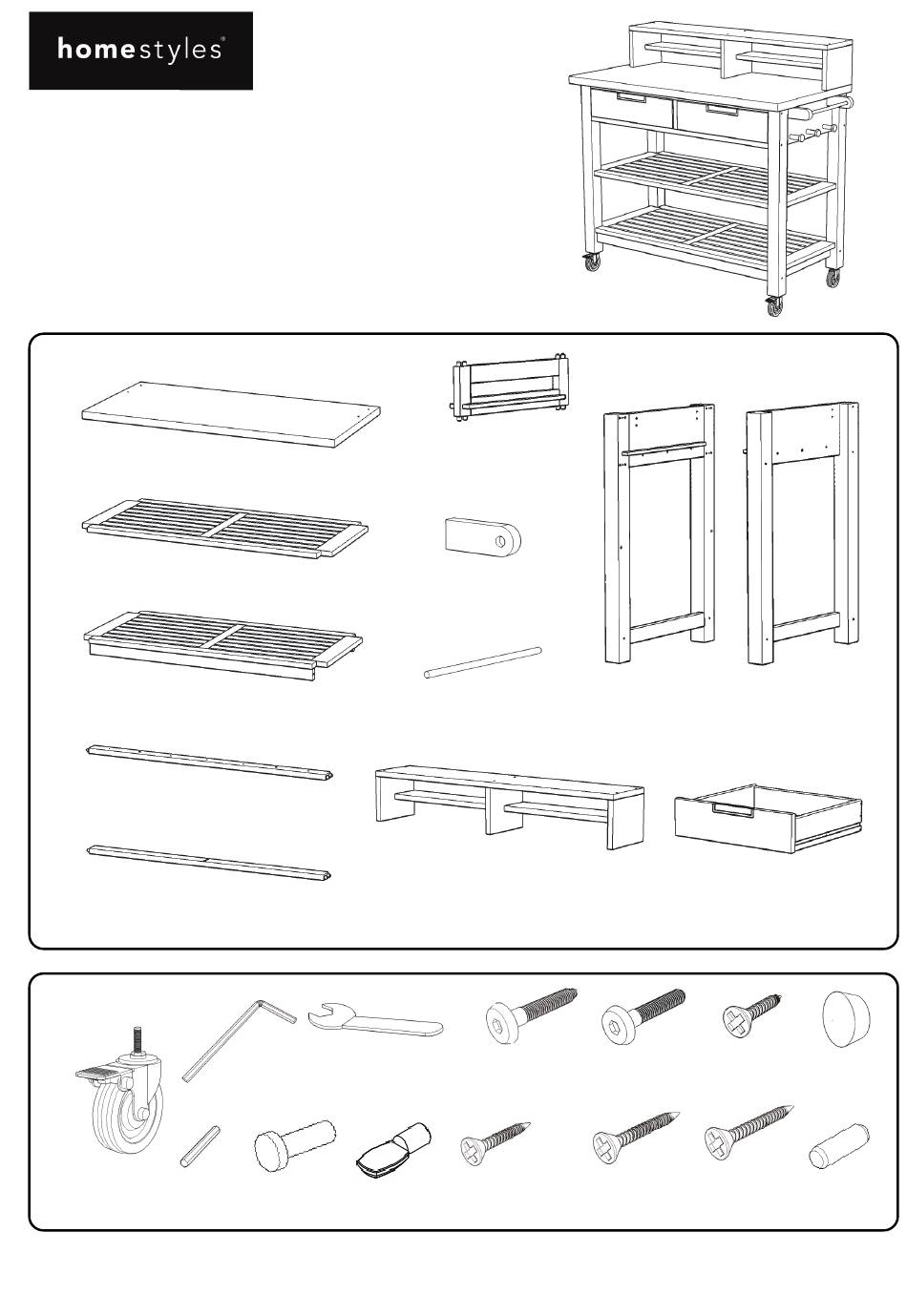

Part List
A.
Top
1 pc.
B.
Shelf
1 pc.
C.
Base Frame
1 pc.
D.
Rail
2 pcs.
E.
Rail
2 pcs.
Hardware List
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05663 0091

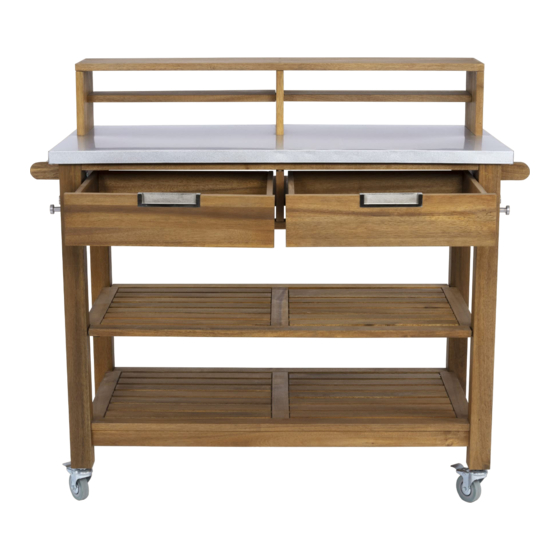

Potting Bench
Refer to later page(s) of these instructions for rack and drawer assembly.
Hex Wrench
Key Wrench
1 pc.
1 pc.
Hanger
Pin
6 pcs.
4 pcs. (+1 extra)
F.
Middle Frame
1 pc.
I.
Handle
4 pcs.
J.
Bar
2 pcs.
K.
Rack
1 pc.
M7x90
M6x40
Assembly Screw
Head Cap Bolt
12 pcs. (+1 extra)
14 pcs. (+1 extra)
8x1 "
¼
8x1"
Wood Screw
Wood Screw (short)
6 pcs. (+1 extra)
12 pcs. (+1 extra)
888-680-7460, 877-831-0319
H.
G.
Side Frame
Side Frame
1 pc.
1 pc.
L.
Drawer
2 pcs.
6x1"
Wood Screw (small)
24 pcs. (+1 extra)
8x1 "
½
Wood Screw (long)
4 pcs. (+1 extra)
Wood Plug
6 pcs. (+1 extra)
Dowel
4 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 20 05663 0091
Summary of Contents for Homestyles 20 05663 0091
- Page 1 4 pcs. 1 pc. 6 pcs. 4 pcs. (+1 extra) 6 pcs. (+1 extra) 12 pcs. (+1 extra) 4 pcs. (+1 extra) 4 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all bolts until each part is properly assembled. Ÿ Keep Hex Wrench as bolts may need to be tightened in the future. Wood Screw STEP 1 Attach Rails (D) and (E)
- Page 3 Assembly Instructions 3/7 Assembly Screw Locking Caster Non-Locking Caster Figure 3 STEP 3 Attach unit form Step 1 and Base Frame (C) to side frames with Assembly Screws. Attach Casters underneath unit with Locking Casters on front. (See Figure 3)
- Page 4 Assembly Instructions 4/7 Rack (K) STEP 4 Attach Shelf (K4) to Side Panel (K1) and Middle Panel (K2). STEP 5 Attach Shelf (K4) and Side Panel (K3) to unit. Wood Screw (short) Figure 4 STEP 6 Attach Top (K5) to unit with Wood Screws (short). Cover all holes with Wood Plugs.
- Page 5 Assembly Instructions 5/7 STEP 7 Attach Rack (K) to Top (A) with Wood Screws (long). Wood Screw (long) STEP 8 Turn unit from Step 3 to its upright position. Attach unit from Step 7 to unit from Step 3 with Dowels and Wood Screws. Note: A Phillips screwdriver 5”...
- Page 6 Assembly Instructions 6/7 Drawer (L) Wood Screw (small) STEP 9 Attach Drawer Front (L1), Drawer Back (L2) and Drawer Side (L4) to Drawer Bottom (L5) with Wood Screws (small). STEP 10 Attach Drawer Side (L3) to unit with Wood Screws (small). Wood Screw (small) Part List Drawer Front...
- Page 7 Assembly Instructions 7/7 STEP 11 Insert Pins into side frames. Place Shelf (B) into position. Orientate stopper on bottom of Drawers (L) to front. (See Figure 5) Stopper Slide Drawers (L) into position. Figure 5...
- Page 8 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
