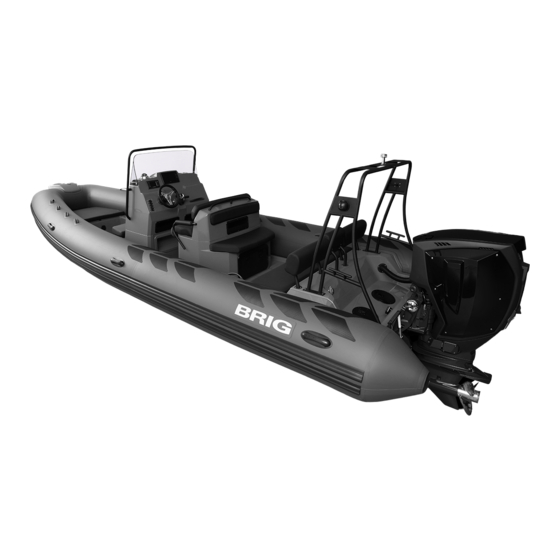

- Page 1 OWNER’S MANUAL RIGID INFLATABLE BOAT NAVIGATOR SERIE: Navigator 24 MODEL: 2386N.01 Design Category: C Directive 2013/53/EU 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 2: Table Of Contents
22 - FUEL SYSTEM 47 - COVERING THE BOAT WITH A COVER 25 - DRAIN SYSTEM 50 - WARNING SIGNS and LABELS 28 - FRESH WATER SYSTEM (SHOWER) 52 - GENERAL BOATING SAFETY 30 - TOWING 2021 Owner’s Manual Navigator24 BRIG ltd... -
Page 3: Danger Levels
“assuming command” of the craft. Your dealer or yacht club will be pleased to advise you of local sea schools, or competent instructors. This owner's manual is not a detailed maintenance or trouble-shooting guide. In the case of difficulty, refer to the boat builder or his representative. 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 4 You must understand that it is your responsibility to keep safety equipment in proper condition. PLEASE KEEP THIS OWNER’S MANUAL IN A SECURE PLACE, AND HAND IT OVER TO THE NEW OWNER WHEN YOU SELL THE CRAFT. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 5: Ce Certification
To use the boat for another purpose (commercial, professional or other), certification of the relevant authorities for these purposes is required. Certifying Body: Name of Manufacture: BRIG Ltd. 88 Lozivska str. Dergachy 62303 317 Shevchenko str. Kharkiv 61033 UKRAINE www.brigboats.com... - Page 6 Very large waves Gale 34-40 17.2-20.7 Rough sea Strong Gale 41-47 20.8-24.4 Very rough sea Storm 48-55 24.5-28.4 Heavy Violent Storm 56-63 28.5-32.6 Very heavy Hurricane 64 and over 32 and over Stormy 14 and over 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 7: Identification Plates
6 - Design Categories according to Directive 2013/53/EU 7 - Maximum recommended persons’ capacity (75 kg each) 8 - Maximum outboard(s) power rating (in kW) 9 - Nominal pressure for each inflatable buoyancy chambers 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 8 Plate with identification number. Installed on the hull of the boat, on the transom side, starboard side. UA-QRK12345A021 «UA» - manufacturer country code «QRK» - Manufacturer Identification Code (MIC) «12345» - boat serial number «A021» - boat production date 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 9: Technical Specifications
Maximum recommended load (including mass of the persons and cargo onboard, but excluding mass of the max motor(s), the mass of the 905 kg contents of fixed fuel, water tanks when full) Loaded displacement mass (LDC) 2860 kg 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 10 (approximately level). Avoid placing heavy weights high up. You must be sure that you clearly and unambiguously understand the meaning of all parameters of the boat. Contact your BRIG dealer for clarification. 2021 Owner’s Manual Navigator24...
-
Page 11: Main Dimensions
Length (with motor): A1 = 8.0m Beam: B = 2.8m Max.height with T-Top: H1 = 2.72m Max.height with console: H2 = 2.07m Max.height with tube: H3 = 1.3m Max.height with arch: H4 = 1.75m Fig.1 2021 Owner’s Manual Navigator24 BRIG ltd... -
Page 12: Boat General View
BOAT GENERAL VIEW. On the Fig.2 you can see the maximum installed equipment for the Navigator24, which may differ from the configuration of your boat. Fig.2 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 13 36- сockpit drain sockets 11- arch 23- side plates on the tube 37- neck for fuel fill and fuel tank vent 12- stern cleats 24- fresh water tank 38- handrail 25- battery box 39- steering pump/steering wheel 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 14: Crew Limit
Person indicated in the Fig.3 as “H”, must use the handle under the seat. Person "K" can be placed on the buoyancy tube in designated seating area. Persons sitting on the tube should always use two handholds at the same time so as not to fall overboard. 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 15 Always check the correct and safe accommodation of persons onboard. Reduce speed when persons are sitting on the buoyancy tube. Periodically check the handholds. There should be no damage on the handholds and their fixation. Defective handholds can cause injury. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 16: Buoyancy Tube
In order to discharge air from the tube compartments, open the valve cap, press spindle 4 (Fig. 4) with your finger and rotate it anticlockwise until the spindle will be fixed in lower position. 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 17 If this happens, immediately rinse the tube with clean water using a soft sponge. Do not allow dirt or marine growths on the tube. Wash the tube with clean water or use only certified detergents. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 18: Steering Console
7- niche with main switches battery 15- dashboard auto mode) disconnectors) 16- windlass control switch h- shower pump (fresh water) 8- outer neck for fuel fill and fuel 17- compass i- deck lights tank vent j- auxiliary switch 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 19 Do not dispose bulky objects in front of the venting holes. Do not obstruct venting holes at any time. Never locate heavy objects on the venting hoses. It will be cause of bucking, distortions and damages. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 20: Driver's Seat And Cushions
If found, contact qualified personnel to repair the damage. Do not spill gasoline, oil, chlorine-based detergents, solvent-based cleaners, or other corrosive liquids on the seat body. 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 21 Your boat cushions upholstery is made of marine quality coated fabrics collection SILVERTEX®. Manufacturer - SPRADLING® company. For more information on the care and maintenance of this fabric, you can find on the manufacturer's website or contact your BRIG dealer. Cover your boat when not in use.
-
Page 22: Fuel System
Refer to your engine manufacturer’s operation manual for information regarding fuel information for your engine model. As an option contact your engine manufacturer’s hot line or text on web with fuel related questions. Also, additional fuel system information may be as close as your BRIG dealer. 2021 Owner’s Manual Navigator24... - Page 23 Never use automotive style fuel filters on your boat. Dispose of all fuel residue materials in an environmentally safe fashion. These filters are available on-line, through marinas, retail marine outlets, or can be ordered via your closest BRIG dealer.
- Page 24 Never locate heavy objects on the venting hoses. Insufficient ventilation of the fuel tank compartment can lead to the accumulation of gasoline vapors. Note that due to a possible fire or explosion danger never store flammable liquids and/or portable fuel tanks in any storage compartment aboard the vessel. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 25: Drain System
7- drain hoses of bilge pumps 2- stern seats, removable lockers 5- bilge pump 1 and bilge pump 2 8- inspection hatches 3- stern drain sockets with flexible diaphragm 6- bilge pumps outlet branch pipes 9- drain plug 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 26 BILGE PUMP 1. Switch the BILGE PUMP 2 to "Manual" mode. You should hear the characteristic pump sound. Recommendation: the bilge pumps operation mode "Auto" must be switched on at all times while boat in motion. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 27 Always keep the manual device for removing water from the boat (bucket, hand pump) in an easily accessible place. Leaving the boat for a long time with the bilge pumps on (“Auto” mode) can discharge the battery. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 28: Fresh Water System (Shower)
1. Open the deck hatch. Open the filler neck. The filler neck is labeled "Water". Fill the tank with fresh water (43L (11 gal). The water tank does not have a level sensor. The tank is completely full if water flows out of the ventilation nozzle of the water tank. 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 29 Water on freezing can damage the fresh water system. Water from the tank and hoses must be removed if there is a risk of freezing. The water in the fresh water system is not intended for drinking. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 30: Towing
Use both U-bolts at the same time to tow your boat. In towing rope (2) should be a hook (3) to quickly disconnect your boat from the tugboat. This rope is not supplied by the manufacturer. You must purchase it yourself from BRIG dealers. - Page 31 Do not use for towing any structural elements of the boat that are not designed for this. Always check the U-bolts, spring-locking ring and their attachment points for damage. There should be no cracks or other damage. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 32: Mooring
Tube can be damaged with sharp objects. Do not use for mooring any structural elements of the boat that are not designed for this. Be careful when mooring. Suddenly tensioned mooring ropes may cause injury. 2021 Owner’s Manual Navigator24 BRIG ltd... -
Page 33: Anchoring
1.Set the windlass circuit breaker (8) to the OFF position (steering console, starboard side). To do this, press the button (8a). In this case, the lever switch (8b) will move to the down position. 2.Open the bow anchor hatch (10). By means of special handle (supplied) close the clutch nut (3). 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 34 Nylon rope will stretch under a heavy strain cushioning the impact of waves or wind on both the boat and the anchor. To drop the anchor, select a well protected area, preferably with a flat bottom. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 35 The benefits of that anchor are that it are very effective in boulder bottoms, perform relatively well with low rode scopes and set fairly reliably. Fig.14 Anchoring can be an emergency procedure. Learn to use your anchor system in calm waters in calm weather. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 36 If the chain gets blocked, turn the windlass off and try to free the chain extremely carefully. Check that the chain was not twisted in the area between the anchor and the windlass. Untwist it, if necessary. Periodically clean out the drain opening (7) from dirt. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 37: Electrical System
This section reviewed the individual electrical components and their locations and functions in the electrical system. For more complex questions beyond the scope of this manual, please contact your nearest BRIG dealer. Do not modify the electrical system yourself. Any modifications, repairs and routine maintenance of the electrical system and all of its components may only be performed by authorized representatives. -
Page 38: Main Switches
(switch marked as “HOUSE”) for higher amperage drawing components. Fig.16 1 - Voltage Sensitive Relay (VSR) 3 - Start Battery Main Switch (On-Off) 2 - House Battery Main Switch (On-Off) 4 - Emergency parallel (On-Off) 2021 Owner’s Manual Navigator24 BRIG ltd... -
Page 39: Fuse
The fuses in the niche with main switches are resettable. They can be restarted after being triggered. For more information about the windlass circuit breaker (12), see the “ANCHORING” section of this manual. To restart the fuse for bilge pump (13) (14), just press the button on it. 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 40 Before replacing or restarting a blown fuse, make sure that the cause of the blown has been eliminated. Turn OFF main switches before replacing or restarting fuses. Don't consider yourself an expert, turn to professionals. Faults in electrical systems can cause a fire. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 41: Batteries
Note that when replacing batteries never mix types such as an AGM with flooded lead. For more battery information refer to your outboard owner’s manual or BRIG dealer. Usually all batteries are located inside the steering console. All batteries must be securely fixed with special fasteners. -
Page 42: Fire Extinguishers
FIRE EXTINGUISHERS The fire extinguisher is not supplied by the manufacturer. Your boat must be equipped with a fire extinguisher by a BRIG dealer when the boat is delivered. Approved fire extinguishers are required on all BRIG boats. Besides the minimum requirements always check local rules for additional requirements and equipment. -
Page 43: Reboarding Means
Fig.18 Be sure to use a hand hold for support as needed when on the ladder. Never try to board using any part of the outboard motor as serious injury may occur. 2021 Owner’s Manual Navigator24 BRIG ltd... -
Page 44: Boat Lifting
You can see the diagram of hanging your boat for lifting in Fig.19. Fig.19 A= 5.1m (16ft 9in) 1 – two bow lifting eyes 2 – two aft lifting eyes B= 2.0m (6ft 7in) 3 – front lifting slings 4 – stern lifting slings 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 45 Never use to lift the other elements of the design of the boat, except for the lifting eyes. Do not use other slinging methods than those specified. Always check the lifting eyes, the boat hull around them, and the boat lifting straps before use. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 46: Boat Installation On Trailer
(not the keel line) cannot be used as primary reference surfaces. Use them as support against rollover. Never use a buoyancy tube to support a boat on a trailer or keel-blocks. Use the front towing U-bolts and rear lifting U-bolts to fix the boat with straps to the trailer. 2021 Owner’s Manual Navigator24 BRIG ltd... -
Page 47: Covering The Boat With A Cover
Permissible deviations +/- 50mm. Maximum transportable mass: 2330 kg Incorrect installation of the boat on a trailer or keel-blocks can damage the boat's hull. You can always get more information from the BRIG dealer regarding the installation of the boat on a trailer or keel-blocks for storage. - Page 48 Before the cover set is folded for storage, dry it from moisture. This will help prevent the formation of mold and extend the life of the cover set. Fig.21 1 – console cover 2 – stern seat cover 3 - snap fastener 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 49 ALWAYS CHECK ANY CLEANER BEFORE USING. Most stains can be removed if caught early, and cleaned with a soft bristle brush and a cleaner like Dawn dish soap. Create lather and lightly scrub with the brush. 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 50: Warning Signs And Labels
If the warning signs are damaged and you cannot read the text or symbols, you must order new ones from your dealer. Check with your dealer for the correct warning signs and labels mounting location. Fig.23 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 51 PROPELLER Failure to follow these warnings could cause SEVERE INJURY or DEATH 3 - WARNING.MAXIMUM ENGINE 6 - WARNING. WEIGHT 4 - WARNING Wakeboard 7 – Fresh water 2021 Owner’s Manual Navigator24 BRIG ltd...
-
Page 52: General Boating Safety
Always have up-to date charts aboard as a backup to your plotter and auto pilot option. Charts can be obtained at a marina, on-line store or by contacting with federal government agencies. Always file a float plan. Leave details of your 2021 Owner’s Manual Navigator24 BRIG ltd... - Page 53 Remember, in an emergency, a PFD that cannot be quickly located and worn is useless. Never allow anyone to sit anywhere on the boat not specifically designed as seating. While underway, ALWAYS insist passengers occupy a recognized seat position. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 54 1. Do not park by other boats with their engine idling or generator cycling for an extended period of time. 2. Do not operate an engine for extended periods of time while in a confined area or where exhaust outlets face a sea wall or bulkhead. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 55 Remember to consult with local agencies since areas such as “no wake zones,” swimming beaches, “diver down flag” and inland landlocked lakes fall under their responsibilities. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 56 Generally, if you see a green light, you have the right-of-way. If you see a red light, give way to the other vessel. TO AVOID INJURY AND DEATH! FOLLOW THE NAVIGATION RULES TO PREVENT COLLISIONS. 2021 Owner’s Manual Navigator24 BRIG ltd...
- Page 57 Navigator 24 MODEL UA-QRK SERIAL No. Date of manufacture Quality inspection stamp 2021 Owner’s Manual Navigator24 BRIG ltd...
