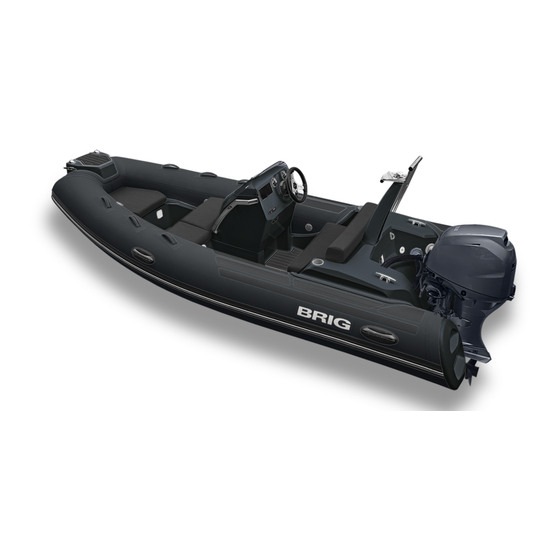

- Page 1 OWNER'S MANUAL English "EAGLE" SERIE: Eagle 4 MODEL: complete set: E4H* Design category (2013/53/EU): ISO6185: Category VII H* – boat tube is made of HYPALON (Du Pont registered trademark) coated fabrics.
-
Page 2: Table Of Contents
LOCATION OF THE MAIN SYSTEMS STEERING CONSOLE BUOYANCY TUBE TUBE INFLATION SWITCH PANEL AND FUSE BOX WIRING DIAGRAM BATTERY INSTALLATION FUEL SYSTEM DRAIN SYSTEM CREW LIMIT TOWING MOORING BOAT TRAILERING THE MAINE DIMENSIONS MAINTENANCE OPERATING REGULATIONS — 2 — "BRIG" inflatable boats... - Page 3 CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE BEEN COMPLETED BEFORE DELYVERY. BRIG Ltd declines any responsibility for systems and accessories that have not been installed and checked by expert and authorised personnel. The manual and all its enclosures should be stored carefully, and the manual should always be kept aboard.
- Page 4 Craft Directive 2013/53/EU Certifying Body: INTERNATIONAL MARINE CERTIFICATION INSTITUTE Rue Abbe Cuypers 3 / B-1040Bruxelles / Belgique Notified Body : 0609 www.imci.org Name of Manufacture: BRIG Ltd. Lozovskaya 88, Dergachy 62303 Kharkovskaya obl. UKRAINE www.brigboats.com — 4 — "BRIG" inflatable boats...
-
Page 5: Danger Levels
DANGER LEVELS. The manual contains warnings, identified as follows: A note like this indicates that there is serious risk, that is likely to cause death or permanent serious injury, if appropriate precautions are not taken. A note like this indicates the existence of risk that may cause death or injury, if appropriate precautions are not taken. -
Page 6: Identification Plate
W ithout them the boat does not comply with the legislation in effect. The plates must never be removed. Any tampering or removal not authorised by the manufacturer is the full responsibility of the owner. — 6 — "BRIG" inflatable boats... -
Page 7: Safety Regulations
SAFETY REGULATIONS. This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not possible to offer safety information for all potential situations, in general it is recommended that you : Regularly check which safety requirements are in force. Maintain the boat and the onboard plants in optimum condition. -
Page 8: Beaufort Wind Scale
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately corresponds to the wave height estimated by an experienced observer. Some waves will be double this height. — 8 — "BRIG" inflatable boats... - Page 9 ALWAYS REMEMBER ABOUT FIRE DANGER. Fire may be caused by: Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if maintenance has not been performed as required. Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons. Easily flammable products must not be kept aboard.
- Page 10 * W hen the boat is fitted with an engine with maximum recommended power it must be use with extreme care. This application is directed at experienced users using their boats for very specific purposes. — 10 — "BRIG" inflatable boats...
-
Page 11: Complete Set 1
COMPLETE SET. In the table shows the maximum possible complete set, which may differ from your boat. De scri pti on Unit Eagle4 Rigid inflatable boat Foot pump Paddle p cs . Ow ner's m anual Fuel system Inbuilt fuel tank 1 (43L) Steering console Steering console equipments:... -
Page 12: Boat Design 1
BOAT DESIGN. Fig.1 — 12 — "BRIG" inflatable boats... - Page 13 DESCRIPTION: 1 — Fiberglass plastic hull. 2 — Reinforced buoyancy tube. 3 — Rubbing strake. 4 — Towing bow eye. 5 — Front step plate. 6 — Navigation lights (red and green). 7 — Steering console 8 — Handhold 9 — Masthead navigation light (white). 1 0 —...
-
Page 14: Location Of The Main Systems
1 1 — Cockpit drain sockets 5 — Fuel tank (43L) 1 2 — Cockpit drain hoses 6 — Fuse box 1 3 — Cockpit drain valves 7 — Stern hatch 1 4 — Automatic bilge pump Fig.2 — 14 — "BRIG" inflatable boats... -
Page 15: Steering Console 1
STEERING CONSOLE. Steering console is located in the central part of the boat. The console consists of the following components (Fig. 3): — console body (1) is installed on the built-in the boat deck console base — windscreen (2); — stainless steel handhold (3); —... -
Page 16: Buoyancy Tube 1
Check the tube pressure before every navigation. The rated pressure value is 0.15 bar (2.2 psi). If the tube pressure more than nominal, deflate the tube slightly. Boat exploitation with board pressure more than nominal decreases boat service life. — 16 — "BRIG" inflatable boats... -
Page 17: Tube Inflation 1
TUBE INFLATION. Before inflation of compartment it's necessary to set all valves in operating condition. In order to switch valve to operating condition, just press spindle 6 (look before Fig. D3) with your finger and turn it clockwise untill it is fixed. -
Page 18: Switch Panel And Fuse Box
6 - fuse is used for sockets 12V and USB FUSE BOX Always check the fuse. Burning red LED display on the fuse box warns of faulty fuse Always keep a spare set the 2336.13 fuse in an easily-accessible location. Fig.5 — 18 — "BRIG" inflatable boats... -
Page 19: Wiring Diagram 1
WIRING DIAGRAM. fuel tank bow plate steering console Fig.6 stern locker DESCRIPTION: — Battery (provided on the market). When leaving the boat, remember — Battery disconnector with fuse. — Outboard motor (provided on the market). to disconnect the batteries. — Bilge pump. -
Page 20: Battery Installation 2
– carbon canister (7) (may not be installed by the manufacturer) – fuel line to the engine (8) – fuel filter (9) (not installed by the manufacturer) – fuel tank mounting bracket (10) – inspection hatches (11) Fig.7 — 20 — "BRIG" inflatable boats... - Page 21 Check the fuel system before each use of the boat. No damage to the fuel hoses, tank and other components of the fuel system is allowed. Pre-filter and fuel valve must be installed by authorized representative specialists only. Do not modify fuel system. Any modification, repair and planned maintenance of the fuel system may be made by authorized representative specialists only.
-
Page 22: Drain System 2
– engine recess drain thru-hull (4). HULL DRAIN SYSTEM : – automatic bilge pump (5); – drain hose (6); – bilge pump drain thru-hull mounted in the engine recess (7). – bilge valve (8). Fig.8 — 22 — "BRIG" inflatable boats... - Page 23 Always the cockpit drain sockets must be open during navigation. Do not obstruct cockpit drain sockets at any time. Do not dispose bulky objects in front of the cockpit drain sockets. Do not modify drain systems. Before navigation check the drain valves. Never locate heavy objects on the drain hoses.
-
Page 24: Crew Limit 2
Always check the correct and safe accommodation of all persons in the boat. Reduce speed when persons are sitting on the buoyancy Handhold Handles tube. Fig.9 — 24 — "BRIG" inflatable boats... -
Page 25: Towing 2
TOWING. There is U-bolt in the bow ((1) Fig.10) of your boat for towing. On towing rope (2) should be a means (3) to quickly disconnect your boat from the tugboat. U-bolt for towing is designed for a maximum horizontal load of 9.4kN. The breaking strength of rope shall in general not exceed 80 % of the breaking strength of the respective strong point. -
Page 26: Mooring 2
Suddenly tensioned mooring ropes may cause maximum horizontal load of 6.5kN. injury. The breaking strength of rope shall in general not exceed 80 % of the breaking strength of the respective strong point. Fig.11 — 26 — "BRIG" inflatable boats... -
Page 27: Boat Trailering 2
BOAT TRAILERING. When installing the boat on a trailer for transporting or storing the boat outside the water, the entire surface "Basic load area " should be in support (Fig.12). It is allowed to use reference points indicated in the figure as (1), (2), (3), (4). Dimensions are in mm. Tolerances +/- 50mm Other surfaces of the boat’s body can only be auxiliary supporting it from capsizing. -
Page 28: The Maine Dimensions 2
The length of the boat with the engine can vary depending on the model of the engine and the angle of its deviation. (See Fig. 13) L1 (m) L2 (m) H1 (m) H2 (m) H3 (m) H4 (m) B1(m) Eagle4 1.18 0.96 1.45 1.95 Fig.13 — 28 — "BRIG" inflatable boats... -
Page 29: Maintenance 2
MAINTENANCE. Main conditions of long service life is right and careful servicing. Avoid excessive increasing of pressure in the board, especially from heating by the sun rays. At the end of exploitation take off sand and dirt from boat surface, and carefully dry it. ... -
Page 30: Operating Regulations 3
This arrangement will enable you to avoid any traumas and to reach the boat. Take all possible precautions against penetration of fuel, oil or electrolyte from the storage battery into the inflatable boat. If it does happen wash thoroughly the fouled spots with water. — 30 — "BRIG" inflatable boats... - Page 31 You should be always sure that the number of people on board never exceeds that specified in the owner's manual or on the builder's plate provided on the transom. The boat will retain an adequate floatability and will not keel over only provided that the load is arranged reasonably.
- Page 32 Reduce the speed and shift your body to the undamaged part of the boat. Observe changes in stability. After that, immediately head for the nearest shore. To prevent penetration of water into the boat, pull the shell of the damaged air chambers upwards. — 32 — "BRIG" inflatable boats...
-
Page 33: Heavy
Mooring fast fastening Attach towing rope in the bow of the boat to the one of the frontal towing rings. Attach bow mooring ropes to the bow mooring cleats only. Attach rear mooring ropes or the rope of back anchor to the rear mooring cleats only. - Page 34 Observe right-of-way as defined by Rules of the Road and required by COLREG. Always be certain to have sufficient distance to stop or manoeuvre if required to avoid collisions. — 34 — "BRIG" inflatable boats...
- Page 35 NOTE: The inflatable boat was delivered with the following equipment installed: Stamp and signature 1.Fuel tank 5.Steering system Stamp and signature Stamp and signature 2.Electric system 6.Engine power system Stamp and signature 7.Engine installation, test and Stamp and signature 3.Drain system Stamp and signature c o mpl et ion of p l an ts a nd fittings done by...
- Page 36 Eagle 4 MODEL UA-QRK SERIAL No. Date of manufacture Quality inspection stamp...
