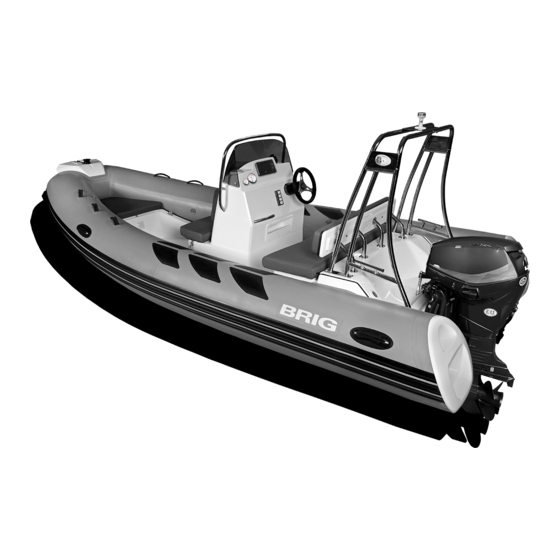

- Page 1 OWNER'S MANUAL English "NAVIGATOR" SERIES: N350 N485 MODELS: N350 N485 complete set: N350H* N485H* Design category: C ISO6185-3:Type VII H* – boat tube is made of HYPALON (Du Pont registered trademark) coated fabrics.
-
Page 2: Table Of Contents
STEERING CONSOLE FUEL SYSTEM DRAIN SYSTEM Care & Maintenance of your Sunbrella® Fabric WIRING DIAGRAM PREPARATION FOR EXPLOITATION INFLATION/DEFLATION BOAT TUBE STORAGE BATTERY INSTALLATION BOAT TRANSPORTATION BY TRAILER HOW TO INSTALL SUNDECK MAINTENANCE OPERATING REGULATIONS — 2 — "BRIG" inflatable boats... - Page 3 CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE BEEN COMPLETED BEFORE DELYVERY. BRIG Ltd declines any responsibility for systems and accessories that have not been installed and checked by expert and authorised personnel. The manual and all its enclosures should be stored carefully, and the manual should always be kept aboard.
- Page 4 The CE marking indicates that the inflatable boat was built in compliance with the DIRECTIVE 2013/53/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL applied to recreational craft Name of Manufacture: BRIG Ltd. Lozovskaya 88, Dergachy 62303 Kharkovskaya obl. UKRAINE www.brig-ribs.com — 4 — "BRIG" inflatable boats...
-
Page 5: Danger Levels
Before using your boat, read this MANUAL carefully and ensure that you have understood all the procedures it describes. Before taking command of your boat, be sure to have acquired experience and confidence in its operation. — 5 — Series "NAVIGATOR" N350 N485 2384D.01... -
Page 6: Identification Plate
Without them the boat does not comply with the legislation in effect. The plates must never be removed. Any tampering or removal not authorised by the manufacturer is the full responsibility of the owner. — 6 — "BRIG" inflatable boats... -
Page 7: Safety Regulations
(ISO 6185), so always make reference to total maximum transportable weight. The max weight of the installable motors indicates the maximum overall weight applicable on the stern board, including any emergency motors. NEVER exceed the stated value. — 7 — Series "NAVIGATOR" N350 N485 2384D.01... -
Page 8: Beaufort Wind Scale And Corresponding State Of The Sea, After Few Hours Of Wind, Away From The Coast
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately corresponds to the wave height estimated by an experienced observer. Some waves will be double this height. — 8 — "BRIG" inflatable boats... -
Page 9: Remember Fire Danger Always
Extinguisher or any other fire-fighting equipment should be checked periodically and replaced with the same or superior types if expired or inefficient. Equip the boat with fire-fighting equipment before launch and use. — 9 — Series "NAVIGATOR" N350 N485 2384D.01... -
Page 10: Technical Specifications
The basic parameters and dimensions of the "NAVIGATOR" boats comply with the data specified in the following table. All dimensions measurements indicated have a tolerance of +/- 3%, weight measurements indicated have a tolerance of +/- 5%. Parameter N350 (N350H) N485 (N485H) Length (without engine) 3.50 m... -
Page 11: Complete Set
Switches of electrical equipment pcs. Socket 12V with fuse pcs. Compass pcs. Speedometer pcs. Tachometer pcs. Electric horn pcs. Soft seat in front (left) of the console pcs. Front step-palte pcs. Front removable cushion pcs. — 11 — Series "NAVIGATOR" N350 N485 2384D.01... - Page 12 Note. Perfection of the design and improvement of quality of our products is the fundamental production policy of our company. Therefore, alternations may be made to the complete set (and as the components become available). — 12 — "BRIG" inflatable boats...
-
Page 13: The Main Dimensions
THE MAIN DIMENSIONS. The main dimensions of N350, N485 have tolerance of +/- 3%. The length of the boat with the engine(L1) can vary depending on the model of the engine and the angle of its deviation. (See Fig. D0) - Page 14 — 14 — "BRIG" inflatable boats...
-
Page 15: Boat Design
1 3 — Steering console. 1 4 — Stern seat with soft back. 1 5 — Mooring cleats. 1 6 — Stainless steel arc (not for N350). 1 7 — Navigation lights(may be installed on the front step-plate). 1 8 — Stern lifting eye. -
Page 16: Buoyancy Tube
Also there are the following elements fitted on the tube (Fig. D1): — doubled rubbing strake (3, Fig.D1); — safety handles (4, Fig.D1); — bow step-plate with a special moulded antiskid coating (6, Fig.D1). — 16 — "BRIG" inflatable boats... -
Page 17: Steering Console
— inner compartment (6); — place for installation speedometer, tachometer, trim-meter, fuel-level meter, multipurpose meters, GPSmap, etc. (7); — electric horn (may be installed if necessary). STEERING CONSOLE STEERING CONSOLE N485 N350 — 17 — Series "NAVIGATOR" N350 N485 2384D.01... - Page 18 — bilge pump switch (7); Fig.D4 Always check the fuse. Burning red Always keep a spare set the fuse in LED display on the fuse box warns of an easily-accessible location. faulty fuse — 18 — "BRIG" inflatable boats...
- Page 19 10 A STEERING CONSOLE STEERING CONSOLE N485 N350 Fig.D5 — 19 — Series "NAVIGATOR" N350 N485 2384D.01...
-
Page 20: Fuel System
Fuel system consists of the following components (Fig. D6): 5 — Drain fuel hose with drain pipe; 1 — Built-in fuel tank (67L for N485 and 33L for N350) ; 6 — Inspection hatch; 2 — Filling hose and fuel filling neck;... - Page 21 It is dangerous to pretend to be an expert. This may cause damages. Refer to expert and authorized specialists for all types of maintenance and repair. — 21 — Series "NAVIGATOR" N350 N485 2384D.01...
-
Page 22: Drain System
Do not dispose bulky objects in front of the cockpit drain sockets. Do not modify drain systems. Before navigation check the drain valves. Never locate heavy objects on the drain hoses. It will be cause of bucking, distortions and damages. — 22 — "BRIG" inflatable boats... - Page 23 Never locate heavy objects on the d r a i n h o s e s . I t w i l l b e c a u s e o f bucking, distortions and damages. — 23 — Series "NAVIGATOR" N350 N485 2384D.01...
-
Page 24: Care & Maintenance Of Your Sunbrella® Fabric
Care & Maintenance of your Sunbrella® Fabric If soft seats and cushions of your BRIG boat are made from Protection Sunbrella® fabric, please read this instruction for the proper 303 High Tech Fabric Guard restores your fabric’s original care of fabric. -
Page 25: Wiring Diagram
1 7 — Switch with automatic circuit breaker — anchor light (white). 9 — Electric horn. 1 0 — Fuel level gauge. 1 9 — Switch with automatic circuit breaker — electric horn. 1 1 — Fuel level meter — 25 — Series "NAVIGATOR" N350 N485 2384D.01... - Page 26 Do not modify electrics of the boat. Any modification, repair and planned maintenance may be made by authorized representative specialists only. Do not touch the electrical equipment with wet hands. When leaving the boat, remember to disconnect the batteries. — 26 — "BRIG" inflatable boats...
-
Page 27: Preparation For Exploitation
The rated pressure value is 0.15 bar (2.2 psi). If the tube pressure more than nominal, deflate the tube slightly. Boat exploitation with board pressure more than nominal decreases boat service life. — 27 — Series "NAVIGATOR" N350 N485 2384D.01... -
Page 28: Storage Battery Installation
It is possible to install the boat on several reference points. Thereby the point of support (1) must be an obligatory, and the point of support (2), (3), (4) must be an additional. Lateral roller supports can be used only with a view of prevention from tipping. — 28 — "BRIG" inflatable boats... - Page 29 Fig.D10 Maximum transportable mass I n o r d e r t o a v o i d t h e h u l l N350 – 350 kg damage, install the boat on the N485 – 745 kg stated areas only.
-
Page 30: How To Install Sundeck
HOW TO INSTALL SUNDECK (not applicable for N350) Sundeck set includes two false deck boards and two soft cushions. One of the boards (the small one) may be used as an upper part of the demountable table. In order to install the sundeck (Fig. A1), please do the next: —... -
Page 31: Maintenance
0°C, it must be kept at a temperature above +15°C at least for 1 hour before to be unpacked and unfolded. For small repair boat tube use the coated fabric and glue set from the complete set. — 31 — Series "NAVIGATOR" N350 N485 2384D.01... -
Page 32: Operating Regulations
This arrangement will enable you to avoid any traumas and to reach the boat. Take all possible precautions against penetration of fuel, oil or electrolyte from the storage battery into the inflatable boat. If it does happen wash thoroughly the fouled spots with water. — 32 — "BRIG" inflatable boats... - Page 33 Despite the strong shell of the boat we recommend carefully handle and operate with sharp and pricking objects which you have on board . It concerns, for example, a knife blade, fish-hook point, etc. — 33 — Series "NAVIGATOR" N350 N485 2384D.01...
- Page 34 Reduce the speed and shift your body to the undamaged part of the boat. Observe changes in stability. After that, immediately head for the nearest shore. To prevent penetration of water into the boat, pull the shell of the damaged air chambers upwards. — 34 — "BRIG" inflatable boats...
- Page 35 When the boat is fitted with an engine with maximum recommended power it must be use with extreme care. This application is directed at experienced users using their boats for very specific purposes. — 35 — Series "NAVIGATOR" N350 N485 2384D.01...
- Page 36 Observe right-of-way as defined by Rules of the Road and required by COLREG. Always be certain to have sufficient distance to stop or manoeuvre if required to avoid collisions. — 36 — "BRIG" inflatable boats...
- Page 37 3.Drain system Stamp and signature 4.Bilge pump Stamp and signature Stamp and signature 5.Steering system Stamp and signature 6.Engine power system 7.Engine installation, test and Stamp and signature completion plantsand fittings done by — 37 — Series "NAVIGATOR" N350 N485 2384D.01...
- Page 38 — 38 — "BRIG" inflatable boats...
- Page 39 — 39 — Series "NAVIGATOR" N350 N485 2384D.01...
- Page 40 N350 N485 MODEL SERIAL No. UA-QRK Date of manufacture Quality inspection stamp...
