SERIE:
MODELS:
COMPLETE SET:
Base version:
Deluxe version:
Sport version:
Tender Deluxe version:
H* – boat tube is made of HYPALON (Du Pont registered trademark) coated fabrics.
OWNER'S MANUAL

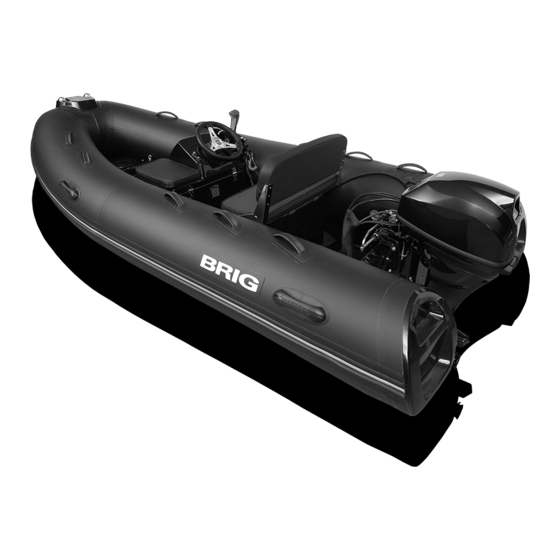

"FALCON"
F275 F300 F330 F360
( F275H F300H F330H F360H )*
F275 F300
F330
F300L
F330L
F300S
F330S
F300T
F330T
English
F360
F360L
F360S
F360T
Advertisement
Table of Contents
Related Manuals for BRIG FALCON
Summary of Contents for BRIG FALCON
- Page 1 English OWNER'S MANUAL "FALCON" SERIE: F275 F300 F330 F360 MODELS: ( F275H F300H F330H F360H )* COMPLETE SET: F275 F300 F330 F360 Base version: F300L F330L F360L Deluxe version: F300S F330S F360S Sport version: F300T F330T F360T Tender Deluxe version:...
-
Page 2: Table Of Contents
The CE marking indicates that the inflatable boat meets the requirements of the Recreational Craft Directive 2013/53/EU Name of Certifying Body: Manufacturer: INTERNATIONAL MARINE BRIG Ltd. CERTIFICATION INSTITUTE Lozovskaya 88, Rue Abbe Cuypers 3 Dergachy 62303 B-1040 Bruxelles / Belgique Kharkovskaya obl. -
Page 3: Danger Levels
DANGER LEVELS. The manual contains warnings, identified as follows: A note like this indicates that there is serious riskthat is likely to cause death or permanant serious injury, if appropriate precautions are not taken. A note like this indicates the existence of risk that may cause death or injury, if appropriate precautions are not taken. -
Page 4: Identification Plate
IDENTIFICATION PLATE. Builder's Plate: Boat Type according to ISO 6185 Model of the boat F300 Boat Design Categories according to Directive 2013/53/EU Maximum propulsion power 1051 rating for the boat Maximum Passengers capacity for the boat Maximum recommended load is including weight of the max The rated tube pressure value is engine, passengers and cargo onboard, but excluding the 0.15 bar (2.2 psi). -
Page 5: Safety Regulations
SAFETY REGULATIONS. This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not possible to offer safety information for all potential situations, in general it is recommended that you: Regularly check which safety requirements are in force. Maintain the boat and the onboard plants in optimum condition. - Page 6 BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast. State of the sea Force Denomination Knots Km/h m/sec and wave height in meters Calm <1 <1 0-0.2 Calm Light Air 0.3-1.5 Calm Light Breeze 6-11...
-
Page 7: Remember Fire Danger Always
REMEMBER FIRE DANGER ALWAYS. Fire may be caused by: Crew nagligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if maintenance has not been performed as required. Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons. Easly flammable products must not be kept aboard. - Page 8 TECHNICAL SPECIFICATIONS. The basic parameters and dimensions of the boats F275 F300, F330, F360 comply with the data specified in the following table. All dimensions measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a tolerance of +/- 5%. F275 F300 F300L F300S F330 F330L F330S...
- Page 9 F300T F330T F360T 2.90 Length (without engine) 3.14 3. 50 1.64 Beam 1.64 1. 70 Height 0.85 0.85 0. 78 0.40 Inflatable tube diameter 0.40 0.4 5 2.00 Cockpit dimensions: - length 2.20 2.4 5 - width 0.84 0.84 0. 80 Number of independent air-tight chambers Nominal pressure BAR(psi)
-
Page 10: Complete Set
COMPLETE SET for Base, Deluxe, Sport and Tender Deluxe versions. In the table shows the maximum possible complete set, which may differ from your boat. Tender Deluxe Base version Deluxe version Sport version version Inflatable boat – Front step-plate with navigation lights(excluding F275) –... -
Page 11: General View Of The Boats
GENERAL VIEW of the BOATS. Boat General View (see Fig.1). 1 - Inflatable tube with Inflation valve 2 - Rigid bottom 3 - Transom with engine mounting plate 4 - Hangles 5 - Oarlock 6 - Oars and oars holder 7 - Bow lifting eyes 8 - Rear lifting eyes 9 - Wooden seats... - Page 12 5 - Tender luxe console 6 - Tender container 7 - Bow lifting eyes 8 - Rear lifting eyes 9 - Handles 10 - "BRIG" label 11 - Rubbing strake 12 - Carrying handles 13 – Towing bow eye 14 - Drain valve 15 - Bow plate with navigations lights Fig.2...
- Page 13 5 - Sport console 6 - Bow lifting eyes 7 - Rowlock 8 - Handles 9 - Rear lifting eyes 10 - "BRIG" label 11 - Rubbing strake 12 - Carrying handle 13 - Oar stowage 14 - Oar 15 - Towing bow eye...
-
Page 14: Steering Console
Steering console Tender Luxe is intended for mounting steering system and remote control system. The console may be installed on the BRIG boats F300, F330 and F360 Deluxe and Tender Deluxe versions. The Steering console consists of the following main components (Fig.5): •... - Page 15 In order to install the console to the BRIG boat perform the next operations (Fig. 6) • hinge out the overhead console part; • fix the console by means of the bolt M8x25 and washers to the deck boat; • replace the console overhead part;...
-
Page 16: Tender Container For Deluxe And Tender Deluxe Versions
Tender Container is intended for placing of two passengers and for installation of storage battery, oars etc. They may be mounted on the rigid deck of the “BRIG” boats F300, F330, F360 Deluxe and Tender Deluxe versions and other boats. -
Page 17: Steering Console For Sport Version
B has been designed for the installation of the standard fuel tank (12L max). In order to install the console to the BRIG boat per- form the next operations (Fig. 9): • disconnect the upper removable part with seat;... -
Page 18: Inflation/Deflation Boat Tube
Inflation/deflation boat tube. The inflation valve (see Fig.10) has two positions of sliding part A corresponding to its two conditions (modes): – sliding part A is withdrawn - operation condition of the valve (compartment air filling mode); – sliding part A is recessed - valve in condition "OPEN" (compartment air discharge mode). -
Page 19: Preparation For Exploitation
PREPARATION FOR EXPLOITATION. In order to set the boat in the operation condition perform as follows: Unfold the inflatable balloon. Apply the foot pump to fill the afterbody of the compartments with air to the pressure being slightly below its rated value (the balloon will be completely straightened). -
Page 20: Remuvable Fuel Tank
REMUVABLE FUEL TANK. The recommended posotion on board for install of remuvable fuel tank is following: - for DeLuxe and Tender Deluxe versions - inside the Tender console (fuel tank 25L max) (see Fig.12) - for Sport version - on the rear part of the boat (see. Fig.13) or inside the Sport console. For DeLuxe and Tender Deluxe versions For Sport version REMUVABLE... -
Page 21: Maintenance
MAINTENANCE. Main conditions of long service life is right and careful servicing. Avoid excessive increasing of pressure in the board, especially from heating by the sun rays. After exploitation take off sand and dirt from boat surface, and carefully dry it. ... - Page 22 IT IS FORBIDDEN to bring the tube pressure up to the value exceeding the rated one (0.15 bar(2.2pci)) IT IS STRICTLY FORBIDDEN to drag the boat across a rough surface. For each particular water area the local shipping regulations are in force. You may apply for information to the appropriate water transport and shipping directorate, as well as to the water police.
- Page 23 All passengers should put on life-saving jackets CHILDREN and non-swimmers MUST BE A FLOATATION DEVICE AT ALL TIMES. Always check that floatation devices for children are of the rigt size and that they are operational. Arrange the cargo to be carried uniformly inside the boat, all items being reliable secured on the bottom of the boat.
- Page 24 Towing At towing the towing rope length should not be at least 3 lengths of the boat. The steersman of the towed boat should be assisted by another crew member to monitor the process of towing. In this case, certain communication gestures should be agreed upon beforehand. The rope being secured to both boats in a manner ensuring its immediately, single-motion release.
- Page 25 In emergency stay in boat In any unexpected situation (engine failure, boat damage, etc.) do not ever leave the boat provided it is still afloat. Even if you believe that the shore is just nearby stay in the boat, since you will be looked for in this particular place and, most probably, will be found. Should the boat become partially flooded throw heavy objects (batteries, fuel tank, engine) overboard to ensure additional floatability.
-
Page 26: Reboarding Means
REBOARDING MEANS. All persons on board should always be in life jackets. Before starting the motor, make sure that the safety pin is used. If you are in the water, you can return on board. To do this, there are handles (Fig.1 (12), (4)) on the boat tube that you can use to get back on board. Boats of this model have a low freeboard. -
Page 27: Warning Signs And Labels (Abyc Standards)
WARNING SIGNS AND LABELS. In accordance with ABYC standards, warning signs and labels are installed on your boat (if applicable). Do not remove warning signs and labels. Always check their suitability. If the warning signs are damaged and you cannot read the text or symbols, you must order new ones from your dealer. Check with your dealer for the correct warning signs and labels mounting location. - Page 28 W ARNING. LEAKING FUEL Place of installation: on the hull near of the fuel filler. All models. Failure to follow these warnings could cause SEVERE INJURY or DEATH WARNING. ROTATING PROPELLER Place of installation: from the outside of the boat transom. All models.
- Page 29 NOTE: The inflatable boat was delivered with the following equipment installed: NOTES 1.Fuel tank Stamp and signature NOTES 2.Electric system Stamp and signature NOTES 3.Drain system Stamp and signature NOTES 4.Steering system Stamp and signature 5.Engine power system NOTES Stamp and signature NOTES 6.Engine installation, test and Stamp and signature...
- Page 30 MODEL SERIAL No. UA-QRK Date of manufacture Quality inspection stamp — 30 —...
