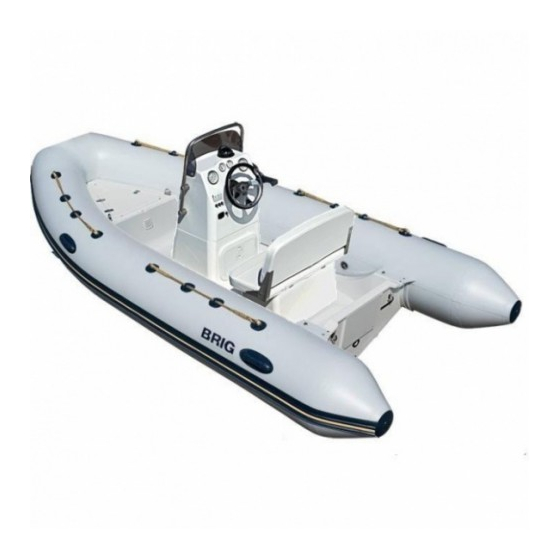

- Page 1 "FALCON" SERIES: F400 DELUXE, F400 SPORT, MODELS: F450 DELUXE, F450 SPORT, F500 DELUXE, F500 SPORT Design category (94/25/EC): ISO6185-3: Category VII User's manual...
-
Page 2: Specifications
PURPOSE The inflatable motor boat of the "FALCON" Rider series relates to the category of pleasure boats and is intended for water sports, hunting and fishing, tourism, the use as a floating means on board of launches, yachts and other vessels. Every model has three versions: Base version (F400, F450, F500), DELUXE version (F400L, F450L, F500L) and SPORT version (F400S, F450S, F500S). -
Page 3: Complete Set
COMPLETE SET Model Unit of F 4 0 0 L F 4 0 0 S F 4 5 0 L F 4 5 0 S F 5 0 0 L F 5 0 0 S measure Package No1 1. Inflatable boat 2. - Page 4 DESIGN Boat General View Base version (F400, F450, F500) Inflatable balloon Balloon check valve (4 pcs/5 pcs***) Rigid bottom with transom Outboard engine mounting seat Lifeline Lifeline holder (16 pcs.*/18 pcs.**/22 pcs.***) Rubbing strake Paddle stowage (4 pcs) Carrying handle (4 pcs/6 pcs***) Towing bow eye (3 pcs) —...
- Page 5 Prior to begin the compartment filling process set all valves in the The valve has two positions of sliding part A corresponding to its two conditions (modes): operating condition. On completion of filling close the valves with bonnets – sliding part A is withdrawn - operation condition of the valve (com- B (rotate them clockwise).
-
Page 6: Preparation For Exploitation
PREPARATION FOR EXPLOITATION Free space under "SPORT" console can be used for installation of fuel tank and batteries. In order to set the boat in the operation condition perform as follows: Unfold the inflatable balloon. For models F450S and F500S: Set all valves in operating condition (see above). - Page 7 completely straightened). Then fill the forebody compartment with air up Check before to the rated pressure. l a u n c h i n g o f The rated pressure value is 0.15 kgf/cm boat onto the On completion of filling close the valves with bonnets B (rotate them water that the clockwise), (look before).
-
Page 8: Maintenance
MAINTENANCE OPERATING REGULATIONS Main conditions of long service life is right and careful servicing. Dear user, Avoid excessive increasing of pressure in the board, especially from We thank your for your purchase and do hope that you will have a heating by the sun rays. - Page 9 You should be always sure that the number of people on board never Observation of local shipping regulations For each particular water area the local shipping regulations are in force. exceeds that specified in the user's manual or on the manufacturer's plate You may apply for information to the appropriate water transport and provided on the transom.
- Page 10 In this case, certain communication gestures should be agreed upon beforehand. The "BRIG" Company employees would like to wish you a pleasant and safe leisure time! Damage to one of air chambers...
- Page 11 APPENDIX A. THE CONSOLE BCF-19 (BCF-191) ASSEMBLING 1. Install the windscreen 1(see Fig.A1, Fig.A2) onto the console 2. For this: • hinge out the overhead console part; • align the holes in the windscreen with the holes in the console overhead part;...
- Page 12 APPENDIX B. THE ASSEMBLY ORDER OF THE CONSOLE BCF-21. 1.Take off bow part of the seat from the console (see. Fig B1). The bow seat is fixed by the press-button and the “bur”. 2.Turn off four nuts M8 (with washers and arrester washers) and take off the upper part of the console body.
- Page 13 Fig. B4 Fig. B2 Fig. B3 Fig. B5 2357.01-2010 — 13 —...
- Page 14 APPENDIX B (continuation). THE ASSEMBLY ORDER AND INSTALLATION OF THE CONSOLE BCF-21 EQUIPPED WITH FUEL SYSTEM. 1-3.See Pg.12 and Fig.B1, B2, B3. 4. See. Pg.12 and Fig.B4 and B5. 5 . P u t t h e c o n s o l e ( t h e b a s e p a r t ) o n t h e d e c k . S e e t h e recommendations of this manual (See Pg.6).
- Page 15 APPENDIX C. THE ASSEMBLY ORDER OF THE CONSOLE BCF-20. In order to assemble the console perform the next operations (Fig. C1): • take off the upper part 2 with seat; • align the holes in the windscreen 3 with the holes in the console body1;...
- Page 16 APPENDIX D. ASSEMBLY AND MOUNTING OF STAINLESS STEEL ARC 1. Unscrew 2 bolts M8 with washers (pos.1 Fig.D1) and 4 screw with 4.Set the arc onto transom platform. Previously pull the electrical washers (pos.2 Fig.D1) from transom platform of your boat. cable clamps, outgoing from the right rack (Pos.9), (Fig.
- Page 17 F400L, F500L F450L Fig. D2a Fig. D2b Fig. D2c Fig. D3 Fig. D4 2357.01-2010 — 17 —...
- Page 18 APPENDIX E. Care & Maintenance of your Sunbrella® Fabric. If soft seats and cushions of your BRIG boat are made from Note: to avoid any deterioration of the fabric, we recommend Sunbrella® fabric, please read this instruction for the proper care you never expose it to sources of heat (e.g.
- Page 19 — 19 — 2357.01-2010...
- Page 20 inflatable boats MODEL SERIAL No. Date of manufacture Quality inspection stamp...
