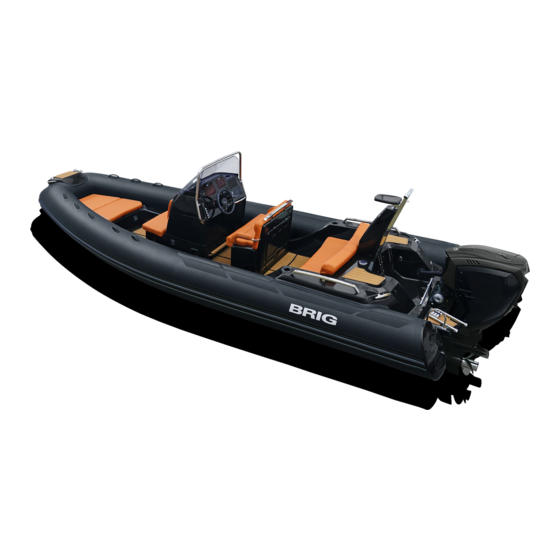

- Page 1 OWNER'S MANUAL Rigid Inflatable Boat "EAGLE" SERIE: Eagle 6.7 MODEL: complete sets: E6.7 E6.7H* Design category (2013/53/EU): ISO6185-3: Type VIII H* – boat tube is made of HYPALON (Du Pont registered trademark) coated fabrics.
-
Page 2: Table Of Contents
SHOWER KIT DRAIN SYSTEM ANCHOR SYSTEM HOW TO OPERATE ANCHOR SYSTEM TOWING MOORING HOW TO INSTALL SUNDECK REBOARDING MEANS HOW TO INSTALL STORAGE BATTERY WIRING DIAGRAM INFLATION/DEFLATION BOAT TUBE BOAT TRAILERING MAINTENANCE OPERATING REGULATIONS — 2 — "BRIG" inflatable boats... - Page 3 CHECK THAT THE CHECKS HAVE BEEN MADE AND THAT THEPLANTS HAVE BEEN COPLETED BEFORE DELYVERY. BRIG Ltd declines any responsibility for systems and accessories that have not been installed and checked by expert and authorithed personnel. The manual and all its enclosures should be stored carefully, and the manual should always be kept aboard.
- Page 4 Craft Directive 2013/53/EU Certifying Body: INTERNATIONAL MARINE CERTIFICATION INSTITUTE Rue Abbe Cuypers 3 / B-1040Bruxelles / Belgique Notified Body : 0609 www.imci.org Name of Manufacture: BRIG Ltd. Lozovskaya 88, Dergachy 62303 Kharkovskaya obl. UKRAINE www.brigboats.com — 4 — "BRIG" inflatable boats...
-
Page 5: Danger Levels
Before using your boat, read the MANUAL carefully and ensure that you have understood all the procedures it describes. Refore taking command of your boat, be sure to have acquired experience and confidence in its operation. — 5 — Eagle 6.7-2019 236G.01... -
Page 6: Identification Plates
Without them the boat does not comply with the legislation in effect. The plates must never be removed. Any tampering or removal not authorised by the manufacturer is the full responsebility of the owner. — 6 — "BRIG" inflatable boats... -
Page 7: Safety Regulations
(ISO 6185), so always make reference to total maximum transportable waight. The max weight of the installable motors indicates the maximum overall weight applicable on the stern board, including any emergency motors. NEVER exceed the stated value. — 7 — Eagle 6.7-2019 236G.01... -
Page 8: Beaufort Wind Scale And Corresponding State Of The Sea, After Few Hours Of Wind, Away From The Coast
NOTE: *The significant wave height is the mean height of the highest one-third of the waves, which approximately corresponds to the wave height estimated by an experienced observed. Some waves will be double this height. — 8 — "BRIG" inflatable boats... -
Page 9: Remember Fire Danger Always
Extinguisher or any other fire-fighting equipment should be checked periodically and replaced with the same or superior types if expired or inefficient. Equip the boat with fire-fighting equipment before launch and use. — 9 — Eagle 6.7-2019 236G.01... -
Page 10: Technical Specifications 1
TECHNICAL SPECIFICATIONS. The basic parameters and dimensions of the Eagle 6.7 comply with the data specified in the following table. All dimension measurments indicated have a tolerance of +/- 2.5%, weight measurments indicated have a tolerance of +/- 5%. Parameter Eagle 6.7... -
Page 11: Complete Set 1
COMPLETE SET Eagle 6.7 In the table below is shown the maximum possible complete set, which may differ from your boat. Shower kit : Rigid Inflatable boat Water tank (45 litres) Foot pump Shower handset Paddle Shower pump Set of spare parts and repair kit... - Page 12 7400* 6700 — 12 — "BRIG" inflatable boats...
-
Page 13: Boat Design 1
19 — Water fill. 20 — Stern mast. 21 — Port running light (red). 22 — Starboard running light (green). 23 — Anchor light (white). 24 — Foldable stainless steel ladder. 25 — Drain plug. — 13 — Eagle 6.7-2019 236G.01... -
Page 14: Rigid Hull 1
— foldable stainless steel ladder(20); — lifter of stern locker seat; — cockpit drain systems sockets (11, Fig. D2b, D2c); — battery disconnector (13, Fig. D2b); — drain automatic bilge pump (14, Fig. D2c); — 14 — "BRIG" inflatable boats... -
Page 15: Reinforced Buoyancy Tube 1
Also there are the following elements fitted on the tube (Fig. D1): — doubled rubbing strake (3, Fig.D1); — safety handles (4, Fig.D1); — bow step-plate with navigation lights. (6, Fig.D1); — tube polyester ends (7, Fig.D1) with two antiskid steps each. — 15 — Eagle 6.7-2019 236G.01... -
Page 16: Crew Limit 1
Always check the correct and safe accommodation of all persons in the boat. Reduce speed when persons are sitting on the buoyancy tube. D3.1 — 16 — "BRIG" inflatable boats... -
Page 17: Stern Mast With Anchor Light 1
— console recess (6); — fuel fill (10, Fig. D2a); — stainless steel handrail (7); — electric horn (8); — compass (9); — steering wheel (10); — switch panel (11); — cup holders (12). — 17 — Eagle 6.7-2019 236G.01... - Page 18 HORN warns of faulty fuse anchor light switch hull drain pump s w i t c h "Manual" shower pump Always keep a spare set the switch fuse in an easily-accessible location. — 18 — "BRIG" inflatable boats...
-
Page 19: Fuel System 1
Do not modify fuel system. Any modification, repair and planned maintenance of the fuel system may be made by authorized representative specialists only. Check that there are no leaks in the fuel systems Do not smoke when refueling. Stop the engine and switch off any electric equipments before refueling. — 19 — Eagle 6.7-2019 236G.01... -
Page 20: Shower Kit 2
It is dangerous to pretend to be an expert. This may cause damages. Refer to expert and authorized specialists for all types of maintenance and repair. — 20 — "BRIG" inflatable boats... -
Page 21: Drain System 2
— bilge pump drain outlet into the motor recess (6); — drain plug (8) MUST BE TIGHTLY CLOSED WHEN BOAT ON WATER; MOTOR RECESS DRAINAGE: — two drain outlets from the motor recess (9); Battery disconnector panel (7) bilge pump switch — 21 — Eagle 6.7-2019 236G.01... - Page 22 This may Never locate heavy objects cause damages. Refer to on the drain hoses. It will be expert and authorized cause of bucking, distortions specialists for all types of and damages. maintenance and repair. — 22 — "BRIG" inflatable boats...
-
Page 23: Anchor System 2
80 % of the breaking strength of the respective strong point. Before beginning to operate with anchor system, carefully study the owner's manual for electric windlass. Periodically check that the special anchor shackle (4a fig.D9) are tightened correctly. — 23 — Eagle 6.7-2019 236G.01... -
Page 24: How To Operate Anchor System 2
7.Continue to stow the anchor, until it will be fixed on a stemhead roller. 8.Switch off windlass circuit breaker and then main battery disconnector. 9.Hook safety pin to chain. Close the bow anchor hatch. — 24 — "BRIG" inflatable boats... - Page 25 Check that the chain was not twisted in the area between the anchor and the windlass. Untwist it, if necessary. Periodically clean out the drain opening (7)(Fig.D9) from dirt. — 25 — Eagle 6.7-2019 236G.01...
-
Page 26: Towing 2
80 % of the breaking strength of the respective strong point. Always check the U-bolts and their attachment points to the boat hull for damage. Always have a towing rope on board D10.1 — 26 — "BRIG" inflatable boats... -
Page 27: Mooring 2
Suddenly tensioned mooring ropes may cause maximum horizontal load of 15.8kN. injury. The breaking strength of rope shall in general not exceed 80 % of the breaking strength of the respective strong point. D10.2 — 27 — Eagle 6.7-2019 236G.01... -
Page 28: How To Install Sundeck 2
— insert the sundeck floor boards (2) into the special hollows in the bow locker and front part of the steering console base; — close front seat (1) of the steering console; — set the sundeck cushions (3) on the press-buttons. Always check fixing the sundeck cushions. — 28 — "BRIG" inflatable boats... -
Page 29: Reboarding Means 2
If you are in the water, and the ladder is folded, you can lay out it and return onboard. The ladder can be fixed with Velcro. Just unclip it. Be careful - the rotating propeller on the engine — 29 — Eagle 6.7-2019 236G.01... -
Page 30: How To Install Storage Battery 3
Do not modify electrics of the boat. Any modification, repair and planned maintenance may be made by authorized representative specialists only. Do not touch the electrical equipment with wet hands. When leaving the boat, remember to disconnect the batteries. — 30 — "BRIG" inflatable boats... -
Page 31: Wiring Diagram
Fuel level clock 21 — Switch — electric horn. — Shower pump. 14 — Tachometer. 22 — Switch — anchor "UP"/"DOWN". — Anchor windlass. 15 — Compass 16 — Speedometer. — Anchor light (white). — 31 — Eagle 6.7-2019 236G.01... -
Page 32: Inflation/Deflation Boat Tube 3
Board air chambers are hermetical if they keep own form during 8 hours. In this case: – primary pressure has to be nominal; – input valves openings have to be tightly closed by caps. — 32 — "BRIG" inflatable boats... -
Page 33: Boat Trailering 3
Lateral roller supports can be used only with a view of prevention 3200+50 from tipping. 4200+50 Support areas Maximum transportable mass – 1650 kg Main load area Fig.T1 (keel line) In order to avoid the hull damage install the boat on the stated areas only. — 33 — Eagle 6.7-2019 236G.01... - Page 34 — 34 — "BRIG" inflatable boats...
-
Page 35: Maintenance 3
In case the boat has being stored or transported at a temperature bellow 0°C, it must be held at a temperature above +15°C for at least 1 hour before be unpacked and unfolded. For repair boat tube use the coated fabric and glue set from the complete set. — 35 — Eagle 6.7-2019 236G.01... -
Page 36: Operating Regulations 3
Take all possible precautions against penetration of fuel, oil or electrolyte from the storage battery into the inflatable boat. If it does happen wash thoroughly the fouled spots with water. — 36 — "BRIG" inflatable boats... - Page 37 If the liferaft is contained in a soft bag then it may be stowed in a compartment but shall be readily available for use. Liferaft not supplied by the manufacturer and must be installed by owner. — 37 — Eagle 6.7-2019 236G.01...
- Page 38 Never forget to monitor regularly the quantity of fuel in the fuel tank. Keep always in mind that the quantity of fuel should be sufficient for you to sail to your final destination. — 38 — "BRIG" inflatable boats...
- Page 39 Fix the towing rope in the bow of the boat to the front towing ring. Fix the anchor or mooring ropes in the bow of the boat to the bow cleat only. Fix the back anchor or mooring ropes to the back cleats only. — 39 — Eagle 6.7-2019 236G.01...
- Page 40 HANDLING UNDER POWER. Manoeuvrability above 40knots (74 km/h) is limited. Sudden turn may cause loss of control. Reduce speed before making sharp in either direction. Maximum propulsion power rating fo the boat 166 kW (225 HP) — 40 — "BRIG" inflatable boats...
- Page 41 Observe and obey speed limit and no wake zones. Observe right-of-way as defined by Rules of the Road and required by COLREG. Always be certain to have sufficient distance to stop or manoeuvre if required to avoid collisions. — 41 — Eagle 6.7-2019 236G.01...
- Page 42 The inflatable boat was delivered with the following equipment installed: Fuel tank with fuel hoses Comments: Stamp and signature Electric system Comments: Stamp and signature Drain system. Comments: Stamp and signature Comments: Stamp and signature Bilge pump Comments: Shower kit Stamp and signature — 42 — "BRIG" inflatable boats...
- Page 43 Stamp and signature Comments: Steering system Stamp and signature Comments: Anchor system Stamp and signature Comments: Engine power system Engine installation, test and Comments: Stamp and signature completion of plantsand fittings done by. Comments: — 43 — Eagle 6.7-2019 236G.01...
- Page 44 MODEL Eagle 6.7 SERIAL No. UA-QRK Date of manufacture Quality inspection stamp — 44 — "BRIG" inflatable boats...
