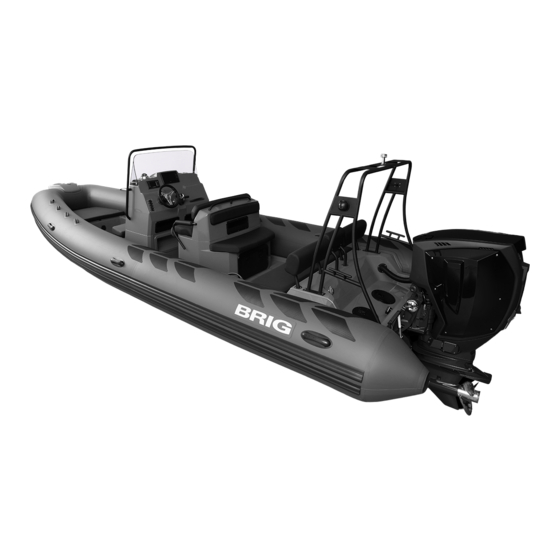

BRIG NAVIGATOR Series Owner's Manual
Rigid inflatable boat
Hide thumbs
Also See for NAVIGATOR Series:
- Owner's manual (40 pages) ,
- Owner's manual (40 pages) ,
- Owner's manual (57 pages)
Related Manuals for BRIG NAVIGATOR Series
Summary of Contents for BRIG NAVIGATOR Series
- Page 1 OWNER’S MANUAL RIGID INFLATABLE BOAT NAVIGATOR SERIE: Navigator 26 MODEL: Design Category: C Directive 2013/53/EU 2020 Owner’s Manual N26 BRIG...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS MAIN DIMENSIONS. BOAT GENERAL VIEW. CREW LIMIT. BUOYANCY TUBE. STEERING CONSOLE. DRIVER’S SEAT and CUSHIONS. FUEL SYSTEM. DRAIN SYSTEM. FRESH WATER SYSTEM. RAW WATER SYSTEM. TOWING. MOORING REBOARDING MEANS BOAT INSTALLATION ON TRAILERS MAINTENANCE 2020 Owner’s Manual N26 BRIG... -
Page 3: Danger Levels
“assuming command” of the craft. Your dealer or yacht club will be pleased to advise you of local sea schools, or competent instructors. This owner's manual is not a detailed maintenance or trouble-shooting guide. In the case of difficulty, refer to the boat builder or his representative. 2020 Owner’s Manual N26 BRIG... - Page 4 You must understand that it is your responsibility to keep safety equipment in proper condition. PLEASE KEEP THIS OWNER’S MANUAL IN A SECURE PLACE, AND HAND IT OVER TO THE NEW OWNER WHEN YOU SELL THE CRAFT. 2020 Owner’s Manual N26 BRIG...
-
Page 5: Ce Certification
To use the boat for another purpose (commercial, professional or other), certification of the relevant authorities for these purposes is required. Certifying Body: Name of Manufacture: BRIG Ltd. 88 Lozivska str. Dergachy 62303 317 Shevchenko str. Kharkiv 61033 UKRAINE www.brigboats.com... - Page 6 Very large waves Gale 34-40 17.2-20.7 Rough sea Strong Gale 41-47 20.8-24.4 Very rough sea Storm 48-55 24.5-28.4 Heavy Violent Storm 56-63 28.5-32.6 Very heavy Hurricane 64 and over 32 and over Stormy 14 and over 2020 Owner’s Manual N26 BRIG...
-
Page 7: Identification Plates
Plate with identification number. Installed on the hull of the boat, on the transom side, starboard side. UA-QRK12345A000 2020 Owner’s Manual N26 BRIG... -
Page 8: Technical Specifications
Weight of boat with max.equipments from manufacturer without engine 1300 kg Displacement in Light Craft Condition (LCC) 1790 kg Maximum total load (ML) (total weight of the liquids in tanks, weight of 1520 kg the people and cargo onboard) 2020 Owner’s Manual N26 BRIG... - Page 9 Loaded displacement mass: LDC = LCC + ML LDC = 3310 When loading the boat, never exceed the maximum recommended load. Always load the boat carefully and distribute loads appropriately to maintain design trim (approximately level). Avoid placing heavy weights high up. 2020 Owner’s Manual N26 BRIG...
-
Page 10: Main Dimensions
Length (with engine): A1 – 8.7m Beam: B – 2.9m Max.height with T-Top: H1 – 2.7m Max.height with console: H2 – 2.2m Max.height with tube: H3 – 1.4m Max.height with arch: H4 – 1.8m Fig.1 2020 Owner’s Manual N26 BRIG... -
Page 11: Boat General View
BOAT GENERAL VIEW. On the Fig.2 you can see the maximum installed equipment for the Navigator26, which may differ from the configuration of your boat. Fig.2 2020 Owner’s Manual N26 BRIG... - Page 12 38- drain socket of stern locker 11- arch 25- deck locker 39- drain socket of water tank 12- stern cleats 26- fresh water and raw water pumps 13- aft lifting eyes 27- raw water faucet 2020 Owner’s Manual N26 BRIG...
-
Page 13: Crew Limit
Persons "K", "L", “M”, “N” can be placed on the buoyancy tube in designated seating area. Persons sitting on the tube should always use two handholds at the same time so as not to fall overboard. 2020 Owner’s Manual N26 BRIG... - Page 14 Always check the correct and safe accommodation of persons onboard. Reduce speed when persons are sitting on the buoyancy tube. Periodically check the handholds. There should be no damage on the handholds and their fixation. Defective handholds can cause injury. 2020 Owner’s Manual N26 BRIG...
-
Page 15: Buoyancy Tube
Having completed filling, close the valves caps 1 (Fig.4). In order to discharge air from the tube compartments, open the valve cap, press spindle 4 (Fig. 4) with your finger and rotate it anticlockwise until the spindle will be fixed in lower position. 2020 Owner’s Manual N26 BRIG... - Page 16 If this happens, immediately rinse the tube with clean water using a soft sponge. Do not allow dirt or marine growths on the tube. Wash the tube with clean water or use only certified detergents. 2020 Owner’s Manual N26 BRIG...
-
Page 17: Steering Console
7- niche with main switches battery 15- dashboard manual mode) disconnectors) 16- windlass control switch i- deck lights 8- outer neck for fuel fill and fuel 17- compass j- auxiliary switch tank vent 18- panel with switches: 2020 Owner’s Manual N26 BRIG... - Page 18 Do not dispose bulky objects in front of the venting holes. Do not obstruct venting holes at any time. Never locate heavy objects on the venting hoses. It will be cause of bucking, distortions and damages. 2020 Owner’s Manual N26 BRIG...
-
Page 19: Driver's Seat And Cushions
6- ventilation hole of the inner seat compartment SERVICING. Seat body is made from fiberglass. Regularly inspect the seat body and handholds for damage, abrasions, scoring. If such is found, repair the damage with the help of qualified specialists. 2020 Owner’s Manual N26 BRIG... - Page 20 Do not dispose bulky objects in front of the venting holes. Do not obstruct venting holes at any time. Never locate heavy objects on the venting hose. It will be cause of bucking, distortions and damages. 2020 Owner’s Manual N26 BRIG...
-
Page 21: Fuel System
10 – fuel filter 5 – carbon filter 11 – fuel hose with inner diameter 9.5mm (3/8") (from fuel 6 – exhaust ventilation of the fuel tank compartment tank to outboard engine) 7 – built-in fuel tank 340L 2020 Owner’s Manual N26 BRIG... - Page 22 Do not dispose bulky objects in front of the venting sockets. Do not obstruct venting sockets at any time. Never locate heavy objects on the venting hoses. It will be cause of bucking, distortions and damages. 2020 Owner’s Manual N26 BRIG...
-
Page 23: Drain System
7- drain hoses of bilge pumps 2- stern seats, removable lockers 5- bilge pump 1 and bilge pump 2 8- inspection hatches 3- stern drain sockets with flexible 6- bilge pumps outlet branch pipes 9- drain plug diaphragm 2020 Owner’s Manual N26 BRIG... - Page 24 BILGE PUMP 1. Switch the BILGE PUMP 2 to "Manual" mode. You should hear the characteristic pump sound. Recommendation: the bilge pumps operation mode "Auto" must be switched on at all times while boat in motion. Faulty drain system may cause flooding of the boat. 2020 Owner’s Manual N26 BRIG...
- Page 25 Always keep the manual device for removing water from the boat (bucket, hand pump) in an easily accessible place. Leaving the boat for a long time with the bilge pumps on (“Auto” mode) can discharge the battery. 2020 Owner’s Manual N26 BRIG...
-
Page 26: Fresh Water System
5- shower handset with push button control and shower hose 2- tank fixing bracket 6- neck for water fill 3- fresh water pump 7- nozzle and hose for ventilation of the water tank 4- water purification filter 2020 Owner’s Manual N26 BRIG... - Page 27 It is dangerous to pretend to be an expert. This may cause damages. Refer to expert and authorized specialists for all types of maintenance and repair. The water in the fresh water system is not intended for drinking. 2020 Owner’s Manual N26 BRIG...
-
Page 28: Raw Water System
2. Use the switch (Pos.5) to activate the raw water pump. 3. Wait a few seconds for the pump to build up water pressure in the system. The pump works in automatic mode, maintaining the water pressure. 2020 Owner’s Manual N26 BRIG... - Page 29 Always inspect the seawater intake faucet A faulty seawater intake faucet can cause the boat to flood Water on freezing can damage the raw water system. Water from hoses must be removed if there is a risk of freezing. 2020 Owner’s Manual N26 BRIG...
-
Page 30: Towing
2- towing rope 2- water-ski towing rope 3- quickly disconnect hook 3- quickly disconnect hook Water-ski towing. There is a shackle on the arch of your boat that is designed to tow a water-skier or wakeboarder (Fig.13). 2020 Owner’s Manual N26 BRIG... -
Page 31: Mooring
Rope for mooring must be appropriate strength, diameter and length. Cleats for mooring are designed for a maximum horizontal load of 19kN. The breaking strength of rope shall in general not exceed 80 % of the breaking strength of the respective strong point. 2020 Owner’s Manual N26 BRIG... - Page 32 2 – two bow U-bolts 3 - two stern cleats Do not use for mooring any structural elements of the boat that are not designed for this. Be careful when mooring. Suddenly tensioned mooring ropes may cause injury. 2020 Owner’s Manual N26 BRIG...
-
Page 33: Reboarding Means
Be careful -rotating propeller on the motor can cause injury. Inspect the ladder and its attachment regularly. There should be no damage that causes the inability to use it. DO NOT forget to fold and fix the ladder after use. Fig.15 2020 Owner’s Manual N26 BRIG... -
Page 34: Boat Installation On Trailers
Points of support must be an additional.Lateral roller supports on the trailer can be used only with a view of prevention from tipping. All dimensions are in mm. Permissible deviations +/- 50mm. Maximum transportable mass: 2330 kg Fig.16 2020 Owner’s Manual N26 BRIG... -
Page 35: Maintenance
Storage of the boat with temperature variations from -30°C to +45°C may be allowed not longer than 1 month. In case the boat has been stored or transported at a temperature below 0°C, it must be kept at a temperature above +15°C at least for 1 hour before to be unpacked and unfolded. 2020 Owner’s Manual N26 BRIG... - Page 36 Navigator 26 MODEL UA-QRK55588H021 SERIAL No. 20/07/2020 Date of manufacture Quality inspection stamp 2020 Owner’s Manual N26 BRIG...
