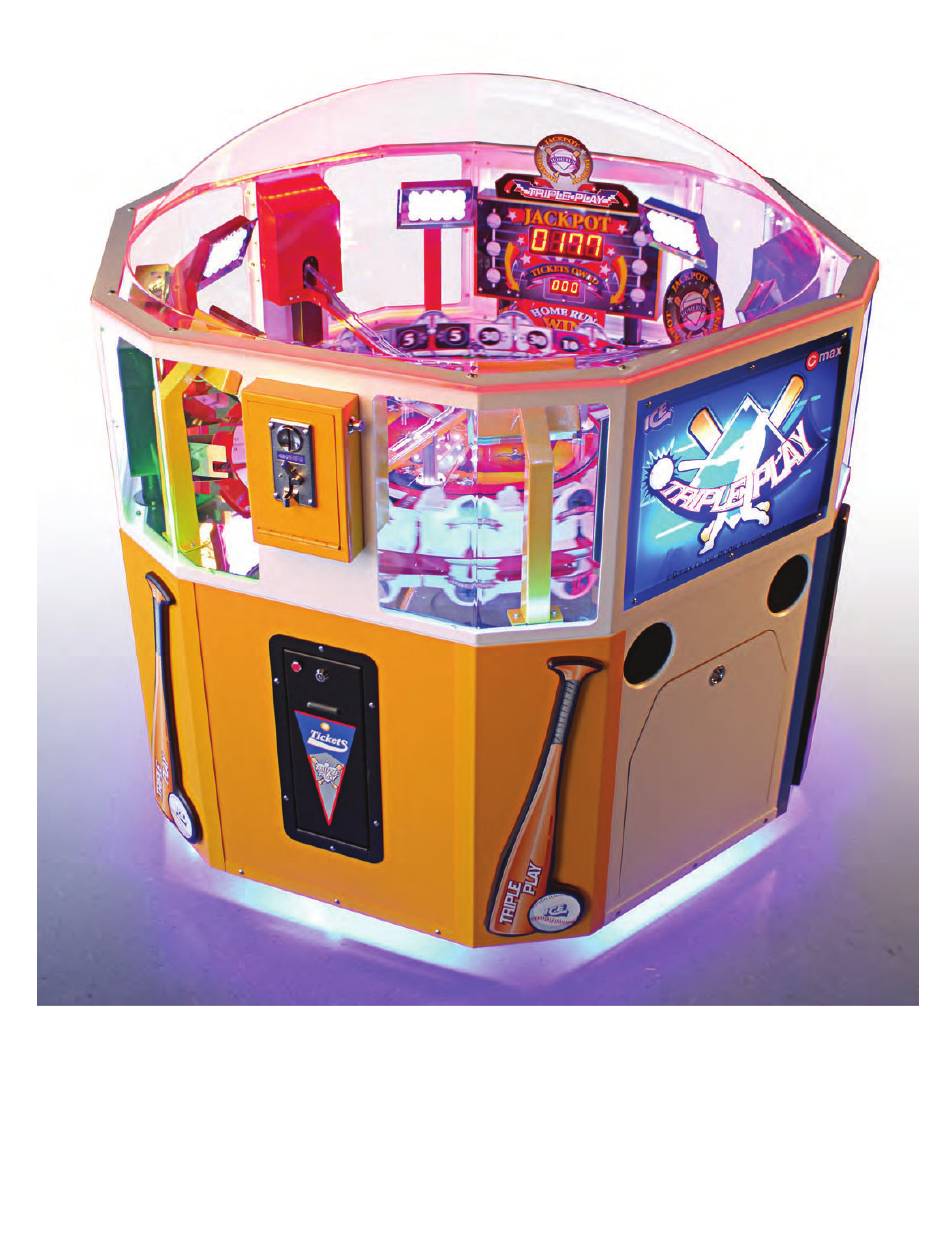

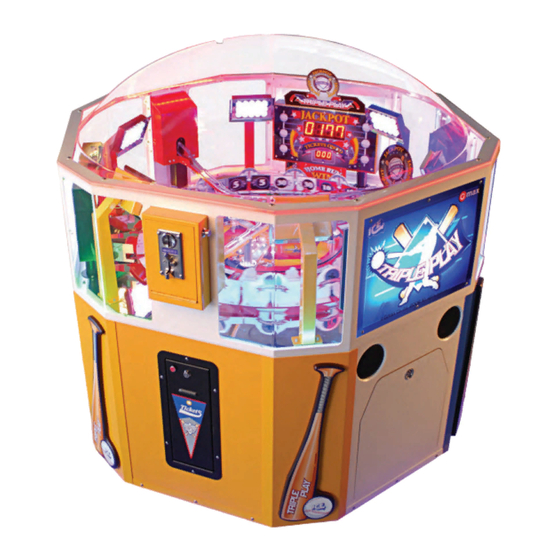

Triple Play
OWNERS AND SERVICE MANUAL
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
1

Advertisement

loading

Related Manuals for Sega Triple Play

Summary of Contents for Sega Triple Play

  • Page 1 Triple Play OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety and Warnings Game Settings and Adjustments 5 - 6 Error Codes Coin setup Card Swipe Install Assembly Drawings 10 - 27 Wiring Diagram 29 - 30 Spare List...

  • Page 4: Safety And Warnings

    SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RE- CEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME REA- SON AS GIVEN ABOVE.

  • Page 5: Game Settings And Adjustments

    Game Settings and Adjustments Your game has been shipped with our recommended defaults for optimal earnings. We have included extra decals located in your parts package in case you would like to alter the game settings for your location. To clear audit data press and hold the “UP”...

  • Page 6: Error Codes

    Test (Continued) Option 15 allows you to test the limit switches found in all the coin out holes. They are called “Home Run Hole”, “Hit Hole”, and “Out Hole”. When a limit switch is defective, the display will show the hole with the defective switch and the station number.

  • Page 7: Coin Setup

    SETUP - ASSEMBLY This game has three stations that require you to insert your game room token or the coin you wish to use into each of the coin comparators before they will accept any coins or tokens. You will also need to load tickets into each station’s ticket dispenser. See below for loading coins or tokens.

  • Page 8: Card Swipe Install

    Card Swipe Installation The game has been designed for easy integration of any card swipe system. You will find in the cash box all the necessary hardware to install hoppers into each station. Hoppers and harnesses are not included and can be obtained from ICE Service Department.
  • Page 9 Card Swipe Installation (Continued) Step 4: Locate the coin out ramp and position it in front where the coins are dispensed from the hopper and install the two mounting screws. Step 5: Remove the coin chute plate from the door and install the coin cup with remaining hardware. The remaining steps to finish your card swipe installation is different per card swipe system used.

  • Page 10: Assembly Drawings

    Cabinet Assembly Location Part number Description Lower cabinet Upper cabinet Lower Bat assembly Ticket door assembly Main PCB door Coin station assembly (Red, blue, yellow) Jackpot display assembly (Red, blue, yellow) Stadium light assembly Coin collector platform assembly See page 25 Playfield base plate assembly Center acryl playfield XHAT3027X...
  • Page 11 Cabinet Assembly (cont) Location Part number Description Main pcb assembly Coin station assembly (Red/Blue/Yellow) Jackpot display assembly (Red/Blue/Yellow) Stadium light assembly (Red/Blue/Yellow) Coin chute assembly (Red/Blue/Yellow) Coin box cover (Red/Blue/Yellow) Dome LED pcb bracket XHAT2037X Dome LED pcb...
  • Page 12 Cabinet Assembly (cont) Location Part number Description Main shaft assembly Coin collector platform assembly Bearing assembly Middle cover plate bracket Cabinet middle cover plate XHAT3025X Mirror acryl Set (two sizes per each set) Playfield base plate assembly Playfield base plate Center acryl playfield...
  • Page 13 Cabinet Assembly (cont) Location Part number Description Motor assembly Coin Collection box assembly XHAT2038X Bottom LED PCB Bottom LED PCB bracket Bottom finish plate...
  • Page 14 Bearing Bracket Assembly Location Part number Description XHAT1050 Bearing Bearing bracket Bearing bracket 1 SEMS machine screw bolt...
  • Page 15 Coin Chute Assembly (1 each of red, blue and yellow for each station) Location Part number Description XHAT3002/3004/3004 (Red, Blue, Yellow) Coin Chute Acryl (Red, Blue or Yellow stations) Coin receiver (Red, Blue or Yellow stations) Coin chute bracket (Red, Blue or Yellow stations) Coin chute bracket 1 (Red, Blue, or Yellow stations) Coin chute support (Red, Blue, or Yellow stations) Truss screw bolt...
  • Page 16 Jackpot Zone Coin Collector Assembly Location Part number Description Jackpot coin collector Jackpot coin collector Jackpot switch and bracket assembly SEMS machine screw bolt SEMS machine screw bolt...
  • Page 17 Hit Zone Coin Collector Assembly Location Part number Description Hit zone coin collector Hit zone coin collector bracket XHAT211X Limit switch assembly SEMS machine screw bolt SEMS machine screw bolt...
  • Page 18 Location Part number Description Hit zone coin collector assembly Jackpot coin collector assembly Coin collector platform SEMS machine screw bolt...
  • Page 19 Coin Station Assembly (Red, Blue and Yellow) Location Part number Description Coin station box (Red, blue and yellow) Coin machine XHAT5014 Coin station lock Round rivet screw bolt Lock nut...
  • Page 20 Jackpot Display Assembly Location Part number Description Jackpot display case See page 21 Coin LED pcb assembly XHAT2033X Jackpot FND pcb XHAT2032X Ticket FNC pcb Title panel LED pcb Jackpot display assembly XHAT3006 Acryl pop XHAT3007tp Jackpot display cover Truss screw bolt (black) Truss screw bolt (silver) U-lock nut SEMS machine screw bolt...
  • Page 21 Coin LED pcb Assembly (Available in Red, Blue, or Yellow - Two per color) BOLT M3X8X2 Location Part number Description XHAT2039X/2040X/2041X Red, Blue, Yellow) Coin LED pcb Jackpot display LED pcb cover...
  • Page 22 Lower cabinet support - Bat assembly Location Part number Description Lower cabinet support XHAT3005 Wooden bat Screw bolt...
  • Page 23 Main Shaft Assembly Location Part number Description XHAT1051 Bearing Shaft XHAT1052 Bearing Bearing housing XHAT1053 Shaft gear XHAT1055 Lock Key Washer Socket head cap screw XHAT1054 C-Ring...
  • Page 24 Motor Assembly Location Part number Description XHAT2008X Motor with gearbox assembly Motor bracket1 XHAT1056 Motor gear Motor bracket Motor base plate Motor assembly XHAT1057 Lock key Socket head cap screw SEMS machine screw bolt Double SEMS SW+FW mode SEMS machine screw bolt...
  • Page 25 Playfield base assembly 30 30 10 10 15 15 20 20 30 30 10 10 15 15 20 20 30 30 10 10 15 15 20 20 15 15 Location Part number Description Playfield base plate Playfield base plate XHAT7002TPX Acryl playfield set Out zone board Score label...
  • Page 26 Stadium Light Supporter assembly Location Part number Description Stadium light support (red, blue, or yellow) XHAT2042X Stadium light PCB Stadium light SUS cover SEMS machine screw bolt Flat Screw bolt (black)
  • Page 27 TICKET DISPENSER ASS'Y Ticket Dispenser Assembly 3 sets 3EA 1SET Location Part number Description Ticket Door Ticket Box Ticket Dispenser XHAT2004 Ticket Button XHAT5015 Door Lock U-Lock nut...

  • Page 29: Wiring Diagram

    13 12 13 12 11 13 12 13 12 11 13 12 11 Code CON7 CON8 CON3 CON9 Color Black HOPER MACHINE COIN COUNTER TIKET COUNTER MAGNETIC Brown MACHINE Orange Yellow TRIPLE PLAY Green Blue PCB_MAIN Purple Gray BOARD White Green/Yellow...
  • Page 30 JACKPOT DISPLAY COVER (TP) XHAT3025X MIRROR SET (3 PIECES) XHAT3027X WINDOW SET XHAT7001HT TITLE PANEL (HAT TRICK) XHAT7001TP TITLE PANEL (TRIPLE PLAY) XHAT7002BRENX PLAYFIELD DECAL SET (BRENT) XHAT7002CECX PLAYFIELD DECAL SET (CEC) XHAT7002GENX PLAYFIELD DECAL SET (GENERIC) XHAT7002TPX PLAYFIELD DECAL SET (TRIPLE PLAY)

  • Page 31: Spare List

    Contacts at SEGA Machine Sales Telephone: +44 (0) 208 391 8090 Fax: +44 (0) 208 391 8099 www.sega-amusements.co.uk SEGA Spares Telephone: +44 (0) 208 391 8060 Fax: +44 (0) 208 391 8096 www.segatotalsolutions.com Customer Services Telephone: +44 (0) 208 391 8065...
