1
PRINTING
at
Sega Amusements International Limited.
42 Barwell Business Park, Leatherhead Road, Chessington, Surrey, KT9 2NY. United Kingdom.
Telephone: +44 (0) 208 391 8090
sales@segaarcade.com
www.segaarcade.com
© SEGA
Errors and omissions excepted (E&OE)
IMPORTANT
• Before using this product, read this manual carefully to understand the
contents herein stated.
• After reading this manual, be sure to keep it near the product or in a
convenient place for easy reference when necessary.

Advertisement

Table of Contents
loading

Related Manuals for Sega MIB

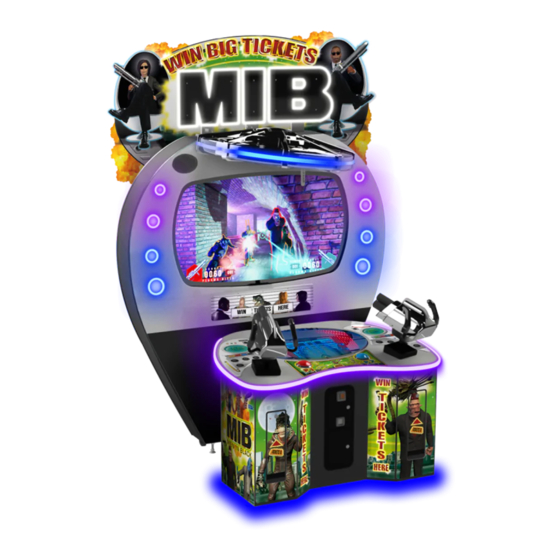

Summary of Contents for Sega MIB

  • Page 1 PRINTING Sega Amusements International Limited. 42 Barwell Business Park, Leatherhead Road, Chessington, Surrey, KT9 2NY. United Kingdom. Telephone: +44 (0) 208 391 8090 sales@segaarcade.com www.segaarcade.com IMPORTANT © SEGA • Before using this product, read this manual carefully to understand the contents herein stated.
  • Page 2 BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: To maintain safety: To ensure the safe operation of this product, be sure to read the following before usage: The following instructions are intended for the users, operators and the personnel in charge of the operation of the product.
  • Page 3 SEGA shall not be held responsible for any accidents or compensation for damage to a third party resulting from the specifications not designated by SEGA.
  • Page 4 Indicates a warning or caution that, if ignored, may result in the mishandling of the product and cause faulty operation or damage to the product Sega Amusements International Limited 42 Barwell Business Park, Leatherhead Road, Chessington, Surrey, KT9 2NY. United Kingdom. European Sales: +44 (0)208 391 8090 Email: sales@segaarcade.com...
  • Page 5 Definition of 'Site Maintenence Personnel’ or Other Qualified Individuals Definition of 'Site Maintenence Personnel’ or Other Qualified Individuals Procedures not described in this Manual or marked as ‘to be carried out by Site Maintenance Personnel or other qualified professionals’ should not be carried out by personnel without the necessary skill or technological experience. Work carried out by unqualified persons may cause serious accidents, including electrocution.
  • Page 6 The symbol shown below will be placed on all products manufactured from 13th August 2005, which indicates this product must NOT be disposed of with other normal waste. Upon purchasing any EEE from SEGA Amusements International Ltd. The user accepts responsibility to dispose of their waste equipment by arranging to return it to a designated UK collection point (AATF) or an Approved Exporter (AE) for the correct recycling of waste electrical and electronic equipment.
  • Page 7 LIST OF 3rd PARTY RIGHTS LICENCE _____________________________________________ TM & © 2021 Columbia Pictures Industries, Inc. All Rights Reserved.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION HANDLING PRECAUTIONS PRECAUTIONS REGARDING INSTALLATION PRECAUTIONS REGARDING OPERATION 3-1 BEFORE OPERATION 3-2 PAYING ATTENTION TO CUSTOMERS PARTS DESCRIPTION ACCESSORIES ASSEMBLY AND INSTALLATION 6-1 UNPACKING AND INSTALLING THE CAB 6-2 INSTALLING THE BILLBOARD LETTERS 6-3 INSTALLING THE UFO 6-4 FIXATION TO INSTALLATION SITE 6-5 CONNECTION OF POWER AND GROUND CABLES 6-6 CONFIRMATION OF INSTALLATION 6-7 COMPONENTS THAT CHANGE STATE UPON POWERING UP...
  • Page 9 CONTROLLER UNIT 11-1 REMOVING THE CONTROLLER 11-2 MAINTAINING THE CONTROLLER COIN HANDLING 12-1 CLEANING THE COIN SELECTOR 12-2 FAULT FINDING 12-3 ADJUSTING THE PRICE OF PLAY (EXCEL) 12-4 COIN REGION & PRICE OF PLAY SETTINGS 12-5 PRICE OF PLAY QUICK START - USA LAMPS AND LIGHTING 13-1 COIN DOOR LAMP 13-2 CABINET LED LIST...

  • Page 10: Handling Precautions

    • SEGA shall not be held responsible for damage or compensation for damage to a third party caused by specification changes not designated by SEGA •...
  • Page 11 • Some parts are not designed or manufactured specifically for this game machine. The manufacturers may discontinue or change the specifications of such general-purpose parts. If this is the case, SEGA cannot repair or replace a failed game machine whether or not a warranty period has...
  • Page 12 CONCERNING THE STICKER DISPLAY This SEGA product has stickers attached describing the product manufacture No. (Serial No.) and Electrical Specifications. It also has a Sticker describing where to contact for repair and for purchasing parts. When inquiring about or asking for repairs, mention the Serial No. and Name of Machine indicated on the Sticker.
  • Page 13 CAUTION If you or your child have experienced a convulsive attack, loss of consciousness, etc., due to light stimulus or TV game, or fear that you may experience such symptoms, be very careful of using this machine. If you feel sick whilst playing this game, immediately discontinue use and take a rest.

  • Page 14: Precautions Regarding Installation

    PRECAUTIONS REGARDING INSTALLATION • This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing in places mentioned below so as not to cause fire, electric shock, injury and/or malfunction: • Places subject to rain/water leakage or places subject to high humidity, in the proximity of an indoor swimming pool and/or shower, etc •...
  • Page 15 Securing a safe area for operation as described in this Manual will ensure safe operation for players and observers. SEGA shall not be held responsible for damage or compensation for damage to a third party, resulting from the failure to observe this instruction OPERATION AREA (SINGLE CABINET) •...
  • Page 16 • To install this product, the entrance must be at least 0.89m (35 in) in width and 2.08m (81.8 in) in height (without Assy Billboard) and 2.53m (99.6 in) (with Assy Billboard). If the entrance is too narrow, do not tilt the product carelessly. If all the product weight is put on the casters at one side only, there could be damage or deformation, causing serious accidents such as workers getting caught underneath...

  • Page 17: Precautions Regarding Operation

    PRECAUTIONS REGARDING OPERATION To avoid injury and trouble, be sure to pay attention to the behaviour of visitors and players. 3-1 BEFORE OPERATION • In order to avoid accidents, check the following before starting the operation: • To ensure maximum safety for the players and the customers, ensure that where the product is operated has sufficient lighting to allow any warnings to be read.
  • Page 18 • To avoid injury, be sure to provide sufficient space by considering the potentially crowded situation at the installation location. Insufficient installation space can cause contact, collisions, and/or trouble between customers • During daily cleaning, be sure to check the surface of the control unit and other parts that the player touches with his/her hands for damage, cracks, or loose screws.

  • Page 19: Paying Attention To Customers

    3-2 PAYING ATTENTION TO CUSTOMERS To avoid injury and trouble, be sure to constantly give careful attention to the behaviour and manner of the visitors and players. DURING OPERATION (PAYING ATTENTION TO CUSTOMERS) • For safety reasons, do not allow any of the following people to play the game: Those who have high blood pressure or a heart problem Those who have experienced muscle convulsion or loss of consciousness when playing video games, etc...
  • Page 20 ● Diligently clean the parts that players touch directly to ensure a pleasant game playing experience ● Inspect the coin insertion slots to make sure no foreign objects have been inserted and that they have not otherwise been tampered with as this will prevent play •...
  • Page 21 PART DESCRIPTIONS UFO BILLBOARD PLAYER BUTTON CONTROLLER UNIT LED TUBES SPEAKERS COIN DOOR TICKET DOOR MONITOR LOGO BILLBOARD...

  • Page 22: Accessories

    ACCESSORIES Confirm that the accessories listed in the table below are present when setting up the product. Accessories marked “Spare” are consumable items but included as spares. Part Name / Number Diagram Quantity Owner’s Manual (Part #: 420-0037UK) Master Key (J9117) Security Key (A4444) Power Lead UK (Pt No LM1227) EU (Pt No LM1246) US (Pt No LM1500UK) Spare Fuse (Fitted to ASSY AC UNIT)

  • Page 23: Assembly And Installation

    ASSEMBLY AND INSTALLATION ● Perform assembly work by following the procedure herein stated. Failure to comply with the instructions can cause electric shock ● Perform assembling as per this Manual. Since this is a complex machine, incorrect assembling can cause an electric shock, machine damage and/or improper functioning as per specified performance ●...
  • Page 24 ● Handle molded parts with care. Excessive weight or pressure may cause them to break and the broken pieces may cause injury ● To perform the operation safely and accurately you must use a safe, steady footstool or stepladder. Working without this may lead to a fall and possible injury ●...
  • Page 25 6-1 UNPACKING THE CABS Unlock the Door Back Upper (MB-1002-BUK) and the Door Back Lower (MB-1002-CUK) doors using Master Key and remove both doors Door Back Upper (MB-1002-BUK) Unlock with Master Key Door Back Lower (MB-1002-CUK) Remove the (2) M8x100 bolts located between the Game Board and Elec Board. Reapply and secure Elec Board Door M8x100...
  • Page 26 You will now be able to remove the Bracket Securing Shipping (MB-0014UK) from the front of the Monitor Cab Bracket Securing Shipping Extend the Monitor Cab feet fully to the floor. Extend the Control Cab out until the fixing holes are visible Fixing Holes Move Control Cab in this direction...
  • Page 27 Unlock the Control Cabi Door (MB-3002-BUK) with Master Key. Remove door to gain inner access to Control Cab Unlock with Master Key Control Cabi Door (MB-3002-BUK) Fit the Securing Bracket Installed (MB-0013UK) between the Monitor Cab and Control Cab and secure using the M8x40 fixings Securing Bracket Installed...
  • Page 28 Secure all harnessing connections within the Control Cab (there are 13 harnesses inside the Control Cab, all of which are labelled and colour coded) and reapply Control Cabi Door when complete Wire Harnesses Fit the (2) Bracket Conjoining Base Side (MB-0012UK) and (1) Conjoining Base Top Bracket Front (MB-0011UK) to the lower section of the Control Cab to secure it by applying the (4) M6x25 fixings on each bracket Conjoining Base Top Bracket Front...
  • Page 29 6-2 INSTALLING THE UFO Using at least 2 people, feed the two Box Section UFO (MB-1602UK) through the access holes along with the harnessing Wire Harness through here Box Section UFO Align with the fixing holes on the brackets in the rear of the Monitor Cab. Secure the Brkt UFO LHS Upper/Lower (MB-1009/12UK) and Brkt UFO RHS Lower (MB-1013UK) when UFO is in place using M6x25 fixings UFO LHS Upper...
  • Page 30 Attach all UFO harnessing Wire Harness Reapply and secure Monitor Door with Master Key...

  • Page 31: Installing The Billboard Letters

    6-3 INSTALLING THE BILLBOARD LETTERS Remove the (2) M6x25 fixings on each of the Support Billboard with attached letters and place the Brackets to one side. These will be used in Step 6-2 Support Billboard Place the “M” into position and secure the (2) M6x25 fixings on the Support Billboard (MB-0506UK).
  • Page 32 Repeat process for the remaining letters Attach all Billboard harnessing Wire Harnesses...

  • Page 33: Fixation To Installation Site

    6-4 FIXATION TO INSTALLATION SITE Make sure that all the adjusters contact the floor. Otherwise the cabinet could move, causing an accident The product comes with castors attached at 8 locations and adjusters at 6 locations. When the installation site has been determined, have the adjusters come in direct contact with the floor. Establish a gap of about 5 mm between the floor and the castors and adjust the unit so that it will remain level.

  • Page 34: Connection Of Power And Ground Cables

    ADJUSTER Tighten nut upwards. About 5 mm ADJUSTER CASTOR 6-5 CONNECTION OF POWER AND GROUND CABLES (Only applies where an integral earth is not present in the mains/power lead) ● Use the power supply equipped with an earth leakage breaker. Use of power supply without such a breaker could result in fire if there is a current leakage ●...
  • Page 35 Confirm that the main switch is at OFF. INLET FUSE Main switch OFF MAIN SWITCH Fully insert the power cord connector on the side opposite the power plug into the AC unit inlet. Fully insert the power cord plug into the outlet. The power cord is laid out indoors.

  • Page 36: Confirmation Of Installation

    6-6 CONFIRMATION OF INSTALLATION Use Test Mode to confirm that assembly is correct, and that connecting boards and input/output devices are normal. See Chapter 9 “Test and Service Data” for more information on each individual test. Perform the following tests in test mode: Unlock and open the Coin Door to access the SW Unit.

  • Page 37: Components That Change State Upon Powering Up

    6-7 COMPONENTS THAT CHANGE STATE UPON POWERING UP Neuralyzer and UFO illuminate Billboard illuminates Audio from Speakers Controller lighting illuminates Tubes illuminate Attract Video plays Infinity Mirror illuminates Control Cab illuminates...

  • Page 38: Precautions When Moving

    PRECAUTIONS WHEN MOVING 7-1 MOVING THE MACHINE ● Always disconnect the power cable before moving the product. If it is moved with the power cable connected, the cable could be damaged, causing fire or electric shock ● To move the unit over the floor, pull in the adjustors and have the castors contact the floor.
  • Page 39 ● When moving the cabinet, do not hold, push, or pull the Control Units. This may disfigure or damage them ● If you need to move components through a narrow or low door and the only way to get the separated components through is to turn them on their side, or if a separation method other than those described in this Manual is required, either make a request to the office listed in this document or the place of purchase to perform the operation or contact them regarding how to perform...

  • Page 40: Game Description

    GAME DESCRIPTION 8-1 GAME OUTLINE Men in Black arcade is an on-rails, video redemption, shooting game. Players will move through an environment on a pre-defined route shooting aliens to accrue score, this score directly relates to a ticket reward. A ‘super bonus’ of additional tickets will be awarded to players earning above a pre-set score within in a level.
  • Page 41 At the end of the level, player(s) will face a Boss alien. Boss aliens are worth a greater number of points than those faced in the level. Once the level has been completed and the boss has either escaped or been destroyed, a player will be awarded a grade for their performance in the level.
  • Page 42 At the end of the game, Players will be given their score and ticket totals. They will immediately receive their ticket payout. Players can then insert another Credit if they wish to Continue. If no Credit is added and Start is not pressed, the Game will end and return to Attract.
  • Page 43 EXPLANATION OF TEST AND DATA DISPLAY Do not touch any parts that are not specified in these directions. Touching unspecified locations may lead to electric shock or cause short circuits ● Be careful that your finger or hand does not get caught when opening/closing the coin chute door ●...

  • Page 44: Switch Unit And Coin Meter

    9-1 SWITCH UNIT AND COIN METER The Switch Unit and Counters are housed within the Coin Tower. To access these controls you will need to open the Coin Door. The switches and counters can be found directly on the rear face of the Tower. COIN IN COUNTER CREDIT BOARD VOLUME CONTROL TEST BUTTON...

  • Page 45: Game Test Mode

    9-2 GAME TEST MODE This is the main Test Mode menu. Here you can access a number of different sub menus to test different aspects of the Cabinet to ensure they are all working correctly. Use Service to cycle through items. Use Test to select an item and view that item's sub-menu. Select EXIT to return to Game.

  • Page 46: System Information

    9-3 SYSTEM INFORMATION This menu displays information about the Cabinet specs and hardware. Use the Service button to cycle through the options and the Test button to select an option. Game Name Name of installed game software Game Version Game software version number Disk Image Version Disk Image version of Game Board Launcher Version...

  • Page 47: Input Test

    9-4 INPUT TEST This menu tests the input function of controller triggers, buttons, and coin insertion. Note: Press the Test and Service Button together at the same time to exit this menu. Player 1 Controller X Shows co-ordinates of P1 Controller X Axis Player 1 Controller Y Shows co-ordinates of P1 Controller Y Axis Player 1 Controller Trigger L ON = P1 Controller Trigger L Pressed - OFF = Not Pressed Player 1 Controller Trigger R ON = P1 Controller Trigger R Pressed - OFF = Not Pressed Player 1 Start Button...

  • Page 48: Output Test

    9-5 OUTPUT TEST This menu tests the output functions of lighting, controllers, and ticket mechs. Player 1 Start Lamp ON = P1 Start Lamp illuminated - OFF = P1 Start Lamp off Player 2 Start Lamp ON = P2 Start Lamp illuminated - OFF = P2 Start Lamp off Woofly Lighting Test all gameplay related lighting for Controllers, Cab, and Infinity Mirror...

  • Page 49: Calibration Test

    9-6 CALIBRATION TEST This menu allows you to calibrate the control units. Player 1 Controller X Positional value of P1 X axis Player 1 Controller Y Positional value of P1 Y axis Player 2 Controller X Positional value of P2 X axis Player 2 Controller Y Positional value of P2 Y axis P1 Controller Min X Max X Minimum and maximum values P1 X values can be P1 Controller Min Y Max Y...

  • Page 50: Coin Test

    9-7 COIN TEST This menu allows you to see the total amount of credits and set the coin to credit ratio. Coin Count Amount of Coins the Cab has received (A = P1 - B = P2) Credits Amount of standard Credits the Cab has received (A = P1 - B = Service Credits Amount of Service Credits the Cab has received Game Cost...

  • Page 51: Sound Test

    9-8 SOUND TEST This menu allows you to see test all audio devices and set the attract volume. Audio in Attract Set volume of Attract video (OFF - 100 in increments of 10) Speaker Test Test Speaker function/noise level (ON = Speaker plays audio clip - OFF = No audio) Back Return to Main Test Menu...

  • Page 52: Screen Test

    9-9 SCREEN TEST This menu allows you to adjust the screen variables like brightness and colour. Colour Bars: Brightness: Selecting this will display the following Selecting this will display the following screen: screen: Grid Alignment: Selecting this will display the following screen:...

  • Page 53: Bookkeeping

    9-10 BOOKKEEPING These menus allows you to see Cabinet metrics and statistics. Coin Credits Amount of Coin Credits the Cab has received Service Credits Amount of Service Credits the Cab has received Total Credits Total amount of Credits the Cab has received Bookkeeping Last Cleared Date/Time stamp of the last time Bookkeeping was cleared Clear Bookkeeping Clear all Bookkeeping statistics (requires confirmation)
  • Page 54 Bookkeeping Page 2 This menu shows the amount of different types of game and their respective play times. Number of Plays Total number of games that have been played Number of Player 1 Play Total number of games completed by Player 1 Number of Player 2 Play Total number of games completed by Player 2 Number of Singleplay Total number of games completed by a solo Player Number of Multiplay...
  • Page 55 Bookkeeping Page 3 This menus shows the continue ratio data. Total Continue Ratio Total Continue Ratio for all games Total Continue Single Ratio Total Continue Ratio for Single Player games Total Continue Multi Ratio Total Continue Ratio for Multiplayer games Next Page Proceed to Bookkeeping Page 4 Back to Menu Return to Main Test Menu...
  • Page 56 Bookkeeping Page 4 This menu shows ticket payout statistics and the total Super Bonus value. Total Ticket Payout The total amount of tickets the Cabinet has dispensed Total Ticket Payout P1 The total amount of tickets the Cabinet has dispensed for P1 Total Ticket Payout P2 The total amount of tickets the Cabinet has dispensed for P2 Average Ticket Payout P1 The average amount of tickets the Cabinet dispenses for P1 Average Ticket Payout P2...

  • Page 57: Clock Test

    9-11 CLOCK TEST This menu allows you to set the internal Cabinet clock. Current Time Displays current time (24 Hour) Current Date Displays current Day/Month/Year Year Adjust Year Month Adjust Month Date Adjust Day Hour Adjust Hour (24 Hour) Minute Adjust Minute Second Adjust Second Back...

  • Page 58: Game Assignments

    9-12 GAME ASSIGNMENTS This menu allows you to adjust gameplay variables like language and difficulty. Game Difficulty Adjust Game difficulty (Damage dealt and Boss Health) Max Tickets Set max ticket payout (30-250) Super Bonus Set Super Bonus ticket payout amount (5-5000) Mercy Tickets Set amount of Mercy Tickets paid out (0-10) - Mercy Tickets are paid out if a Player scores 0 points Player 1 Recoil Enabled Set whether Player 1 has recoil enabled on their Controller (ON-...

  • Page 59: General Description

    VIDEO DISPLAY The LCD display screen is adjusted prior to leaving the factory. Avoid any unnecessary adjustment ● If the adjustment method in this Manual does not resolve the problem, contact the customer service number in this Manual or your supplier ●...

  • Page 60: Cleaning The Screen

    10-2 CLEANING THE SCREEN ● Since the LCD display screen is susceptible to damage, pay careful attention to its handling. When cleaning, refrain from using water or volatile chemicals ● Do not climb onto the control panel. This could lead to injuries, such as bumping your head ●...

  • Page 61: On-Screen Adjustment Method (Osd)

    10-3 ON SCREEN ADJUSTMENT METHOD (OSD) • If the adjustment method in this manual does not resolve the problem contact the customer service number in this manual or your supplier • Do not stick tape, stickers or anything else onto the screen. Any kind of adhesive may damage the surface of the screen •...
  • Page 62 Hot Keys The OSD offers hot key functions. To access these functions the user must not open the OSD via the Main Menu. The hotkey functions offer direct access to each equivalent function. Button Direct access Up/Plus Source select, switch to next input Down/Minus Brightness Select...
  • Page 63 OSD Structure...
  • Page 64 Picture Menu VGA Settings Menu Setup Menu Colour Menu...
  • Page 65 User Colour Menu Input Menu OSD Menu OSD Position Menu...
  • Page 66 Info Menu Advance Setup Menu...

  • Page 67: Controller Unit

    CONTROLLER UNIT ● When working with the product, be sure to turn the power off. Working with the power on may cause an electric shock or short circuit ● Be careful not to damage the wires. Damaged wires may cause an electric shock, short circuit or present a risk of fire ●...

  • Page 68: Removing The Controller

    11-1 REMOVING THE CONTROLLER Remove the (4) highlighted fixings Unlock the Control Cabi Door (MB-3002-BUK) using the supplied Master Key...
  • Page 69 Disconnect harness MB-60036UK & MB-60037UK for the Player 1 Controller (left side) and MB- 60022UK & MB-60038UK for the Player 2 Controller (right side) Wire Harnesses The Controller Unit can now be lifted out and removed...

  • Page 70: Maintaining The Controller

    11-2 MAINTAINING THE CONTROLLER The Control Unit should be checked and maintained every 3 months to ensure it is operating correctly. Extended use of the Control Unit without recalibration can cause the Control Units to become misaligned with the screen. Calibrate the Control Units once every 3 months to ensure correct operation.
  • Page 71 11-3 REPLACING THE SOLENOID...
  • Page 72 11-4 REPLACING THE COIL...

  • Page 73: Coin Handling

    COIN HANDLING Handling the Coin Jam If the coin is not rejected when the REJECT button is pressed, open the coin chute door and open the selector gate. After removing the jammed coin, put a normal coin in and check to see that the selector correctly functions. 12-1 CLEANING THE COIN SELECTOR ●...
  • Page 74 CLEANING THE COIN SELECTOR (MECHANICAL) Remove and clean smears by using a soft cloth dipped in water or diluted chemical detergent and then squeezed dry. Remove the CRADLE. When removing the retaining ring (E ring) be very careful so as not to bend the rotary shaft. Remove stain from the rotary shaft and shaft CRADLE receiving portions by wiping off with a soft cloth.
  • Page 75 CLEANING THE COIN SELECTOR (SR3 / NRI) Remove and clean smears by using a damp soft cloth dipped in water. DO NOT use any diluted chemical detergent or cleansing agent as this will impair the workings of the component. GATE Open the reject gate to gain access to the rundown path.

  • Page 76: Fault Finding

    12-2 FAULT FINDING Fault Finding The following information is presented for customers’ guidance in rectifying a fault but does not cover all possible causes. All acceptors with electronic faults should be returned to an approved service centre for repair. SYMPTOM INVESTIGATE POSSIBLE CAUSE Poor Contact...

  • Page 77: Adjusting The Price Of Play (Excel)

    12-3 ADJUSTING THE PRICE OF PLAY (EXCEL) ● The price of play is determined by the configuration of switches located on either the EXCEL or VTS board. The type of board used is determined by product location. Switch settings for both types of board remain the same This product comes equipped with a Crane NRI Coin Acceptor.

  • Page 78: Coin Region & Price Of Play Settings

    12-4 COIN REGION & PRICE OF PLAY SETTINGS...
  • Page 79 Price of Play Settings (UK/EU) PRICE OF PLAY BONUS DIL SWITCH 1 0.10 0.10 0.50 = 6 credits 0.20 0.20 0.50 = 3 credits 0.30 0.30 1.00 = 4 credits 0.30 0.50 = 2 credits 0.30 1.00 = 3 credits 0.40 0.40 1.00 = 3 credits...

  • Page 80: Price Of Play Quick Start - Usa

    12-5 PRICE OF PLAY QUICK START - USA DIL SWITCH BANK ONE (5 way SW1) Item Price 25cent 50cent 75cent $1.00 $2.00 DIL SWITCH BANK TWO (6 way SW3) Type...

  • Page 81: Lamps And Lighting

    LAMPS AND LIGHTING • When working with the product, be sure to turn the power off. Working with the power on may cause an electric shock or short circuit • You may get burned by a hot fluorescent lamp or other lamps. Pay full attention to the lamps when performing the work •...

  • Page 82: Cabinet Led List

    13-2 CABINET LED LIST RELATED ASSEMBLY LIGHTING ASSEMBLY # MB-1000UK - Assy Monitor MB-1300UK - ASSY TUBE UPPER MB-1000UK - Assy Monitor MB-1400K - ASSY TUBE MIDDLE MB-1000UK - Assy Monitor MB-1500UK - ASSY TUBE LOWER MB-1000UK - Assy Monitor SAI-6504-2650UK - ASSY LED WHITE FLEX LONG MB-1600UK - Assy UFO SAI-6402-1910UK - ASSY LED SERIAL SHORT...
  • Page 83 13-2 CABINET LED LOCATIONS MB-1300UK MB-1300UK MB-1400UK MB-1400UK MB-1500UK MB-1500UK SAI-6201-1100UK...
  • Page 84 SAI-6402-1910UK SAI-6402-0065UK MB-2000UK SAI-6101-3000UK SAI-6503-0620UK SAI-6503-0620UK SAI-6503-0620UK...

  • Page 85: Periodic Inspection

    PERIODIC INSPECTION The items listed below require periodic check and maintenance to retain the performance of this machine and to ensure safe business operation. When handling the controller, the player will be in direct contact with it. In order to always allow the player to enjoy the game, be sure to clean it regularly.
  • Page 86 Cleaning the Cabinet Surfaces When the cabinet surfaces are badly soiled, remove stains with a soft cloth dipped in water or diluted (with water) chemical detergent and squeezed dry. To avoid damaging surface finish, do not use solvents such as thinner, benzine, etc. other than ethyl alcohol, or abrasives, bleaching agent and chemical dustcloth. Some general-purpose household, kitchen and furniture cleaning products may contain strong solvents that degrade plastic components, coatings, and print.

  • Page 87: Troubleshooting

    TROUBLESHOOTING 15-1 TROUBLESHOOTING (WHEN NO ERROR MESSAGE IS SHOWN) • This work should be performed by Site Maintenance Personnel or other skilled professionals. Work performed by non-technical personnel can cause a severe accident such as an electric shock. If there are no Site Maintenance Personnel or other skilled professionals available, turn off the power immediately and contact the office given in this Manual or from point of purchase •...
  • Page 88 Switch fault Replace switch work Start button does not light Lamp failure Replace lamp (Chapter 13) Stays on SEGA logo and Invalid Security Key does not go to advertise Contact point of purchase CPU error screen (error) Sights are not aligned due to...

  • Page 89: Game Board

    GAME BOARD ● When working with the product, be sure to turn the power off. Working with the power on may cause an electric shock or short circuit ● Be careful not to damage the wires. Damaged wires may cause electric shock, short circuit or present a fire risk ●...

  • Page 90: How To Remove Game Board

    16-1 HOW TO REMOVE GAME BOARD The Game Board is located behind the Mid Access Door on the left hand corner. Turn off the power Unlock the Elec Board Door (MB-1002-BUK) using the supplied Master Key Unlock here Identify the Game Board which is located on the left hand side GAME BD...
  • Page 91 Disconnect all of the connectors connected to the Game Board Carefully disconnect all connection to from the Game Bd Unscrew the (2) M4x16 screws on each of the (2) Bracket PC Mount (MB-1003UK) which secure the Game Board in place Lift and remove the Game Board from the cabinet.

  • Page 92: Design Related Parts

    FRONT DIAGONAL R MB-3063UK PLAYER INSTRUCTIONS MB-3067UK STICKER CABI TICKET DOOR SURROUND L MB-3068UK STICKER CABI TICKET DOOR SURROUND R MB-3071UK STKR CAB MIB TICKETS MB-3073UK STKR CAB TOP PNL LHS MB-3074UK STKR CAB TOP PNL RHS MB-0003UK MIB POP PANEL MB-0004UK...

  • Page 93: Parts List

    PARTS LIST MEN IN BLACK ASSY STRUCTURE FLOW MB-0000UK MEN IN BLACK MB-1000UK MB-1080UK ASSY MONITOR CABI ASSY AC UNIT MB-1200UK ASSY 55 LED DISPLAY MB-1300UK ASSY TUBE 60mm MB-1350UK ASSY FAN MONITOR MB-1400UK ASSY TUBE 80mm MB-1500UK ASSY TUBE 100mm MB-4000UK ASSY UPPER ELEC BOARD MB-4100UK ASSY LOWER ELEC BOARD MB-3000UK...
  • Page 94 1 TOP ASSY MEN IN BLACK (MB-0000UK) ITEM NO PART NO DESCRIPTION MB-1000UK ASSY MONITOR CABI MB-3000UK ASSY CONTROL CABI 421-7988-91UK STICKER SERIAL NUMBER UK 440-WS0100UK WARNING LABEL FORK HERE LB1046 LABEL TESTED FOR ELEC. SAFETY LB1130 LABEL WEEE WHEELIE BIN 440-CS0186-01UK STICKER CAUTION EPILEPSY 440-CS0010UK LABEL CAUTION GENERIC 440-WS0002UK LABEL WARNING HI VOLTAGE...
  • Page 95 2 ASSY SWITCH UNIT (MB-0325UK) 103 102 ITEM NO PART NO DESCRIPTION ***1 MB-0321UK SW BRKT TRIPLE METER ****101 838-14548-01UK SW & VOL CTL BD ****102 280-L00706-PM STANDOFF 6.4MM HOLE PM ****103 EP1380-01 CREDIT BOARD EXCEL ****104 220-5643UK COIN METER SMALL 12V ****105 OS1247 ALUMINIUM STICKY CLIP ASK-3 ****107 OS1098...
  • Page 96 3 ASSY BILLBOARD (MB-0500UK) ITEM NO PART NO DESCRIPTION MB-0501UK PLATE BILLBOARD M MB-0502UK PLATE BILLBOARD I MB-0503UK PLATE BILLBOARD B MB-0506UK SUPPORT BILLBOARD MB-0511UK LIGHTING BILLBOARD M MB-0512UK LIGHTING BILLBOARD I MB-0513UK LIGHTING BILLBOARD B ***201 029-B00412-0B M4X12 SKT BH BLK ***202 068-441616-0B M4 WSHR 16OD FLT BLK ***203...
  • Page 97 4 ASSY MONITOR CAB (MB-1000UK) 203 204 203 204 203 204 205 206 205 206 205 206 201 202 208 209...
  • Page 98 MB-60027UK WH MONITOR SURROUND LIGHTING LINK **313 MB-60028UK WH MONITOR SURROUND LIGHTING **314 MB-60031UK WH MONITOR PWR **315 MB-60032UK WH MIB TEXT LIGHTING LINK **316 MB-60034UK WH DOWNLIGHT LINK **317 600-7011-0200UK DA DVI TO DVI 200CM **318 HDZ-60050UK WH SPEAKERS...
  • Page 99 5 ASSY AC UNIT (MB-1080UK) ITEM NO PART NO DESCRIPTION ***1 DV-1081UK PLATE AC ***2 ST-0403UK PLATE AC CAP ***3 LB1096 STICKER PROTECTIVE EARTH ***4 LB1131 LABEL ON / OFF ***101 EP1302 EUROSOCKET FUSED 10A 250VAC ***102 514-5078-3150 FUSE 3.15 X 20 CERAMIC SB 3150mA ***103 SW1109 SWITCH ROCKER 250V AC...
  • Page 100 6 ASSY 55 LED DISPLAY (MB-1200UK) ITEM NO PART NO DESCRIPTION ***1 TRF-1210UK PNL PRISMA BD DMODUL MNT 55 ***2 HDZ-7404UK BRKT MONITOR LOCATING ***21 440-WS0002UK LABEL WARNING HI VOLT ***22 440-DS0010UK LABEL DANGER HI VOLT ***101 200-6055-03-AUO 55" LED AUO P550HVN02.2 ***102 280-A01264-WX ROUTER TWIST D12 SO6.4 WOOD X ***103 280-0017UK SPACER 6.4OD 3.7ID 11.1L PLASTIC...
  • Page 101 7 ASSY TUBE UPPER (MB-1300UK) ITEM NO PART NO DESCRIPTION ***1 MB-1411UK TUBE ACRYLIC MIDDLE ***2 MB-1402UK TUBE MOUNT MIDDLE ***3 MB-1441UK RUBBER GRIP MIDDLE ***101 390-2512-066RGB RING LED 66mm RGB M6612 ***201 601-10645-4UK HOSE CLIP SIZE NO.4...
  • Page 102 8 ASSY FAN MONITOR (MB-1350UK) ITEM NO PART NO DESCRIPTION ***1 MB-1014UK BRKT FAN MOUNTING ***101 260-0012-01UK FAN DC 12V RoHS EEC0381B1-000U-A99 ***102 FN1012 FAN GUARD METAL 120MM (FG-12) ***201 020-B00316-0B M3X16 SKT BH BLK ***202 060-S00300-0B M3 WSHR SPR BLK ***203 060-F00300-0B M3 WSHR FORM A FLT BLK ***204 050-U00400 M4 NUT NYLOK PAS...
  • Page 103 9 ASSY TUBE MIDDLE (MB-1400UK) ITEM NO PART NO DESCRIPTION ***1 MB-1411UK TUBE ACRYLIC MIDDLE ***2 MB-1402UK TUBE MOUNT MIDDLE ***3 MB-1441UK RUBBER GRIP MIDDLE ***101 390-2512-086RGB RING LED 86mm RGB M8618 ***201 601-10645-4UK HOSE CLIP SIZE NO.4...
  • Page 104 10 ASSY TUBE LOWER (MB-1500UK) 2 201 ITEM NO PART NO DESCRIPTION ***1 MB-1511UK TUBE ACRYLIC LOWER ***2 MB-1502UK TUBE MOUNT LOWER ***3 MB-1541UK RUBBER GRIP LOWER ***101 390-2512-106RGB RING LED 106mm RGB M10624 ***201 601-10645-5UK HOSE CLIP SIZE NO.5...
  • Page 105 11 ASSY UFO (MB-1600UK) (1/2) 204 202...
  • Page 106 11 ASSY UFO (MB-1600UK) (2/2) ITEM NO PART NO DESCRIPTION ***1 MB-1601UK BRKT UFO MOULDING ***2 MB-1602UK BOX SECTION UFO ***3 MB-1611UK MOULDING UFO TOP ***4 MB-1612UK MOULDING UFO BOTTOM ***6 MB-1613UK UFO LIGHTING BAND LEFT ***7 MB-1614UK UFO LIGHTING BAND RIGHT ***8 MB-1615UK UFO LIGHTING BAND CENTRE ***9...
  • Page 107 12 ASSY NEURALYZER (MB-1800UK) 201 202 ITEM NO PART NO DESCRIPTION ***1 MB-1801-XUK TUBE NEURALYZER ***2 MB-1803UK LED MOUNT NEURALYZER ***3 MB-1804UK BRKT MOUNTING NEURALYZER ***50 MB-1821UK NEURALYZER TUBE ARTWORK ***51 MB-1822UK NEURALYZER CAP ARTWORK ***201 029-B00625 M6X25 SKT BH PAS ***202 060-S00600 M6 WSHR SPR PAS ***203 029-B00408...
  • Page 108 13 ASSY CONTROLLER (MB-2000UK) (1/2)
  • Page 109 13 ASSY CONTROLLER (MB-2000UK) (2/2) ITEM NO PART NO DESCRIPTION ******2 MB-2001-16801 MAIN BODY ******5 MB-2001-16701 TRIPLE BARREL ******8 MB-2001-16601 ACRYLIC LENS ******9 MB-2001-17301 LENS BRACKET ******11 MB-2001-17101 WEIGHT ******12 MB-2001-17102 ******14 MB-2001-17103 SPRING ******15 MB-2001-17104 DAMPENER ******17 MB-2001-17105 SOLENOID ******18 MB-2001-17001 SOLENOID STOP BRACKET ******19 MB-2001-16901 MAIN SOLENOID BRACKET...
  • Page 110 14 ASSY CONTROL CABI (MB-3000UK) 205 208...
  • Page 111 WH 2P TICKET MECH AND PLAYER BUTTON **304 MB-60021UK WH INFINITY MIRROR LIGHTING LINK 2 **305 MB-60022UK WH GUN LIGHTING LINK **306 MB-60033UK WH MIB TEXT LIGHTING LINK x2 **307 MB-60035UK WH DOWNLIGHT LINK 2 **308 MB-60036UK WH GUN LIGHTING LINK **309 MB-60037UK...
  • Page 112 15 ASSY UPPER ELEC BOARD (MB-4000UK) 107 201 ITEM NO PART NO DESCRIPTION ***1 MI-4001UK WOODEN BASE MAIN ***21 440-CS0010UK LABEL CAUTION ***101 838-0042UK PCBA - 1/0 2 ***102 838-0041UK PCBA - WOOFLY 2 ***103 838-0038UK AMP 2.1 KEENE EMC ***107 OS1011 PCB FEET RICHCO LCBS-L-5-01 ***108 280-A01264-WX ROUTER TWIST D12 SO6.4 WOOD X...
  • Page 113 16 ASSY LOWER ELEC BOARD (MB-4100UK) ITEM NO PART NO DESCRIPTION ***1 MB-4101UK LOWER ELEC BOARD ***2 CFB-4003-01UK EARTH TERMINAL PLATE ***21 440-DS0010UK LABEL DANGER HI VOLT ***101 838-14551-02UK AC DISTRIBUTION BOARD ***102 400-150-05-03 MW RSP-150-5 ***103 400-320-012-01 PSU 12VDC 320W RSP-320-12 ***104 400-200-024-01 PSU 24V 200W MW RSP-200-24 ***106 280-A01264-WX ROUTER TWIST D12 SO6.4 WOOD X...
  • Page 114 17 ASSY INST MB (MB-INST) 201 202 4 205 208 203 204 ITEM NO PART NO DESCRIPTION MB-0011UK CONJOINING BASE TOP BRACKET FRONT MB-0012UK BRKT CONJOINING BASE SIDE MB-0013UK BRACKET SECURING INSTALLED MB-0014UK BRKT SECURING SHIPPING MB-0500UK ASSY BILLBOARD MB-1600UK ASSY UFO **201 029-B00640 M6X40 SKT BH PAS **202 068-652016...
  • Page 115 WIRE COLOR CODE TABLE The DC power wire color for this product is different from previous SEGA titles. Working from the previous wire colors will create a high risk of fire The color codes for the wires used in the diagrams in the following chapter are as follows.

  • Page 116: Schematic Diagrams

    SCHEMATIC DIAGRAMS (1 OF 3)
  • Page 117 (2 of 3)
  • Page 118 (3 of 3)
  • Page 119 SPARES AND SERVICE CONTACT INFORMATION -SEGA TOTAL SOLUTIONS- 42 Barwell Business Park Leatherhead Road Chessington Surrey KT9 2NY United Kingdom Contact: +44 (0) 208 391 8060 Option 1 for Spares, Prize, and Sales Option 2 for Technical, Warranty, and Repairs...
