Hyundai HYWT5200X User Manual

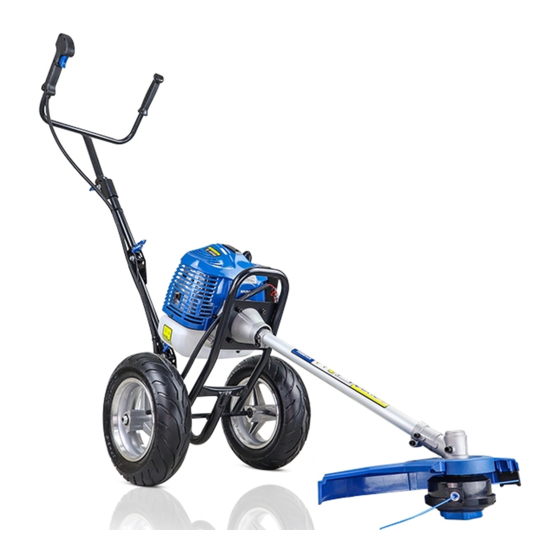

Petrol wheeled trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

HYWT5200X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYWT5200X and is the answer not in the manual?

Questions and answers

John
May 12, 2025

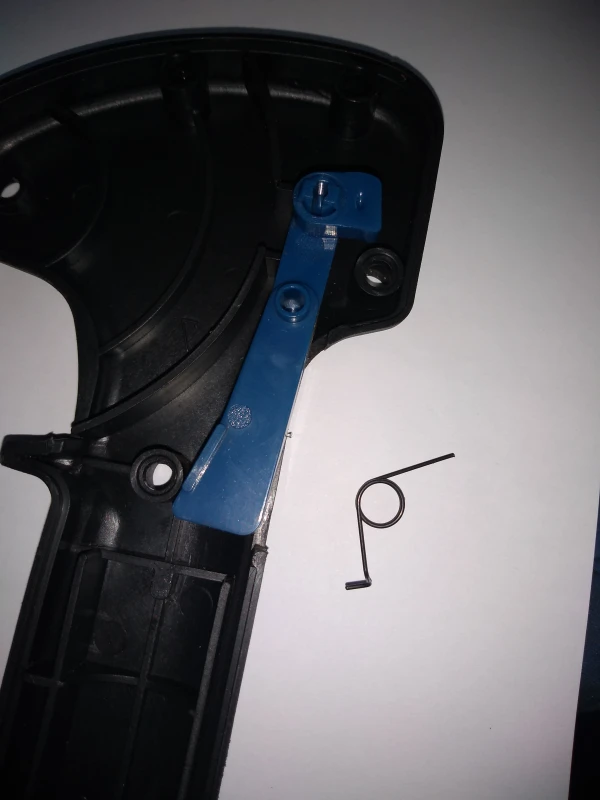

How to fit the spring to the trigger safety switch

User image 6821d26b17c65
0

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HYWT5200X

Summary of Contents for Hyundai HYWT5200X

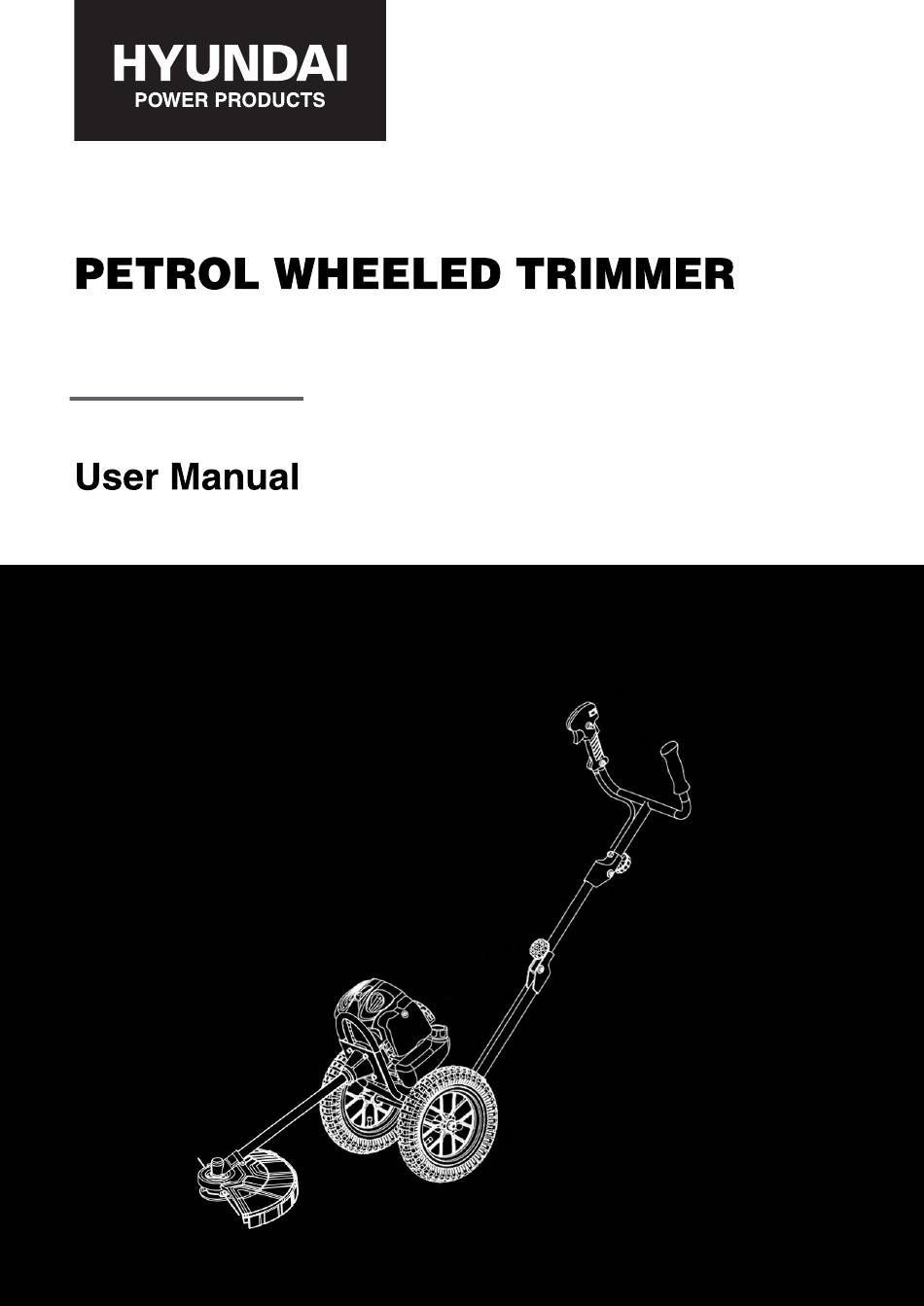

  • Page 1 HYWT5200X...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    CONTENTS SAFETY 4 - 7 ASSEMBLY 8-16 MIXING 2-STROKE OIL ADDING FUEL STARTING PROCEDURE 17-18 STOPPING PROCEDURE USING THE MACHINE MAINTENANCE 21-24 TROUBLESHOOTING SPECIFICATION PART LOCATIONS DECLARATION OF CONFORMITY CONTACT DETAILS MANUAL UPDATES WARRANTY Page 3...

  • Page 4: Safety

    SAFETY 1.1. General safety notes. 1.1.1. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 5 make sure that the machine is turned off. DO 1.4.5. ALWAYS carry fuel in the correct and NOT enter a room you suspect of having clearly marked container. carbon monoxide present – instead call the emergency services. 1.2.3.2. Contact a doctor immediately or go to hospital - let them know that you suspect carbon monoxide poisoning.
  • Page 6 1.6.2.1. Remove all clothing contaminated disease are known, but cold weather, smoking with electrolyte. If you cannot remove then and other diseases that affect blood vessels and blood circulation as well as large and long- saturate in water. lasting impact of shocks are considered factors 1.6.2.2.
  • Page 7  1.9. Additional safety labels. Keep the handles free of oil and fuel.  Keep all children, bystanders and helpers 15 ALWAYS use the correct interface handles meters from the machine. and shoulder strap.  DO NOT smoke when mixing fuel or when filling the tank.

  • Page 8: Assembly

    ASSEMBLY 2.1. This guide is meant to serve as a quick reference for operating your Hyundai Wheeled trimmer it is for convenience and the user should read the safety section first. FOR OUTDOOR USE ONLY. This Wheeled trimmer produces carbon monoxide - a poisonous, colourless & odourless gas that can cause death or serious injury.
  • Page 9 Page 9...
  • Page 10 Screw handlebar bolts (clockwise) in each section of handle as shown in image below. 2.5. CORD CUTTER ASSEMBLY Take the cutter guard from the box and the cord cutter from the tool kit bag along with the two cutter blade nuts/bolts. You are advised to wear safety gloves to prevent injury. Pass the bolts through the blade and then through the cutter guard into the locknuts on the other side –...
  • Page 11 6. ATTACHING CUTTER GUARD TO THE SHAFT ASSEMBLY Take the cutter guard and place it over the shaft, then using the three cutter guard bolts and the spacer ring. Fix the guard to the shaft assembly. Tighten the three bolts using the supplied Allen key. Page 11...
  • Page 12 2.7. FITTING / REPLACING SPOOL LINE STEP 1 : Rotate the blue centre piece to align STEP 2 : Check the two holes are aligned. the arrow mark with the holes. STEP 3 : Pass the nylon rope through the STEP 4 : Use 4m or 2.4mm nylon trimmer line.
  • Page 13 2.8. TRIMMER HEAD ASSEMBLY - NEVER USE A SAW BLADE Take spacer from the tool bag and place it over the shaft, then using the one of the supplied Allen keys lock the shaft and spacer. Page 13...
  • Page 14 Take the trimmer head and screw it onto the shaft in an anti-clockwise direction until fully tightened. Remove the Allen key before use. Page 14...
  • Page 15 2.8. HEAD ASSEMBLY Take the shaft assembly and push it into the drive shaft hole. N.B. you will need to remove the transit bung. Keep the bung safe for use when machine is stored. Make sure to align the hole on the shaft with the hole on the drive shaft.

  • Page 16: Mixing 2-Stroke Oil

    2.10. MIXING 2-STROKE OIL Fill the mixing bottle with fresh unleaded petrol to the fuel marker line use a 40:1 ratio. Then top up with 2 stroke oil to 40:1 ratio line shake until fuel/oil has mixed. 2.11. ADDING FUEL 2.11.

  • Page 17: Starting Procedure

    STARTING PROCEDURE Fill with fuel/oil mixture, make sure the fuel cap is secure – see section 2.11. - Set the power switch on the handle to the ON position. Pump the primer bulb about 8 to 10 times until fuel shows in the bulb. Primer bulb Page 17...
  • Page 18 For COLD start move choke lever UP to start position. N.B. For a WARM/HOT start you will not need to do this. Pull to start Place one hand on the machine, and using the other hand pull the recoil until you feel a resistance, then pull briskly.

  • Page 19: Stopping Procedure

    STOPPING PROCEDURE 4.1. Before stopping the machine allow the engine to cool down for a few minutes, by allowing it to run without throttle. 4.2. You MUST allow the cutting head to come to a full stop before carrying out any maintenance on the machine.

  • Page 20: Using The Machine

    USING THE MACHINE 5.1. Trimming techniques. If you are not familiar with this type of machine you should practice in a safe place. 5.1.1. ALWAYS clear the work area of cans, bottles, rocks, etc. Flying or whirling objects may cause serious injury and damage to users or bystanders. If an object is accidentally flung out from machine, immediately stop and check the machine 5.1.2.

  • Page 21: Maintenance

    MAINTENANCE Always stop the engine and unplug the spark plug before doing any repairs or maintenance. Never touch the rotating nylon cord or blade. Check and maintain fuel level regularly, and maintain the fuel/oil mix to the correct ratio. Frequently check the brush cutter and make sure that all grass deposits are removed from the trimmer head and trimmer guard.
  • Page 22 6.1. AIR FILTER Never let the engine run without the air filter being . A dirty air filter element affects the engine performance, increases fuel c and makes it difficult to start. If ce a loss of engine power. 6.1.1. Remove the air filter cover by pressing down on clip and pulling cover forward. 6.1.2.
  • Page 23 6.2. SPARK PLUG The spark plug MUST be fully ened otherwise the engine will overheat causing damage. Always complete the following steps r the engine has been turned off and allowed to cool down. 6.2.1. To make sure the engine runs correctly a spark plug gap of 0.6 -0.7 mm must be maintained and the spark plug must be free of carbon deposits.
  • Page 24 6.3. CUTTER BLADE SHARPENING When sharpening cutter blade wear suitable safety gloves. 6.3.1. Remove the cutting blade from the guard. 6.3.2. Put cutting blade securely into a vice. 6.3.3. Sharpen the blade with a suitable flat file. 6.3.4. Make sure that you maintain the original cutting angle. Cutter guard Cutter blade 6.4.

  • Page 25: Troubleshooting

    Possible corrective actions; TROUBLESHOOTING 1. Check or exchange. MOTOR DOES NOT COME UPTO SPEED 7.1. If troubleshooting does not solve Possible causes; 1. Choke is in "cold start" position, exhaust the problem, contact your dealer or the system does not clog air supply, worn Movable manufacturer directly.

  • Page 26: Specification

    SPECIFICATION MODEL HYWT5200X Engine type Single cylinder, 2 stroke air cooled Engine size – cc 51.7 Fuel tank capacity – ml 1200 Noise level – dB (A) Power – kw 1.45 Start method Recoil Fresh unleaded petrol – Semi-synthetic 2...

  • Page 27: Part Locations

    PART LOCATIONS Trigger assembly Exhaust Warning Recoil starter Fixing bolts Spark plug cover Air filter Fuel tank Trimmer guard Primer bulb Bevel gear Trimmer cord Wheels Trimmer head Page 27...

  • Page 28: Declaration Of Conformity

    Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd. 108.6dB(A) 110dB(A) Product Details Brand : Hyundai Model : HYWT5200X Description : Petrol Wheeled Trimmer Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Signed by:...

  • Page 29: Contact Details

    11. RECYCLING & PRODUCT DISPOSAL 11.1. We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 30: Manual Updates

    13.3. We reserve the right to make any modifications without prior notice whenever necessary. 14. WARRANTY Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website www.hyundaipowerproducts.co.uk Page 30...
  • Page 31 Page 31...
  • Page 32 Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by GENPOWER LTD for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
