IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 20 05420 0942 and 0943 are also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05420 0941

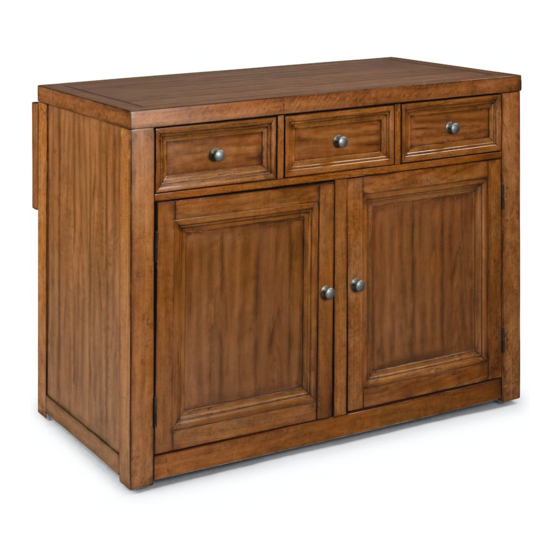

Kitchen Island
M6x38
Cam Lock Screw
Head Cap Bolt
23 pcs. (+4 extra)
6 pcs. (+1 extra)
Adjustable Pin
Cam Lock
23 pcs. (+6 extra)
16 pcs. (+1 extra)
A.
Top
1 pc.
B.
Leaf Top
1 pc.
M3x25
Wood Screw (long)
24 pcs. (+1 extra)
M3x16
Wood Screw (short)
28 pcs. (+1 extra)
888-680-7460, 877-831-0319
Patent 8,584,600 B2
M3.5x19
Wood Screw
Knob
5 pcs.
9 pcs. (+1 extra)
M4x32
Magnet
Machine Screw
2 pcs.
5 pcs.
Advertisement
Related Manuals for Homestyles 20 05420 0941
Summary of Contents for Homestyles 20 05420 0941
- Page 1 23 pcs. (+6 extra) 16 pcs. (+1 extra) 28 pcs. (+1 extra) 2 pcs. 5 pcs. Carton 20 05420 0942 and 0943 are also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Make sure unit is level before tightening these screws. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ...
- Page 3 Assembly Instructions 3/8 STEP 2 Attach Middle Panel (J) to Front Rail (E) and Back Rail (F) with Cam Locks. (See Figure 3) Attach Base (C) to unit with Cam Locks. Cam Lock Figure 3 Cam Lock STEP 3 Attach unit to Side Panel (H) with Cam Locks and Head Cap Bolts.
- Page 4 Assembly Instructions 4/8 STEP 4 Attach Back Rail (G) to unit with Cam Lock. Slide Back Panel (L) into position. Slide Upright (M) into position. Slide Back Panel (L) into position. Cam Lock Cam Lock STEP 5 Attach Side Panel (I) to unit with Cam Locks and Head Cap Bolts.
- Page 5 Assembly Instructions 5/8 STEP 6 Wood Screw Place Top (A) and Leaf Top (B) upside down on a soft cloth. Attach Leaf Top (B) to Top (A) with Wood Screws. (See Figure 5) Figure 5 STEP 7 Turn unit from Step 5 to its’...
- Page 6 Assembly Instructions 6/8 Drawer (Q) Bottom STEP 8 Attach Drawer Front (Q1) and Drawer Back (Q2) to Drawer Side (Q3) with Wood Screws (long). Attach Drawer Side (Q4) to unit with Wood Screws (long). Wood Screw (long) Roller at back Wood Screw (short) STEP 9 Slide Drawer Bottom (Q5) into groove.
- Page 7 Assembly Instructions 7/8 STEP 11 Adjustable Pin Knob Insert Adjustable Pins into side panels and middle panel at desired level. Place Shelves (D) into position. Attach Doors (O) and (P) to unit by sliding door hinges into side panel hinges. (See Figure 7) Attach Knobs to Doors (O) and (P)
- Page 8 Assembly Instructions 8/8 Top Extension Instructions STEP 13 Lift up leaf top. STEP 14 Holding leaf top up, pull out a back post from unit; then pull out other back post. Note: Unit must be level to work properly.
- Page 9 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
