Classic Exhibits Perfect 10 Quick Start Manual

Hybrid display
Hide thumbs Also See for Perfect 10:

Advertisement

Quick Links

Download this manual
Step

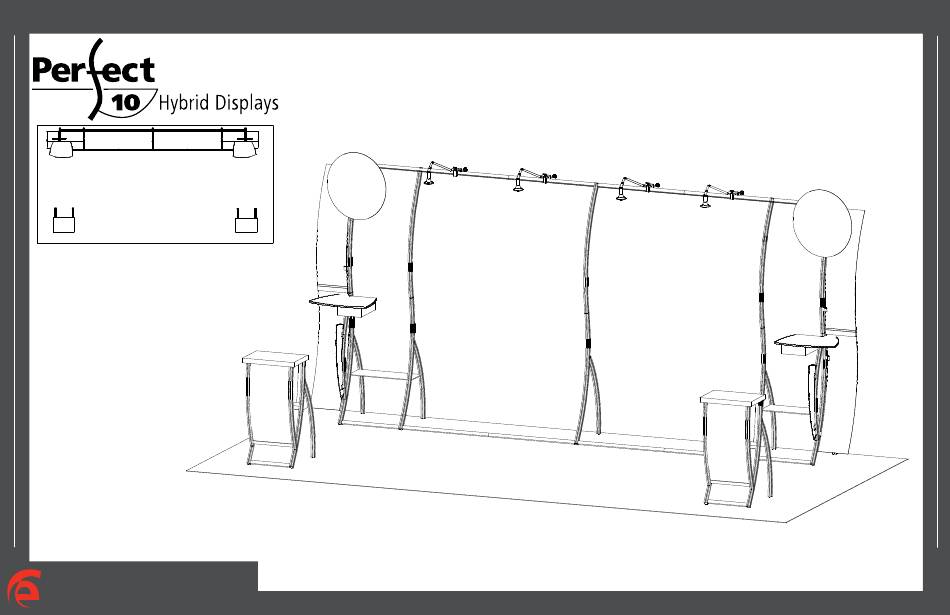

Order #xxxxx - P20 - Ben Jamin - General Layout
866.652.200
WHEN DISASSEMBLING TIGHTEN ALL BLACK KNOBS TO PREVENT LOSS DURING SHIPPING
© 2008
w w w . c l a s s i c e x h i b i t s . c o m
Page  of 8
