Step 1

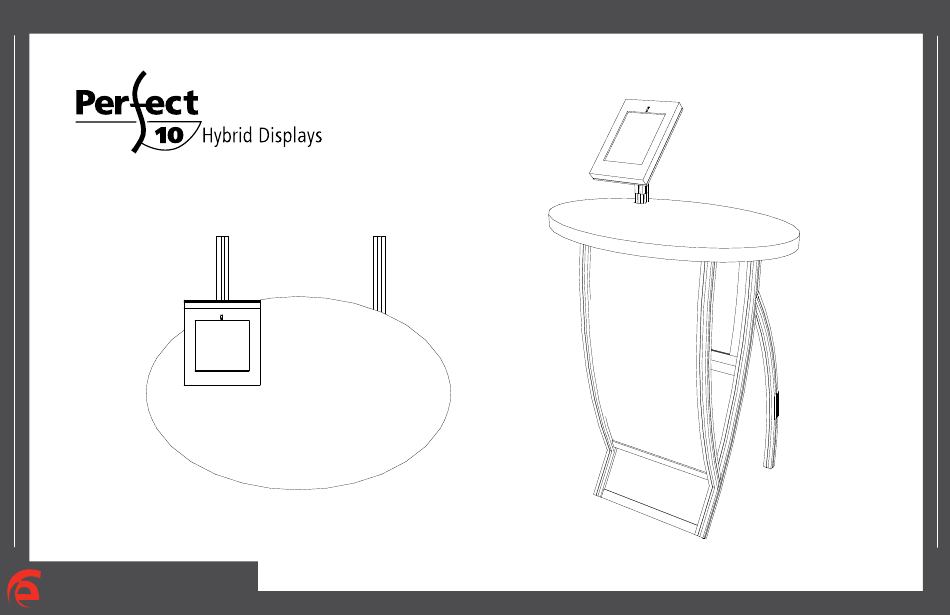

Order #XXXXX - P10 Workstation VK-1662 - General Layout
866.652.2100
Plan View
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2014
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the VK-1662 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits VK-1662

  • Page 1 Step 1 Order #XXXXX - P10 Workstation VK-1662 - General Layout 866.652.2100 Plan View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2014 w w w . c l a s s i c e x h i b i t s . c o m...
  • Page 2 Step 1 Order #XXXXX - Workstation Assembly 866.652.2100 Part Number Description Left Leg Assembly Right Leg Assembly Horizontal Extrusion Horiontal Extrusion w/ Door Stopper D (w/ Door Stopper) Knobs face INSIDE of workstation Steps: 1) Connect lower horizontal extrusion [C] between bottom of leg assemblies [A and B] as shown. 2) Insert Laminated infill into grooves of leg assemblies [A and B].
  • Page 3 Step 2 Order #XXXXX - Workstation Assembly (Cont’d) 866.652.2100 Part Number Description Horizontal Extrusion Place internal shelf into Horizontal Extrusion workstation then Steps: place counter atop 1) Attach horizontal extrusion [E] between vertical leg assemblies [A and B] as shown below. assembled workstation.
  • Page 4 Step 3 Order #XXXXX - Workstation Assembly (Cont’d) 866.652.2100 Part Number Description iPad Mount Extrusion Steps: 1) Slide connection bar into lower leg assembly. Slide upper vertical over bar and secure both. 2) Attach iPad Mount to cam lock in top of vertical as shown. 3) Loosen set screws at top and bottom of right side of frame.
  • Page 5 Step 4 Order #XXXXX - P10 Workstation - Case Packing Instructions 866.652.2100 Top View of Each Level Horiz. Extrusion E Horiz. Extrusion F iPad Mount Internal Shelf Leg Assembly Leg Assembly Inserts Counter Door Level 4 Level 1 Level 2 Level 3 Level 5 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL...
