Step 1
Order #XXXXX - P10 -

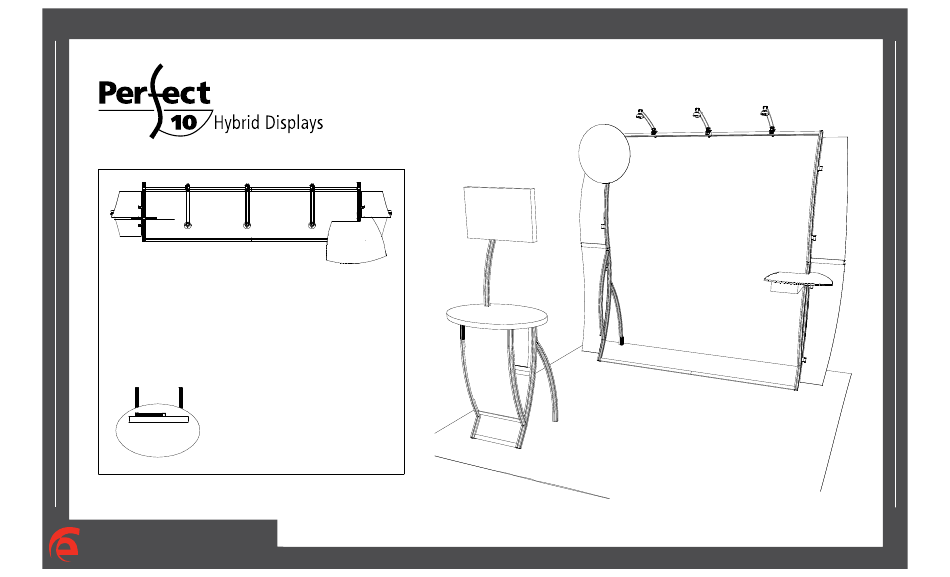

VK-1513 Nina - General Layout
866.652.2100
10'
Plan View
Perspective View
10'
WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING
© 2014
w w w . c l a s s i c e x h i b i t s . c o m
patent D599,121
Page 1 of 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Perfect 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits Perfect 10

  • Page 1 Step 1 Order #XXXXX - P10 - VK-1513 Nina - General Layout 866.652.2100 10’ Plan View Perspective View 10’ WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING © 2014 w w w . c l a s s i c e x h i b i t s . c o m patent D599,121 Page 1 of 5...
  • Page 2 Step 1 Order #XXXXX - P10 - Nina - Backwall Assembly 866.652.2100 Item Qty. Description Steps: Left Leg Assembly NOTE: Assembly may be easiest if assembled face down on floor then lifted upright. Right Leg Assembly 1) Connect upper curved vertical extrusions [3a,3] to leg assemblies [1,2]. NOTE: When assembling horizontals they should be Right Upper Curved Vertical 2) Connect lower and upper horizontal extrusions between vertical assemblies by slightly...
  • Page 3 Step 2 Order #XXXXX - P10 - Nina - Backwall Attachments 866.652.2100 Accessary Attachment Attach header support to backwall then Light Connection attach header to support with velcro. Attach lights to backwall where desired and tighten in place. Header Header Example of A10 Clamp Attachment A10’s Cubby Attachment...
  • Page 4 Step 3 Order #XXXXX - P10 - Workstation Assembly 866.652.2100 Part Number Description Left Leg Assembly Right Leg Assembly Horizontal Extrusion Horiontal Extrusion w/ Door Stopper D (w/ Door Stopper) Knobs face INSIDE of workstation Steps: 1) Connect lower horizontal extrusion [C] between bottom of leg assemblies [A and B] as shown. 2) Insert Laminated infill into grooves of leg assemblies [A and B].
  • Page 5 Step 4 Order #XXXXX - P10 - Workstation Assembly (Cont’d) 866.652.2100 Part Number Description Horizontal Extrusion Place internal shelf into Horizontal Extrusion workstation then place counter atop Steps: 1) Attach horizontal extrusion [E] between vertical leg assemblies [A and B] as shown below. assembled workstation.
  • Page 6 Step 5 Order #XXXXX - P10 - Workstation Assembly (Cont’d) 866.652.2100 Part Number Description Curved Montior Mount Extrusion Steps: 1) Slide connection bar into lower leg assembly. Slide upper vertical over bar and secure both. 2) Attach monitor mount to vertical as shown in detail below. Monitor Mount Attachment NOTE: Monitor mount should be installed while laying down on floor...
  • Page 7 Order #XXXXX - P10 - Case Packing - Case 1 of 3 866.652.2100 Top View Wing Attachment Wings Round Sign Additional Items: - Setup Hardware Wing Attachment - Graphic - (3) Lights Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 8 Order #XXXXX - P10 - Case Packing - Case 2 of 3 866.652.2100 Top View Backside Shelf Cubby Level 1 WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING © 2014 w w w . c l a s s i c e x h i b i t s . c o m patent D599,121...
  • Page 9 Order #XXXXX - P10 - Case Packing - Case 3 of 3 866.652.2100 Top View of Each Level Horiz. Extrusion E Horiz. Extrusion F Internal Shelf Monitor Leg Assembly Leg Assembly Mount Inserts Counter Door Level 4 Level 1 Level 2 Level 3 Level 5 WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING...
