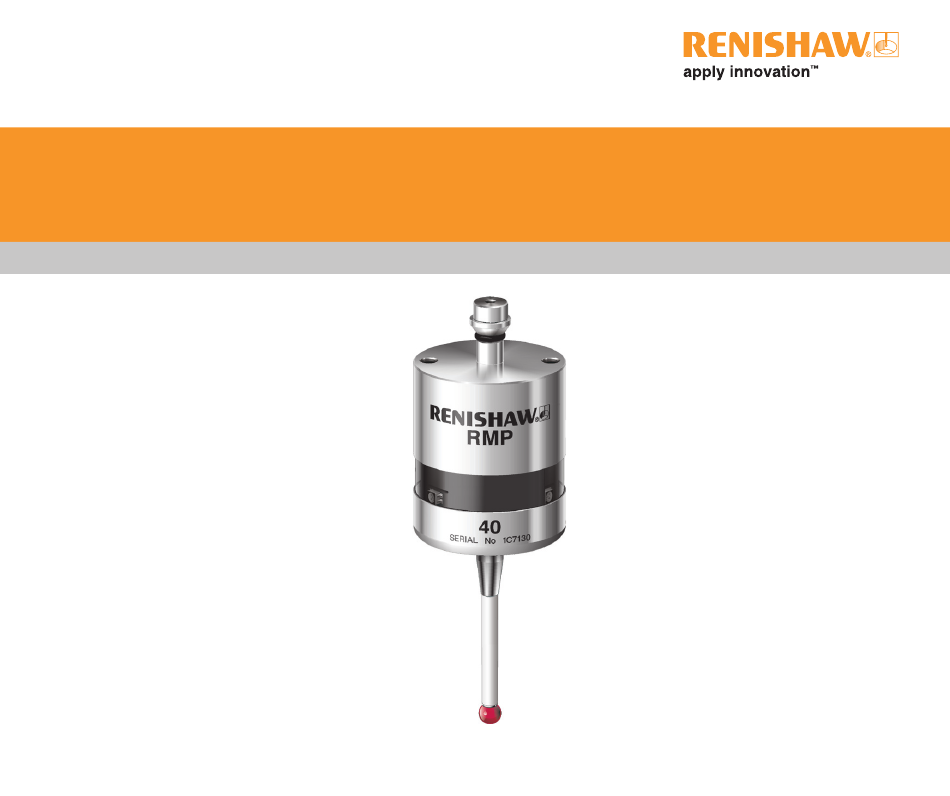

  • Page 1 Quick-start guide All manuals and user guides at all-guides.com H-5480-8500-01-A RMP40...
  • Page 2 all-guides .com...
  • Page 3 Trademarks This document may not be copied or reproduced in whole or in part, or transferred RENISHAW® and the probe emblem used in the to any other media or language, by any means, RENISHAW logo are registered trademarks of without the prior written permission of Renishaw Renishaw plc in the UK and other countries.
  • Page 4 All manuals and user guides at all-guides.com Batteries Batteries : 1/2 AA (3.6 V) Lithium Thionyl Chloride × 2 Ecocel: EB 1425, EB1426 Dubilier: SB-AA02 Saft: Maxell: LS 14250 C, LS 14250 ER3S Sonnenschein: Sanyo: SL-750 CR 14250 SE Xeno: XL-050F Sonnenschein: SL-350, SL-550...
  • Page 5 All manuals and user guides at all-guides.com Fitting the stylus M-5000-3707...
  • Page 6 All manuals and user guides at all-guides.com Installing the batteries Take care not to short the battery contacts as this may be a fire hazard. Ensure the contact strips are located securely.
  • Page 7 All manuals and user guides at all-guides.com Reviewing the probe settings > 5 s Key to the symbols LED short flash LED check LED long flash Switch on method Radio on Spin on (omitted if multiple probe mode was selected)
  • Page 8 all-guides .com...
  • Page 9 All manuals and user guides at all-guides.com Reviewing the probe settings Switch off method Radio off or Short time out Medium time out Long time out Spin off 12 s 33 s 134 s Multiple probe mode (omitted for radio-on) (see ‘Multiple probe mode settings’...
  • Page 10 All manuals and user guides at all-guides.com Multiple probe mode settings Deflect Multiple probe mode stylus Mode off Mode on < 4 sec Machine 1 Machine 2 Machine 4 Machine 3 to cycle to next setting Machine 5 Machine 6 Machine 7 Machine 8 Machine 9...
  • Page 11 All manuals and user guides at all-guides.com Placing the probe in configuration mode LED check > 5 s Deflect the stylus and hold deflected until the battery status has been displayed at Key to the symbols the end of the review sequence LED short flash LED long flash Battery status...
  • Page 12 33 s 134 s Acquisition mode Note: After the RMI has been acquired, the RMP40 will only show Acquisition mode off. Cease triggering here, unless the multiple probe mode is required in See RMP40 - RMI which case deflect stylus > 4 seconds partnership.
  • Page 13 4 seconds will return the probe settings to ‘To change switch-on method’ Acquisition mode Return to ‘To change switch-on method’ Note: After the RMI has been acquired, the New settings RMP40 will only show Acquisition mode off. complete See RMP40 - RMI partnership.
  • Page 14 all-guides .com...
  • Page 15 All manuals and user guides at all-guides.com RMP40 - RMI partnership Acquisition mode Note: Unless the RMP40 is in ‘Multiple probe’ mode, it will be necessary to partner it with the RMI before use. Note: In configuration mode, Continuously deflect...
  • Page 16 All manuals and user guides at all-guides.com RMP40 - RMI partnership Release and deflect the stylus to select ‘Acquisition mode on’. SIGNAL LED New partner RMP acquired Probe in standby and system ready for use > 20 s...
  • Page 17 All manuals and user guides at all-guides.com Mounting the probe on a shank 4 mm AF 2.5 mm AF 2.5 mm AF 2 Nm - 3 Nm × 2 × 4 × 2...
  • Page 18 All manuals and user guides at all-guides.com Stylus on-centre adjustment 2,5 mm AF 1 Nm × 4 +10 µm -10 µm...
  • Page 19 All manuals and user guides at all-guides.com Stylus on-centre adjustment 4 mm AF 6 Nm - 8 Nm × 2 +10 µm -10 µm...
  • Page 20 all-guides .com...
  • Page 21 All manuals and user guides at all-guides.com Stylus on-centre adjustment 2.5 mm AF 1,5 Nm - 3,5 Nm × 4 +2.5 µm -2.5 µm...
  • Page 22 All manuals and user guides at all-guides.com Cleaning Use clean cloth...
  • Page 23 All manuals and user guides at all-guides.com RMI visual diagnostics Low battery/start LED Signal LED Signal Battery low excellent M code start/stop in Signal good progress Signal poor Battery low and M code start/stop No signal in progress In acquisition Battery is OK and no mode M code start/stop in...

  • Page 24: Ec Declaration Of Conformity

    All manuals and user guides at all-guides.com Declarations of conformity and compliance EC DECLARATION OF CONFORMITY FCC DECLARATION (USA) FCC Section 15.19 Renishaw plc declares that the product:- This device complies with Part 15 of the FCC Name: RMP40 rules. Operation is subject to the following...

  • Page 25: Patent Notice

    All manuals and user guides at all-guides.com Patent notice PATENT NOTICE Features of the RMP40 probe and features of similar probes are the subject of one or more of the following patents and/or patent applications: CN CN1732488A EP 1734426 TW 200720626...
