- Page 1 RFP1 user's guide www.renishaw.com RFP1 user's guide Document part number H-1000-5430-02-A Issued 11 2020...
-
Page 2: General Information
WEEE The use of this symbol on Renishaw products and / or accompanying documentation indicates that the product should not be mixed with general household waste upon disposal. It is the responsibility of the end user to dispose of this product at a designated collection point for waste electrical and electronic equipment (WEEE) to enable reuse or recycling. - Page 3 Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty.
-
Page 4: Product Compliance
Information to user (47 CFR 15.21) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user's authority to operate the equipment. - Page 5 Information required by Article 33﴾1﴿ of Regulation ﴾EC﴿ No. 1907/2006 ﴾“REACH”﴿ relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH China RoHS Contact Renishaw plc or visit www.renishaw.com/ChinaRoHSCMM for the full China RoHS tabulation. Issued 11 2020...
- Page 6 RFP1 probe LED emissions The RFP1 probe incorporates high power LED lights and should not be used in the event of serious damage to any part of the probe. In such cases immediately disconnect the power source, remove and do not attempt to reuse the parts. Contact your supplier for advice.
-
Page 7: Environmental Conditions
The REVO-2 head and probe electronics are powered from the UCC S5. The head motors are powered from the SPA3. The VPCP is powered by a separate power supply that is supplied by Renishaw. Any additional backlighting is powered by a separate power supply that is supplied by Renishaw. - Page 8 RFP1 user's guide www.renishaw.com References and associated documents The following Renishaw documents are referred to in this document or may be a source of further relevant information. They can be downloaded from www.renishaw.com. Title Document number Installation and user's guide: REVO-2...
-
Page 9: System Description

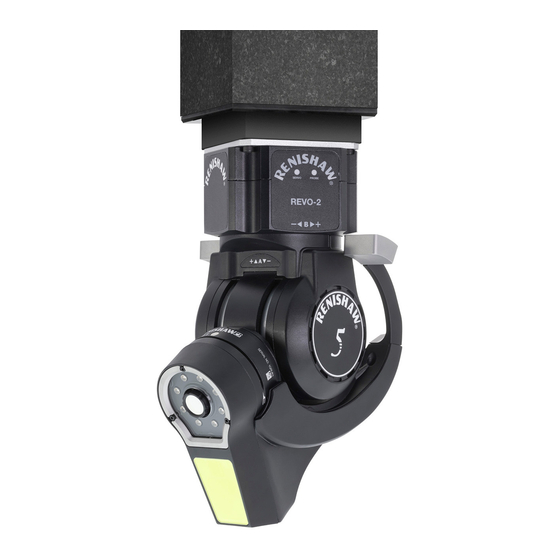

The REVO fringe probe (RFP1) is a non-contact structured light sensor for the REVO system offering highly accurate measurement of surface topology on an infinite positioning, 5-axis CMM platform. RFP1 increases the multi-sensor capability of the REVO system, which now offers interchangeable tactile scanning, touch-trigger, surface finish, non-contact structured light and vision probes. -
Page 10: Operating Principle
RFP1 user's guide www.renishaw.com Operating principle RFP1 projects a sinusoidal fringe pattern onto the surface of the part and the camera takes images of the pattern deformation caused by the surface topology. On a flat plane the pattern will be uniform:... - Page 11 RFP1 user's guide www.renishaw.com The change in fringe intensity at each point is used to calculate the absolute 3D position of that point on the part surface. A patch of XYZ position data points is returned for each fringe capture with up to 640,000 points in each patch.
-
Page 12: System Components Overview
RFP1 user's guide www.renishaw.com System components overview Description Part number REVO-2 head A-5759-0001 RFP1 probe A-5417-0010 FA10 calibration artefact A-5417-0021 VPCP probe change port A-5378-0081 Issued 11 2020... - Page 13 FA10 calibration artefact The FA10 is an optical calibration artefact used to calibrate RFP1. RSP2 is used on this artefact to link RFP1 with other sensors within the same coordinate reference frame. The RFP1 fringe pattern is calibrated against a ceramic plate with a tight flatness tolerance. The calibration routine for RFP1 is fully automated through MODUS and UCCsuite.
-
Page 14: Dimensional Information
RFP1 user's guide www.renishaw.com Dimensional information RFP1 VPCP Issued 11 2020... - Page 15 RFP1 user's guide www.renishaw.com FA10 Issued 11 2020...
- Page 16 Manually mounting / removing RFP1 from REVO-2 NOTE: Mounting / removal of RFP1 to / from REVO-2 should be carried out using a VPCP and automatic change cycle. If it is necessary to manually attach / detach RFP1 use the following procedure.
- Page 17 FA10 calibration artefact Data collected by RFP1 is in the same reference frame as data collected by the REVO-2 tactile probes. The FA10 artefact is used to calibrate RFP1 and provides the link between RFP1 and the tactile reference frame.
- Page 18 RFP1 takes images of the pillar at different head angles to verify the lens parameters Verification of an RFP1 1. At the start of the verification process, the RFP1 will move from its current position to the safe position values defined in the FA10 dialog box.
- Page 19 Fixing FA10 calibration artefact to CMM The FA10 calibration artefact is designed to be fixed securely to the bed of the CMM to allow accurate and repeatable calibration of RFP1. The diagrams below show how to fix the FA10 to the bed of the CMM.
-
Page 20: Installation
RFP1 user's guide www.renishaw.com Installation Fitting VPCP to the MRS / MRS2 rack The VPCP heated change ports can be fixed to an MRS or MRS2 rack system. It is recommended that they are attached to the MRS / MRS2 rail using the following procedure, where it is assumed that the MRS / MRS2 rack system is correctly installed. - Page 21 RFP1 user's guide www.renishaw.com Port spacing for RFP1 Use the MPS2 tool as a spacer to correctly position a VPCP containing RFP1 next to adjacent ports. The table below shows the correct spacer orientation for positioning of each port. Port adjacent to...
- Page 22 Connecting VPCP to PSU Using a PSU other than the one supplied by Renishaw is not recommended. DC extension cables are available for the PSU but the length should not exceed 15 m otherwise the performance can be affected.
- Page 23 RFP1 user's guide www.renishaw.com VPCP switch settings The temperature can be set using the rotary switch on the rear of the port: Position Description 0 - 3 Reserved for future use 4 (factory set) Suitable for specified system ambient temperature...
- Page 24 A cleaning kit for the precision ball seating and permanent magnet is available from your Renishaw supplier (part number A-1085-0016). It comprises strips of yellow tack material. Use the yellow tack to clean the areas indicated with arrows numbered [1] on the image below.
-
Page 25: Optical Windows
Optical windows The RFP1 optical windows [3] should be cleaned using an optical lens cleaning kit to blow or brush debris away from the window. If debris is still visible, then the optical window should be carefully wiped with a lint free bud and high-purity isopropyl alcohol (IPA). Extreme care must be taken to avoid damaging the optical coating or scratching the glass. -
Page 26: Technical Terminology
Probe length is the distance between the A-axis centre of the REVO-2 head and the centre of the measurement volume. This is equivalent to the probe length for RSP2 and RSP3 probes. Stand-off is the distance between the end of RFP1 and the plane at the centre of the measurement volume. - Page 27 RFP1 user's guide www.renishaw.com Measurement volume Data will be returned from surfaces within the measurement volume and in line of sight of the projector and camera. No data will be returned from areas of the fringe pattern falling on surfaces outside of this volume.
- Page 28 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport For worldwide contact details, please visit our main website at www.renishaw.com/contact Issued 11 2020...
