Pcb; Md6Dc Pcb "A - MyBinding Plockmatic FTR200 Service Manual

29 November 2006
3.3

PCB

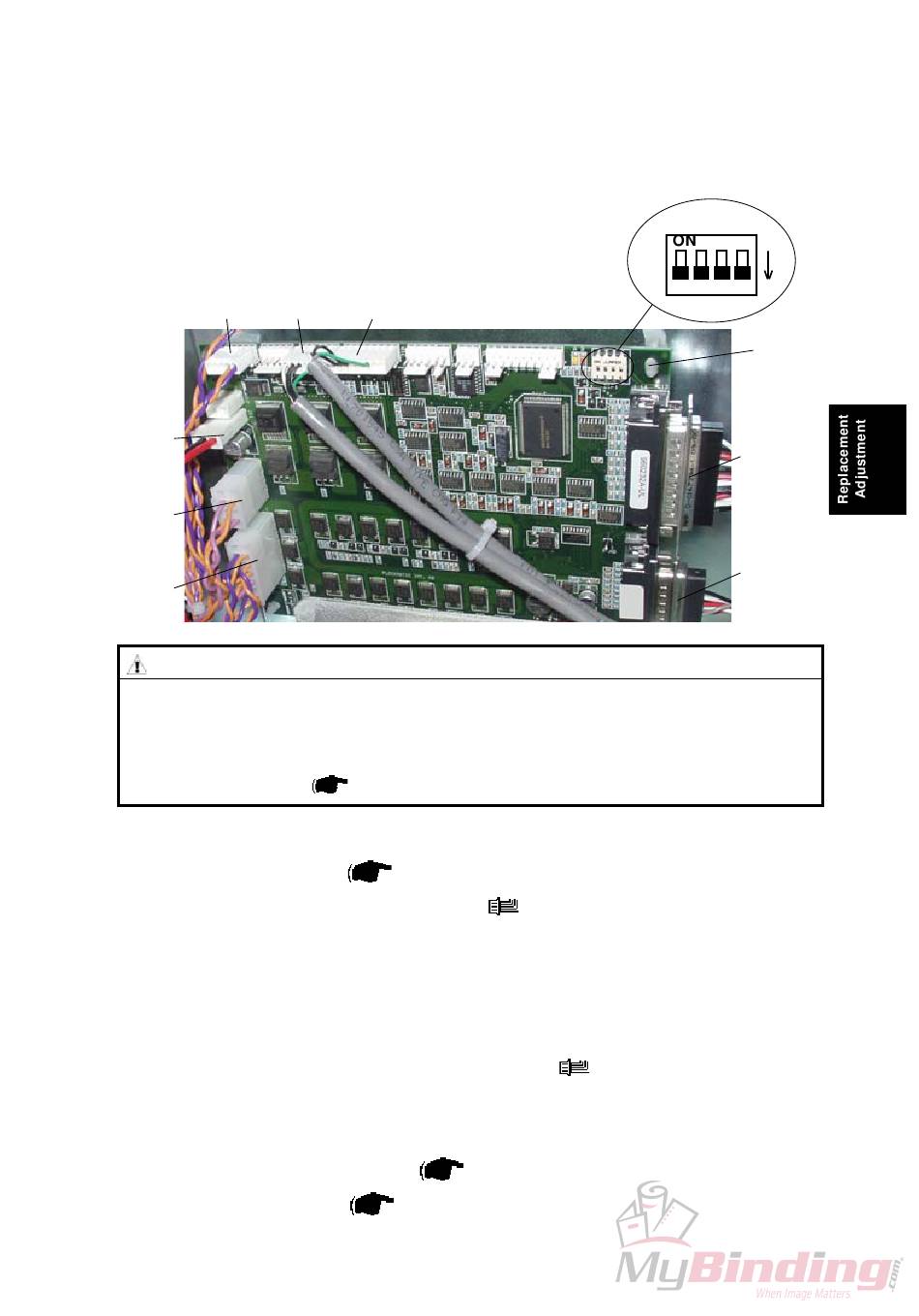

3.3.1 MD6DC PCB "A"

A.P4 A.P7
A.P11
A.P3
A.P2
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes, data and/or com-
munications problems. Failure to use proper ESD procedures will cause damage to elec-
tronic components (example: PCBs). ESD problems can be minimized by maintaining all
machine ground connections, ensuring the proper handling of circuit boards/ sensors
- Use ESD protection when working near PCBs. Failure to use ESD protection is likely to
result in a PCB failure (
Removal
1. Remove Rear cover (
2. Remove all connectors from the PCB (
3. Squeeze the barbs of the four pins [A] and lift out the PCB.
Replacement
1. Position the PCB on the pins [A] and snap it in place.
2. Connect all plugs to PCB according to picture (
3. Make sure all DIP-switches are set to OFF according to picture.
NOTE: Make sure replacement PCB has matched software with the system
refering to the latest Technical Bulletin.
Download software if needed (
4. Reinstall Rear cover (
A.P6
Service Manual BM 200 3.1 ).
3.1.1 ).
x8 ).
Service Manual BM 200 5.2 ).
3.1.1 ).
FTR-3-35
[A]
A.P13
A.P14
x8 ).
PCB
