3.2.7 TRIM KNIFE HOME POSTITON SENSOR Q5

Removal
1. Remove Rear cover (
2. Remove connector [A] (
3. Squeze the barbs of the sensor to remove.
NOTE: Gently pull bracket [B] to remove.
WARNING
Stay clear from upper knife. The knife edge may cause serious injuries.
Replacement
1. Reverse the removal procedure.
2. Enter service program mode to check that sensor Q5 changes state when
blocked/unblocked (
NOTE: Do not cheat the interlock.
3. Move the Upper knife by turning crank [C] using a 13 mm wrench.
4. Check on the LCD that sensor Q5 changes state when blocked/unblocked by
actuators [D].

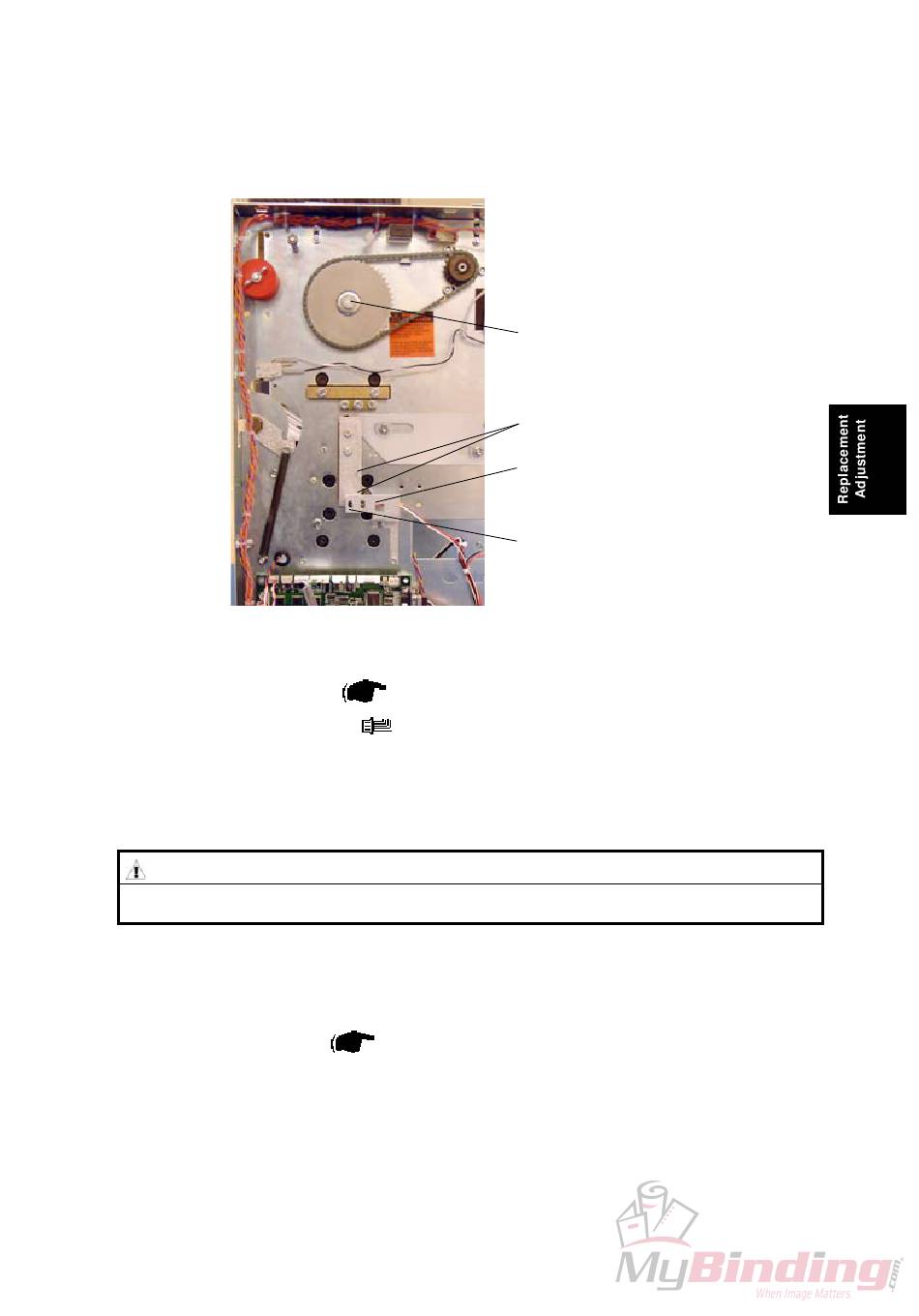

[C]
[D]
[A]
[B]
3.1.1).
x1).
Service Manual BM 200: 5.1.1, 5.1.2).
FTR-3-17
AREA C
