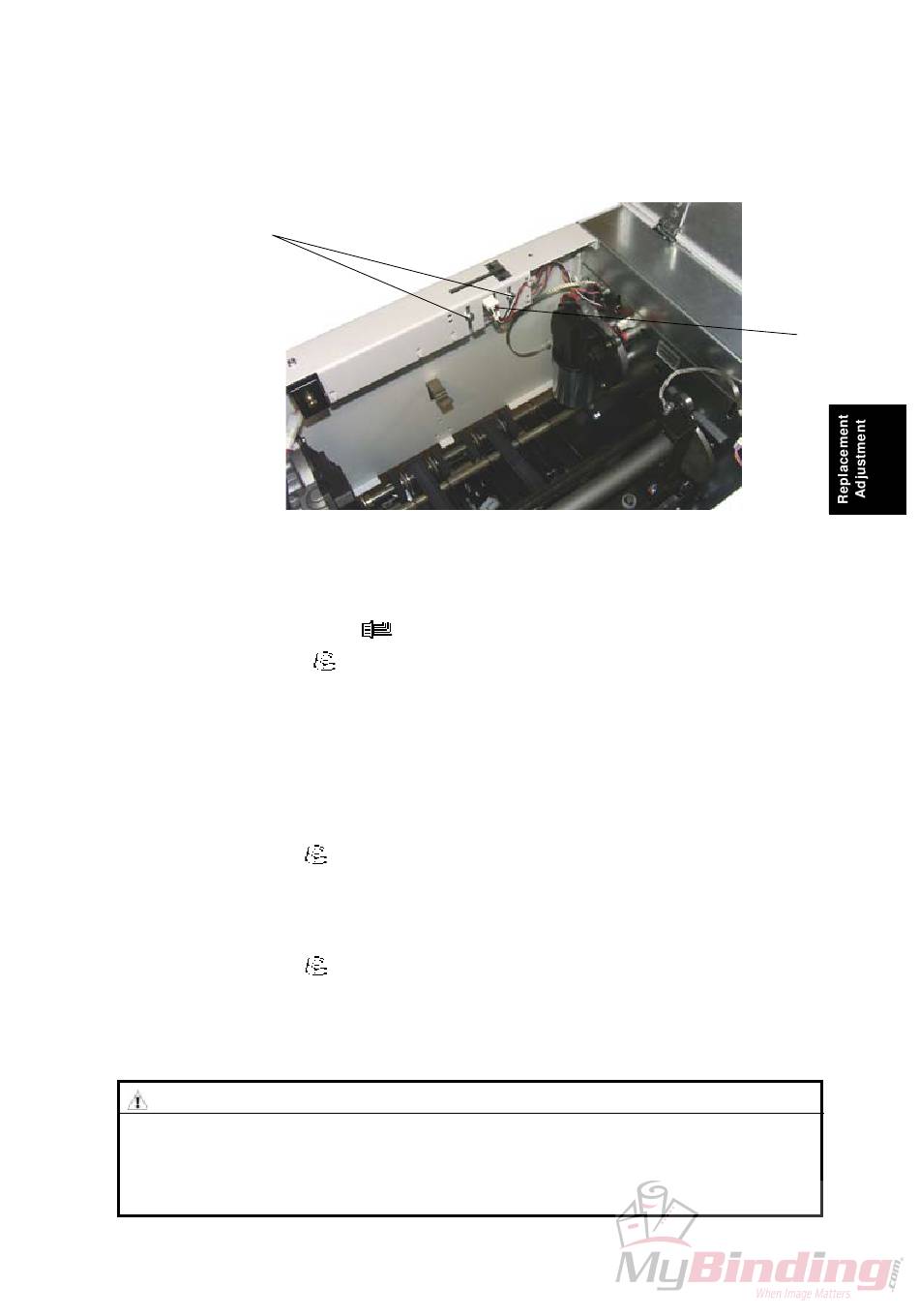

3.1.7 INTERLOCK SWITCH S9 &S10
[A]
Removal
1. Remove connector [B](
2. Remove nuts [A] (
Replacement
1. Reverse the removal procedure.
Adjustment
1. Loosen nuts [A] (
2. Adjust the interlock so that Top cover actuates interlock switch 2 mm before
closed.
NOTE: Make sure both rubber dampers contact the front cover when closed.
3. Tighten nuts [A] (
WARNING
Overriding or cheating the interlock allows the FTR 200 system to operate
with the top cover open which can result in personal injury. Never give the
operator access to the cheater or show how ovverriding the interlock sys-
tem is carried out.
x1).
x2).
x2).
x2).
FTR-3-7
COVERS
[B]
