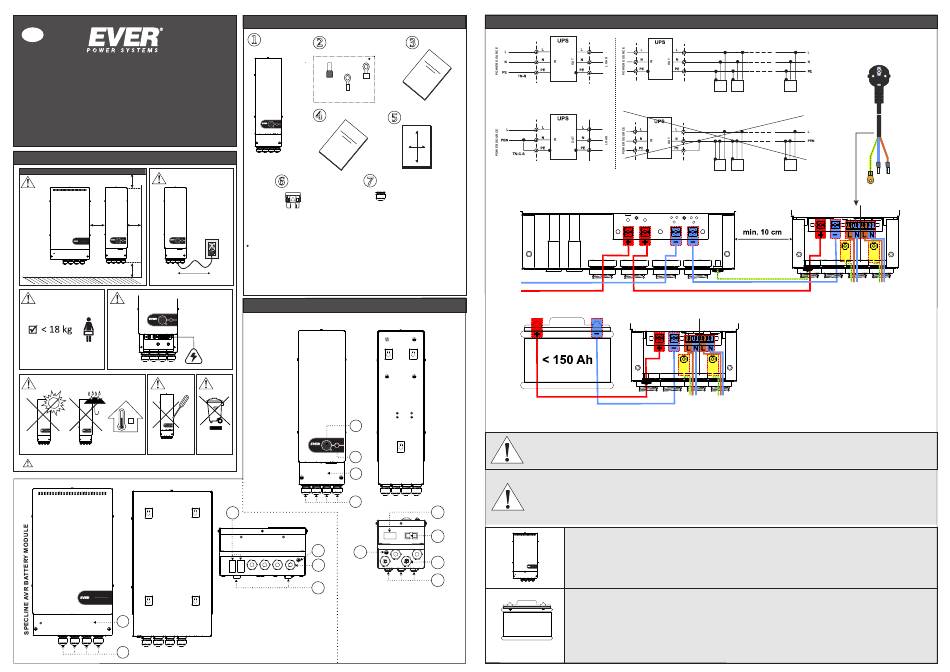

Ever SPECLINE AVR 700 Accessories Quick Reference Manual

EN
UPS EVER
SPECLINE AVR 700
QUICK REFERENCE GUIDE
Note: to obtain detailed information, please read the full instruction manual, which
can be downloaded from our website www.ever.eu.

2. ADDITIONAL REMARKS

>10 cm
>10 cm >10 cm
MODUŁ BATERYJNY SPECLINE AVR SPECLINE AVR SPECLINE AVR SPECLINE AVR SPECLINE AVR SPECLINE AVR
SPECLINE AVR
STATUS STATUS
>10 cm
max. 1,8 m
SPECLINE AVR SPECLINE AVR SPECLINE AVR
STATUS
SPECLINE AVR SPECLINE AVR SPECLINE AVR
STATUS
SPECLINE AVR SPECLINE AVR SPECLINE AVR SPECLINE AVR SPECLINE AVR SPECLINE AVR
STATUS STATUS
0 ÷ 40 °C
SPECLINE AVR battery back-ups are not designed to power medical equipment,
in particular life support machines!
MODUŁ BATERYJNY
SPECLINE AVR
1
2

1. IN THE PACKAGING

2x
4x
a
2x c
b
SPECLINE AVR SPECLINE AVR SPECLINE AVR
STATUS
UPS unit
Quick
reference guide
4x
Cable glands x 4
DC fuse
(UNIVAL 19 mm 40 A)
230 V
2
a) insulated sleeve terminal for 1.0 mm conductor, 8 mm long
- for the power supply and output cord
2
b) M4 ring terminal for 1.0 mm conductor
- for connecting the PE IN and PE OUT wires.
c) M4 ring terminal for 10 mm conductor 2
- for connecting a battery module or a car battery.

3. ELEMENTS OF THE UPS AND BATTERY MODULE

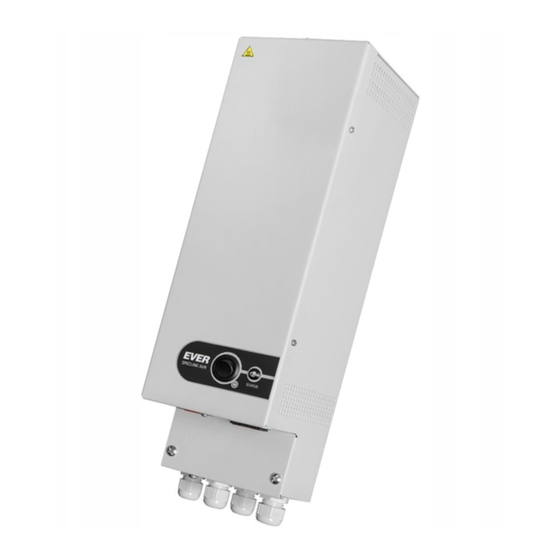

UPS SPECLINE AVR 700
1
SPECLINE AVR SPECLINE AVR SPECLINE AVR
STATUS
2
3
4
5
3
8
2
4
1 – Connectors chamber 1 – Main switch
2 – Cable glands 2 – Signaling LED
3 – B attery module earthing point 3 – Connectors chamber
4 – Battery module installation brackets 4 – Cable glands
5 – DC fuse sockets 5 – DC fuse socket (battery)
6 – AC fuse socket (mains)
7 – Installation brackets
8 – SPECLINE AVR battery module earthing
point

4. INSTALLATION OF THE UPS

Warranty card
Mounting template
UPS unit's supply (in) installation
ADDITIONAL BATTERY MODULES
CAR
BATTERY
SPECLINE AVR 700 UPS units have no built-in batteries - an external battery module or a lead-acid car battery should be connected to provide back-up
power supply.
1. To connect the UPS to the mains, attach the ends of the power cord to the terminals (L, N, PE) of the INPUT connector. The power cord is not included.
2. To make sure the UPS and the connected devices operate properly, the N (neutral) conductor must be continuous.
3. To connect the secured device to the UPS, connect the ends of the individual conductors to the terminals (L, N, PE) of the OUTPUT connector.
4. The power cords of the UPS and the protected device must be secured against unintended and sudden removal by attaching cable glands. The connections
must be made with 1 mm section wires. The terminals of the wires (L, N) should end with sleeves and the terminal of the PE wire should end with
an M4 ring terminal for 1 mm wires.
5
5. The distance between the UPS and the battery modules or the car battery should be as low as possible. This allows to use shorter connection cables,
which greatly reduces power losses in the cables.
6
CONNECTING THE BATTERY MODULES
- 1-3 42 Ah battery modules can be connected to the UPS. The connections should be made with 10 mm section wire.
- Both the module and the UPS are delivered with fuses. The DC fuses should be removed from their sockets for transportation and installation. They
4
should only be installed after completing all connection steps.
MODUŁ BATERYJNY
SPECLINE AVR
- A protective earthing connection should be made between the battery module and the UPS, with a yellow-green wire. The ends of the wire should
7
have M4 ring terminals for 1 mm wire.
CONNECTING THE CAR BATTERY
- A 12 V lead-acid car battery rated up to 150 Ah may be connected to the PSU.
< 150 Ah - 10 mm section wires should be used to make the connection.
- Mistakenly connecting an excessively high voltage or using a power source with wrong polarity may result in the need to return the UPS to the
service department.
- Special attention must be paid to the polarity of connection (the battery's plus connection with the UPS unit's plus connection, the battery's minus
connection with the UPS unit's minus connection).
LOAD
CORRECT
LOAD
INCORRECT
UPS unit's supply (out) installation
BATTERY MODULE
UPS
12 V DC
IN OUT
BATTERY
PE PE
IN OUT
MAINS LOAD
2
2
2
2
POWER CORD
N L
PE
UPS
12 V DC
IN OUT
BATTERY
PE
PE
IN OUT
MAINS LOAD
2
