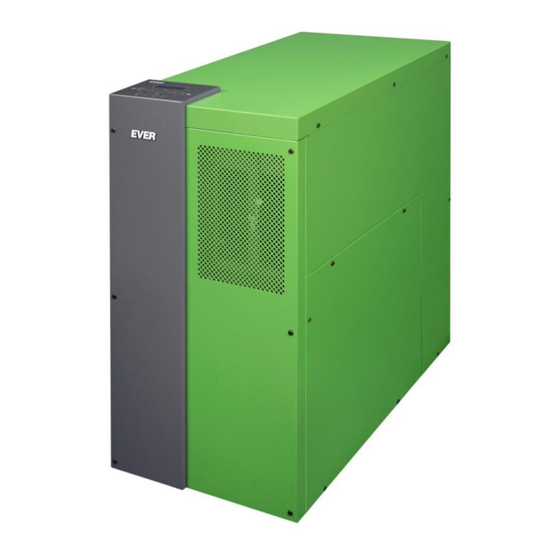

Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation TABLE OF CONTENTS TABLE OF CONTENTS ............................2 SAFETY REMARKS ............................3 REQUIREMENTS FOR PREPARATION OF THE POWER SUPPLY AND RECEIVER SYSTEM ..3 INSTALLATION GUIDELINES ........................6 ELECTRICAL SYSTEM ...........................
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation SAFETY REMARKS Read and understand the safety remarks and guidelines in the (full) Instruction Manual of this UPS before attempting any switching operations. REQUIREMENTS FOR PREPARATION OF THE POWER SUPPLY AND RECEIVER SYSTEM Shipping requirements.
Page 4
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation The base structure must prevent collapsing under the weight of devices. Do not cover any ventilation openings of the devices. Leave the following service clearances around the devices: - 0.5 m from each side if the device is not fixed to the base;...
Page 5
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation The selection of safeguards, wire sizes and disconnector and isolation devices for installation at the UPS switching room are shown in the installation guidelines tables. It is recommended to install an external bypass system (for the service bypass)
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation INSTALLATION GUIDELINES Consider the device weight when choosing the installation site. The UPS units shall only be operated in rooms where the dust, temperature, and humidity levels are within the device specifications.
Page 7
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation POWERLINE GREEN 33 PARAMETERS / MODEL Model Model Model Model Model Model Model 10 kVA 15 kVA 20 kVA 30 kVA 40 kVA 50 kVA 60 kVA...
* If a non-original module is used, install a 100 A / 440 V DC fuse on the positive and negative lines. Figure 1. Installation diagram of the POWERLINE GREEN 33 LITE 10-60 kVA UPS units in the parallel/redundant system.
Page 9
COMMUNICATION BUS socket on the UPS back panel). Keep the cables as short as possible. Install the switch fuse Fb only if the POWERLINE GREEN 33 LITE UPS units have the optional BYPASS input. The list of safeguards and wire sizes used in specific locations for specific system power outputs is shown in Table 2.
Page 10
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation Table 3. Safeguards and wire sizes for single device MODEL Fm, Fb, Fout POWERLINE GREEN 33 LITE 10 kVA 20 A gG 2.5 mm 6 mm 6 mm...
The POWERLINE GREEN 33 LITE UPS units have control inputs and programmable outputs. The connection with these lines is shown with the diagrams in Fig. 2, and the intended use of the lines is explained in the POWERLINE GREEN 33 LITE UPS Instruction Manual.
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation COMMUNICATION BUS In order to assure data communication between the UPS devices in the parallel/redundant system, connect the UPS units with telecom lines (an STP 4x2x0.5 cable) with the diagrams in Fig. 3 Figure 3.
Installation guidelines for the POWERLINE GREEN 33 LITE UPS units in parallel/redundant operation TECHNICAL ACCEPTANCE In order to commission the installed device for operation, do the following in witness of a person authorised for technical acceptance: Measure the battery voltage.
