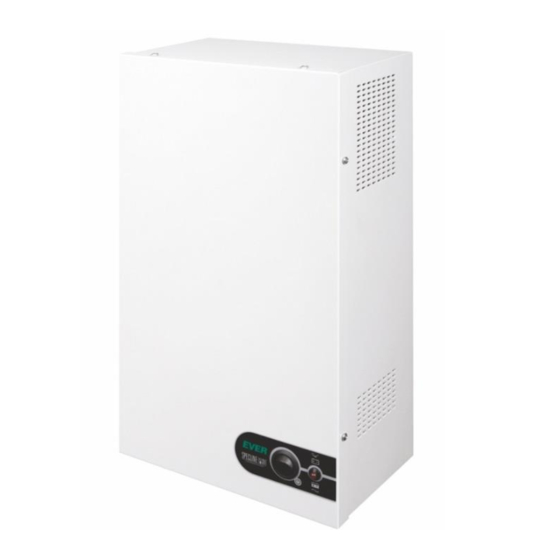

    Instruction manual for SPECLINE PRO 700 series power supply units TABLE OF CONTENTS TABLE OF CONTENTS ............................2 INTRODUCTION ..............................3 GENERAL FEATURES OF THE UPS UNIT ....................4 SAFETY INSTRUCTIONS AND RECOMMENDATIONS ................5 UPS DESCRIPTION AND INSTALLATION ....................10 FRONT PANEL ...............................
  • Page 3: Introduction

    Instruction manual for SPECLINE PRO 700 series power supply units INTRODUCTION Thank you for purchasing the EVER SPECLINE UPS power supply unit. It belongs to our most modern, state-of-the-art series of technologically advanced power supply units, which is primarily intended for securing the uninterrupted operation of central heating boilers, fireplaces with water jackets, pumps, and solar systems.
  • Page 4: General Features Of The Ups Unit

    Instruction manual for SPECLINE PRO 700 series power supply units GENERAL FEATURES OF THE UPS UNIT The SPECLINE UPS units are designed to work with equipment supplied from ~ 230 VAC single-phase electric power mains. When in back-up mode, they output sine wave voltage.
  • Page 5: Safety Instructions And Recommendations

    Instruction manual for SPECLINE PRO 700 series power supply units SAFETY INSTRUCTIONS AND RECOMMENDATIONS A) General remarks CAUTION! Before starting the execution of procedures described herein, please read the general safety instructions (and also instructions in this document), OHS information, environmental protection information and legal regulations;...
  • Page 6 CAUTION! In the event of a short-circuit, serious burns may be caused by high current. CAUTION! There are no end-user serviceable parts inside the UPS. CAUTION! SPECLINE PRO 700 UPS units are not intended for use directly with medical equipment, life support systems or equipment that may affect health.
  • Page 7 Instruction manual for SPECLINE PRO 700 series power supply units CAUTION! Only TN-S or TN-C-S configuration is allowed on the UPS's input, and only TN-S configuration is allowed on the UPS's output. CAUTION! No extension cords should be connected to the UPS.
  • Page 8 Instruction manual for SPECLINE PRO 700 series power supply units  Leads connected to the UPS's output should not be longer than 10 m, in order to maintain conformance with the EMC directive for products sold in Europe.  Connecting leads should be placed so that people walking over them will not step or trip on them.
  • Page 9 Instruction manual for SPECLINE PRO 700 series power supply units  CAUTION - risk of electric shock. Dangerous voltage may be present between the battery circuit and the grounding point!  Batteries have high short-circuit current and pose a risk of electric shock. The following precautions should be taken when working with batteries: -...
  • Page 10: Ups Description And Installation

    Instruction manual for SPECLINE PRO 700 series power supply units UPS DESCRIPTION AND INSTALLATION Battery Module Fig. 1: View of the front panel FRONT PANEL 1. The red signalling diode depicts various operating modes of the power supply unit, symbolically expressed by means of graphical symbols: a) red diode continuously on: mains power mode.
  • Page 11: Connection Panel - Power Supply Unit

    Instruction manual for SPECLINE PRO 700 series power supply units Fig. 2: Connection panel CONNECTION PANEL – POWER SUPPLY UNIT AC input fuse socket (mains) DC input fuse socket (battery module) Screw connection terminals of the power supply unit (INPUT, OUTPUT, BATTERY) CONNECTION PANEL –...
  • Page 12: First Start-Up

    Instruction manual for SPECLINE PRO 700 series power supply units The distance between the power supply unit and the battery modules or battery should be as small as possible. This makes it possible to use shorter connection cables, thereby helping to limit cable losses.
  • Page 13: Switching The Power Supply Unit On Withouta Mains Connection - "Cold Start

    In the case of EVER SPECLINE PRO 700 units, this is signalled by the flashing of the red diode on the front panel and an intermittent sound signal.
  • Page 14: Connecting Battery Module

    Instruction manual for SPECLINE PRO 700 series power supply units CONNECTING BATTERY MODULE You may connect 1-3 42 Ah battery modules to the power supply unit. Connections should be made with conductors with a minimum section of 2.5 mm (recommended 4 mm ).
  • Page 15: Description Of Operation Of The Ups

    Instruction manual for SPECLINE PRO 700 series power supply units DESCRIPTION OF OPERATION OF THE UPS GENERAL INFORMATION The fundamental role of the power supply unit is to supply connected devices with electricity from the attached battery modules or an external battery in the event of irregularities in the mains supply.
  • Page 16: Protection Devices Incorporated In The Power Supply Unit

    Instruction manual for SPECLINE PRO 700 series power supply units PROTECTION DEVICES INCORPORATED IN THE POWER SUPPLY UNIT Overload protection The UPS indicates an overload for a load in excess of 110% of the UPS rated power. This is signalled only in battery mode. The UPS:...
  • Page 17: Comments Regarding Operation

    INTERACTION WITH ELECTRICAL GENERATORS EVER SPECLINE PRO 700 power supply units are VFD-class devices that synchronise themselves with the mains voltage. The unit has been designed to tolerate voltage fluctuations in the range of 184-264 V and changes in the frequency of ±5 Hz in relation to the model frequency of 50 Hz.
  • Page 18 The appliance should be transported in its original packaging, under conditions concordant with those set in the product specification. EVER Sp. z o.o. shall not be liable for mechanical damage arising during the transport of the appliance without its original packaging.
  • Page 19: Technical Parameters

    Instruction manual for SPECLINE PRO 700 series power supply units TECHNICAL PARAMETERS PARAMETERS \ TYPE SPECLINE PRO 700 Part number W/SPPRTO-000K70/00 Rated output power (Apparent / Active) 350 VA / 200 W The maximum output power of 30 s (Apparent /...
  • Page 20 Instruction manual for SPECLINE PRO 700 series power supply units PARAMETERS \ TYPE SPECLINE PRO 700 Part number W/SPPRTO-000K70/00 Rated output power (Apparent / Active) 350 VA / 200 W The maximum output power of 30 s (Apparent / 700 VA / 400 W...
  • Page 21: Information On Legal Provisions And The Guarantee

    EVER Sp. z o.o. shall not be liable for any direct, indirect, extraordinary, coincidental, or consequential losses resulting from the usage of the power supply unit, even if notified of the possibility of such losses being incurred.
