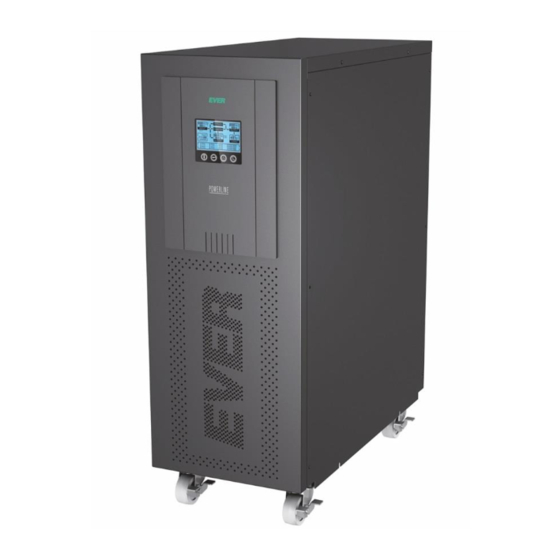

Ever POWERLINE 31 Instruction Manual

10-20 kva
Hide thumbs Also See for POWERLINE 31:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERLINE 31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ever POWERLINE 31

Summary of Contents for Ever POWERLINE 31

  • Page 2: Table Of Contents

    EVER POWERLINE 31 UPS Range Operating Manual TABLE OF CONTENTS TABLE OF CONTENTS ............................2 INTRODUCTION ..............................3 GENERAL FEATURES OF THE UPS UNIT ....................4 SAFETY INSTRUCTIONS AND RECOMMENDATIONS ................5 TECHNICAL DESCRIPTION .......................... 11 ELEMENTS OF THE UPS ..........................11 Front panel ..............................11...

  • Page 3: Introduction

    EVER POWERLINE 31 UPS Range Operating Manual INTRODUCTION Thank you for purchasing the EVER POWERLINE 31 UPS system. This UPS system has been designed and engineered to meet your expectations and provide the highest standard of protection against power failure.

  • Page 4: General Features Of The Ups Unit

    EVER POWERLINE 31 UPS Range Operating Manual GENERAL FEATURES OF THE UPS UNIT The POWERLINE 31 UPS systems consist of the following functional blocks:  system of rectifiers with PFC (power factor correction)  battery charger,  battery set,  frequency converter produced in high frequency IGBT technology, ...

  • Page 5: Safety Instructions And Recommendations

    EVER POWERLINE 31 UPS Range Operating Manual SAFETY INSTRUCTIONS AND RECOMMENDATIONS A) General information CAUTION! Before starting the procedures described in this manual, please read the general safety instructions (including the instructions found in this document), health & safety information, environmental protection information and legal regulations that may apply.
  • Page 6 EVER POWERLINE 31 UPS Range Operating Manual CAUTION! Opening the unit’s casing may result in electric shock. CAUTION! Do not touch any electrical connectors, terminals and internal metal elements unless power supply has been properly disconnected. CAUTION! All openings and spaces designed to provide access to the unit's electrical connections must remain covered (with applicable covers).
  • Page 7 EVER POWERLINE 31 UPS Range Operating Manual CAUTION! The UPS may only be connected to a power system with indicated rated voltage, with a suitable grounding connection installed. The facility's electrical system to which the UPS unit is connected must be fitted with overload and short-circuit protection.
  • Page 8 UPS unit.  All these instructions must be executed step by step. If any problems emerge when executing the instructions given in this document, please contact EVER service support (www.ever.eu).  Never disconnect the grounding at the UPS unit or at the terminals of the building's electrical system, as this will disable the UPS unit's protective grounding.
  • Page 9 EVER POWERLINE 31 UPS Range Operating Manual  WARNING: This is a C3 category UPS. For commercial and industrial use in secondary environment. Additional precautions or limitations in installation may be required to prevent the emission of interferences. D) Maintenance, repair and breakdown information ...
  • Page 10 EVER POWERLINE 31 UPS Range Operating Manual E) Transport and packaging requirements  Exercise particular care when transporting the equipment, due to its heavy weight.  Heavy equipment must be moved by at least two or more persons.  UPS units may be transported only in their original packaging boxes to ensure adequate protection against shocks, vibrations and impact.

  • Page 11: Technical Description

    EVER POWERLINE 31 UPS Range Operating Manual TECHNICAL DESCRIPTION ELEMENTS OF THE UPS Front panel The user's interface is the unit's front panel (Fig. 1) made up from an LCD display and a 4-button keyboard. These controls are used to monitor the UPS unit’s parameters and modes of operation.
  • Page 12 EVER POWERLINE 31 UPS Range Operating Manual Table 2. Description of LCD display icons Display Description Input* Input voltage value Input voltage frequency Indicates excessive input voltage; not displayed for correct voltage Indicates insufficient input voltage; not displayed for correct voltage...

  • Page 13: Rear Panel

    EVER POWERLINE 31 UPS Range Operating Manual Rear panel Fig. 2: View of the rear panel a) POWERLINE 10-31, b) POWERLINE 15-31 / 20-31 1. Cable mounts. 2. Cover of input and output terminal blocks. 3. Input breaker. 4. Communication interface for parallel operation (optional).

  • Page 14: Installation

    EVER POWERLINE 31 UPS Range Operating Manual INSTALLATION CAUTION! Before installation of the UPS unit, the user must get familiar with the safety instructions in the present chapter and with general health and safety (H&S) recommendations. UNPACKING THE PRODUCT The UPS unit must be properly examined upon delivery or handover. Although care has been taken to ensure proper and safe packaging, the product may have suffered damage due to incorrect conditions in transit.

  • Page 15: Installing The Ups Unit

    EVER POWERLINE 31 UPS Range Operating Manual INSTALLING THE UPS UNIT When selecting the place and method of installation, always take into consideration the considerable weight of the UPS unit. The UPS unit should only be used in premises where the dust, temperature, and humidity levels are within the specification.

  • Page 16: Connecting Elements

    EVER POWERLINE 31 UPS Range Operating Manual Connecting elements UPS POWERLINE 10-31 Figure 3: Connecting elements – POWERLINE 10-31 1 – Input Ground 6 – Jumper (optional parallel operation) 2 – Input Neutral 7 – Jumper (optional parallel operation) 3 – Input Phase A 8 –...

  • Page 17: Description Of The Operation Of The Power Supply Unit

    EVER POWERLINE 31 UPS Range Operating Manual FIRST START-UP When the UPS unit is started for the first time, it may be necessary to leave it connected to the mains to charge the batteries. To do this simply connect the UPS unit's mains lines.

  • Page 18: Modes Of Ups Operation

    EVER POWERLINE 31 UPS Range Operating Manual MODES OF UPS OPERATION Table 3. UPS operation modes, their codes and signaling Code Operation status Signaling STANDBY (zero) mode None BYPASS mode Single sound signal every 2 minutes NETWORK mode None 0~20% battery charge level...

  • Page 19: Line Mode (Mode "02")

    EVER POWERLINE 31 UPS Range Operating Manual The UPS unit goes into BYPASS mode when the inverter is overloaded, the permissible temperature is exceeded or the inverter is damaged, and also when the unit is switched off with the OFF pushbutton in the control panel. In BYPASS mode the voltage is supplied to the output directly from the input line via a mechanical switch (relay).

  • Page 20: Battery Mode (Mode "03")

    EVER POWERLINE 31 UPS Range Operating Manual CAUTION! Switching the UPS unit with the OFF pushbutton, located in the control panel, will not stop providing power to the device's output. The voltage present in the output disappears only when the input line is disconnected.

  • Page 21: Service Bypass Mode

    EVER POWERLINE 31 UPS Range Operating Manual SERVICE BYPASS Mode When in this mode, the UPS unit can be serviced, without having to disconnect receivers connected to its output. CAUTION! When the UPS unit is in SERVICE BYPASS mode, the receivers powered from its output are not protected against power losses in the input line in any way.

  • Page 22: Protections And Safeguards

    EVER POWERLINE 31 UPS Range Operating Manual Table 4. Description of UPS unit statuses and signalization. Code UPS unit status Signaling Overload in Line mode, UPS in BYPASS mode Double sound signal every second Overload in Line mode, inverter still operating...

  • Page 23: Epo

    EVER POWERLINE 31 UPS Range Operating Manual The Remote Emergency Power Off (Remote EPO) mechanism cuts the power supply from the UPS output to loads in extreme situations or in emergency (e.g. fire). The mechanism can be activated by the means of opening contacts of the external EPO connector (a trigger).

  • Page 24: Communication With External Management/Control Systems

    EVER POWERLINE 31 UPS Range Operating Manual COMMUNICATION WITH EXTERNAL MANAGEMENT/CONTROL SYSTEMS COMMUNICATION USING RS 232 POWERLINE UPS units have extensive management options. The user can use the RS 323 interface. In order to ensure proper communication, the UPS unit must be connected to a free port on your PC, with the supplied communication cable.

  • Page 25: Installing The Management Card

    EVER POWERLINE 31 UPS Range Operating Manual Installing the management card 1. Switch off the UPS with the push button on the control panel. 2. Switch off the UPS unit's input protections. 3. Wait around 30 sec. (the time needed to discharge the internal capacities of the UPS unit).

  • Page 26: Configuration Of Ups Unit Parameters

    EVER POWERLINE 31 UPS Range Operating Manual CONFIGURATION OF UPS UNIT PARAMETERS The UPS unit's user may use WinPower to alter some of the unit's parameters. To do this, the UPS unit must be connected to the PC with a cable provided by the manufacturer and the user must be logged in as the administrator.

  • Page 27: Operating Instructions

    EVER POWERLINE 31 UPS Range Operating Manual OPERATING INSTRUCTIONS CAUTION! This is a product designed for commercial and industrial applications, meeting the Second Environment levels. Additional precautions or restrictions to be observed during installation may be required to prevent the emission of interferences (PN-EN 62040-2 standard).

  • Page 28: Ups Operation With Power Generators

    The device should be transported in its original packaging, under conditions concordant with those set in the product specification. EVER Sp. z o.o. shall not be liable for mechanical damages arising during the transport of the appliance without its packaging of if the packaging is not original or is incomplete.

  • Page 29: Technical Parameters

    EVER POWERLINE 31 UPS Range Operating Manual TECHNICAL PARAMETERS Table 5. POWERLINE 31 technical parameters. POWERLINE 31 PARAMETERS \ TYPE POWERLINE 10-31 POWERLINE 15-31 POWERLINE 20-31 Part number T/PWRLTO-3110K0/00 T/PWRLTO-3115K0/00 T/PWRLTO-3120K0/00 10 kVA 15 kVA 20 kVA Output Power (Apparent / Active)
  • Page 30 EVER POWERLINE 31 UPS Range Operating Manual POWERLINE 31 PARAMETERS \ TYPE POWERLINE 10-31 POWERLINE 15-31 POWERLINE 20-31 BATTERIES AND TYPICAL RUNTIME Internal Batteries None External Batteries 1 x 20 VRLA 12V External battery modules (EBM) Maximum number of EBMs...
  • Page 31 EVER POWERLINE 31 UPS Range Operating Manual HOW TO SOLVE PROBLEMS POWERLINE UPS units have been designed for long-term, automatic operation and will alarm the user about problems that may appear during operation. Usually, the alarms displayed on the LCD panel do not indicate changes in input voltage parameters.

  • Page 32: Legal Regulations And Warranty

    EVER Sp. z o.o. does not provide any guarantees or warranties, including the guarantees of fitness for sale or for any specific purpose, other than the provisions set out in the warranty card.
