Summary of Contents for Ever SPECLINE Pro series

  • Page 2: Table Of Contents

    INTERACTION WITH ELECTRICAL GENERATORS ........... 13 OUTPUTS ..........................13 STORAGE, MAINTENANCE, AND TRANSPORT ............14 UTILISATION ........................14 TECHNICAL PARAMETERS ..................... 15 INFORMATION ON LEGAL PROVISIONS AND THE GUARANTEE ....... 16 DECLARATION OF CONFORMITY ................16 GUARANTEE ........................16 www.ever.eu 2012/05/18...
  • Page 3: Introduction

    In battery operation mode, the Clear Digital Sinus (CDS) system enables the equipment to generate a sinusoidal waveform at output. SPECLINE PRO series UPS units have been designed in such a way as to best meet all your expectations regarding protection against the consequences of power outages.
  • Page 4: General Description Of The Power Supply Units

    14 Ah; option to connect up to three battery modules; convenient and universal method of cable connection; 24 month guarantee; www.ever.eu 2012/05/18...

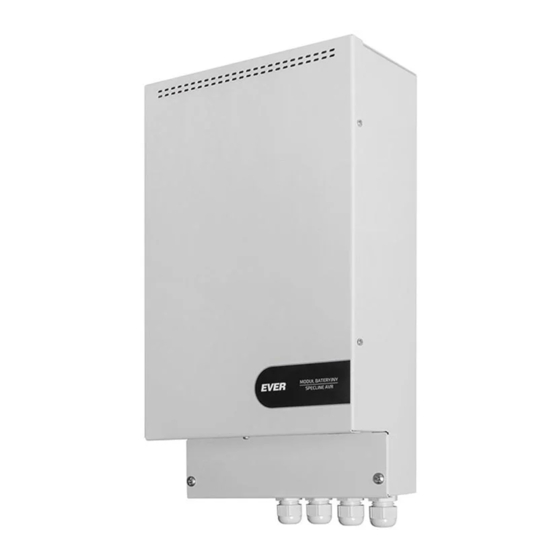

  • Page 5: Structure Of The Power Supply Unit With Abattery Module

    2. Main switch – in the event of a power outage or when the power supply unit is not connected to the mains, it starts the power supply unit in battery operation mode – cf. also “cold start”. www.ever.eu 2012/05/18...
  • Page 6: Industrial Work Safety Instructions

    INDUSTRIAL WORK SAFETY INSTRUCTIONS TRANSPORT exercise particular care when moving the appliance; heavy appliances must be moved by at least two or more persons; the appliance should be operated and stored in conditions concordant with those set in the specification; www.ever.eu 2012/05/18...
  • Page 7: Electrical Safety

    (battery); dangerous voltage may be present at the outlet, even though it may not be connected to the mains. NOTE! EVER SPECLINE PRO 700 power supply units are not intended for use with medical equipment or with health or life support systems in particular.
  • Page 8: Installation

    In extreme cases, the different protection parameters of the building and power supply unit’s systems may cause the former to be activated more rapidly. www.ever.eu 2012/05/18...
  • Page 9: First Start- Up

    Please keep in mind that when the power supply unit is working in battery mode and the red diode starts to flash and the sound signal becomes continuous, the device will shut down in no more than 30 sec. www.ever.eu 2012/05/18...
  • Page 10: Switching The Power Supply Unit On Without A Mains Connection - "Cold Start

    In the case of EVER SPECLINE PRO 700 units, this is signalled by the flashing of the red diode on the front panel and an intermittent sound signal.
  • Page 11: Description Of The Operation Of The Power Supply Unit

    If you want to turn the power supply unit on without it being connected to the mains, you can switch it on in battery mode (cf. “cold start”). www.ever.eu 2012/05/18...
  • Page 12: Protection Devices Incorporated In The Power Supply Unit

    In this case, please contact the manufacturer’s service department for replacement. Battery overcurrent protection The power supply unit is protected against exceeding the maximum battery current by two protection devices: - electronic - car fuse, UNIVAL type, 19 mm, 40 A www.ever.eu 2012/05/18...
  • Page 13: Comments Regarding Operation

    INTERACTION WITH ELECTRICAL GENERATORS EVER SPECLINE PRO 700 power supply units are VFD-class devices that synchronise themselves with the mains voltage. The unit has been designed to tolerate voltage fluctuations in the range of 184-264 V and changes in the frequency of ±5 Hz in relation to the model frequency of 50 Hz.
  • Page 14: Storage, Maintenance, And Transport

    The appliances should be transported in their original packaging, under conditions concordant with those set in the product specification. EVER Sp. z o.o. shall not be liable for mechanical damage arising during the transport of the appliance without its original packaging.
  • Page 15: Technical Parameters

    Reserve power is essential to ensure continuous operation of connected devices in case of momentary surges of load current. Continued exposure of the device to ambient temperature exceeding 25 °C will shorten the life of battery. If the altitude above sea level increases beyond the provided limit, the permitted load power of the battery decreases. www.ever.eu 2012/05/18...
  • Page 16: Information On Legal Provisions And The Guarantee

    EVER Sp. z o.o. shall not be liable for any direct, indirect, extraordinary, coincidental, or consequential losses resulting from the usage of the power supply unit, even if notified of the possibility of such losses being incurred.

This manual is also suitable for:

Specline pro 700
